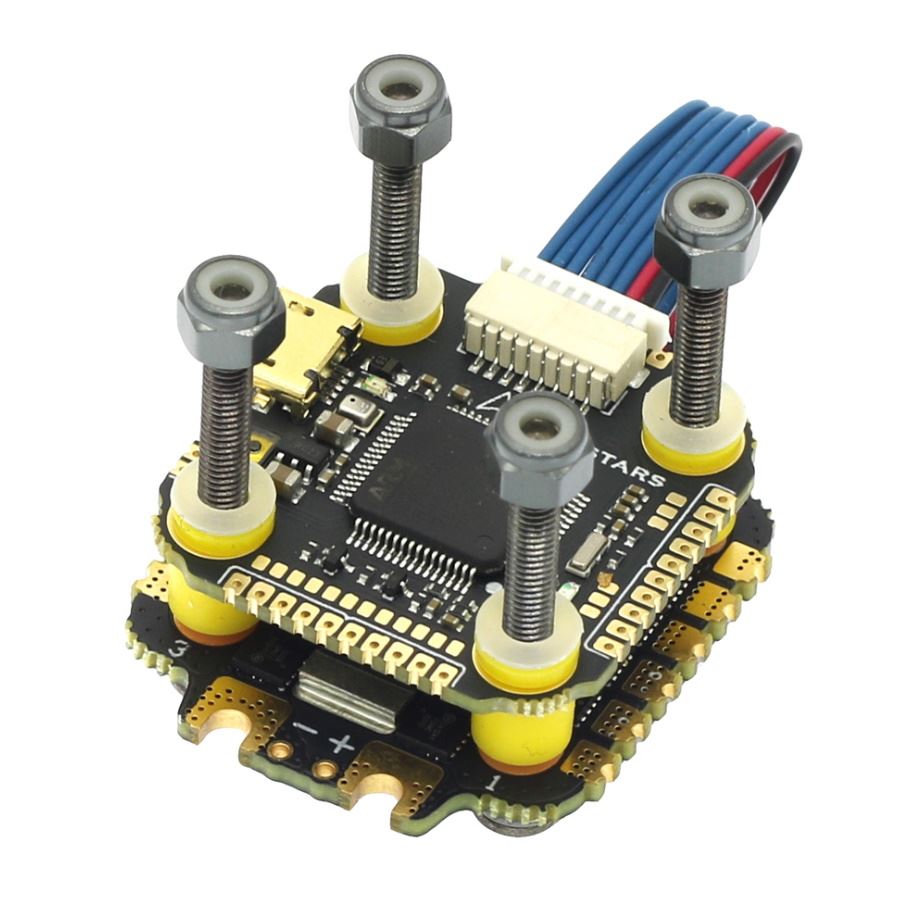

Skystars F405 HD FC + KM40 40A 4in1 ESC Stack (20mm)

Skystars F4 HD Flight Controller & KM40 4in1 40A ESC Stack, 20x20mm mounting.
Availability: Out of stock
£49.75

Overview:

The Skystars KM40 4in1 40A ESC and F4 Flight controller stack is a 20x20mm mounting stack suitable for 3-6S voltages. The KM40 ESC supports 3-6S and includes high quality Mosfets. It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot 1200 etc.

The Skystars F405 HD flight controller supports the DJI HD video system with a dedicated 10V output as well as traditional analogue video OSD. The flight controller features an innovative design which allows more of the pins to be broken out to the outside of the board. The flight controller also features a built in barometer.

** Please note the pads on the flight controller are quite small so this board should only be purchased by customers who are experienced at soldering **

ESC Specifications:
- KMA40 40A 4in1 ESC

- Input voltage: 3-6S LiPo
- Con.Current: 40A
- Peak Current: 50A≥ 10S
- Firmware: BLHeli_32
- Support : Dshot 600/1200
- Mounting hole : 20X20 mm/M3
- BEC: No
- Product size: 31*36*3.9mm
- Weight: 7.8g


Skystars F405 (20mm) FC Specifications
- Item name: F405HD Mini Betaflight Flight Controller
- Input voltage: 3-6S LiPo(11.1V~22.2V)
- MCU:STM32F405RGT6 168MHz
- IMU: MPU6000 (SPI)
- OSD: Betaflight OSD &DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6,)
- Receiver:TBS/PPM/SBUS/IBUS/DSM
- Barometer: YES
- Buzzer Pad: YES
- CURR Pad: YES
- BEC 5V 2A & 10V 2A(Max 3A)
- Blackbox: 8MB
- Firmware: SKYSTARS F405HD
- Mounting Holes: 20mm/M3
- Weight: 4g

Includes:
- 1x Skystars F405 HD Flight Controller (20mm)

- 1x Skystars KM40A 4in1 40A ESC
- Accessories (Wires, capacitor etc)
