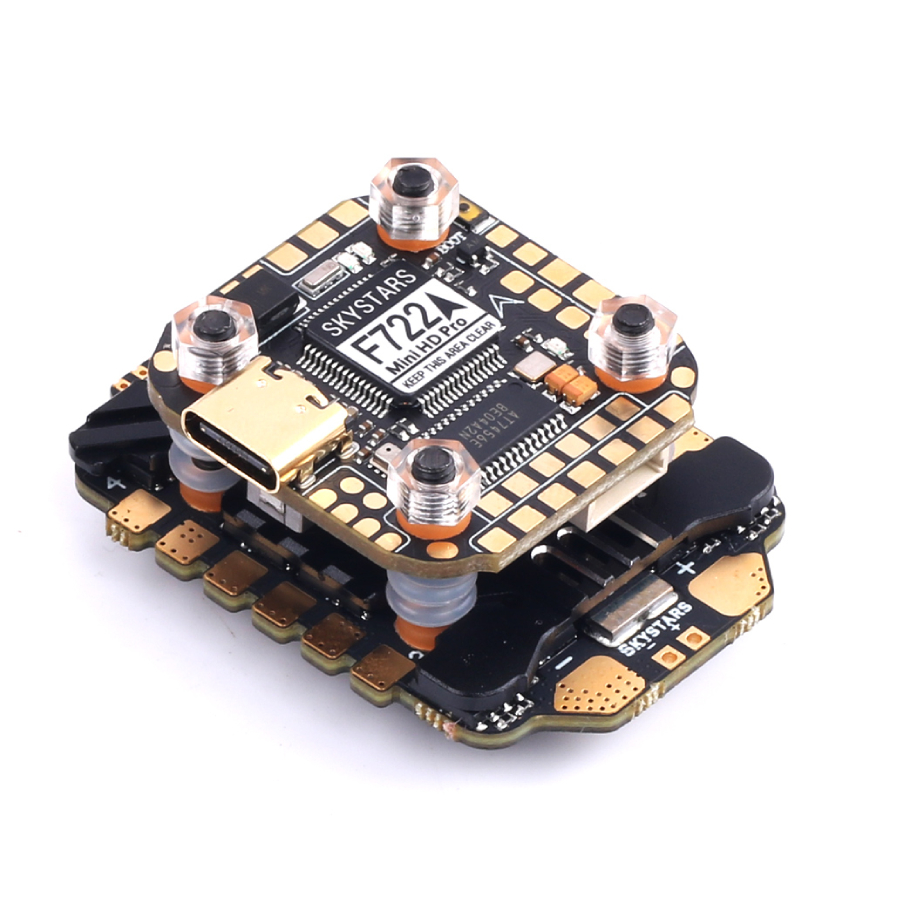

Skystars F7 HD FC + KM55 55A 4in1 ESC Stack (20mm)

Skystars F7 HD Flight Controller & KM55 4in1 55A ESC Stack, 20x20mm mounting.
Availability: In stock
£58.75

Overview:

The Skystars KM55 4in1 55A ESC and F7 Flight controller stack is a 20x20mm mounting stack suitable for 3-6S voltages. The KM45 ESC supports 3-6S and includes high quality Mosfets. It runs BLHeli_32 firmware and supports all recent modern ESC protocols like DShot 1200 etc.

The Skystars F7 HD flight controller supports the DJI HD video system with a dedicated 10V output as well as traditional analogue video OSD. It features a high speed F7 processor and has 6 uarts for connecting peripherals. The flight controller features an innovative design which allows more of the F7 pins to be broken out to the outside of the board. The flight controller also features 4 controllable LEDs and a built in barometer.

** Please note the top pads on the flight controller are quite small so this board should only be purchased by customers who are experienced at soldering **

ESC Specifications:

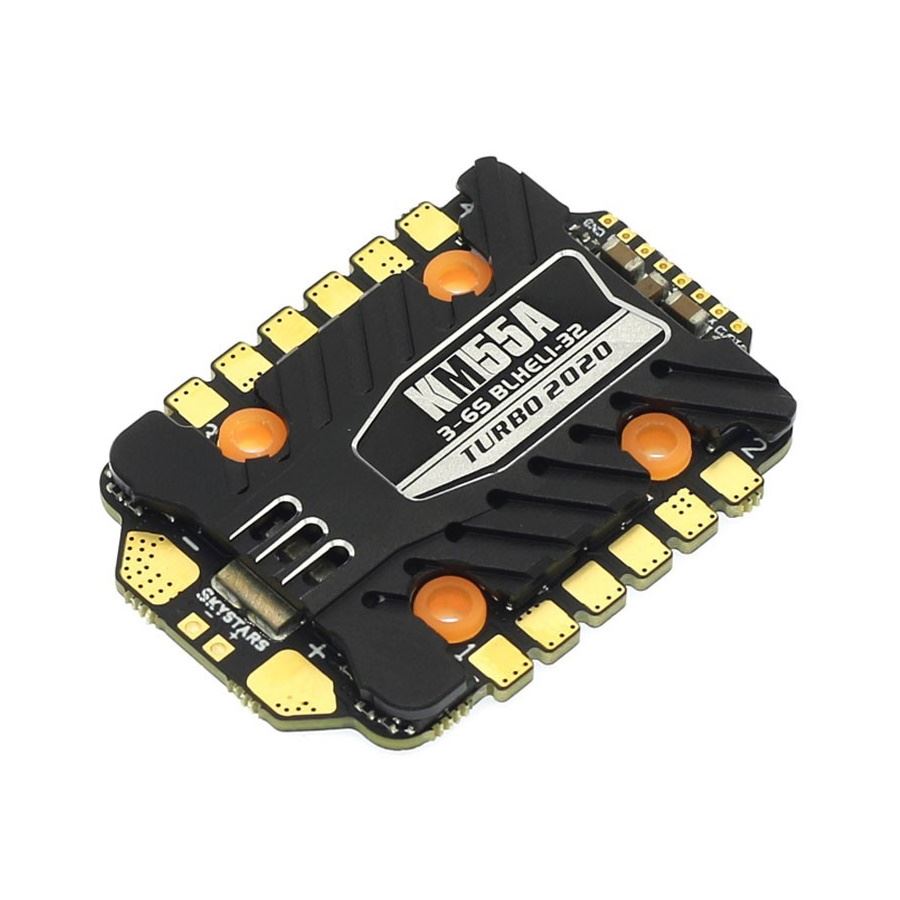

- Skystars KM55 55A 3-6S 4 in 1 ESC
- Input voltage: 3-6S LiPo
- Con.Current: 55A
- Peak Current: 70A ≥ 10S
- Firmware: BLHeli_32
- Support : Dshot 600/1200
- Mounting hole : 20X20 mm/M3
- BEC: No
- Product size: 35*47*6.5mm
- Weight: 16.5g

Skystars F7 HD (20mm) FC Specifications
- SKYSTARS F7 HD 20X20 Flight Controller
- MCU: STM32F722RGT6 216MHz
- IMU: MPU6000
- OSD: Betaflight OSD & DJI HD OSD
- Barometer: YES
- Buzzer Pad: YES
- 5V 2A & 10V 2A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7HD
- Dimensions: 35x28x7mm
- Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.2g

Includes:
- 1x Skystars F7 HD Flight Controller (20mm)

- 1x Skystars KM55A 4in1 55A ESC
- Accessories (Wires, capacitor etc)
