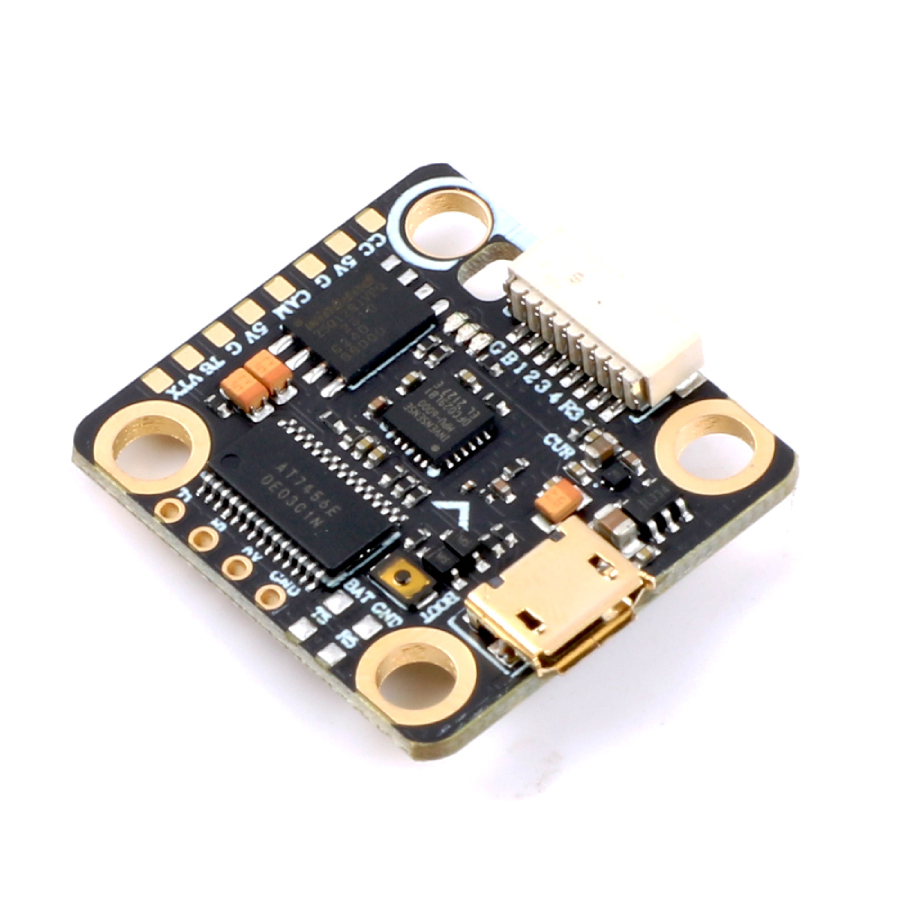

Skystars F7 RS Flight Controller (20mm) (MPU6000)

Overview:

The Skystars F7 RS flight controller supports the DJI HD video system as well as analogue FPV. It features a high speed F7 processor and has 6 uarts for connecting peripherals. The on-board gyro is the ever popular MPU6000. The flight controller is 20x20mm M3 mounting.

Specifications
- MCU: STM32F722RGT6 216MHz
- IMU: MPU6000 (SPI)
- OSD: Betaflight OSD &  DJI HD OSD (UART6)
- 6 hardware UARTS (UART1,2,3,4,5,6)
- Barometer: NO
- Buzzer Pad: YES
- 5V 3A
- Input Voltage: 3-6S Lipo
- Blackbox: 16MB
- Firmware: SKYSTARS F7 RS
- Dimensions: 26x28x7mm
- Mounting Holes: Standard 20mm/M3 square to center of holes
- Weight: 4.9g

Includes:
- 1x Skystars F7 RS Flight Controller (20mm) (MPU6000)
- Accessories
