Skyzone F405 Navi Flight Controller

Overview:

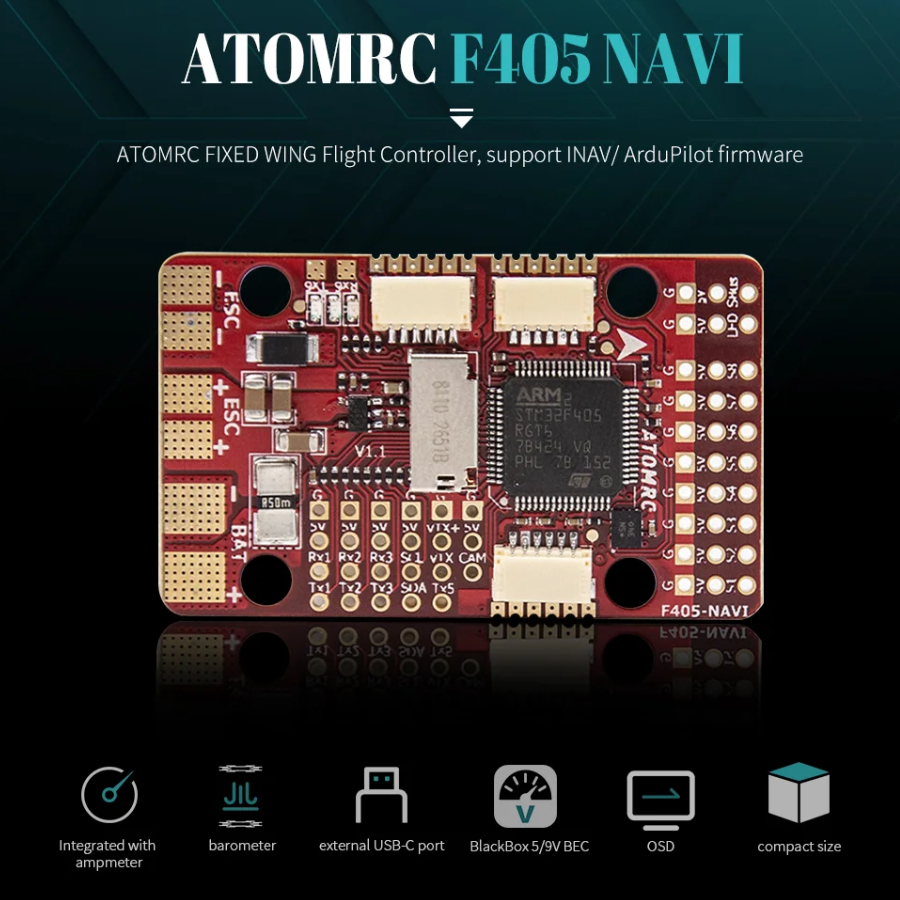

The ATOMRC F405 NAVI is a feature-rich flight controller designed specifically for fixed-wing aircraft and VTOL platforms. Compatible with both INAV and ArduPilot firmware, it combines a powerful STM32F405 processor with an integrated barometer, OSD, current sensor and dedicated BEC outputs, providing a reliable foundation for everything from FPV cruisers to fully autonomous aircraft.

Designed with fixed-wing installations in mind, the F405 NAVI offers eight PWM outputs, multiple UARTs and dedicated connections for GPS, digital FPV systems and external peripherals. The integrated 120A current sensor, dual BEC outputs and onboard MicroSD Blackbox logging simplify wiring while providing the telemetry and flight data needed for tuning and long-range navigation.

Whether you're building an FPV platform or autonomous fixed-wing model, the F405 NAVI delivers the flexibility and connectivity required for reliable flight control, GPS-assisted navigation and advanced flight modes.

Features:
- Designed specifically for fixed-wing aircraft and VTOL platforms
- Compatible with both INAV (5.0 and later) and ArduPilot firmware
- STM32F405 processor provides reliable flight performance
- Integrated BMI270 IMU and SPL06-001 barometer
- AT7456E onboard OSD for analogue FPV systems
- MicroSD Blackbox logging for flight analysis and tuning
- Eight PWM outputs support a wide range of aircraft configurations

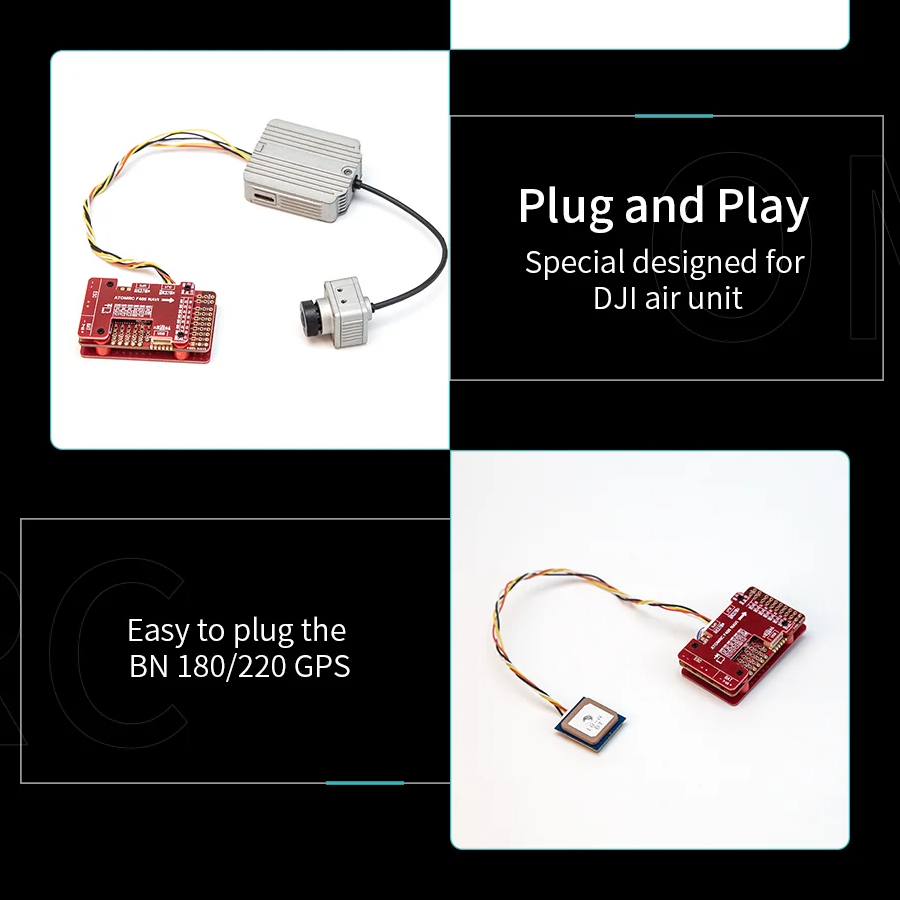

- Dedicated GPS and DJI Air Unit connections simplify installation
- Dual BEC outputs provide separate power for servos and FPV equipment

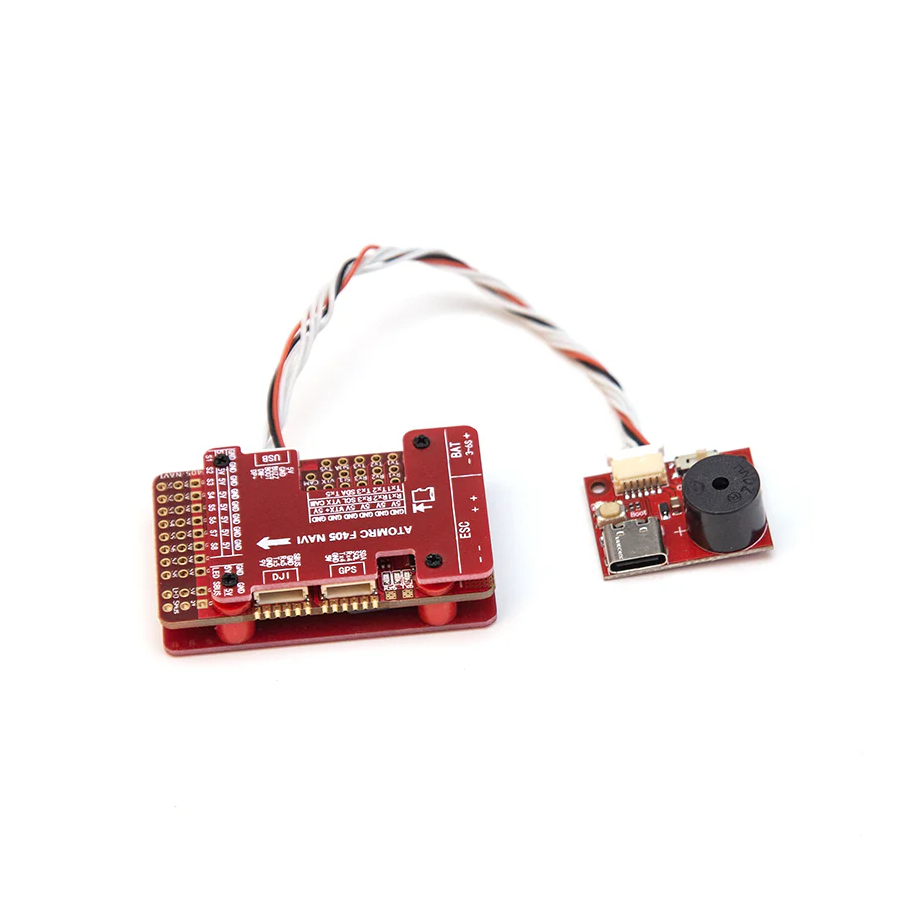

- External USB Type-C and buzzer module for convenient installation and access
- Integrated 120A current sensor for accurate power monitoring
- SBUS input with built-in inverter

Specification:

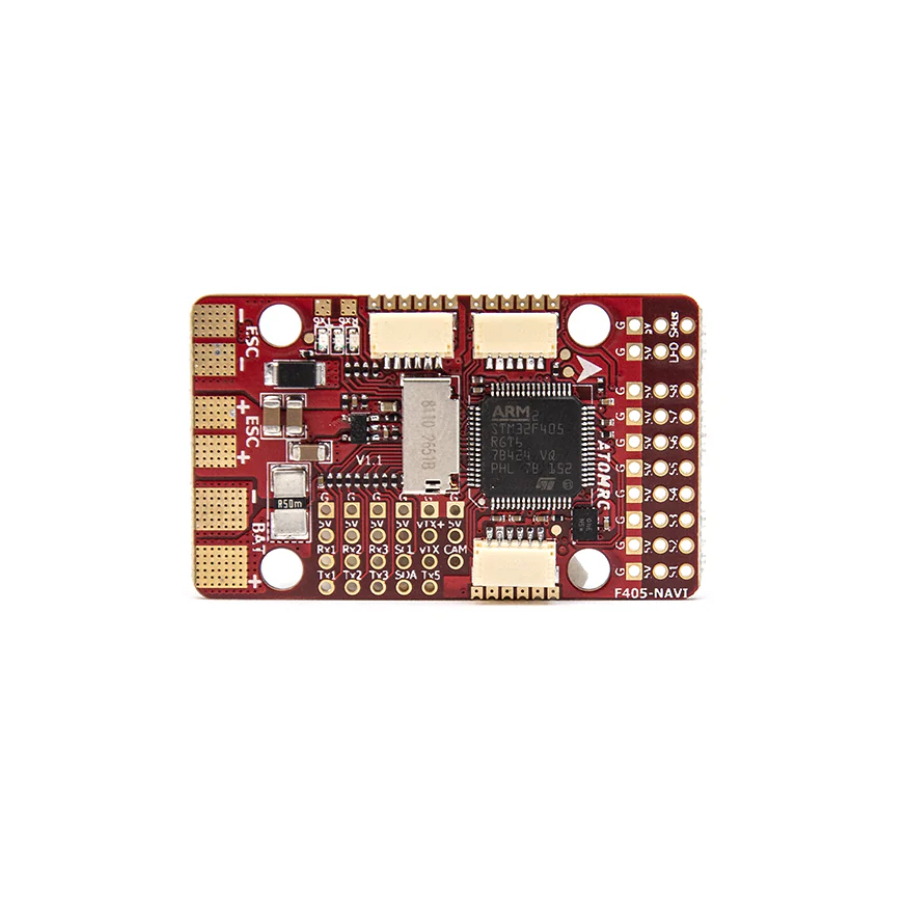

- MCU: STM32F405RGT6, 168MHz, 1MB Flash
- IMU: Bosch BMI270
- Barometer: SPL06-001
- OSD: AT7456E
- Blackbox: MicroSD card slot
- UARTs: 5
- PWM outputs: 8
- 12C: 1
- ADC inputs: 3 (VBAT, Current, RSSI)
- Input voltage: 12-30V (3-6S LiPo)
- Current sensor: 120A
- Servo BEC output: 5V@5A
- Camera/VTX BEC output: 9V@2A BEC for VTX and camera
- SBUS inverter: UART2-RX

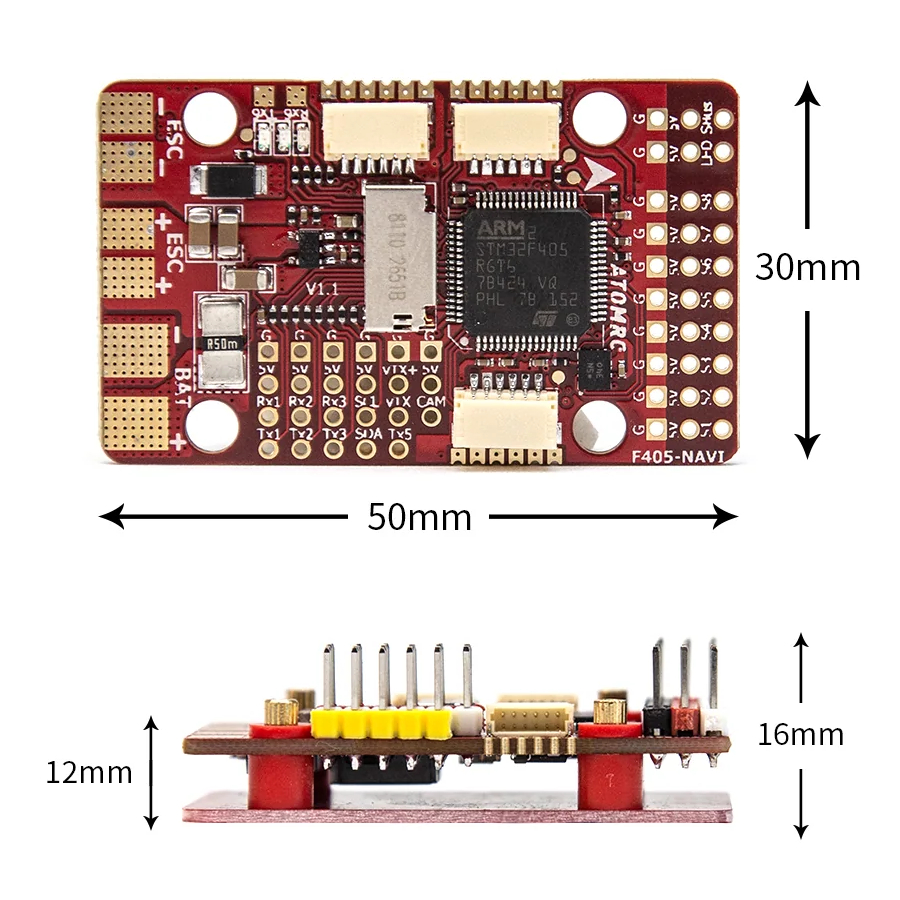

- Dimensions: 50x30x12mm
- Mounting pattern: 30x24mm (3mm mounting holes)
- Weight: 21g
- Firmware target:  ArduPilot: ATOMRC F405NAVI. INAV: ATOMRC F405NAVI (INAV 5.0 or newer)

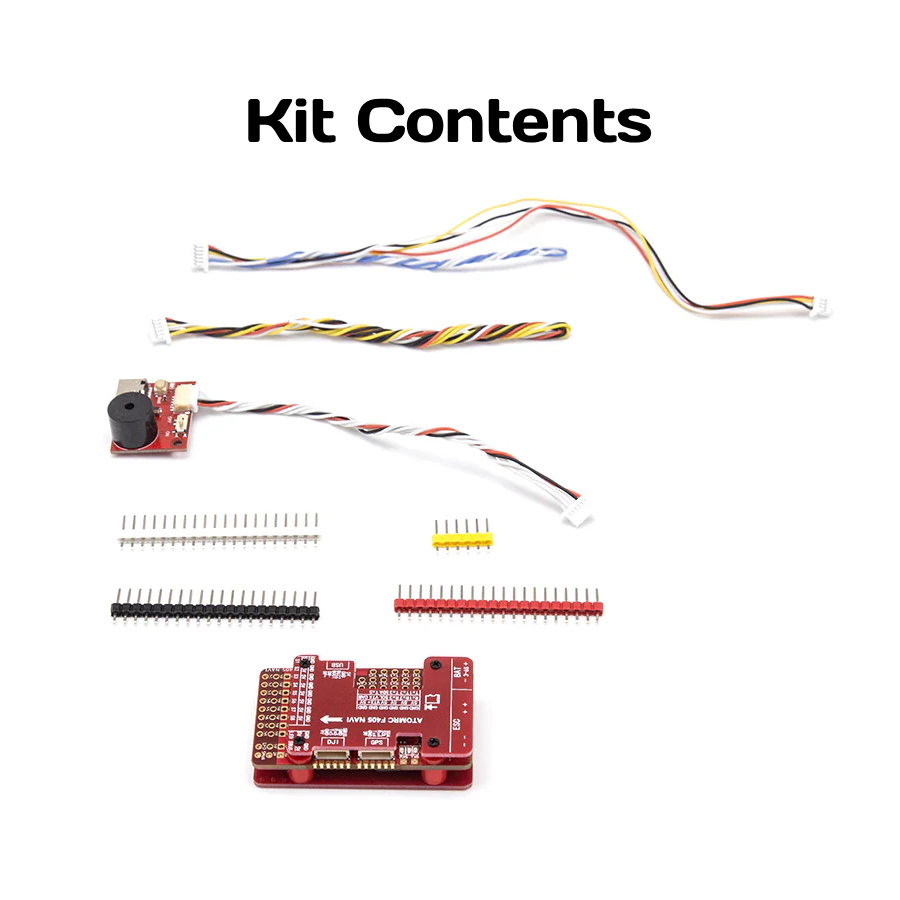

Included:
- 1x ATOMRC F405 NAVI Flight Controller
- 1x External USB Type-C/Buzzer Module
- 1x 12cm JST-SH 6-pin to JST-SH 6-pin Cable
- 1x 20cm JST-SH 6-pin Cable (GPS/DJI Air Unit)
- 1x 35V 470µF Low ESR Capacitor
- Fitting Accessories
