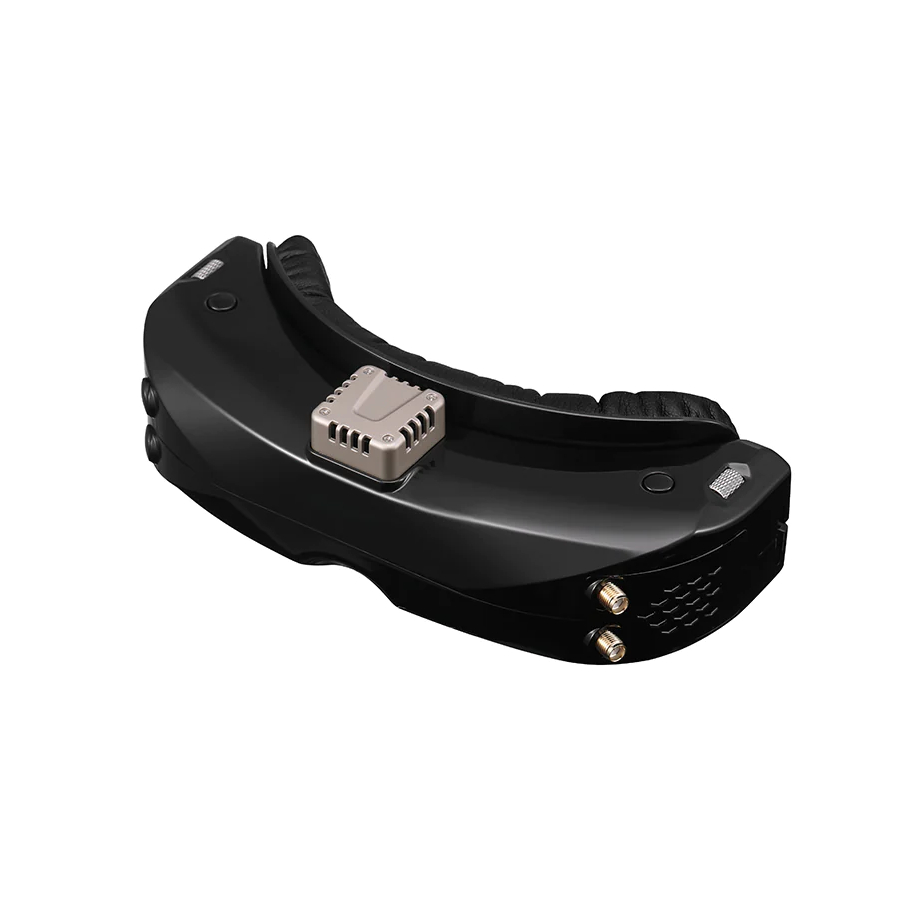

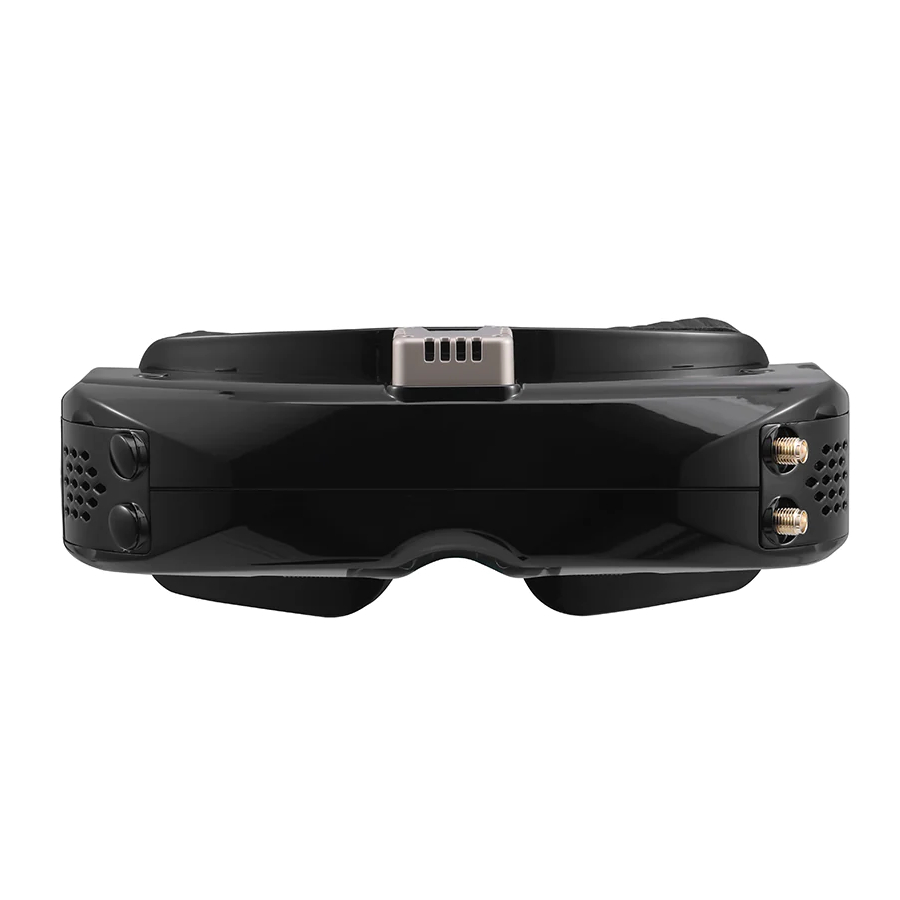

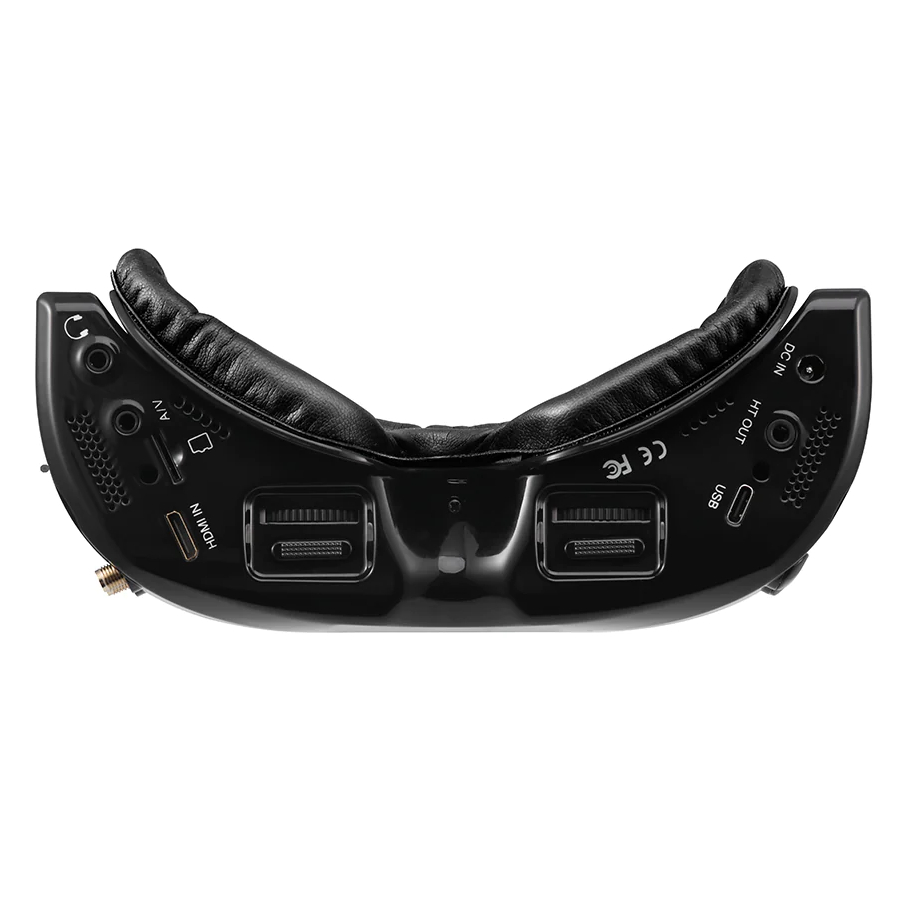

Skyzone SKY04X Pro OLED FPV Goggles

Overview:
The Skyzone SKY04X Pro is a premium analogue FPV goggle designed for pilots who want a large, high-resolution OLED display without sacrificing compatibility with conventional 5.8GHz analogue FPV systems. The upgraded optics provide a 52° diagonal field of view, while the 1920×1080 OLED display delivers a detailed, immersive image.

The integrated SteadyView V3.3 5.8GHz receiver supports 48 channels and combines the received signals to provide a more stable FPV image. The goggles can also accept an external digital VRX through HDMI, with support for 720P at 100FPS, making the SKY04X Pro suitable for digital systems that provide an HDMI output.

A major advantage of the Pro is its improved display and optics. The 1920×1080 OLED panel is a substantial step up from the 1280×960 display used in the SKY04X V2, while the wider 52° field of view gives the image a more immersive appearance. The built-in cooling fan is used to manage the heat generated by the higher-performance OLED panel.

The SKY04X Pro also includes an integrated DVR, adjustable focus and IPD, and a three-axis accelerometer and gyroscope for head tracking. A choice of wide and narrow faceplates is supplied, allowing pilots to select the fit that suits them best. The goggles are finished in a matt coating designed to reduce fingerprints and glare.

Features:
- High-resolution 1920×1080 OLED display.
- Large 52° diagonal field of view provides an immersive FPV image.
- SteadyView V3.3 receiver combines two receiver signals for improved video stability.
- 48-channel 5.8GHz analogue receiver covers the standard FPV frequency bands.
- HDMI input supports 720P at 100FPS for compatible digital VRX systems.
- Integrated H.264 DVR records analogue FPV footage at 60fps.
- Adjustable focus accommodates different eyesight requirements.
- Adjustable IPD allows the optics to be positioned to suit the pilot.
- Integrated three-axis accelerometer and three-axis gyroscope provide head-tracking capability.
- Built-in cooling fan manages the higher thermal load of the OLED display.
- Switchable 4:3 and 16:9 display formats.
- Two faceplate sizes supplied to accommodate different face shapes.
- Matt exterior finish reduces glare and fingerprints.
- Supports a wide range of conventional 5.8GHz analogue FPV systems.

Specification:
- Display type: OLED
- Display resolution: 1920×1080
- Field of view: 52° diagonal
- Aspect ratio: 4:3 / 16:9
- Focus adjustment: -2 to +6 dioptres
- IPD adjustment: 58-71mm
- Receiver: 5.8GHz 48-channel SteadyView V3.3
- DVR format: H.264
- DVR recording: 60fps
- HDMI input: 720P 100FPS
- Input voltage: 2-6S LiPo
- Head tracker: 3-axis accelerometer and 3-axis gyroscope
- Dimensions: 185×75×67mm
- Weight: 267g
- Receiver module: SteadyView V3.3
- Antennas: 2×5.8GHz 2dB
- External storage: microSD card
- USB connection: USB-C

Included:
- 1x SKY04X Pro FPV Goggles
- Accessories
