Overview:

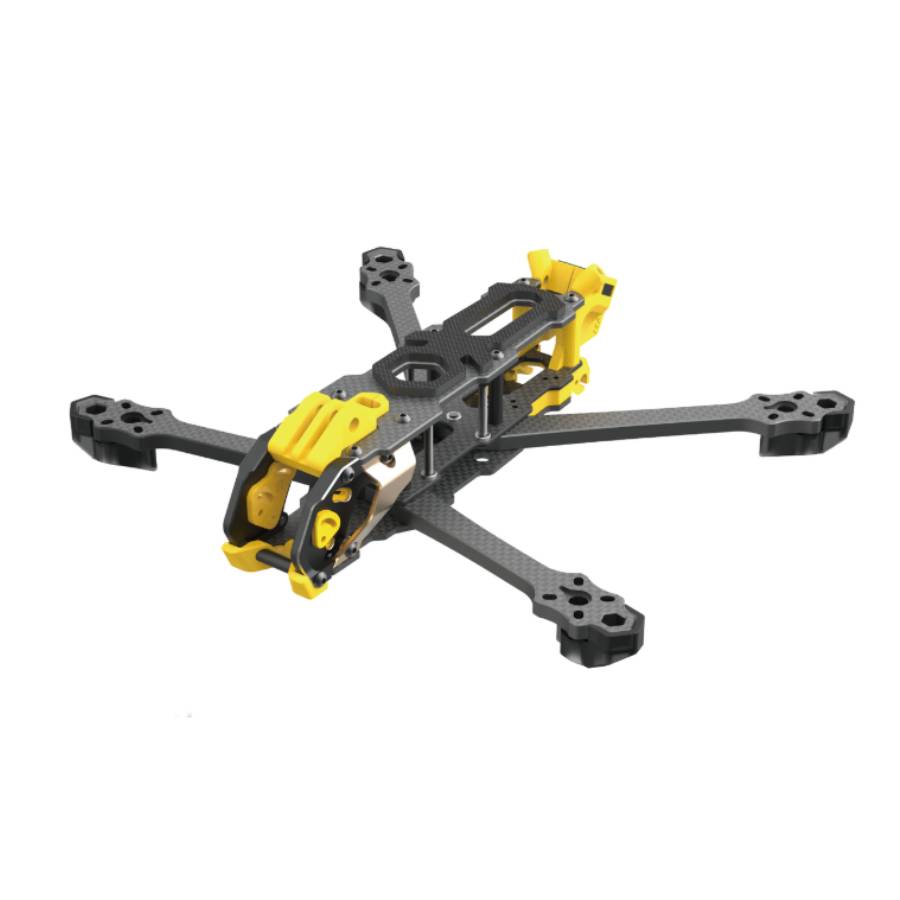

The SpeedyBee Mario 5 DC O4 Frame is the perfect frame for the DJI O4 Pro Air Unit, DJI O3 and various Analogue VTX. The dead-cat design provides the pilot with a propeller-free field of view. It also comes with a mount for your GoPro. The frame is made from T300 3K carbon fibre.
The Pro version comes with the addition of side plates to enable better heat dissipation. It can accommodate a 30.5x30.5mm stack, a 20x20 or 25.5x25.5mm VTX and 5.1" propellers.
Features:
- DeadCat geometry
- Aluminium alloy head
- DJI O3/O4 Pro and analogue VTX compatible
- Selectable dual feed to adjust the centre of gravity
Specification:
- Wheelbase: 227mm
- Weight (3D Printed Parts Excluded): 129~5g
- Weight (3D Printed Parts and Injection): 170~5g
- Top Plate Thickness: 2.5mm
- Middle Plate Thickness: 2.0mm
- Bottom Plate Thickness: 2.5mm
- Arm Thickness: 6mm
- Camera Mounting Screw: 7mm
- Compatible Propeller Size: 5.1"
- Motor Mounting Hole Distance: 16-19mm
- FC Mounting Hole: 30.5x30.5 (M3)
- VTX Mounting Hole: 20x20(M2)/25.5x25.5(M2)
- Internal Mounting Height: 23-31mm
- Receiver Installation Space: 25x13x6mm
- GPS Installation Size: 18x18x7mm
Available versions:
- SpeedyBee Mario 5 DC O4 Frame Kit (Advanced Version)
- SpeedyBee Mario 5 DC O4 Frame Kit (Pro Version) Is the same as the version above but also comes with a Heatsink Kit.
Included:
- 1x SpeedyBee Mario 5 DC O4 Frame Kit
- Accessories
