Overview:

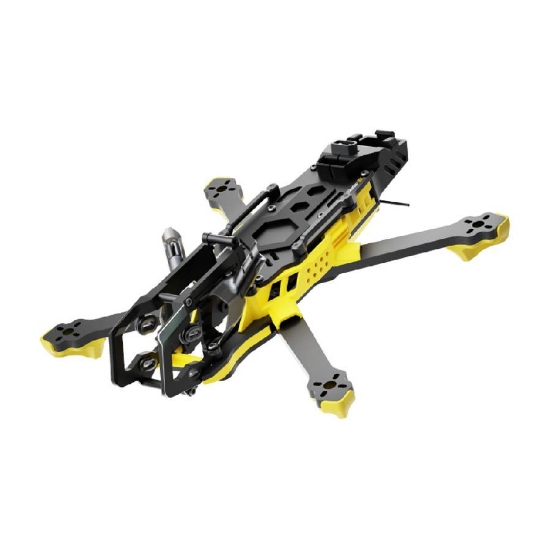

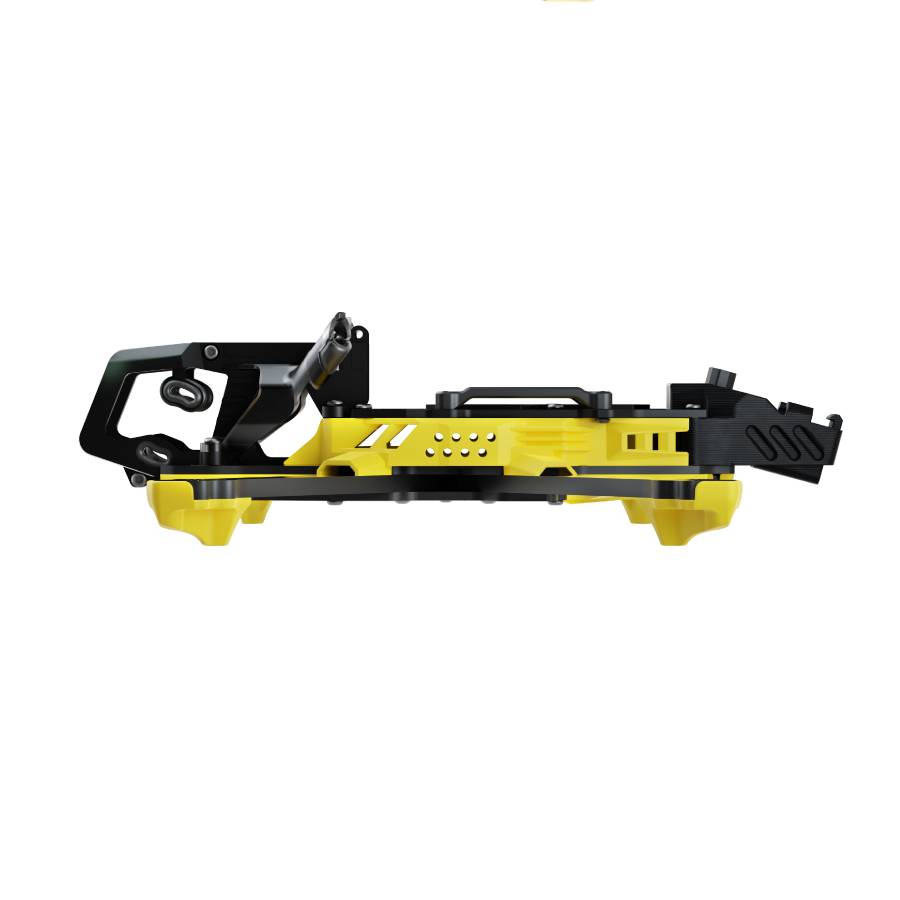

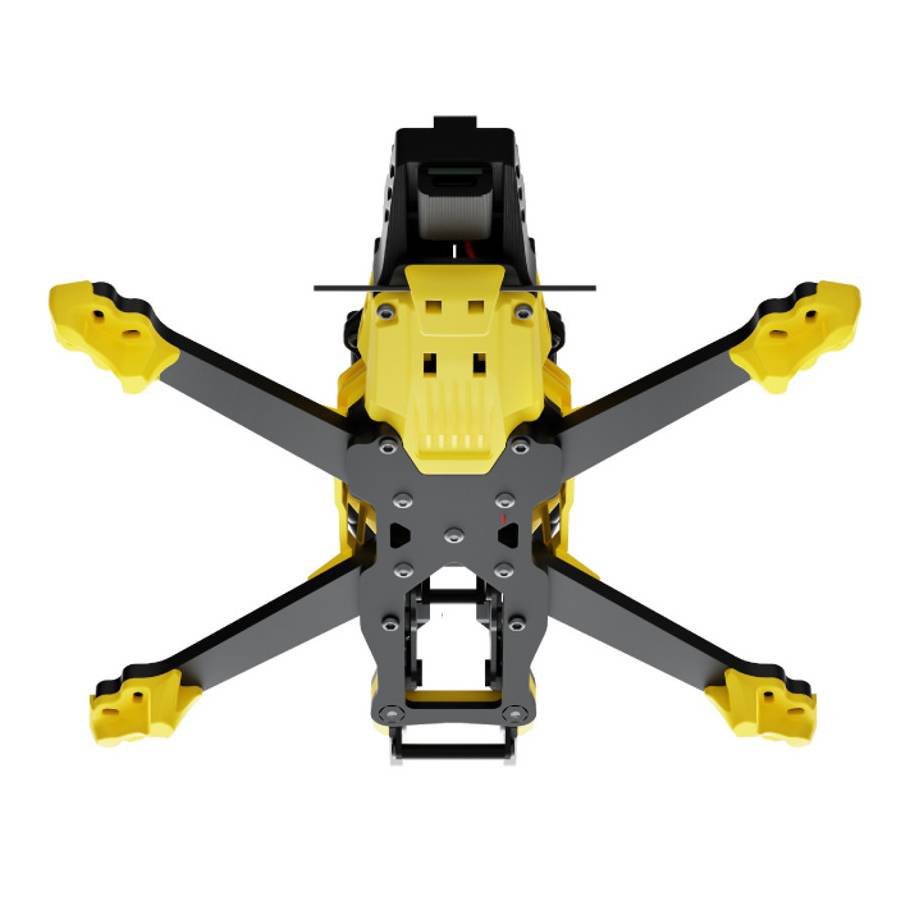

The SpeedyBee Master3X offers a versatile and lightweight solution for pilots building a 3–3.6 inch freestyle or cinematic FPV drone. There are multiple versions to choose, making its modular front section compatible with SpeedyBee Bee25-series VTX units, DJI O3/O4 Pro too. This modular section enables rapid swap-outs without rebuilding the entire quad. CNC-cut 4 mm carbon arms and a low-centre-of-gravity X-frame layout deliver a responsive, stable flight experience. Whether you're diving through gaps or capturing smooth cinematic views, the Master3X can be adapted to suit your style.
Features:

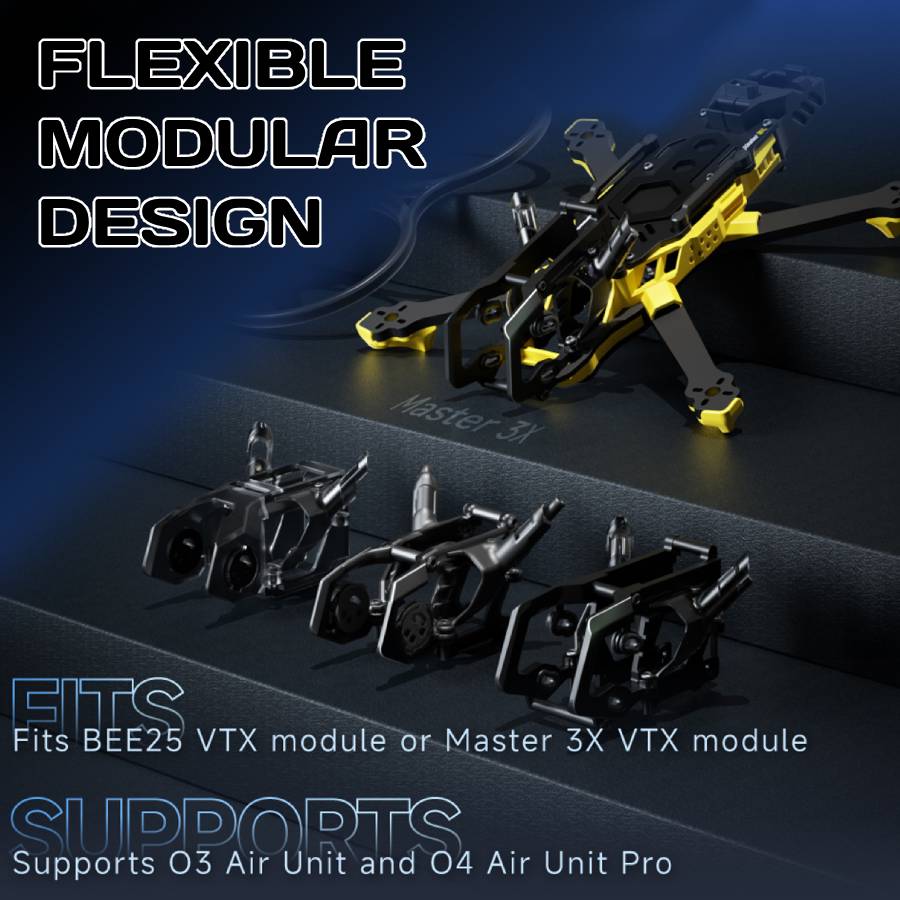

- Modular head mount allows swift swapping of digital VTX modules without replacing the frame
- Balanced head design reduces vibration and "jello" in footage
- Durable carbon arms (4 mm thick) designed to withstand freestyle impacts

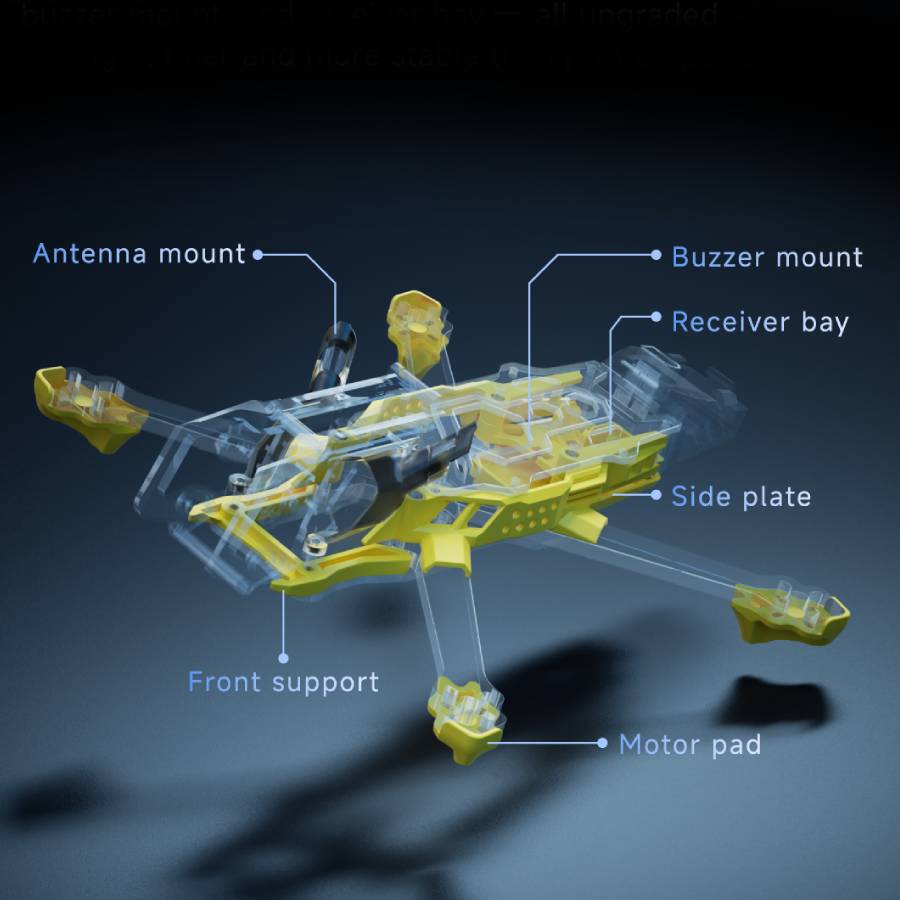

- Includes rigid injection-moulded plastic accessories such as landing pads, side panels, receiver and buzzer mounts
- X-style low‑centre-of-gravity frame geometry enhances agility and stability
- Modular front allows the same VTX module to be used across multiple drones, reducing cost
Specifications:
- Model: SpeedyBee Master3X Frame (Master3X FRM)

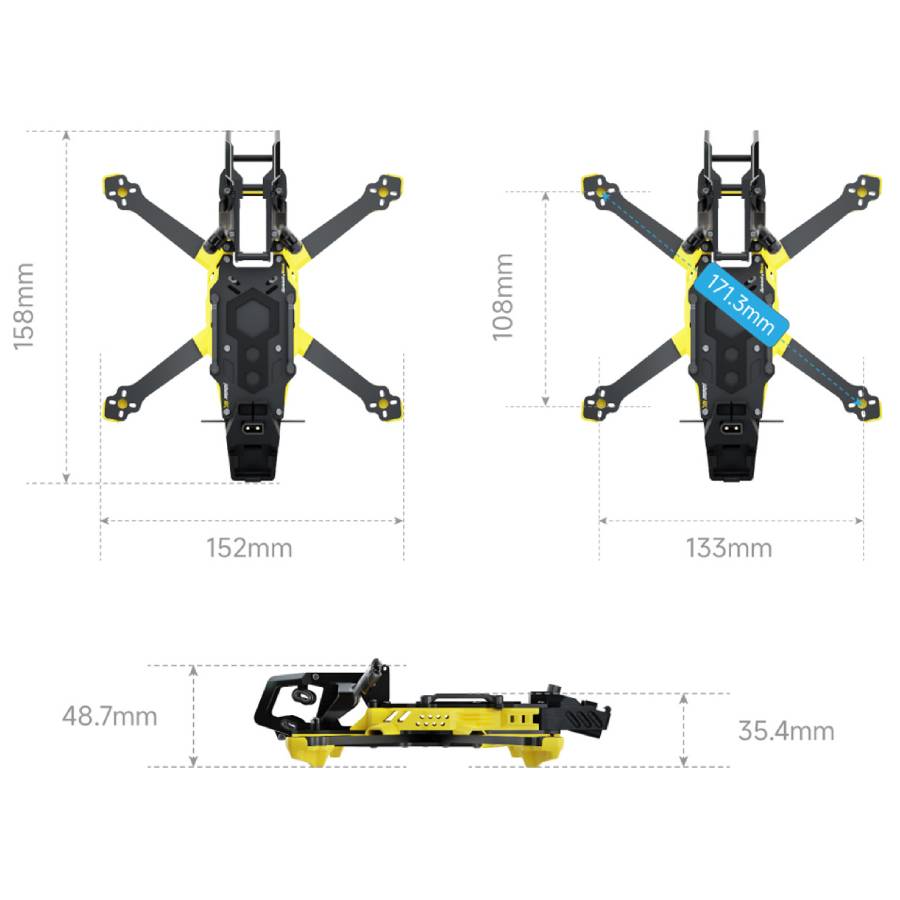

- Wheelbase: 171 mm
- Weight: ~87g (without head module)
- Arm thickness: 4 mm
- Plate thickness: 2 mm top, middle and bottom
- Stack height: 11 mm
- Stack mounting holes: 25.5 × 25.5 mm
- Camera mount pitch: 19/20 mm
- Propeller compatibility: 3–3.6 in
- Motor mounting holes: 9 mm or 12 mm with M2 screws
- Battery bay maximum: 67 × 31 × 40 mm
- Recommended motors: 1507, 1804, 2004, 2006, 2105.5
- Suggested motor KV: 4S: 3000–3600 KV; 6S: 2200–2750 KV
- Battery recommendation: 4S LiPo 750–1100 mAh, 6S 650–850 mAh
- GPS mount support: 18.1 × 18.1 mm GPS footprint
Available Versions (See below for purchase options):
- SpeedyBee Master3X Frame (NH Version) has no modular head
- SpeedyBee Master3X Frame (ZS Version) comes with an Injection Molded Head
- SpeedyBee Master3X Frame (O3) comes with an Aluminum Alloy Head to fit a DJI O3 Air Unit
- SpeedyBee Master3X Frame (O4) comes with an Aluminum Alloy Head to fit a DJI O4 Air Unit Pro
Included:
- 1x SpeedyBee Master3X Frame
- Accessories
