Overview:
The T-Hobby (T-Motor) BPP-4D F3P Combo Set is designed for pilots looking to enhance the performance of their F3P fixed-wing aircraft. At its core is the AM40 4D brushless DC motor, engineered to deliver high efficiency, smooth output and dependable reliability. Paired with the F3P 16A ESC, the system provides a responsive and stable power delivery that is essential for precision and control in competitive F3P flying. Completing the setup is the T8542 4D propeller, which ensures balanced thrust and excellent manoeuvrability, allowing your aircraft to be responsive and agile in the air.
More than just a collection of components, the BPP-4D Combo Set forms a complete power solution for demanding F3P applications. Running BLHeli-S firmware, the ESC offers exceptionally fast throttle response, enabling pilots to perform complex manoeuvres.
Designed with flexibility in mind, the ESC supports a wide range of protocols, including PWM, Oneshot125, Oneshot42 and Multishot, making it suitable for various flying styles and control systems. The switching function allows pilots to fine-tune the setup to suit their preferences. Supplied with practical assembly tools, the combo set is straightforward to install and maintain, making it accessible for both experienced competitors and dedicated hobbyists.
Overall, the T-Motor BPP-4D Combo Set is an excellent choice for pilots seeking precision, durability and refined performance in F3P flying.
Features:

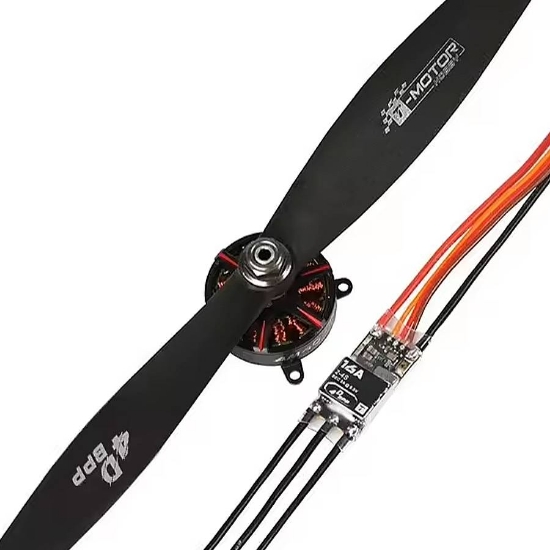

- BPP-4D Combo includes an AM40 1850KV motor, AM16A ESC and T8542 4D propeller, which is specialized for F3P.

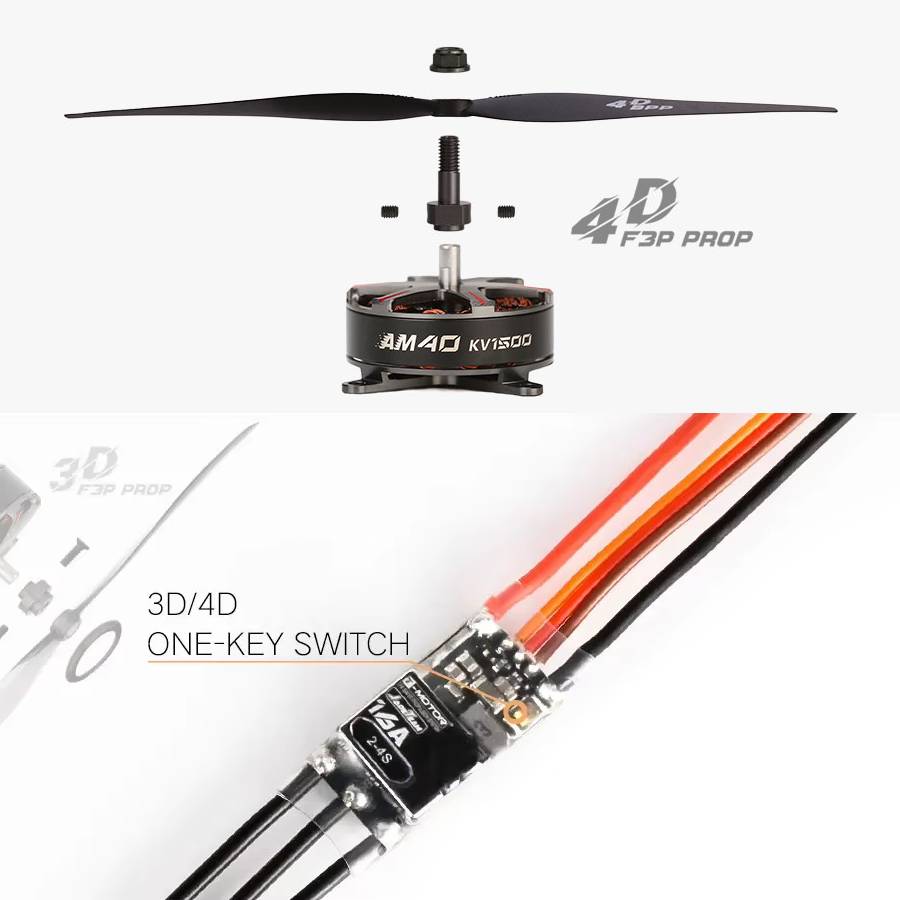

- Light and robust, can easily switch from 3D to 4D when installing the 4D prop adapter.
- 3D/4D one-key switch.

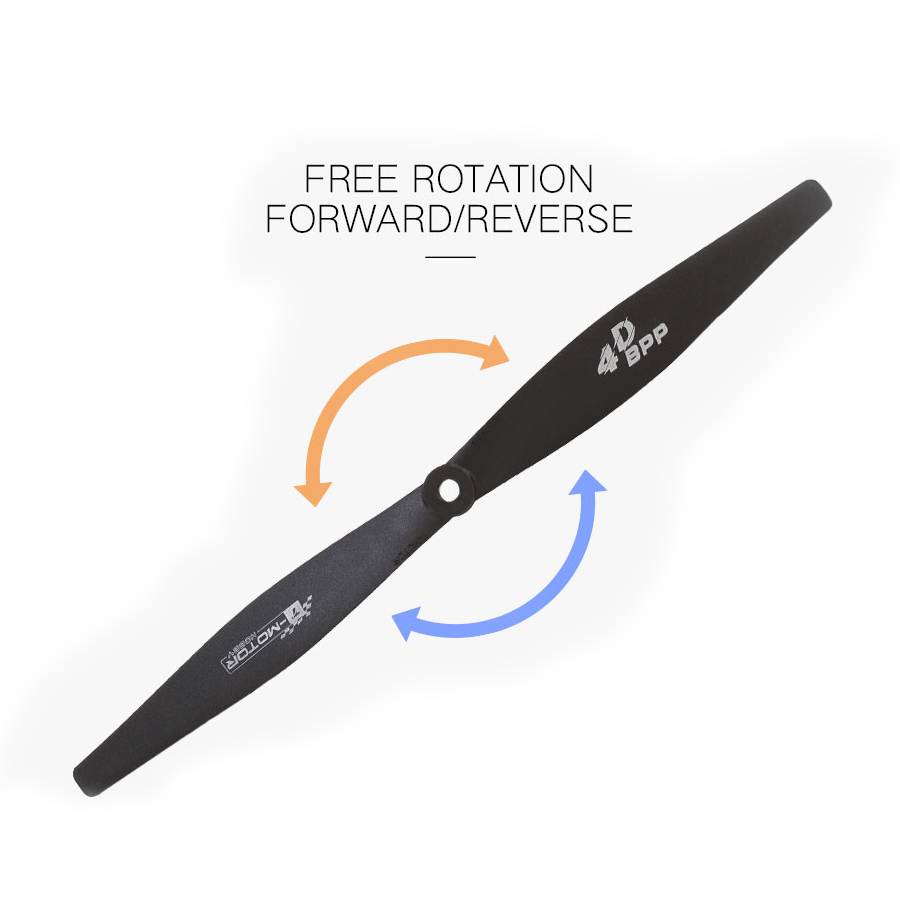

- Free rotation forward/reverse.
- Excellent and delicate control.
Motor Specifications:
- KV: 1850KV
- Configuration: 12N14P
- Shaft Diameter: 4mm
- Internal Resistance: 138.5mΩ
- Motor Dimensions (Dia.*Len): Φ28x18.7mm
- Weight with wires(g): 22.5g
- ldle current@10v(A): 0.95A
- No.of Cells(Lipo): 2-3S
- Cable length: 40mm
AM16A ESC Specifications:
- Item Name: AM 16A 3D/4D
- Continuous Current: 16A
- Instantaneous Current (15s): 25A
- Number of Lithium Batteries: 2-4S
- BEC: Yes
- Weight: 8.5g
- Size: 12x24x6.2mm
- Applications: Suitable for 120g-320g RC Fixed Wing
T8542 4D Propeller Specifications:
- Item Name: T8542 4D Propeller
- Weight: 4.9g
Included:
- T-Motor BPP-4D F3P 1850KV Combo Fixed Wing - (AM40 1850KV motor, AM16A ESC and T8542 4D Prop)
