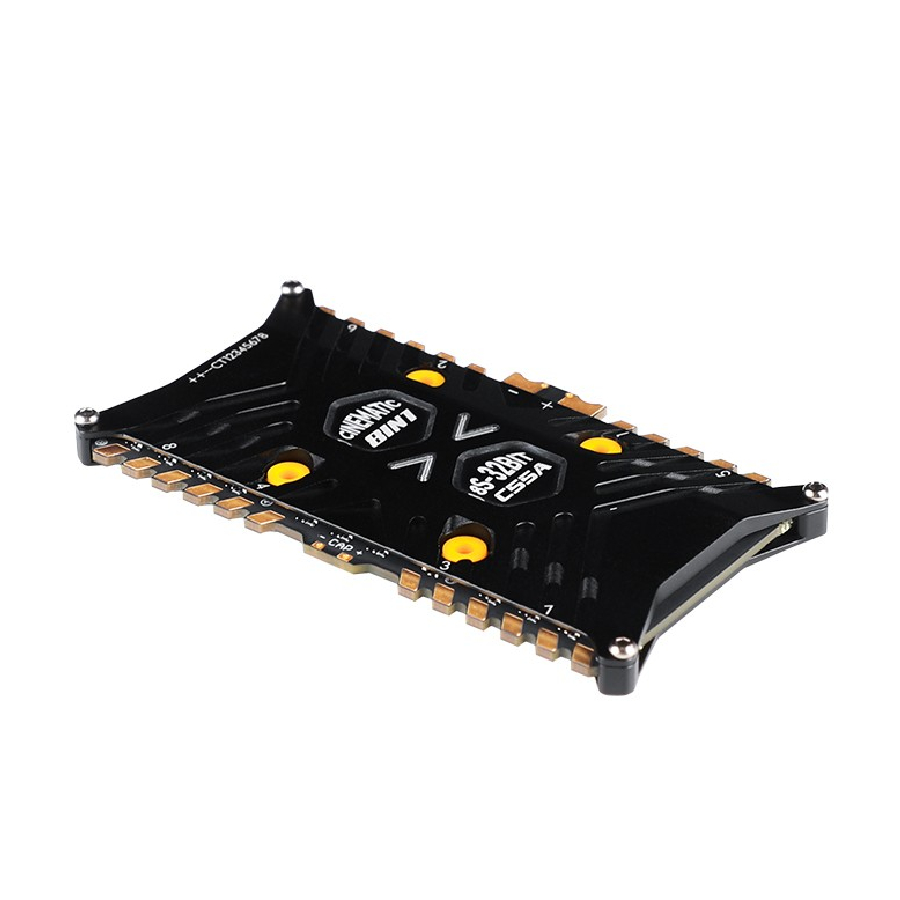

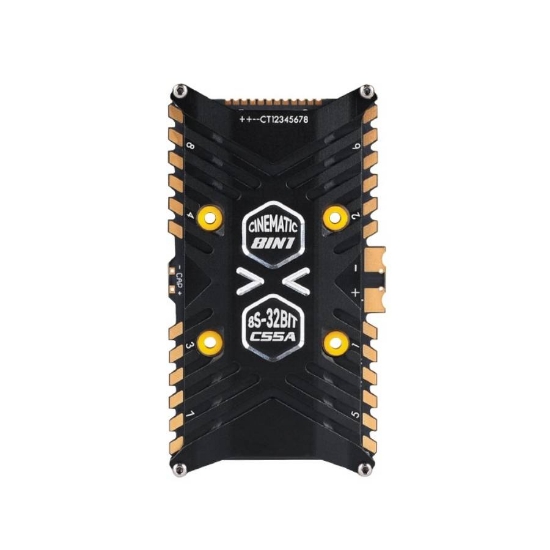

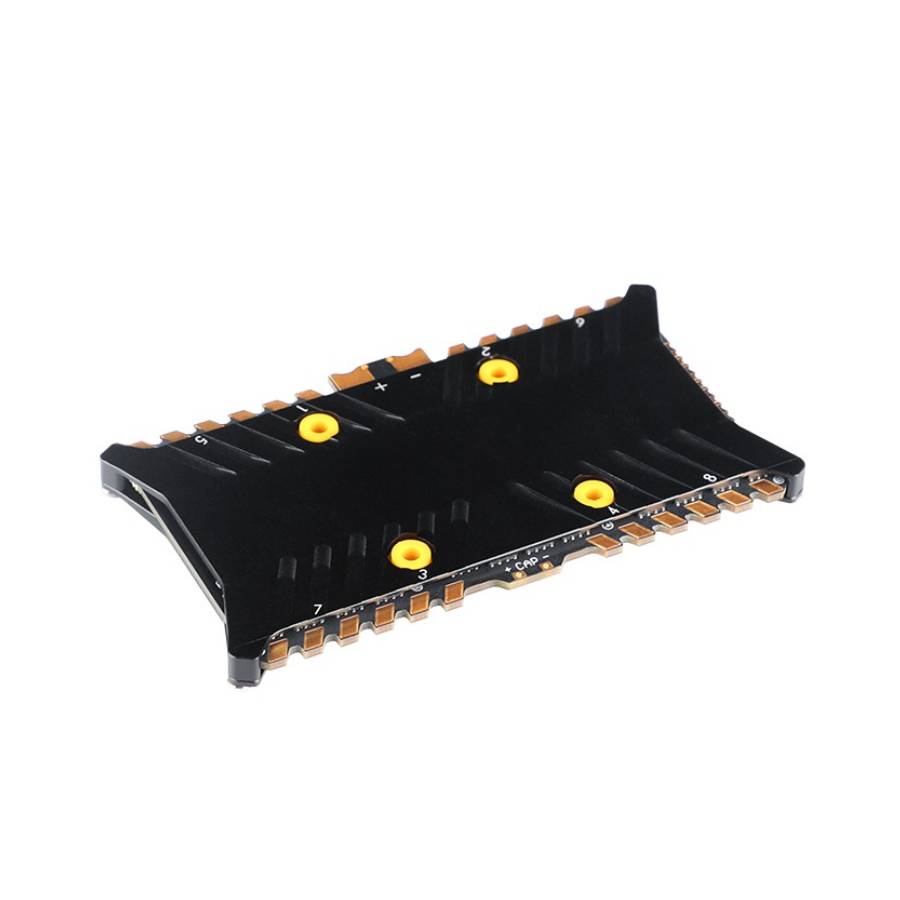

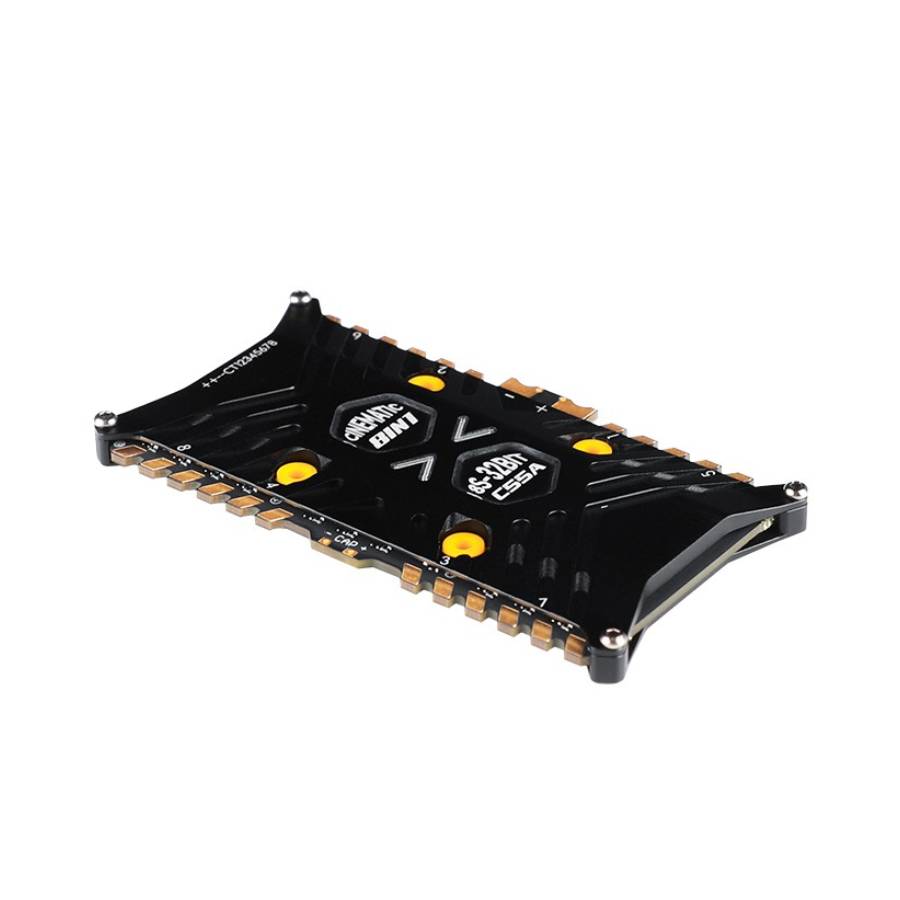

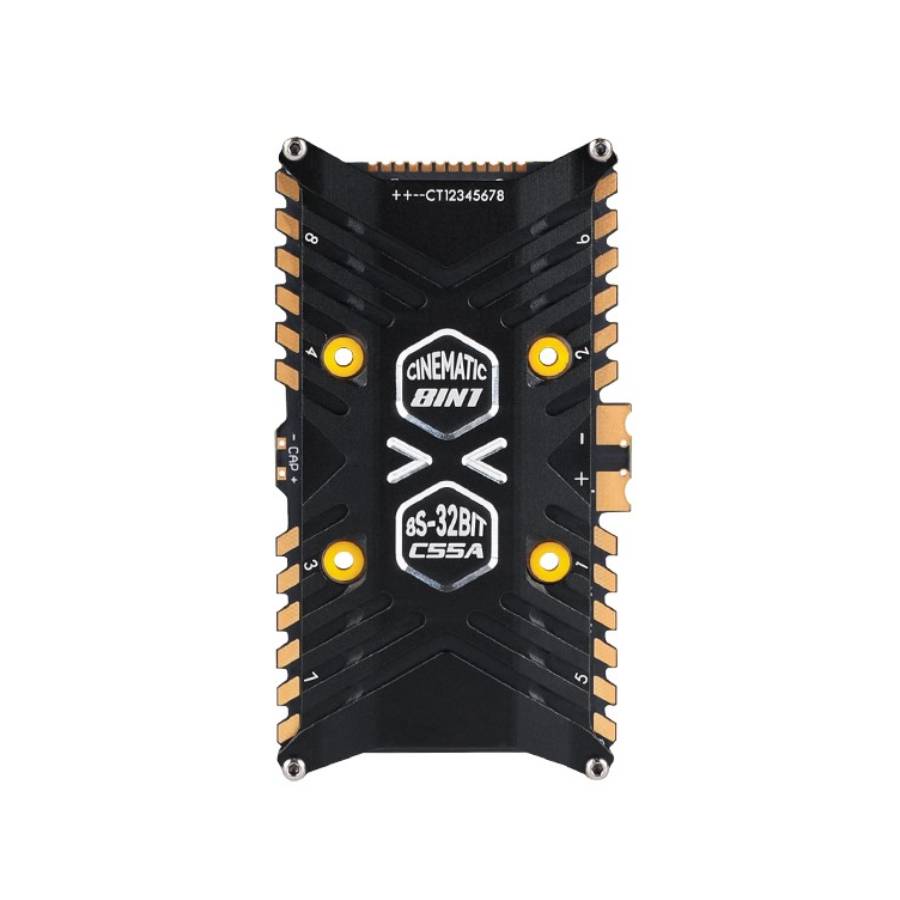

T-Motor Cine 55A 8S Brushless ESC

Overview:
The T-Motor C-55A-8S is a professional-grade 8-in-1 electronic speed controller designed for large multirotor platforms such as X8 cinematic drones and heavy-lift FPV rigs. By integrating eight 55A ESC channels into a single board, it significantly simplifies wiring while reducing overall weight and improving system reliability compared with using multiple ESC boards.

Developed for high-power cinematic and commercial UAV applications, the C-55A supports up to 8S LiPo input voltage, allowing it to deliver stable power to high-torque motors used on larger propeller setups. The ESC runs BLHeli_32 firmware, providing advanced control features and compatibility with modern digital motor protocols such as DShot, ensuring smooth throttle response and accurate motor control.

Internally, the ESC uses full-size imported MOSFETs and an extensive power-filtering network to maintain stable electrical performance under demanding loads. A large dual-sided heatsink helps dissipate heat efficiently during high current operation, while integrated filtering capacitors reduce voltage spikes and electrical noise. These design elements help ensure dependable operation during long cinematic flights or heavy-payload missions.

The C-55A-8S is particularly well-suited to cinelifter and professional FPV platforms, where multiple motors must be controlled reliably while maintaining a clean, organised build. Its integrated design reduces the complexity of multi-ESC wiring and offers a robust power solution for demanding aerial cinematography setups.

Features:
- Integrated 8-in-1 ESC design simplifies wiring for X8 and multi-motor cinematic drones
- BLHeli_32 firmware provides advanced ESC configuration and smooth motor control

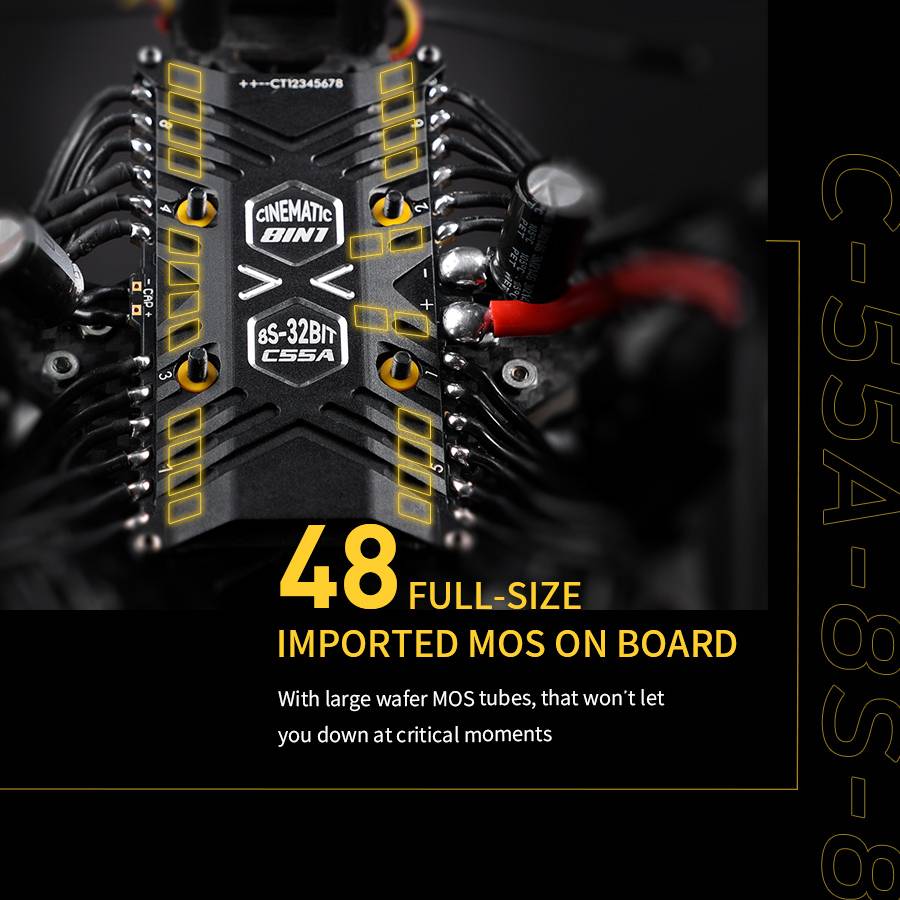

- Full-size imported MOSFETs deliver reliable high-current performance

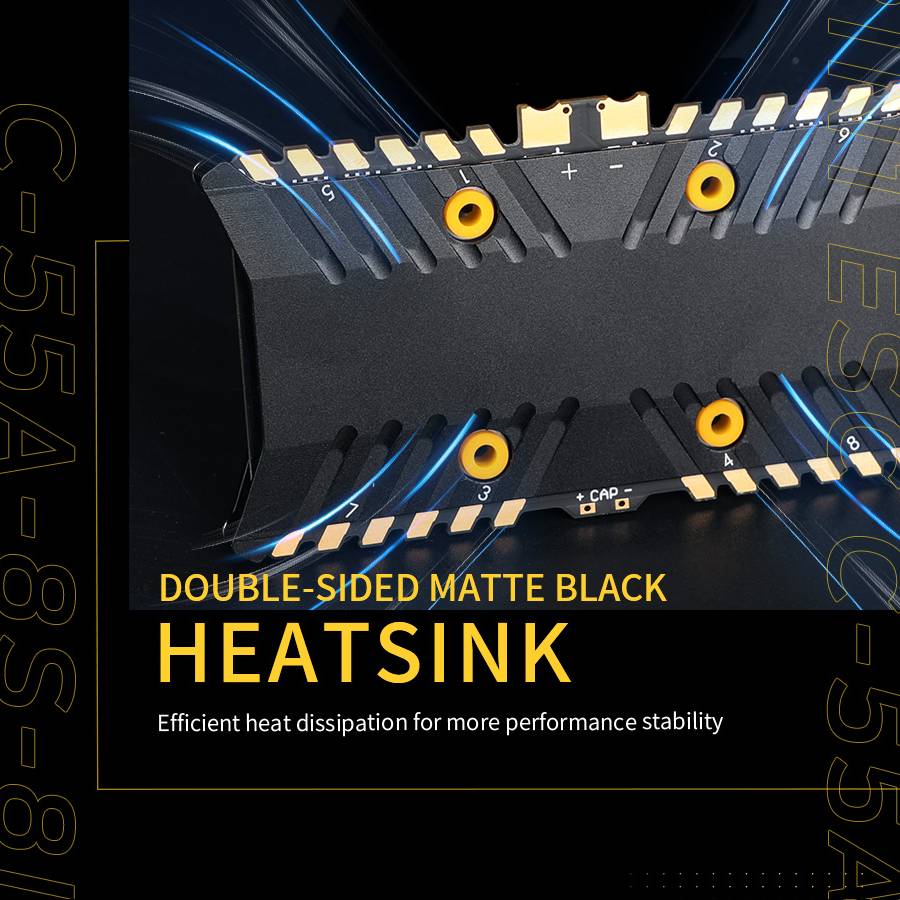

- Dual-sided matte heatsink improves thermal dissipation during heavy loads
- Extensive onboard power filtering capacitors help reduce voltage spikes and electrical noise
- External dual capacitor pad increases power stability and extends ESC lifespan
- Extended telemetry support allows real-time monitoring of ESC data through the flight controller
- Designed to integrate easily with compatible flight controllers via wiring harness

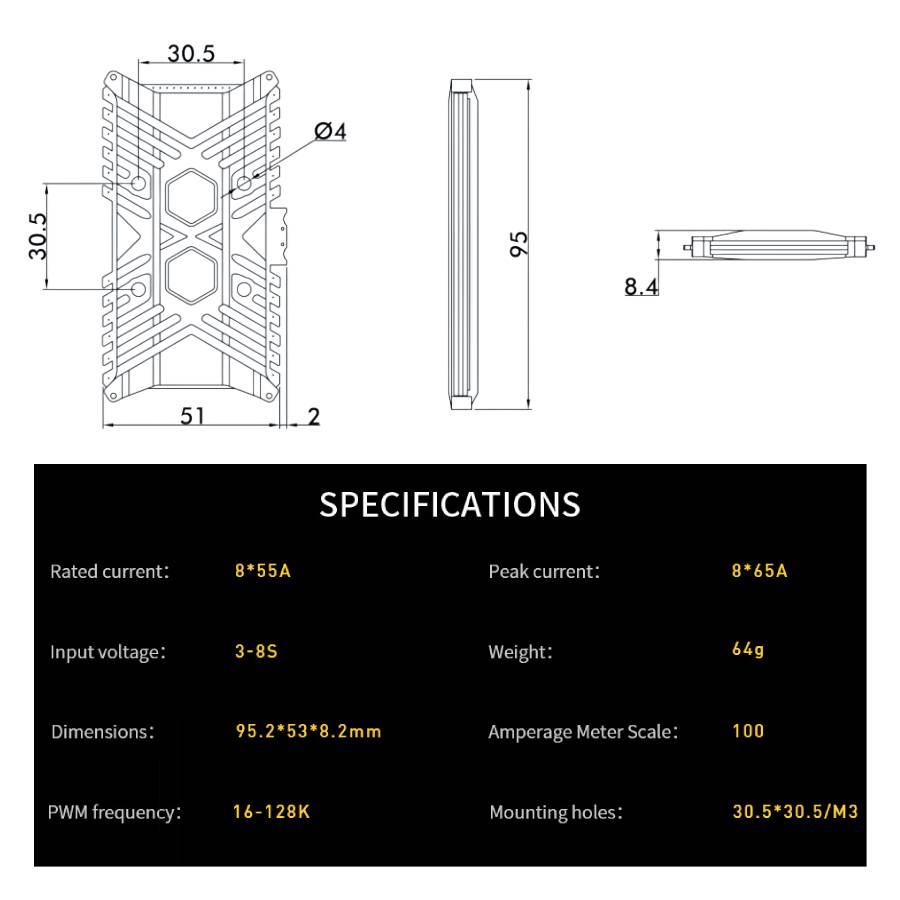

Specification:
- Model: T-Motor Cine C-55A 8S Brushless ESC
- Type: 8-in-1 ESC
- Continuous current: 55A per channel
- Burst current: 65A (10s) per channel
- Input voltage: 3–8S LiPo
- Firmware: BLHeli_32
- Supported protocols: DShot300/DShot600/DShot1200
- PWM frequency: 16–128kHz
- Mounting pattern: 30.5x30.5mm
- Dimensions: 95.2x53x8.2mm
- Weight: approx.64g

Included:
- 1x T-Motor C-55A 8S Brushless ESC
- Accessories
