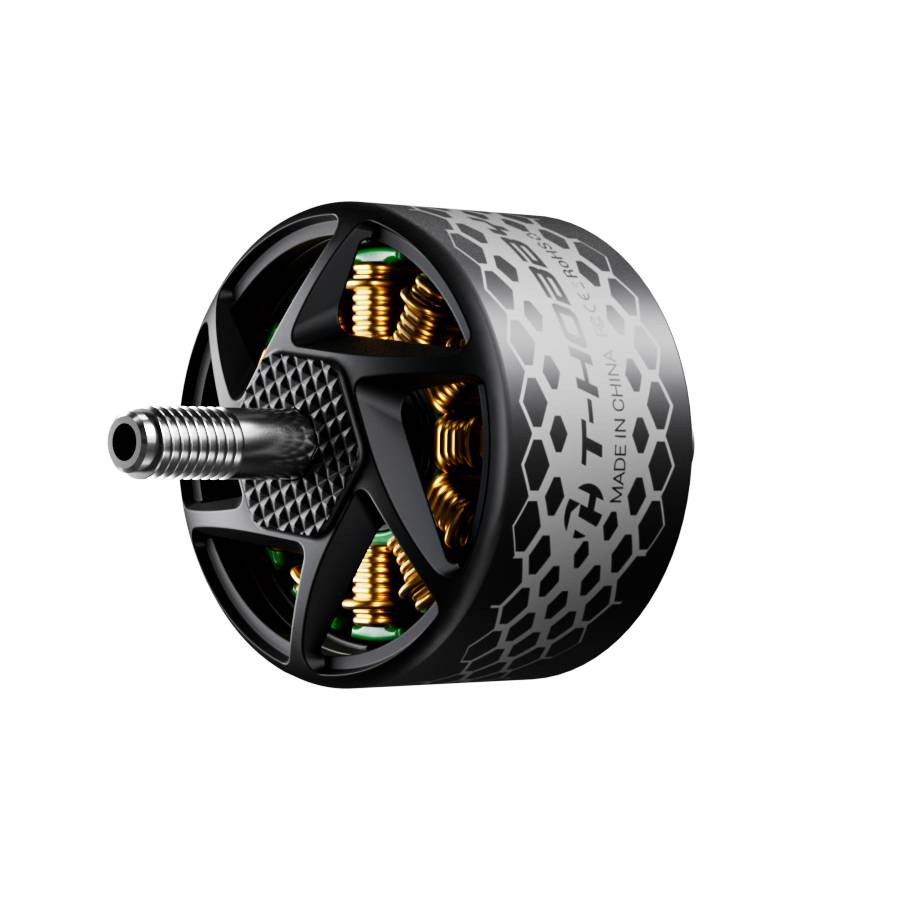

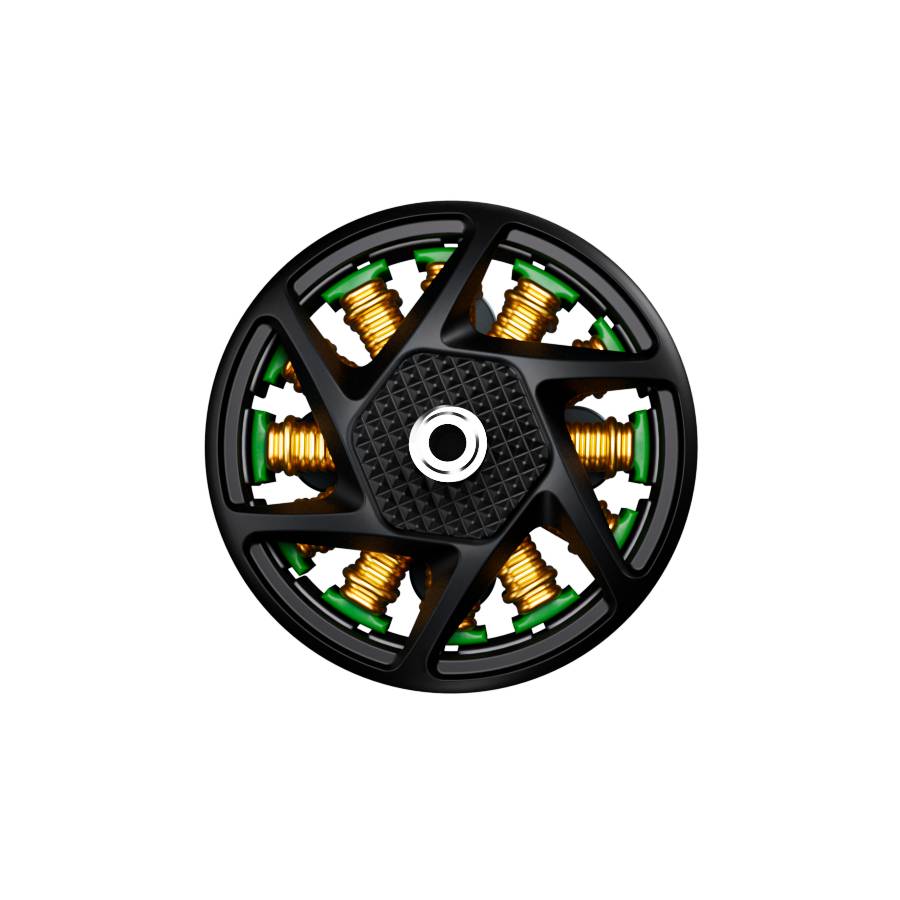

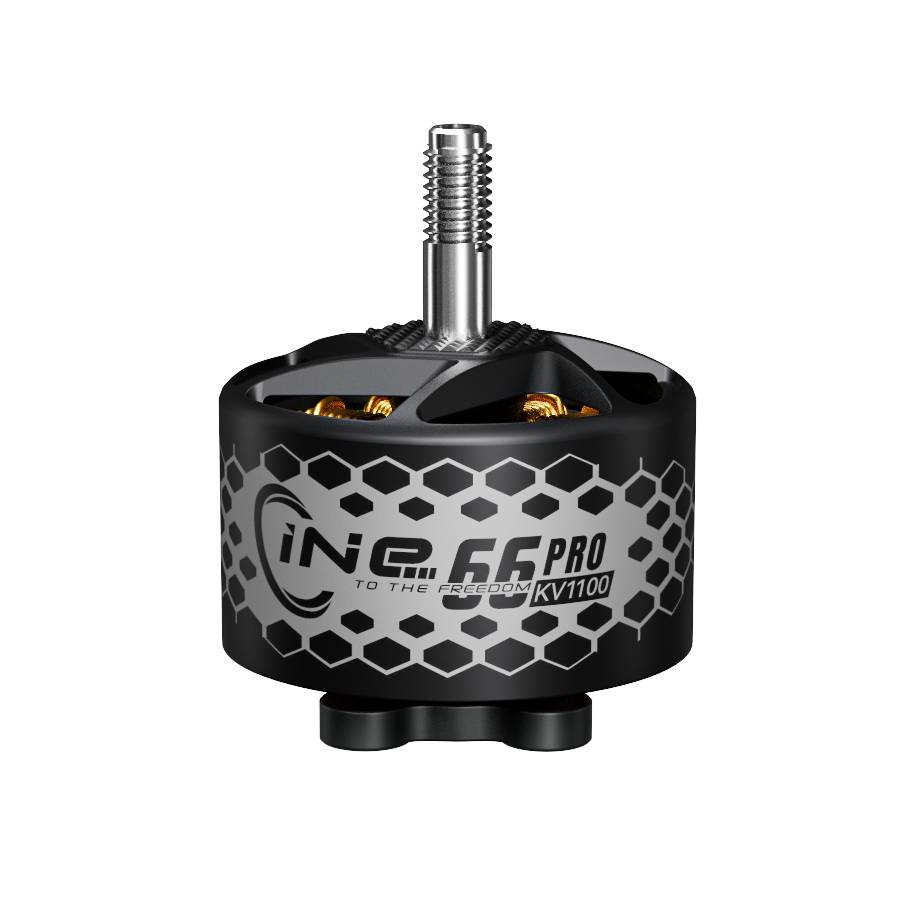

T-Motor CINE66 Pro 1100KV Brushless Motor

Overview:
The CINE66 Pro 2812 is a high-performance brushless motor engineered for cinematic FPV drone builds in the 8–9.5 inch propeller class. Designed to deliver smooth, stable thrust and robust power delivery, it is ideal for lightweight aerial cinematography, long-range exploring and stable flight platforms carrying cameras or gimbals.

With a 12N14P stator configuration and quality bearings and nickel-plated arc magnets, this motor gives consistent performance even under demanding conditions. Its voltage rating and thrust capability make it particularly suited to 6S LiPo setups with 8.5–9.5 inch props, to provide a superb blend of efficiency, torque and cinematic control.

Features:
- Crafted for cinematic-style FPV drones using 8–9.5 inch propellers for smooth, predictable flight behaviour.
- 1100KV winding delivers balanced power and control when paired with 6S LiPo batteries.
- Durable build quality with high-grade imported bearings and nickel-plated arc magnet for reliable long-term operation.
- Designed to maintain stable performance in varied environments, from hot, humid days to thin air at altitude.
- Suitable for both X8 quad configurations and heavy-lift setups that require smooth, efficient thrust profiles.
- Includes essential mounting hardware to aid installation straight out of the box.

Specification:
- Model: T-Motor CINE66 Pro 2812 (1100KV)
- Recommended prop size: 8–9.5 inch
- Stator configuration: 12N14P
- Rated voltage: 6S LiPo (24V)
- Maximum power: Approximately 1830W
- Peak current: ~82A
- Maximum thrust: ~4142g per motor (with ideal prop/battery setup)
- Internal resistance: ~120mΩ
- Weight (inc cable): ~133g
- Dimensions (Ø×L): 34.2×42.6mm
- Shaft: 5mm diameter (M5)
- Lead wires: 18AWG × ~500mm length
- Mounting pattern: Ø19mm with M3 holes

Included:
- 1x T-Motor CINE66 Pro 1100KV Brushless Motor
- Accessories
