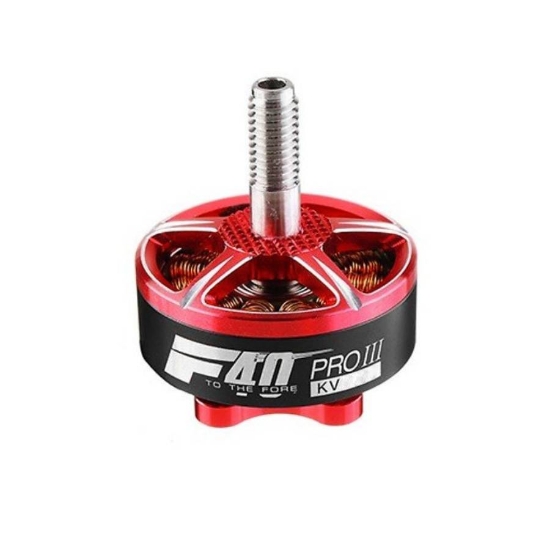

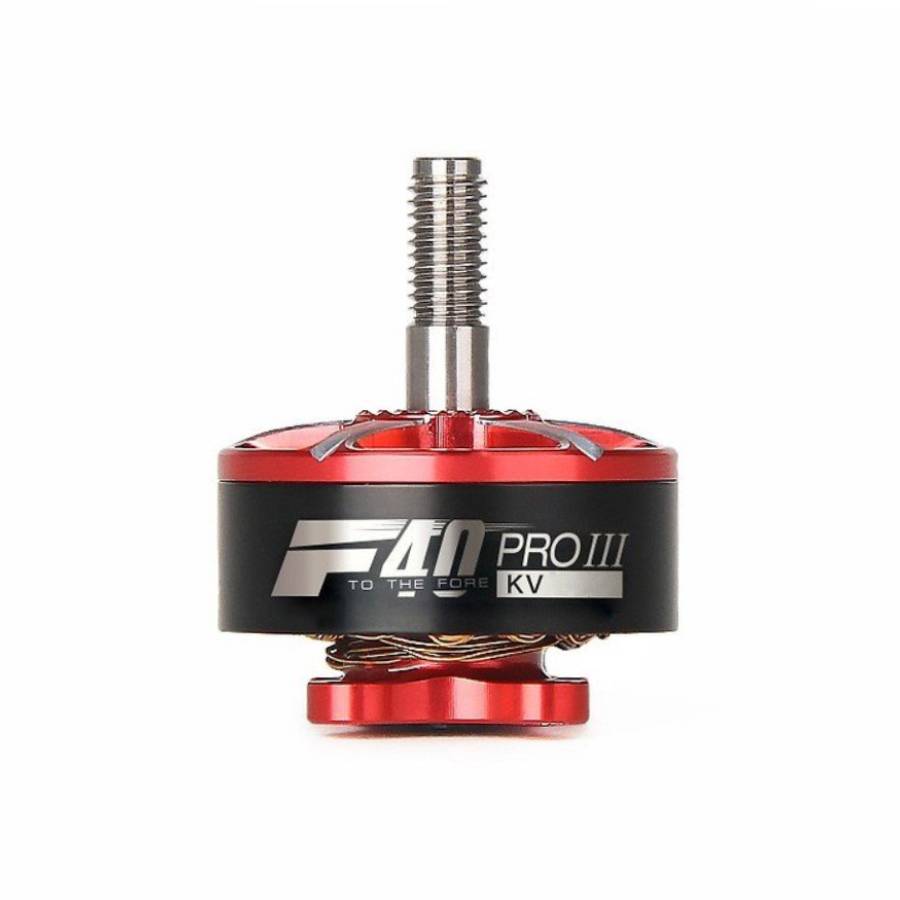

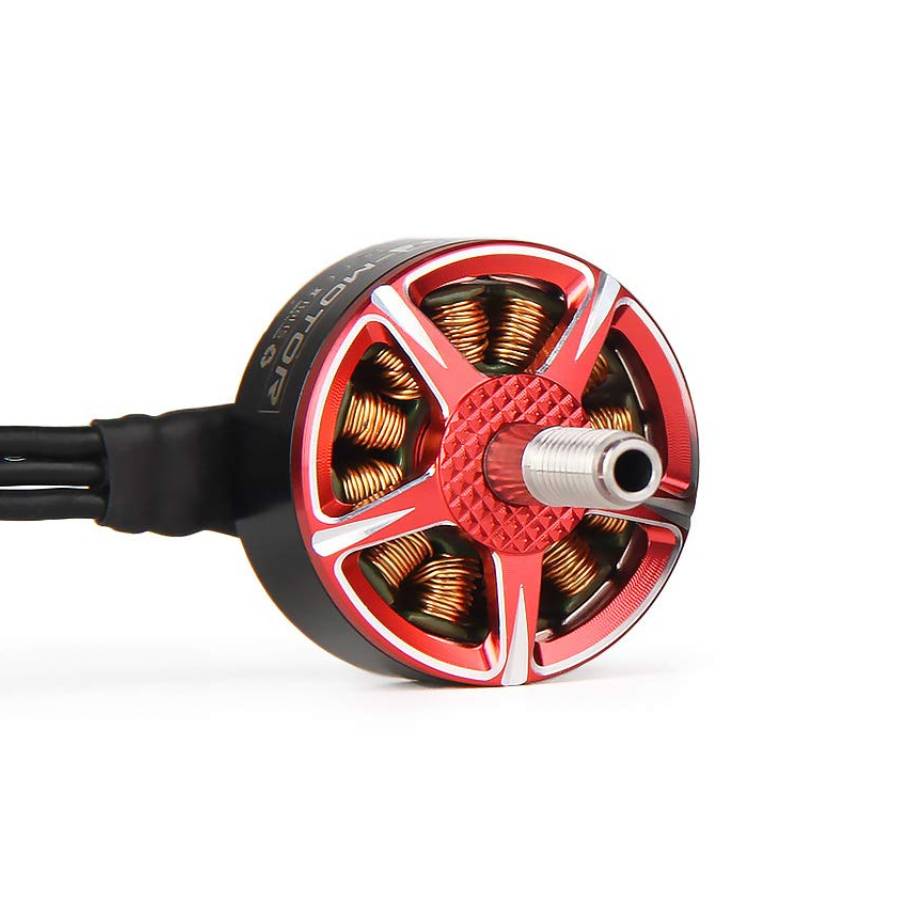

T-Motor F40 Pro III 2600KV Brushless Motor

Overview:
The T-Motor F40 Pro III 2600KV is a high-performance brushless motor developed for competitive FPV racing and aggressive freestyle quadcopters. Based on a 2306 stator platform, it delivers rapid throttle response, strong top-end speed and reliable power delivery for demanding 5" builds.

This third-generation F40 motor features several structural improvements designed to increase durability and efficiency during high-RPM operation. High-temperature silver-core windings help the motor maintain stable performance under heavy load, while premium EZO bearings ensure smooth rotation and long-term reliability. The reinforced prop shaft and improved threading reduce the risk of damage during prop changes or hard landings.

With a high 2600KV rating, this version is optimised for 3–4S setups where fast throttle response and strong acceleration are required. Combined with the proven F-series design and precise manufacturing from T-Motor, the F40 Pro III 2600KV remains a trusted choice for pilots building fast, responsive 5 inch FPV race or freestyle drones.

Features:
- High-performance brushless motor designed for FPV racing and freestyle quadcopters.
- 2306 stator platform provides strong torque and rapid throttle response.
- High-temperature silver-core windings for improved thermal resistance.
- Premium EZO bearings for smooth operation and long service life.
- Reinforced prop shaft threading improves durability during prop installation.
- Optimised magnetic circuit design enhances efficiency and power delivery.
- Durable aluminium motor bell construction for reliable high-RPM performance.

Specification:
- Model: T-Motor F40 Pro III 2600KV Brushless Motor
- KV rating: 2600KV
- Stator size: 2306
- Configuration: 12N14P
- Recommended voltage: 3–4S LiPo
- Motor dimensions: approx.33x27.9mm
- Prop shaft diameter: 5mm
- Motor shaft diameter: 4mm
- Mounting pattern: 16x16mm (M3)
- Lead wire: 20AWG silicone wire
- Weight: approx.33.5g (including wires)
- Idle current (10V): approx.1.7A
- Peak current (60s): approx.43A
- Maximum power (60s): approx.660W

Included:
- 1x T-Motor F40 Pro III 2600KV Brushless Motor
- Accessories
