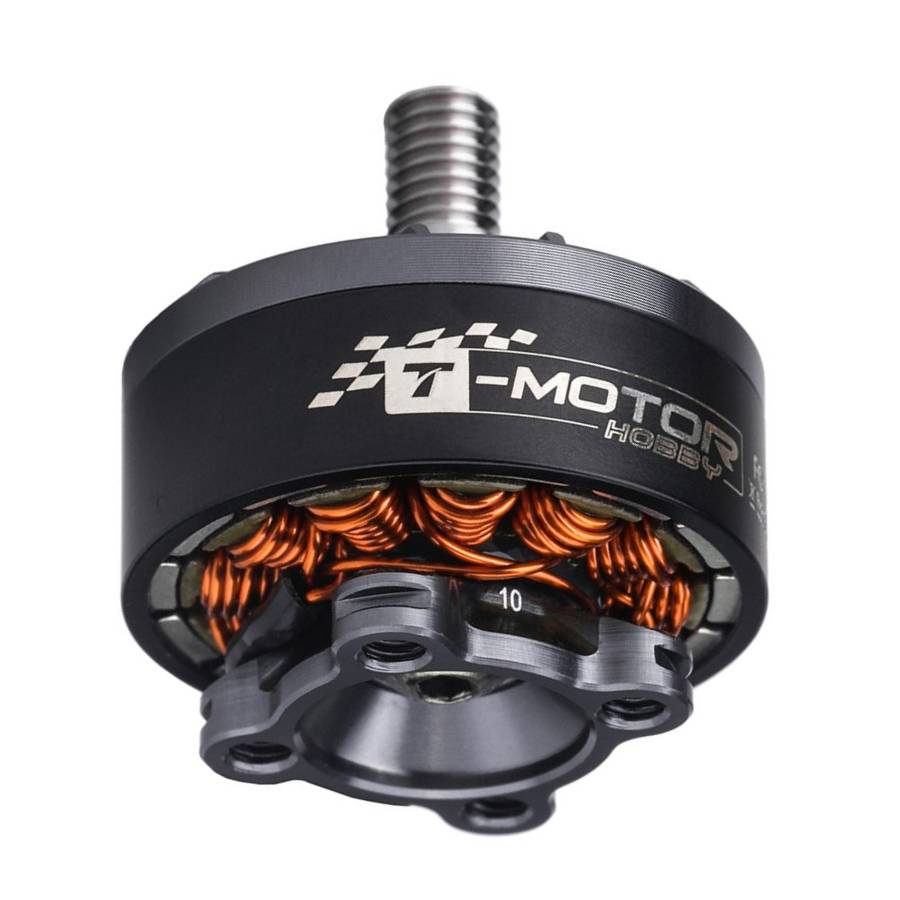

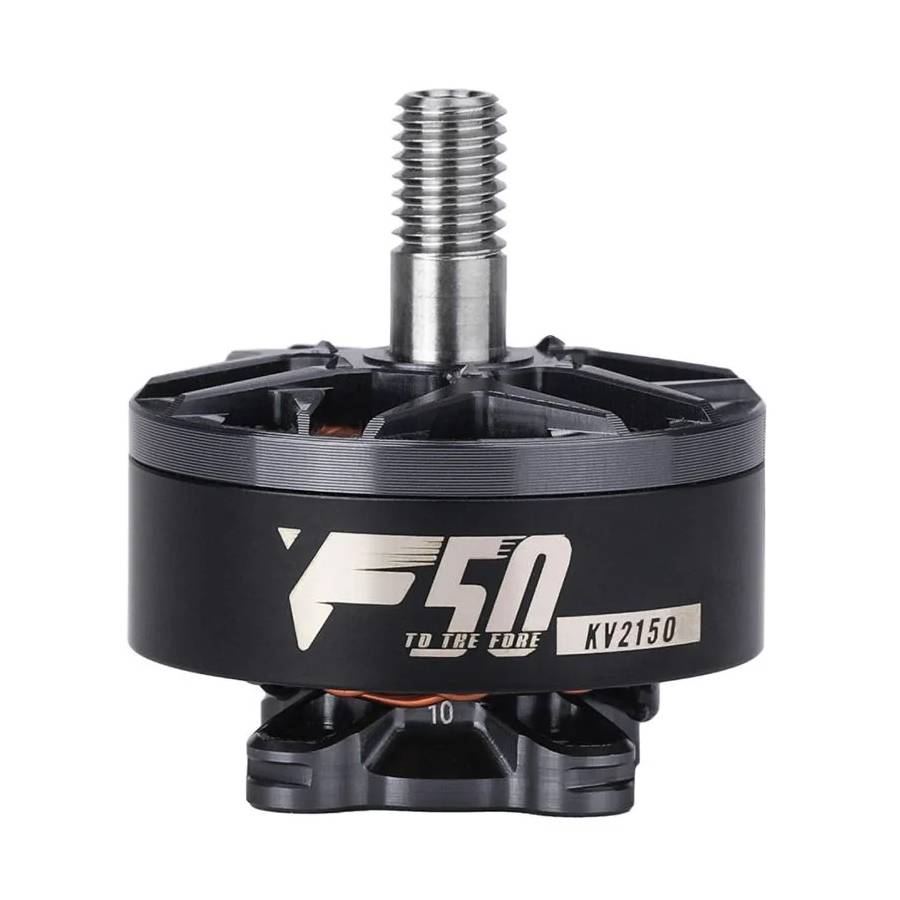

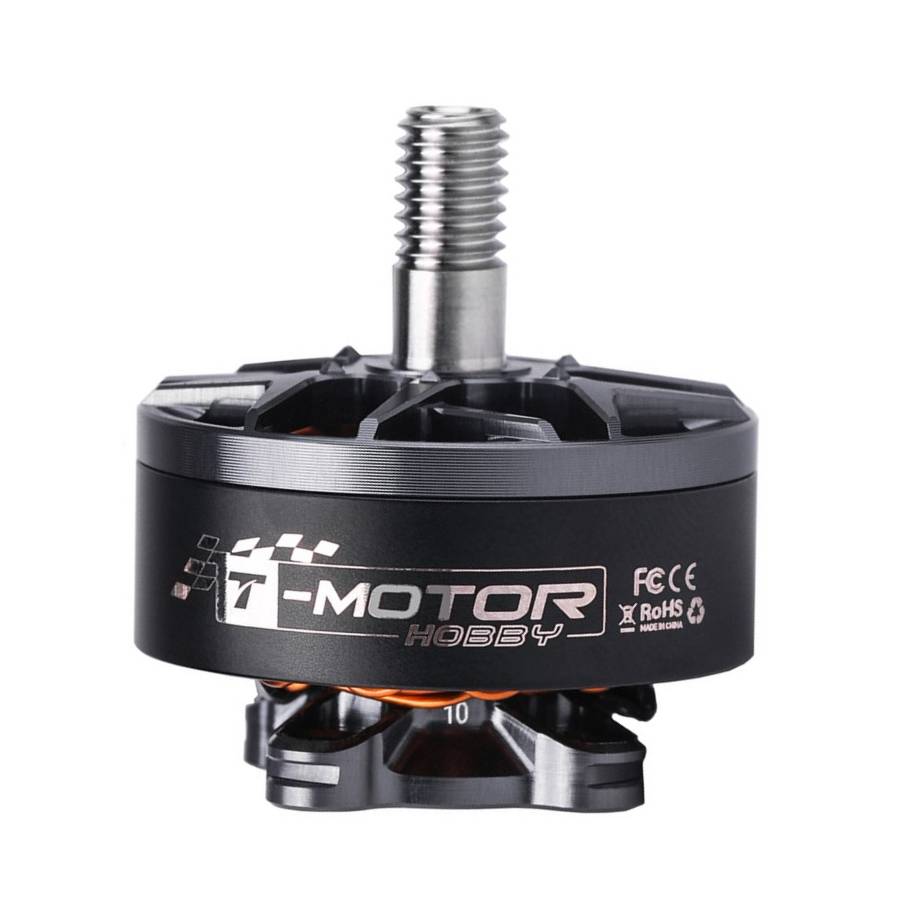

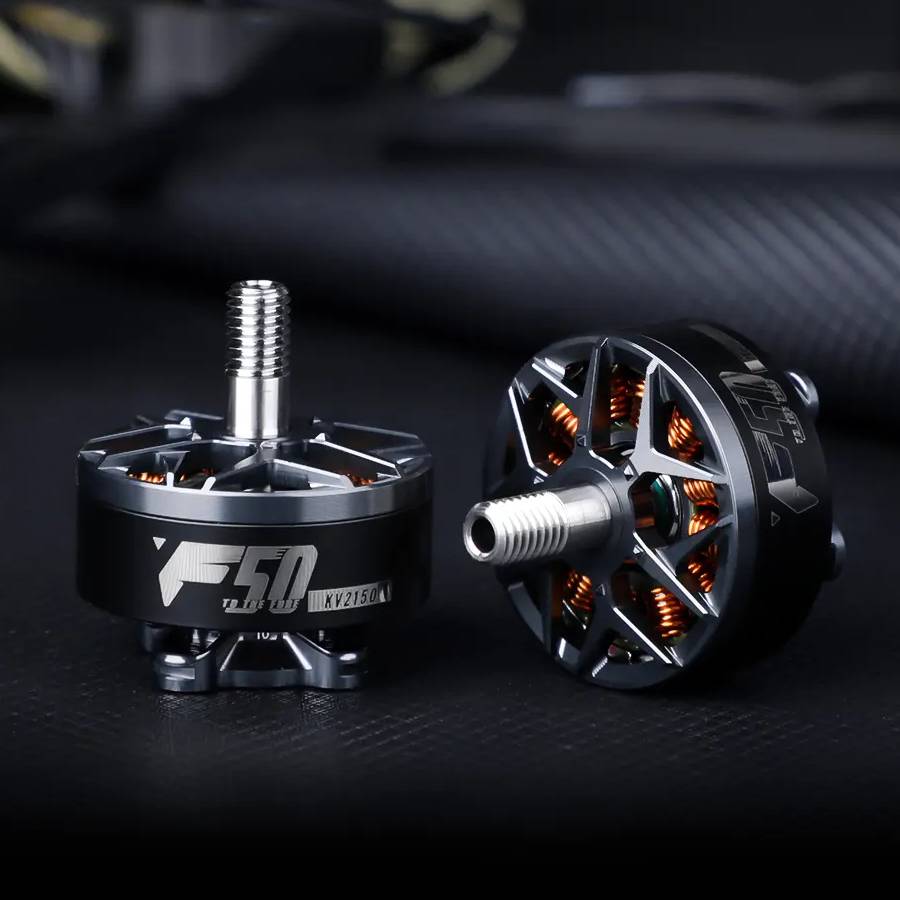

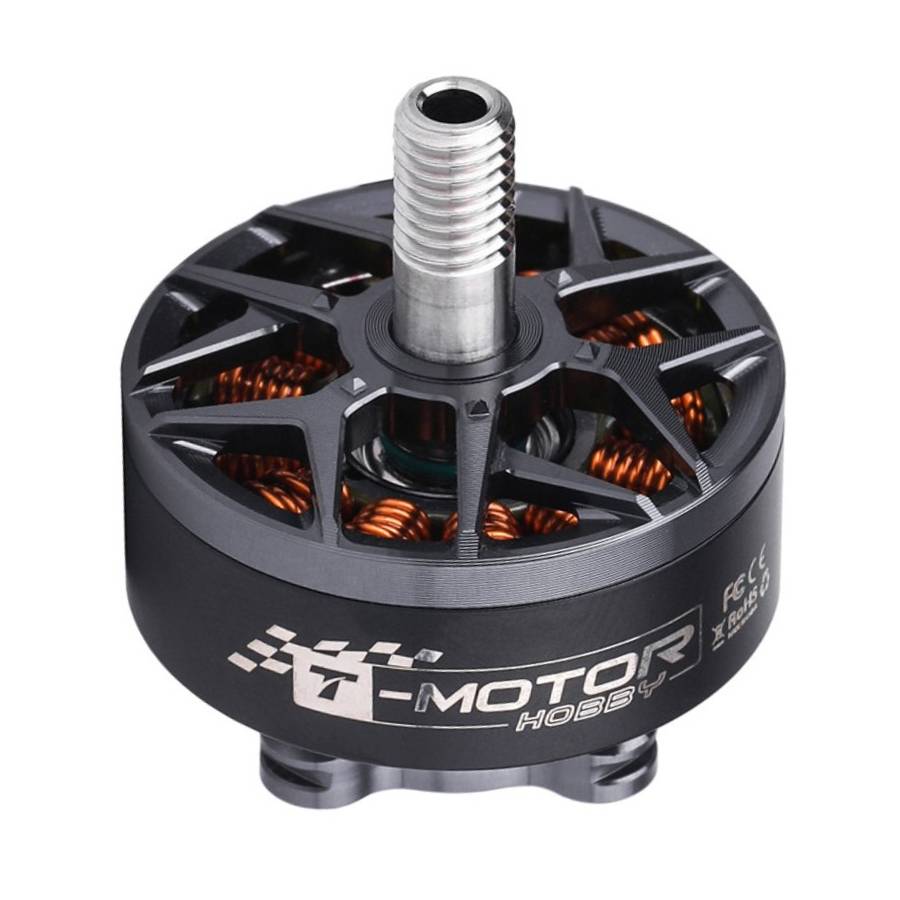

T-Motor F50 2150/2200KV Motors

Overview:
The T-Motor F50 is a high-performance racing motor tailored for elite 5" FPV drone builds. Offering an exceptional balance of thrust and responsiveness. With a lightweight 27×29.5mm stator size and a durable 5mm shaft, the F50 is engineered for aggressive turns, rapid acceleration and sustained power in competitive or freestyle environments.

Features:
- Designed for 5-inch propellers such as the T-Motor F5146 to deliver strong thrust and quick response
- Reinforced 5mm shaft with M5 nut for secure prop mounting under high loads
- Low internal resistance and high instantaneous torque for efficient acceleration
- Optimised for 6S LiPo setups while compatible with high-performance 5-inch racing builds

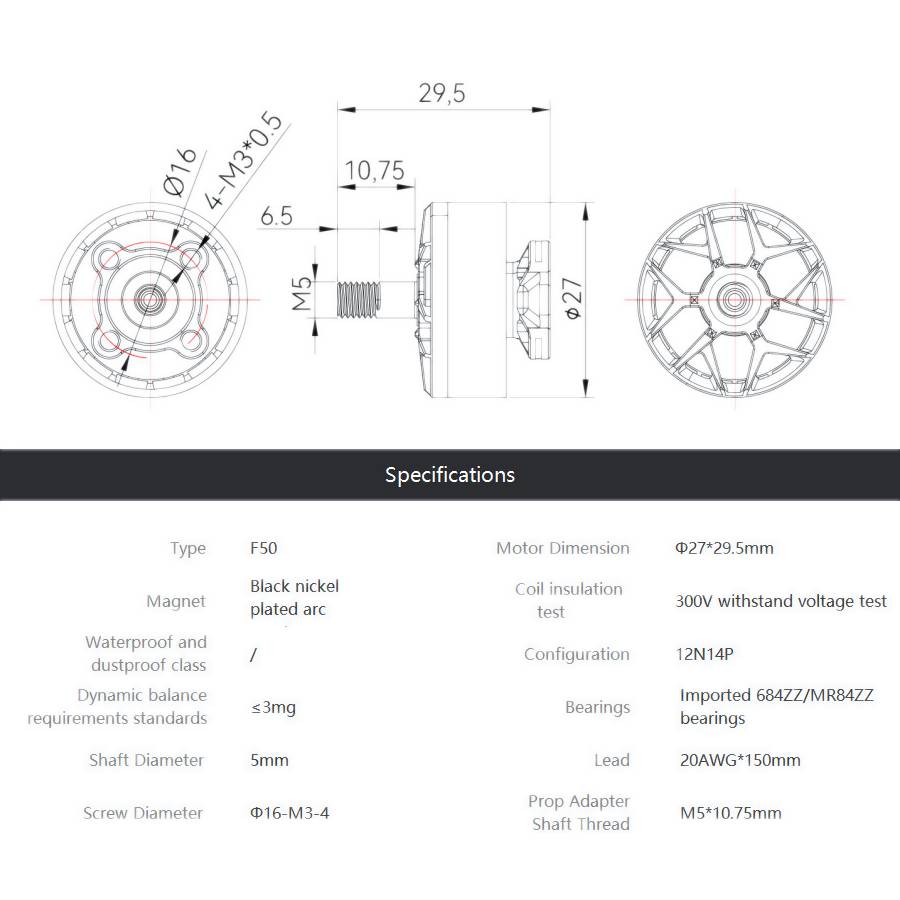

Specification:
- Model: T-Motor F50 Motor
- Motor dimensions: 27×29.5mm
- Configuration: 12N14P
- Weight (excluding cable): 28.36g
- Shaft diameter: 5mm
- Mounting size: Ø27×29.5mm
- Rated voltage: 24V (6S LiPo)
- Motor lead length: 150mm

2150KV:
- Max Power: 1273W
- Rated Voltage (Lipo): 24V
- Max Thrust: 2136g
- Idle Current (10V): ≤1.6A
- Internal Resistance: 50mΩ
- Peak Current: 54.8A
- Weight (excl. cable): 28.56g

2200KV :
- Max Power: 1315W
- Rated Voltage (Lipo): 24V
- Max Thrust: 2134g
- Idle Current (10V): ≤1.6A
- Internal Resistance: 47mΩ
- Peak Current: 56.63A
- Weight (excl. cable): 28.36g

Available versions (see below for purchase options):
- Model: T-Motor F50 2200KV Motor (AFD010010453)
- Model: T-Motor F50 2150KV Motor

Included:
- 1x T-Motor F50 Motor
- Accessories
