Overview:

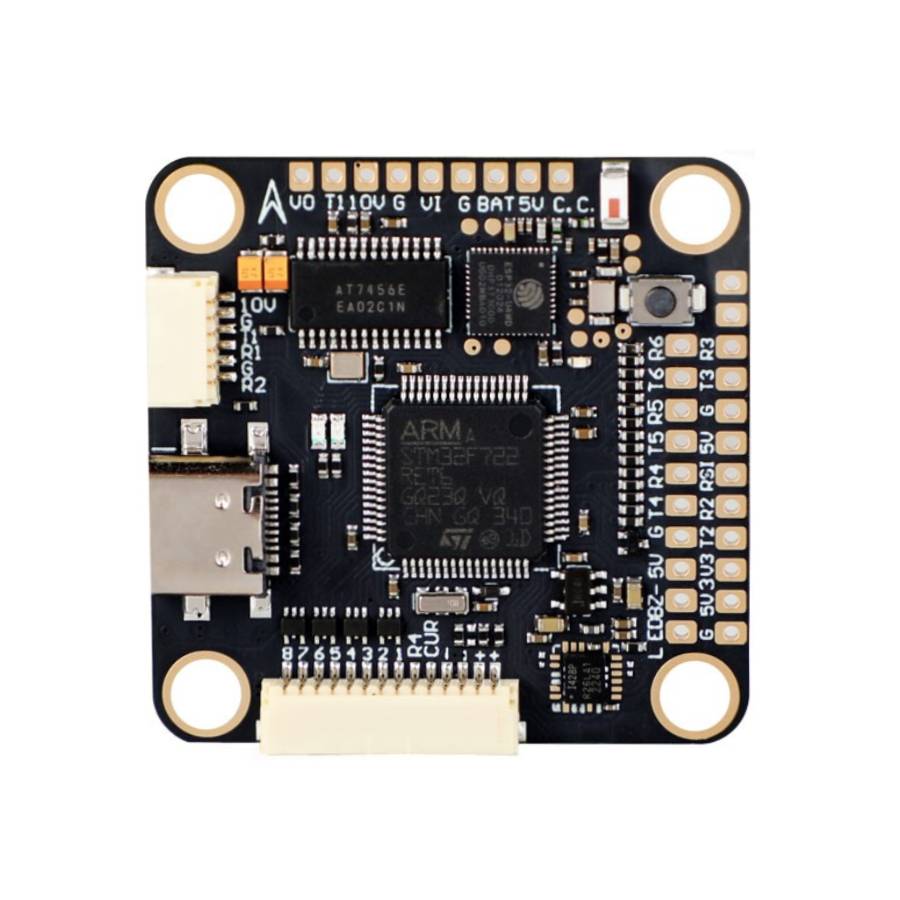

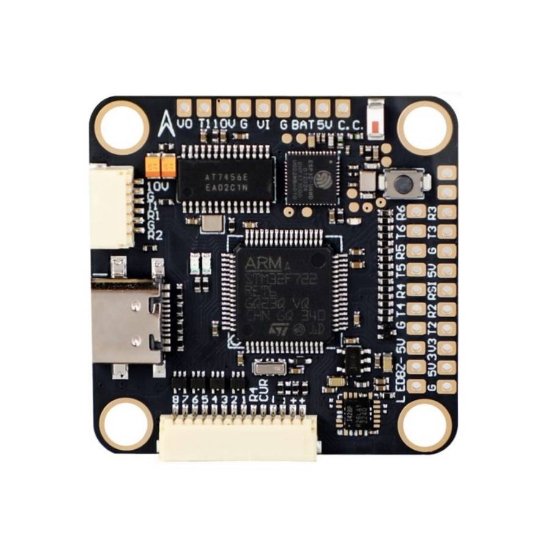

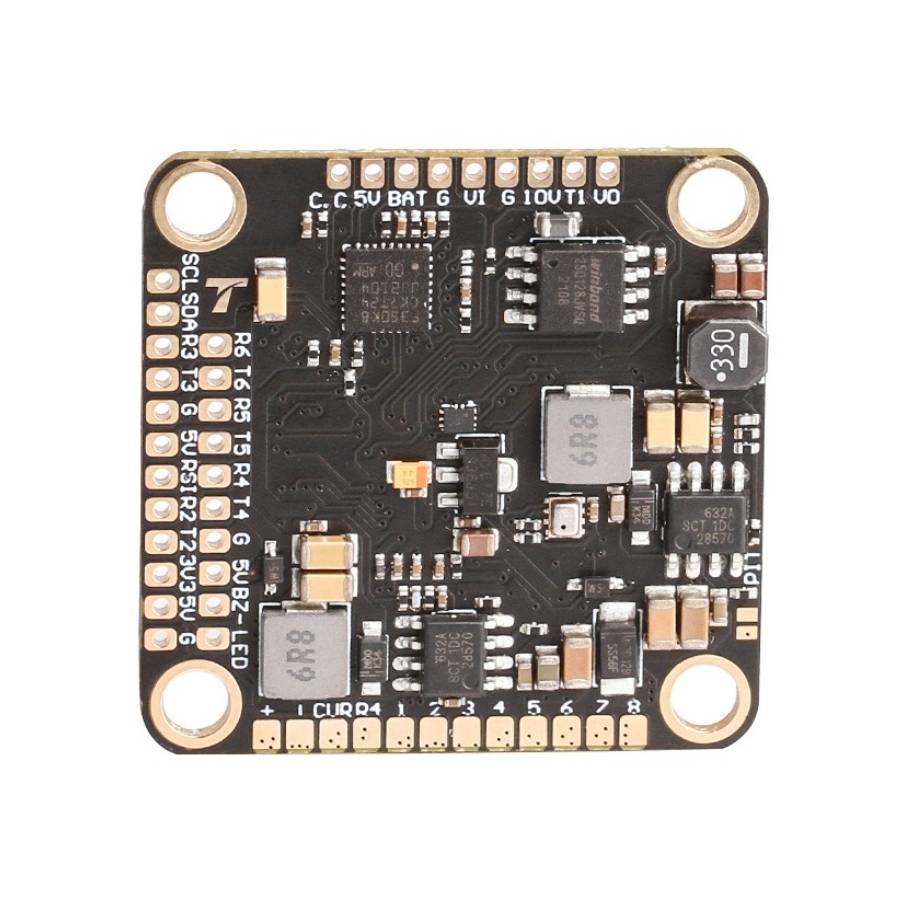

The T-Motor (AKA 'T-Motor Hobby') F7 Pro Full Function 30×30 Flight Controller is designed for professional-level cinematic FPV and advanced drone builds. It features wireless connectivity via built-in WiFi and Bluetooth, allowing pilots to configure settings, analyse black-box data and flash firmware without cables. With eight PWM motor outputs and a 30.5×30.5mm mounting pattern makes it suited to large-format quads.
Features:

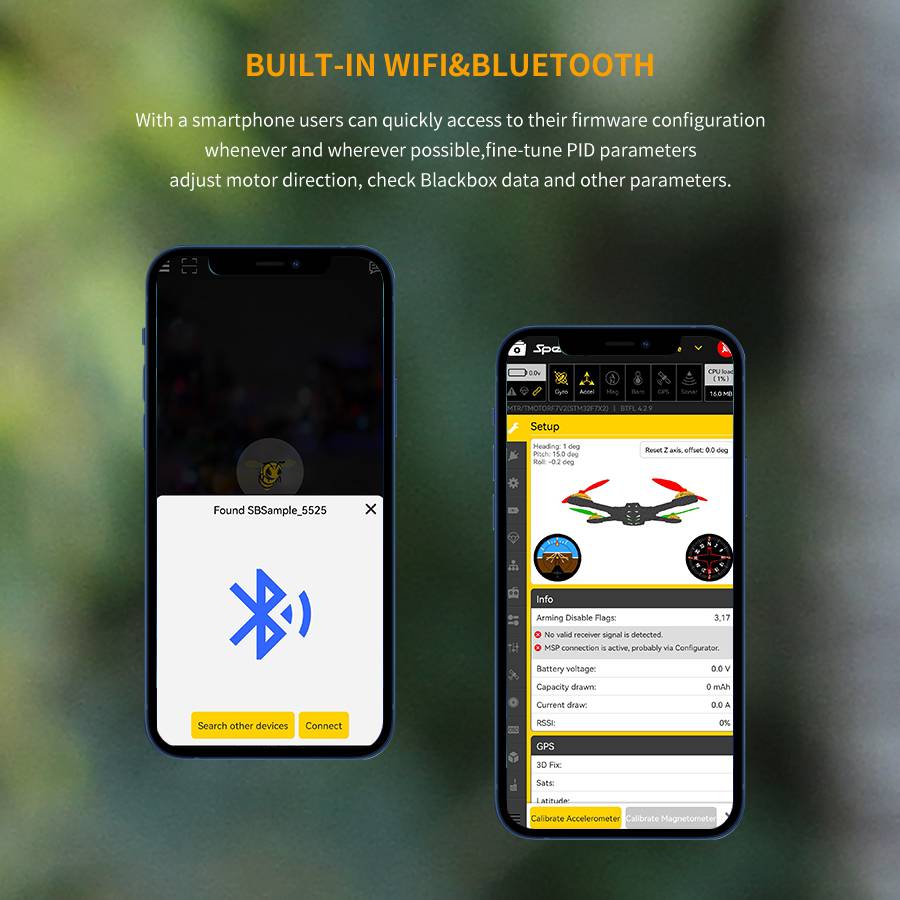

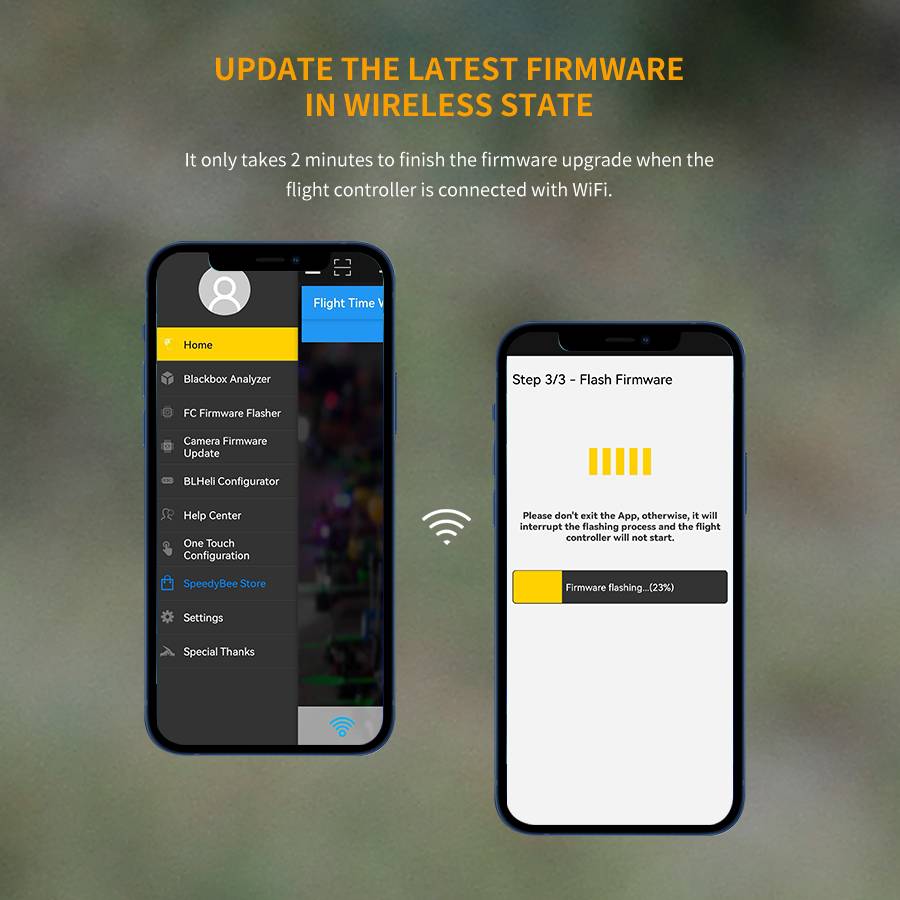

- Built-in WiFi and Bluetooth for wireless setup, tuning and firmware updates
- Eight PWM motor outputs supporting complex multirotor configurations

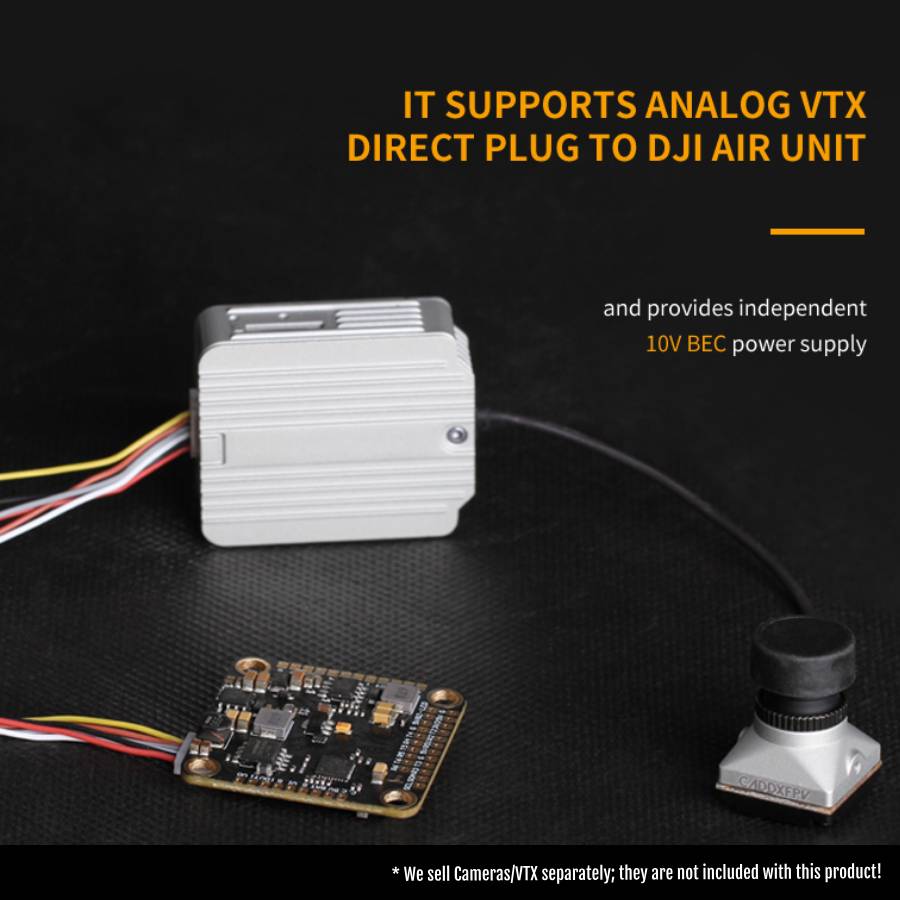

- Plug-and-play compatibility with an original DJI Air Unit (functionality with the DJI O3/O4 series may require soldering or a dedicated adapter cable)
- Universal support for Betaflight and iNav flight firmware

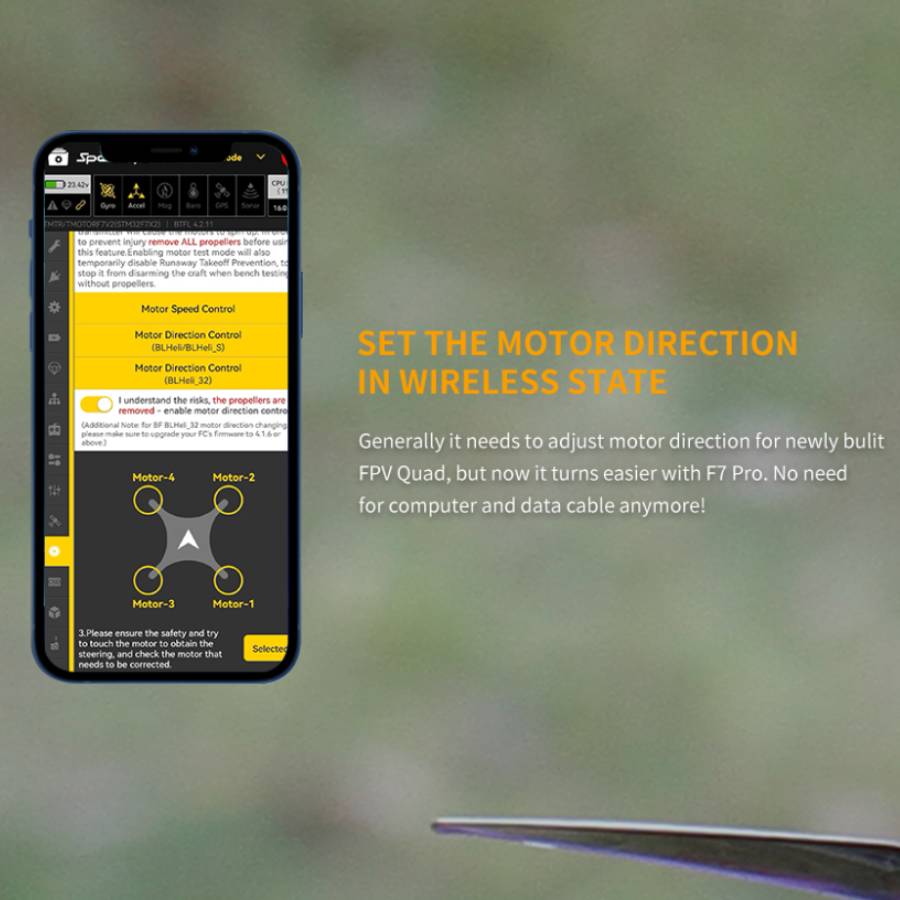

- SpeedyBee app compatibility and onboard VTX switch jumper for flexible integration
- Full-function 30×30mm format with integrated black-box logger
Specification:
- MCU: STM32F722 RET6
- Gyroscope/IMU: ICM42688P
- Barometer: BMP280
- Input voltage range: 3S–8S (11.1V–33.6V)
- BEC outputs: 10V/2A & 5V/3A
- Mounting hole pattern: 30.5×30.5mm
- Dimensions: 37×37×7.5mm
- Weight: 8.1g
- Black-box memory: 16 MB
- UART count: 8 UARTs
- Number of motor outputs: 8
Included:
- 1x T-Motor F7 Pro Full Function Flight Controller
- Accessories
