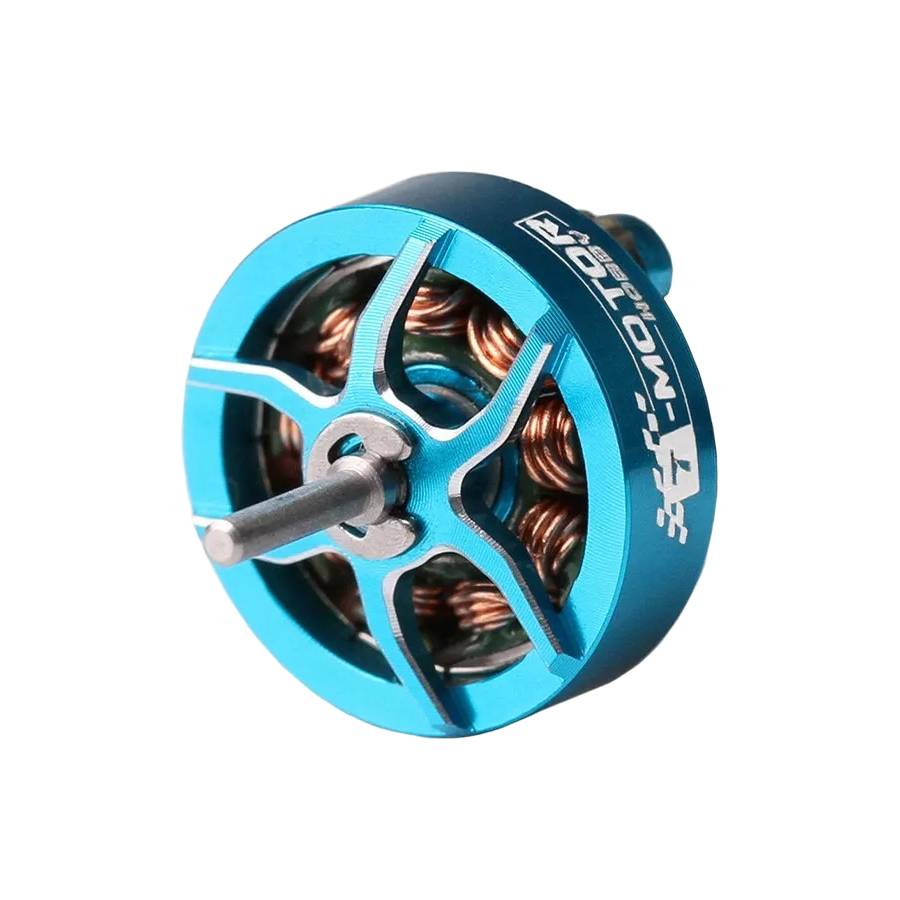

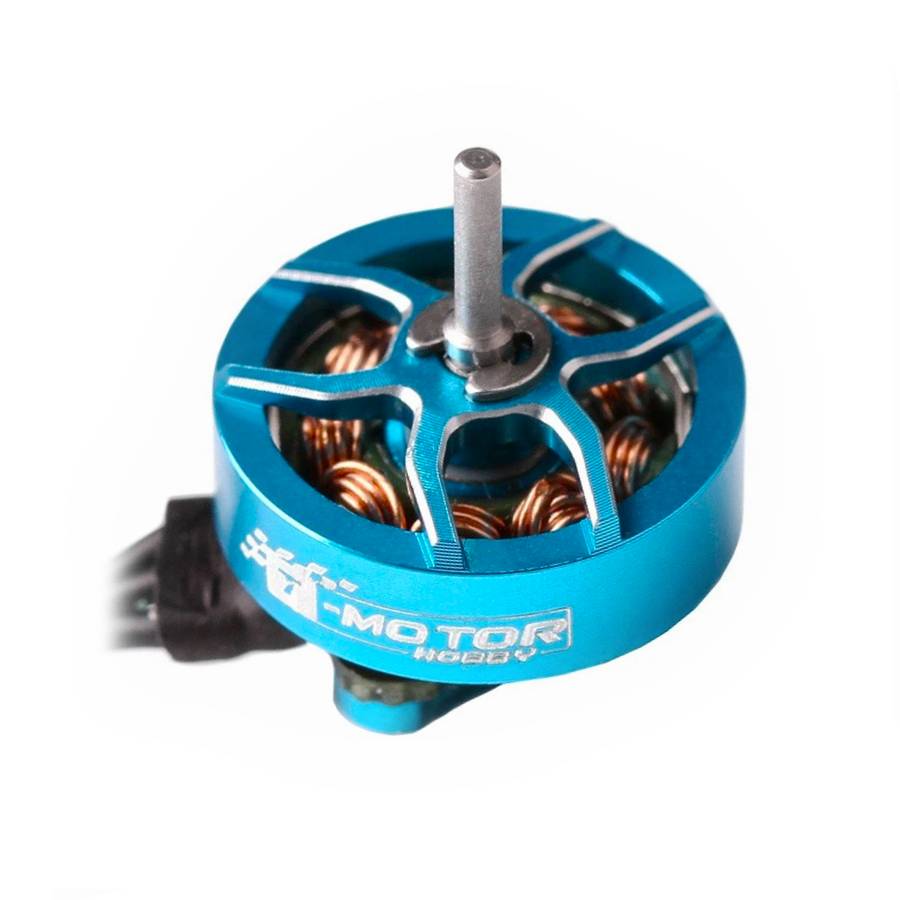

T-Motor M0802 19000KV Whoop Motor

Overview:
The T-Motor M0802 19000KV Motor is designed for 1S micro whoops in the 65–75mm wheel base class. It delivers a balanced combination of torque and top-end speed suited to tight indoor manoeuvres and agile flying in small outdoor spaces.

This motor’s 9N12P stator configuration and fine-tuned magnetic design help it produce responsive throttle control and consistent thrust with modest current draw, making it an effective option for both racing and freestyle micro builds. Its compact dimensions and integrated JST-1.25 lead make it straightforward to install.

The M0802 19000KV is a reliable choice for pilots who want a balanced motor for micro FPV builds that emphasise throttle control and agility without excessive current draw.

Features:
- Brushless 0802 form factor optimised for tiny whoop and light micro quad builds.
- 19000KV wind offers a balanced compromise between efficiency and snappy throttle response.
- 9-pole, 12-slot design for smooth torque delivery in the lower RPM ranges typical of tiny whoops.
- Lightweight construction keeps overall aircraft mass low for improved agility.

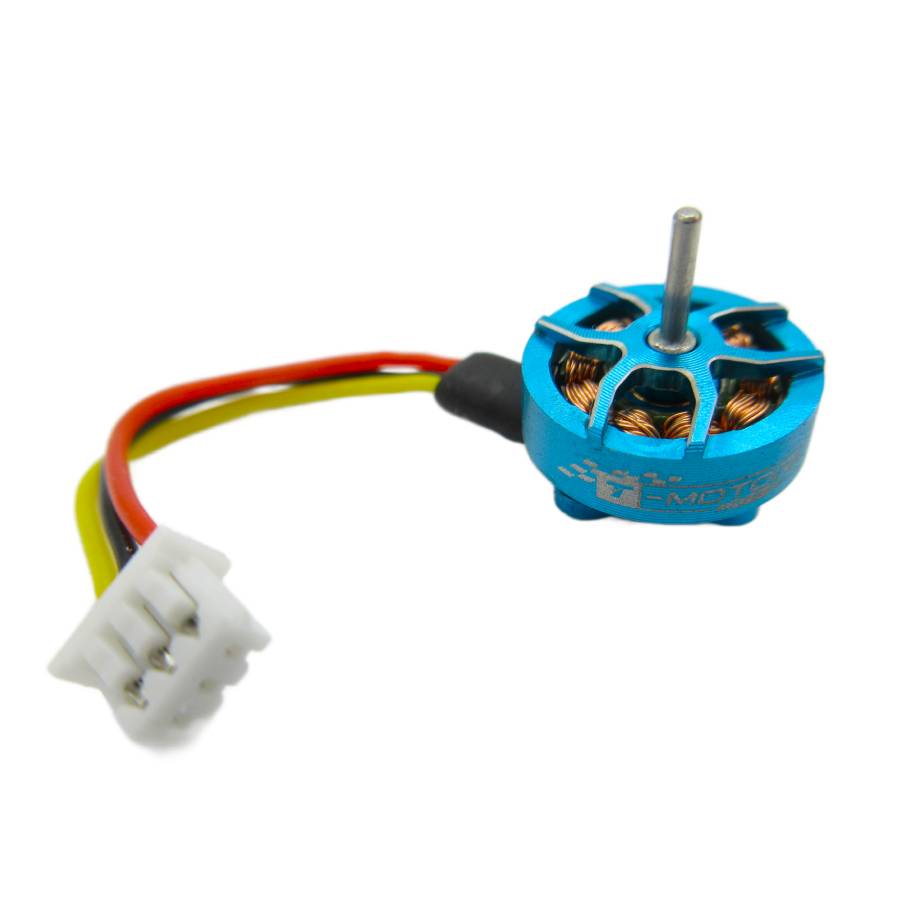

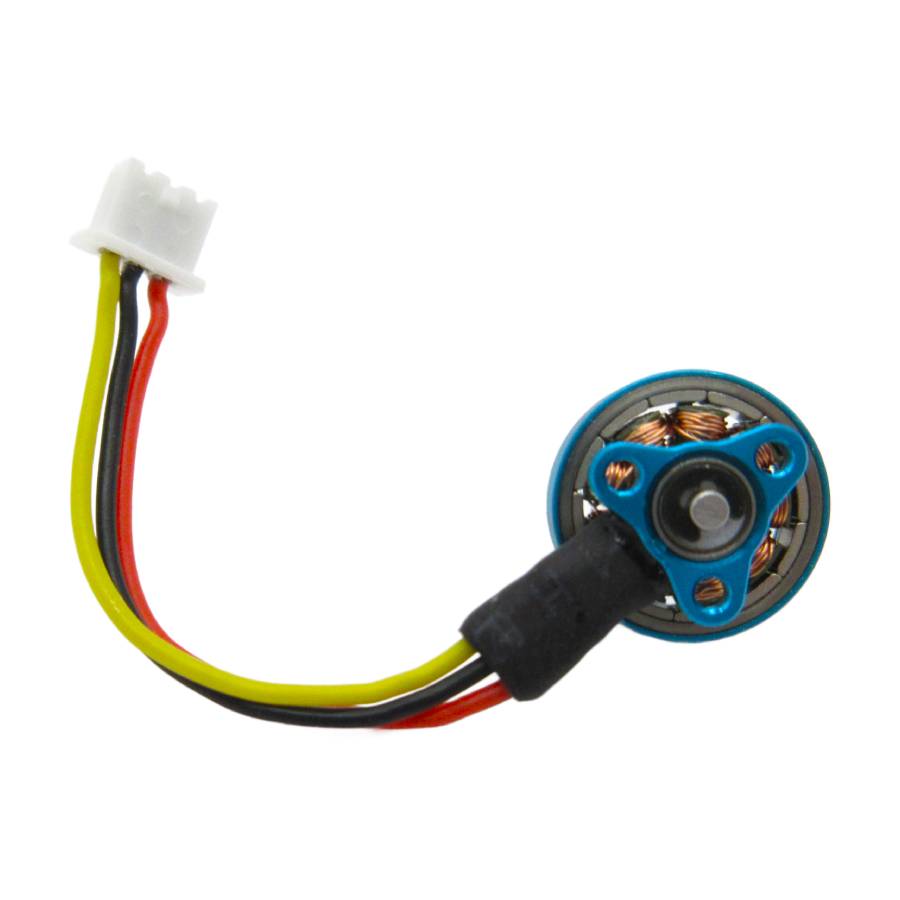

- JST-1.25 motor lead provides easy plug-and-play compatibility with common micro flight controllers/ESCs.

Specification:
- Motor model: M0802 (T-Motor) with 19000KV rating
- Stator configuration: 9N12P (nine slots, twelve poles)
- Designed voltage: 1S LiPo (approx. 3.7–4.2V)
- Shaft diameter: 1mm
- Total weight (including lead): ~1.9g
- Lead and connector: JST-1.25 cable, ~33.5mm length
- Idle current (at ~4V): ~0.49A
- Peak current (10s): ~4.4A
- Maximum power (10s): ~18.1W
- Recommended propeller size: 31–35mm props
- Recommended usage: Micro FPV drones and whoops in the 65–75mm class

Included:
- 1x T-Motor M0802 19000KV Whoop Motor
- Accessories
