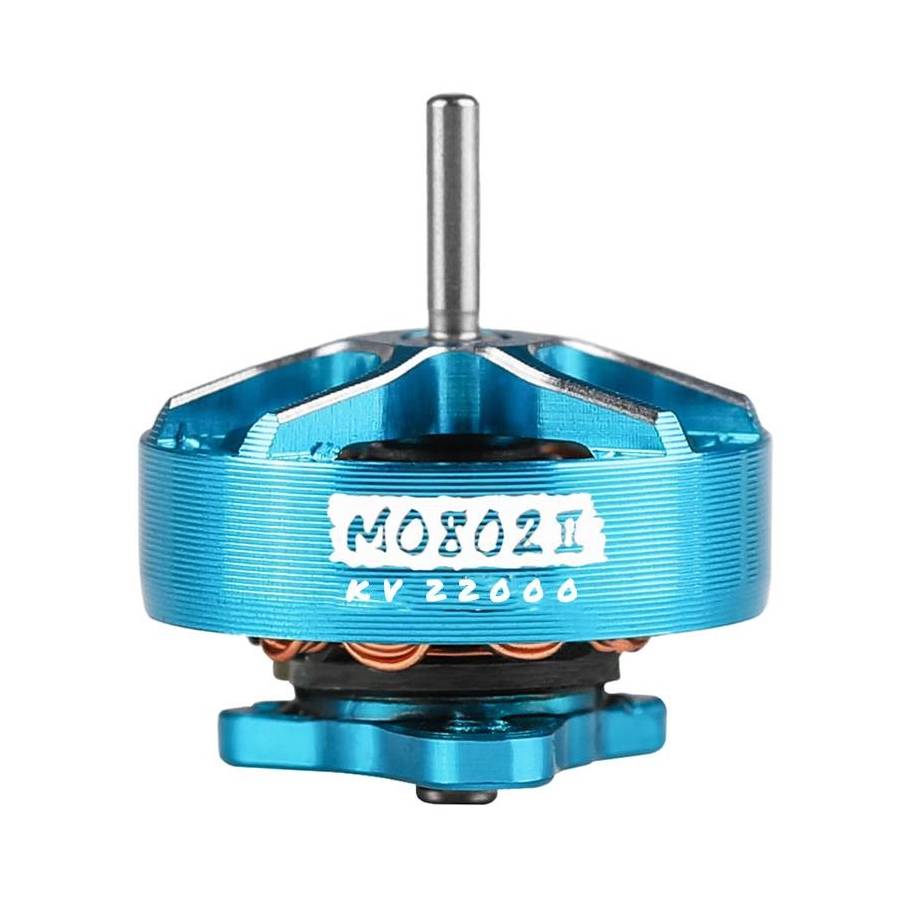

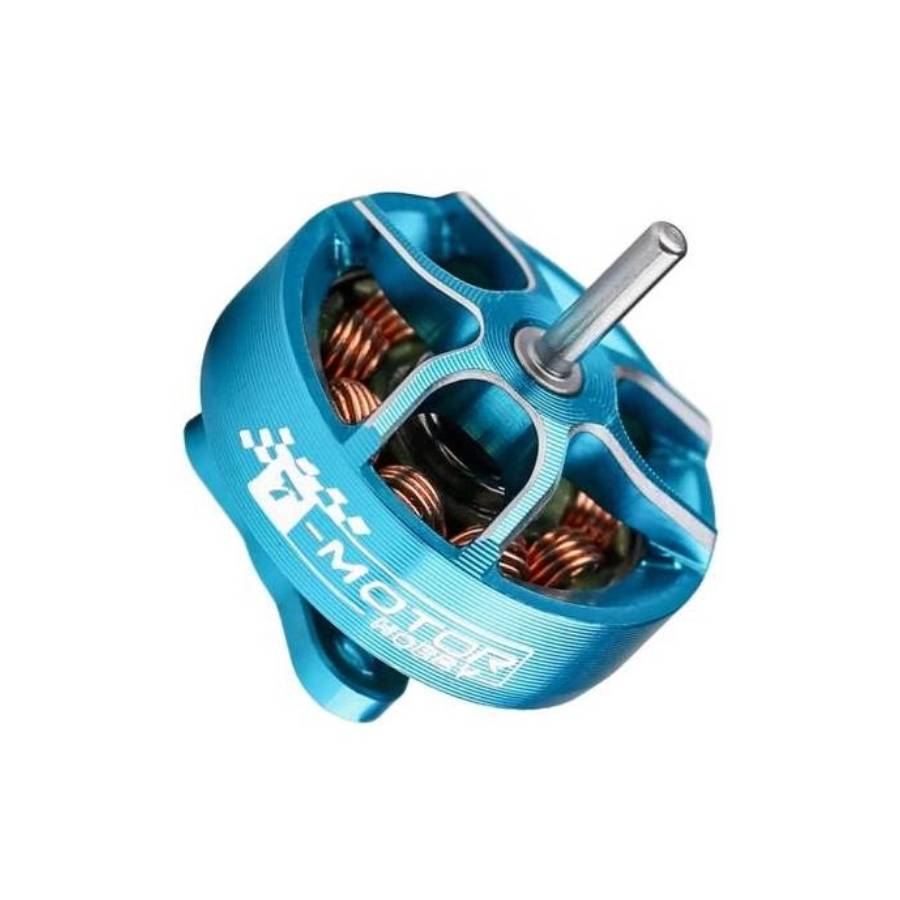

T-Motor M0802II 22000KV Whoop Motor

Overview:
The T-Motor M0802II 22000KV is a high-performance micro brushless motor engineered for lightweight 65-85mm FPV whoops and toothpick-style drones. With its high KV rating, compact 0802 stator and low mass, it delivers crisp throttle response and efficient power delivery that enhances acceleration and manoeuvrability in tight, indoor or outdoor flight.

Designed for 1S LiPo power systems, this motor pairs well with small 31-35mm propellers, providing agile micro quads with confident throttle control and responsiveness.

Whether you’re building a tiny racing rig or upgrading stock motors in a whoop, the M0802II offers an excellent blend of performance and reliability from a trusted motor brand.

Features:
- Optimised for 1S LiPo FPV micro quads, especially 65–85mm whoops and toothpick builds.
- High-speed 22000KV winding for lively acceleration and crisp control in tight spaces.
- Lightweight and compact to reduce overall quad weight and improve agility.
- Reliable brushless design with quality materials for consistent performance.
- JST-1.25 motor lead for easy plug-and-play installation in popular micro builds.
- Includes mount hardware for straightforward fitting to compatible frames.

Specification:
- Model: T-Motor M0802II Micro Motor 22000KV
- Stator configuration: 9N12P (9 slots, 12 poles)
- Input voltage: 1S LiPo only
- Shaft diameter: 1.0mm
- Motor weight: approx. 1.9g (including cable)
- Lead cable: JST-1.25, approx. 33.5mm
- Idle current: ~0.56A @ 4V
- Peak current (10s): ~5.39A
- Max power (10s): ~22.3W
- Recommended prop size: 31-35mm
- Mount pattern: ~6mm, 3x M1.4

Included:
- 1x T-Motor M0802II Micro Motor 22000KV
- Accessories
