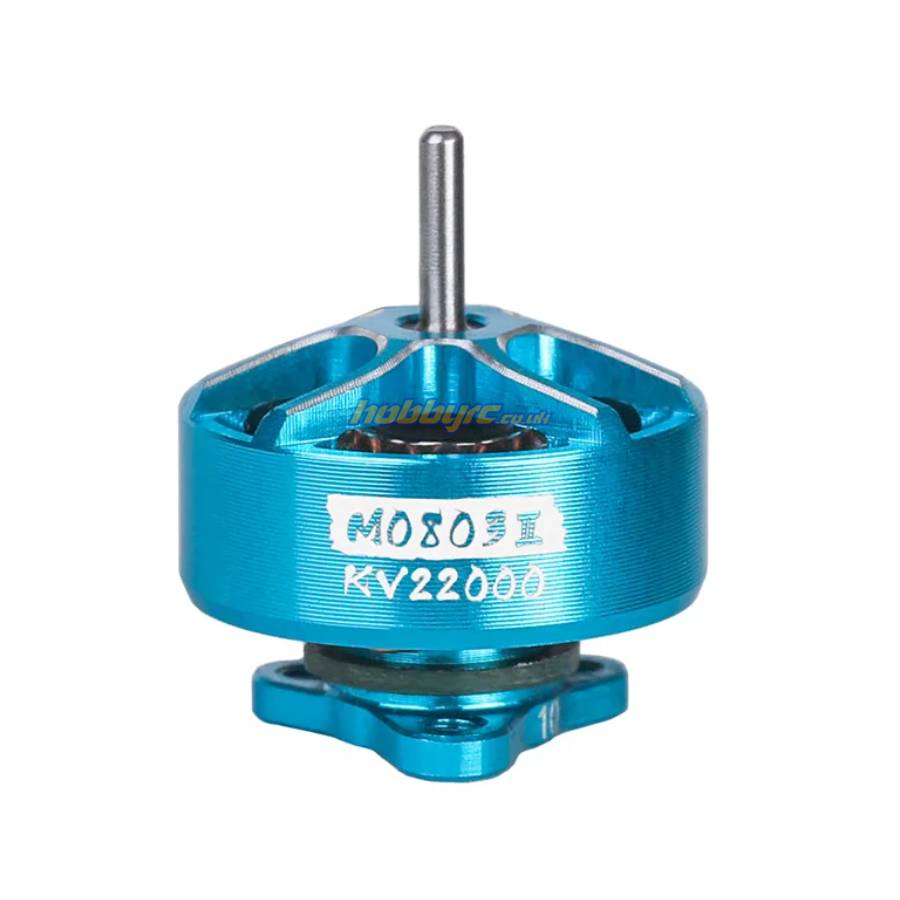

T-Motor M0803II 22000KV Whoop Motor

Overview:
The T-Motor M0803II 22000KV micro motor, an ideal choice for 65mm/75mm 1S whoops. The motors are high efficiency and extremely lightweight.

Specification:
- Model: T-Motor M0803II 22000KV micro motor

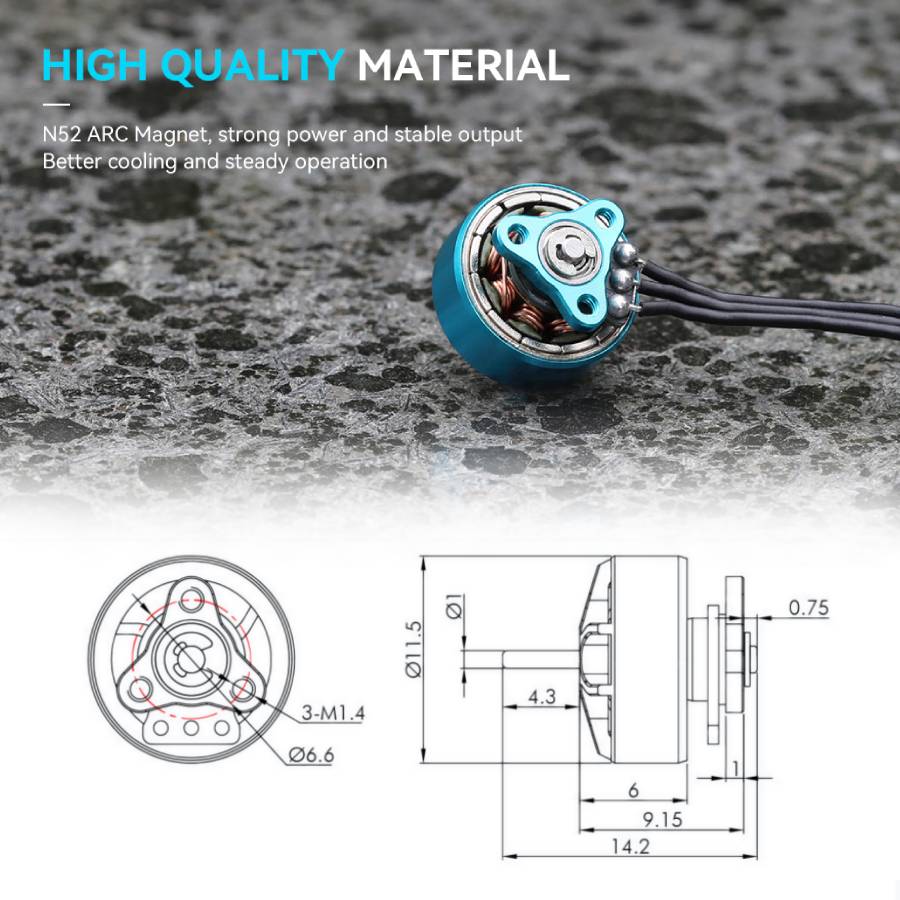

- Stator size: 8mm diameter (M0803)
- KV rating: 22000KV
- Configuration: 9-pole / 12-slot (9N12P)
- Shaft diameter: 1mm
- Mounting hole diameter: 6.6mm with M1.4 screws
- Idle current: 1.5A at 3.7V
- Internal resistance: 122 mΩ
- Peak current (10s load): 7.1A
- Maximum power: 26.3W at 3.7V
- Weight: 2.5g
- Recommended application: 65-75mm whoops on 1S LiPo

Included:
- 1x T-Motor M0803II 22000KV micro motor
- Fittings
