T-Motor Pacer H7 (H743) Flight Controller

Overview:
The T-Motor Pacer H743 Flight Controller is a high-performance 30x30 FC designed for demanding FPV builds where processing power, reliability and connectivity are key. Built around the STM32H743 processor, it provides the performance headroom required for modern Betaflight setups, high update rates and multiple peripherals without bottlenecks.

At the core of the board is the trusted MPU6000 gyro, known for its stable performance and resistance to electrical noise, making it a solid choice for both freestyle and racing drones. Combined with a clean board layout and robust design, the Pacer H743 delivers consistent flight characteristics even in electrically noisy builds.

The controller supports a wide range of modern FPV systems, including both analogue and digital HD setups, with built-in OSD and multiple UARTs allowing flexible configuration of receivers, GPS modules, VTX control and other peripherals. Integrated Bluetooth connectivity also enables wireless configuration via compatible apps, simplifying setup and field adjustments.

With dual BEC outputs and a standard 30.5x30.5mm mounting pattern, the Pacer H743 is well suited to 5inch and larger builds where reliable power distribution and expandability are required.

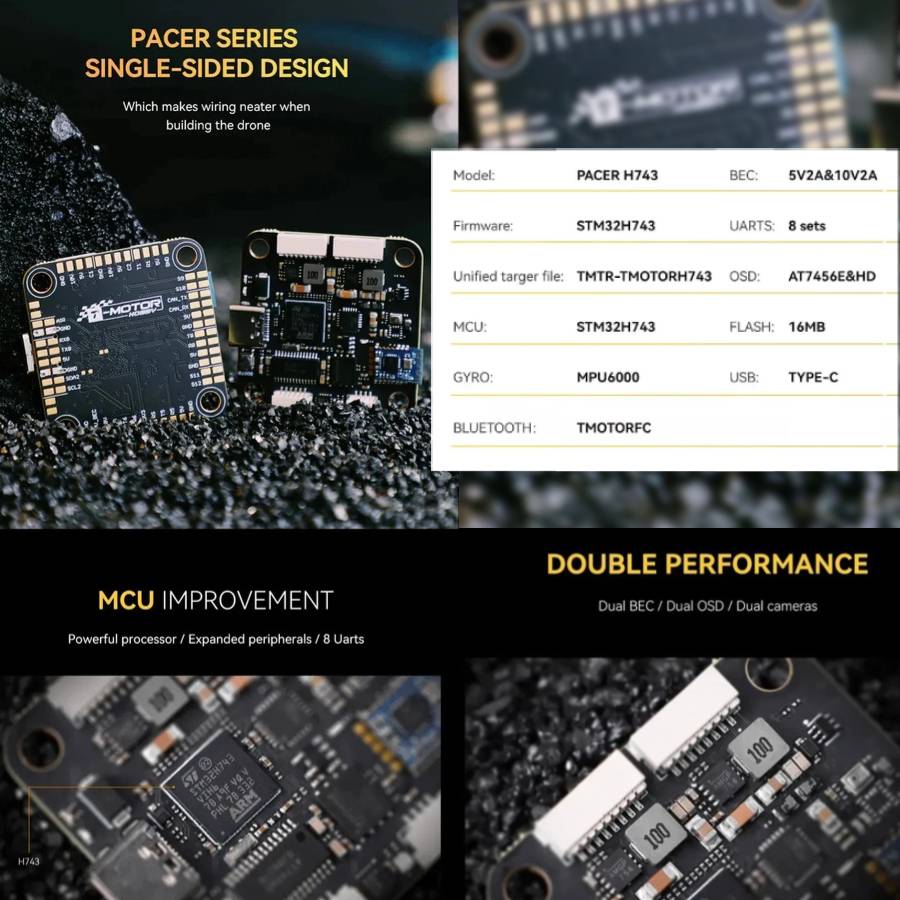

Features:
- STM32H743 processor providing high processing performance for modern firmware
- MPU6000 gyro for stable and noise-resistant flight performance
- 8 UART ports allowing connection of multiple peripherals
- Integrated Bluetooth for wireless configuration and tuning
- Built-in OSD supporting analogue and HD FPV systems
- Dual BEC outputs for powering external components
- Compatible with digital and analogue FPV video systems
- Standard 30.5x30.5mm mounting pattern for wide frame compatibility

Specification:
- Model: T-Motor Pacer H7 FC
- MCU: STM32H743
- Gyro: MPU6000
- Flash: 16Mb
- UARTs: 8
- OSD: AT7456E & HD OSD support
- BEC output: 5V 2A/10V 2A
- USB: Type-C
- Mounting pattern: 30.5x30.5mm
- Input voltage: up to 6S LiPo
- Barometer: Yes
- Bluetooth: Integrated (TMOTORFC)
- Target: TMTR-TMOTORH743
- Weight: 8g (with wires)

Included:
- 1x T-Motor Pacer H7 FC
- Accessories
