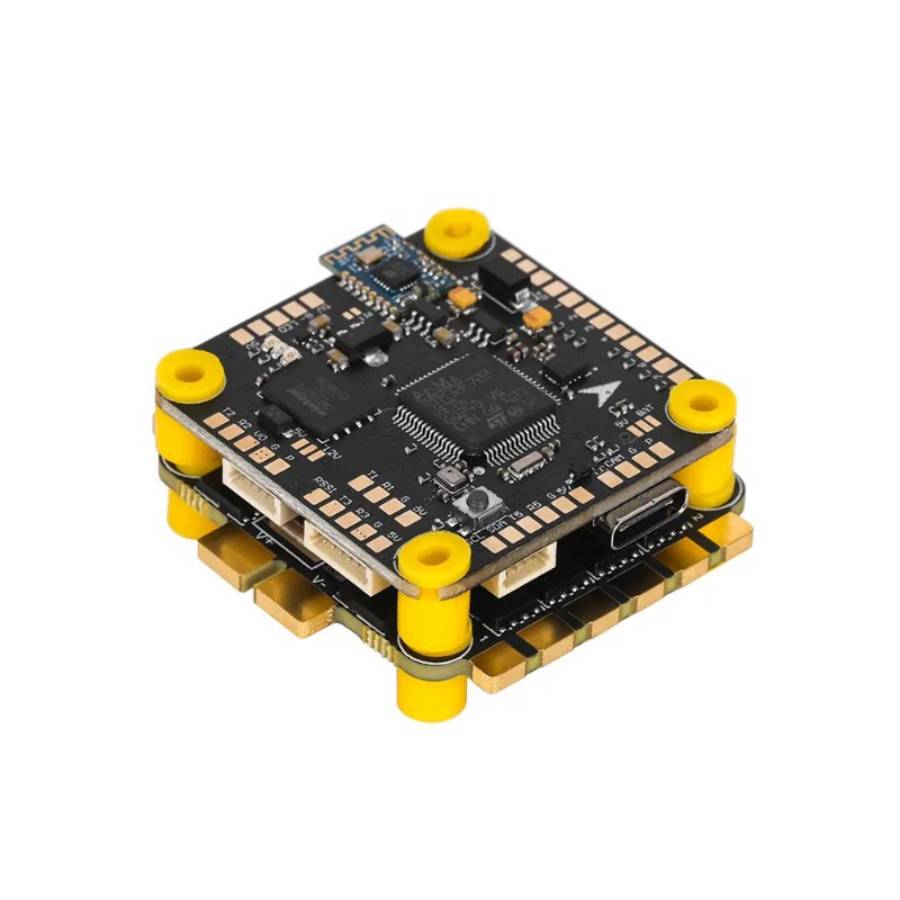

T-Motor Velox F7 SE 8S + V70A SE 8S Stack
The T-Motor/T-Hobby V70A F7 SE 6-8S stack is well suited to drones where advanced flight controller capabilities are required. Its feature set makes it a strong choice for builds focused on performance and reliability.
Overview:
T-Hobby V70A ESC & F7 FC SE 6-8S Stack is a high-performance integrated flight controller and ESC system designed for 6S–8S multirotor builds where reliable power delivery and refined flight control are paramount. It combines a powerful F7-class flight controller with a 70A continuous 4-in-1 ESC on an optimized multi-layer PCB, offering efficiency and clean power delivery suitable for freestyle and long-range drones. The stack supports Betaflight firmware tuning, onboard Blackbox logging and Bluetooth configuration, making it appealing to pilots seeking a robust electronics core for demanding FPV drones and custom builds.
Features:
- Integrated F7 SE flight controller and 4-in-1 ESC stack simplifies installation and reduces wiring complexity.
- 8S capable power input increases voltage headroom for high-performance motor and battery combinations.
- 70A continuous ESC rating ensures stable current delivery for each motor under aggressive throttle and load.
- Optimised multi-layer PCB design improves current-carrying efficiency and reduces heat build-up.
- Third-generation BEC architecture reduces electrical noise for cleaner gyro performance.
- Plug-and-play Betaflight-standard harness between FC and ESC for tidy builds and rapid assembly.
- Bluetooth support enables wireless configuration and tuning without additional adapters.
- Onboard Blackbox memory (128MB) supports flight data logging for tuning and analysis.
Specification:
Model: T-Hobby V70A ESC & F7 FC SE 6-8S 4IN1 stack

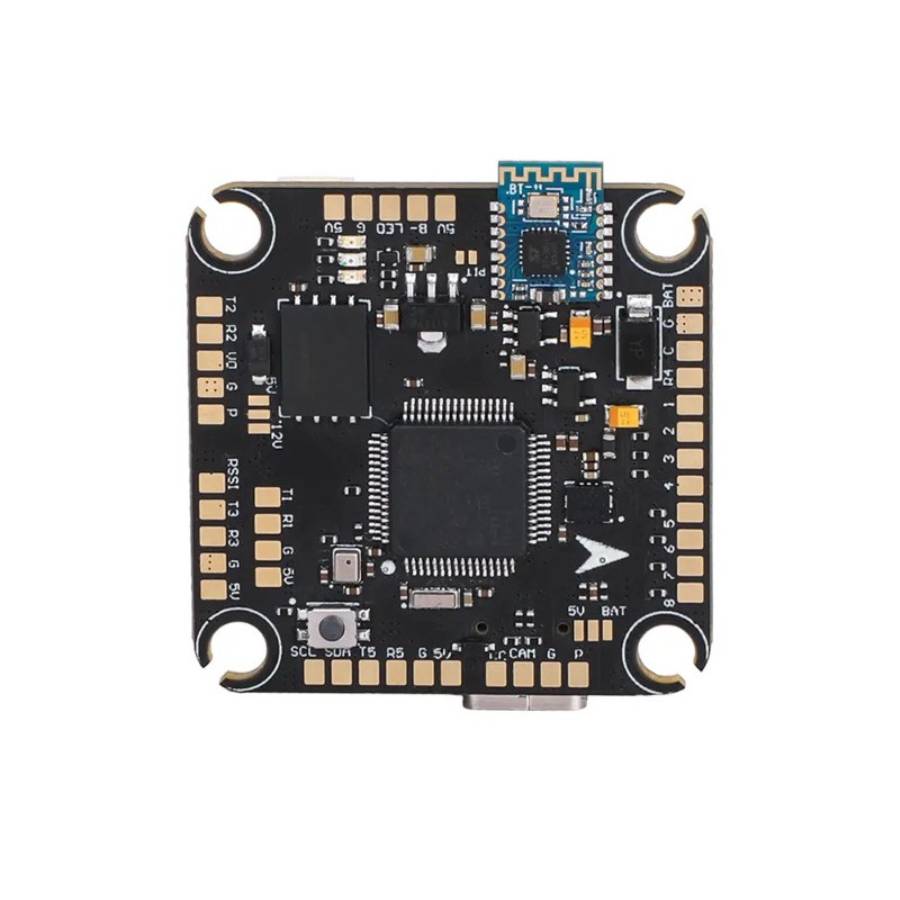

Flight Controller: Velox F7 SE:
MCU: STM32F722
Gyroscope: ICM-42688P
Firmware: Betaflight
OSD: AT7456E (HD Supported)
BEC Output: 5V/3A & 12V/3A
UARTs: 5
Wireless Connectivity: Bluetooth
Input Voltage: 4–8S LiPo
Mounting Pattern: 30.5×30.5mm (M4)
Dimensions: 38×38×7mm
Weight: 8g

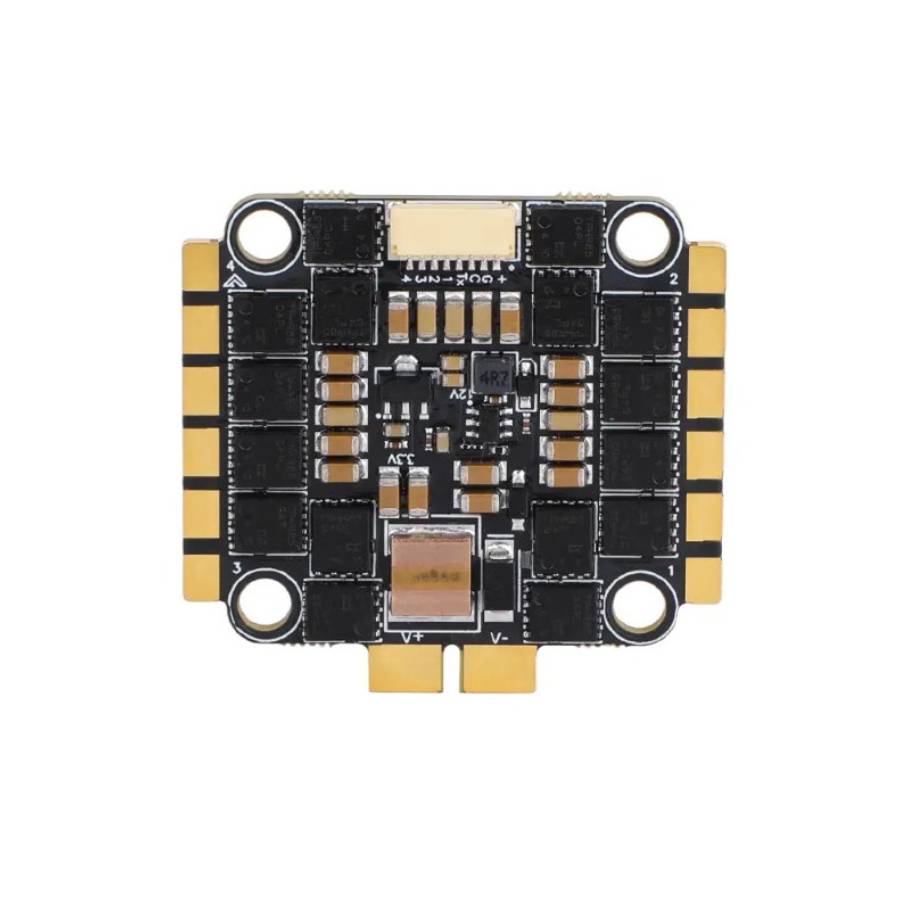

ESC: Velox V70A SE 8S (4-in-1)
Continuous Current: 70A
Peak Current: 75A
Input Voltage: 4–8S LiPo
ESC Firmware: AM32
ESC MCU: AT32F421
Power Layer Design: Optimised Multi-Layer PCB
Blackbox Memory: 128MB
USB Interface: USB Type-C
Mounting Pattern: 30.5×30.5mm
Dimensions: 44.4×41×6mm
Weight: 12.3g
Included:
- 1x T-Hobby V70A ESC & F7 FC SE 6-8S 4IN1 freestyle stack
- Accessories
