Overview:
The T-Motor Velox V3120 motor is engineered for cinematic-style multirotor platforms (X4/X8) operating on 3-12S LiPo packs. It's built to accommodate higher-momentum props (8-11″) and heavy payloads, with smooth thrust and efficient output for builds where stability and torque matter. With corrosion-resistant materials, premium bearings and a comprehensive heat-dissipation design, they suit pilots looking for dependable performance in film rigs or drones built for extended cinematic flights.
Features:
- Brushless design for improved performance and extended lifespan
- 5mm shaft diameter for robust propeller mounting and compatibility with heavier loads.
- Electrophoresis iron-core design for improved corrosion resistance and long-term stability.
- Active heat-dissipation features and premium NMB bearings for smooth, sustained operation.
Specification:
T-Motor Velox V3120 500KV Motor
- Configuration: 12N14P

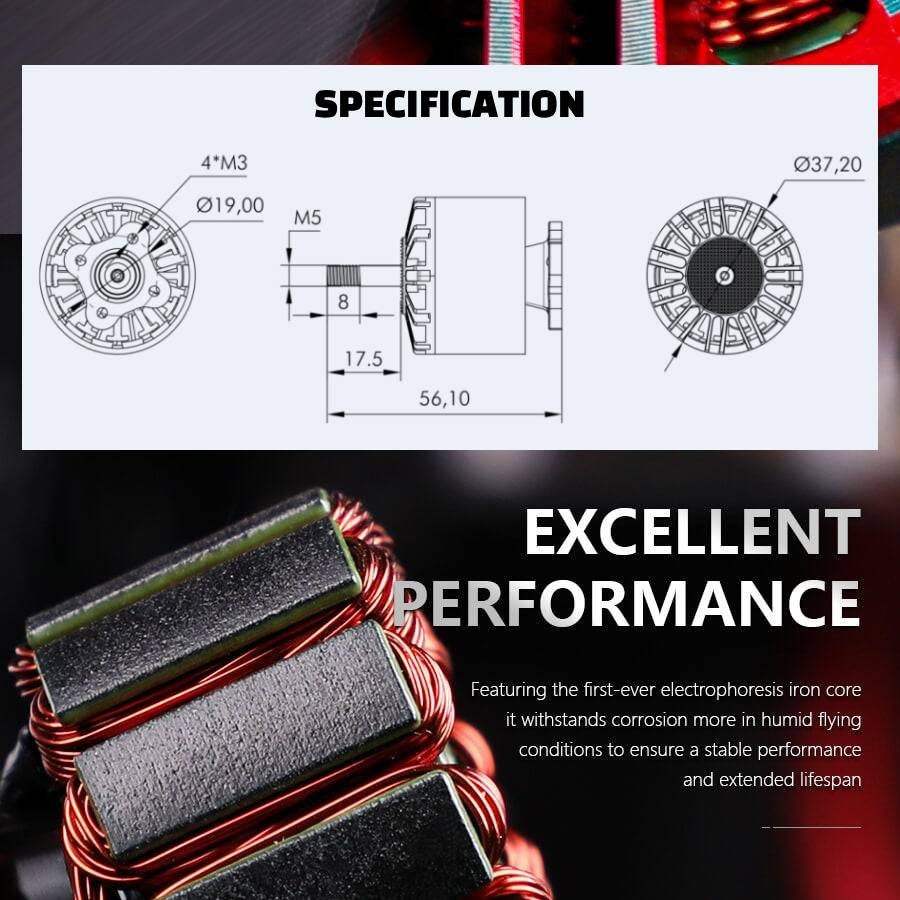

- Size: φ37.2×56.1mm
- Internal Resistance: 76.35mΩ
- Shaft Diameter: 5mm
- Lead: 16AWG (L)250mm
- Weight (Incl. Cable): 146.7g
- Idle Current (@10V): 0.95A
- Maximum continuous power (10s): 3242W
- Peak Current (10s): 68.9A
T-Motor Velox V3120 700KV Motor
- Configuration: 12N14P
- Size: 37.2×56.1mm
- Internal resistance: 40.59mΩ
- Shaft Diameter: 5mm
- Lead wire: 16AWG, 250mm length
- Weight (inc. cable): approx 148.1g
- Idle Current (@10V): 1.35A
- Maximum continuous power (10S): approx 2453W
- Peak Current (10s): 79.4A
Available versions (see below for purchase options):
- 1x T-Motor Velox V3120 500KV Motor (AFD03010012)
- 1x T-Motor Velox V3120 700KV Motor (AFD03010013)
Included:
- 1x T-Motor Velox V3120 Motor
- Accessories
