Overview:

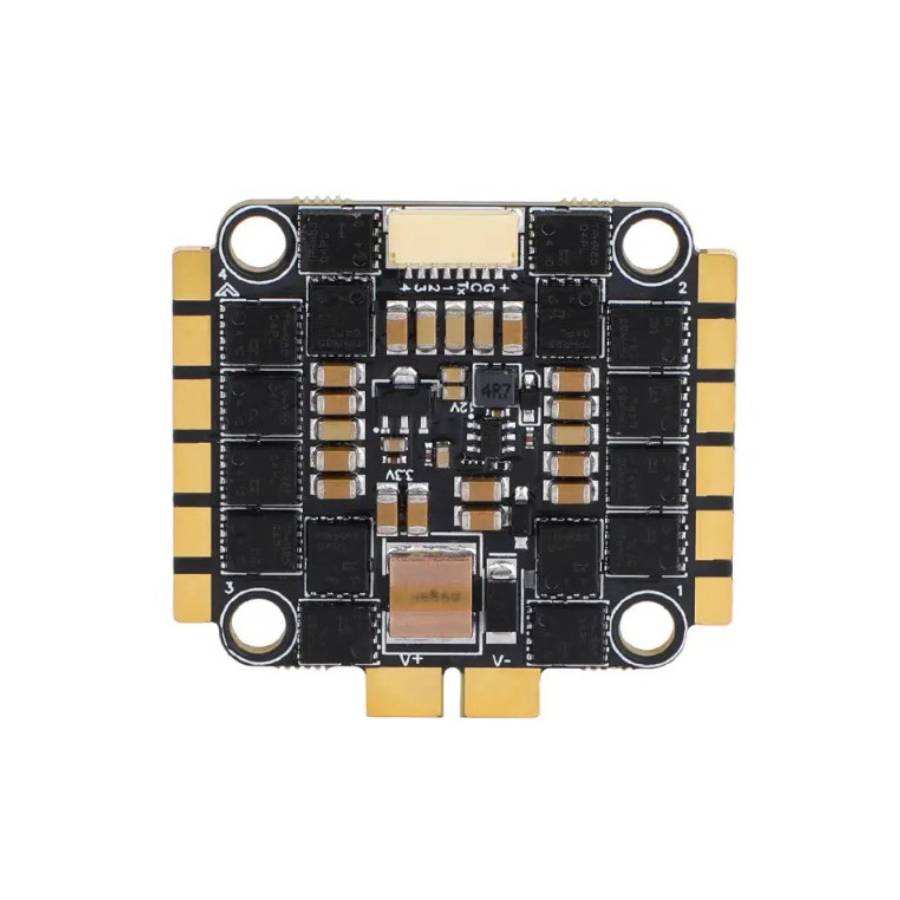

The T-Motor Velox V70A SE 8S 4-in-1 ESC is designed for high-voltage freestyle and cinematic drone builds that demand serious current handling and efficiency. With continuous 70A per motor capability and support up to 8S LiPo, it provides clean, high-performance power for 5″-7″ prop setups. Featuring AM32 firmware and a 30.5×30.5mm mounting pattern, this ESC simplifies wiring while offering advanced features like RPM filtering and telemetry output tailored for professional pilots.
Features:
- High-current rating of 70A continuous per motor enables aggressive flying on large propeller setups
- Compatible with 4S to 8S LiPo inputs, offering voltage headroom for advanced builds
- AM32 firmware provides modern features including 32-bit processing, RPM filter support and high refresh rates
- Standard 30.5×30.5mm mounting footprint ensures compatibility with established freestyle/cine frames
- 4-in-1 design reduces wiring complexity and helps maintain clean builds with minimal clutter
Specification:
- Model: Velox V70A SE 8S 4-in-1 ESC (AHT03010002)
- Continuous current per motor: 70A
- Burst current: up to 75A per motor
- Supported input voltage: 4S-8S LiPo (approx. 14.8V-33.6V)

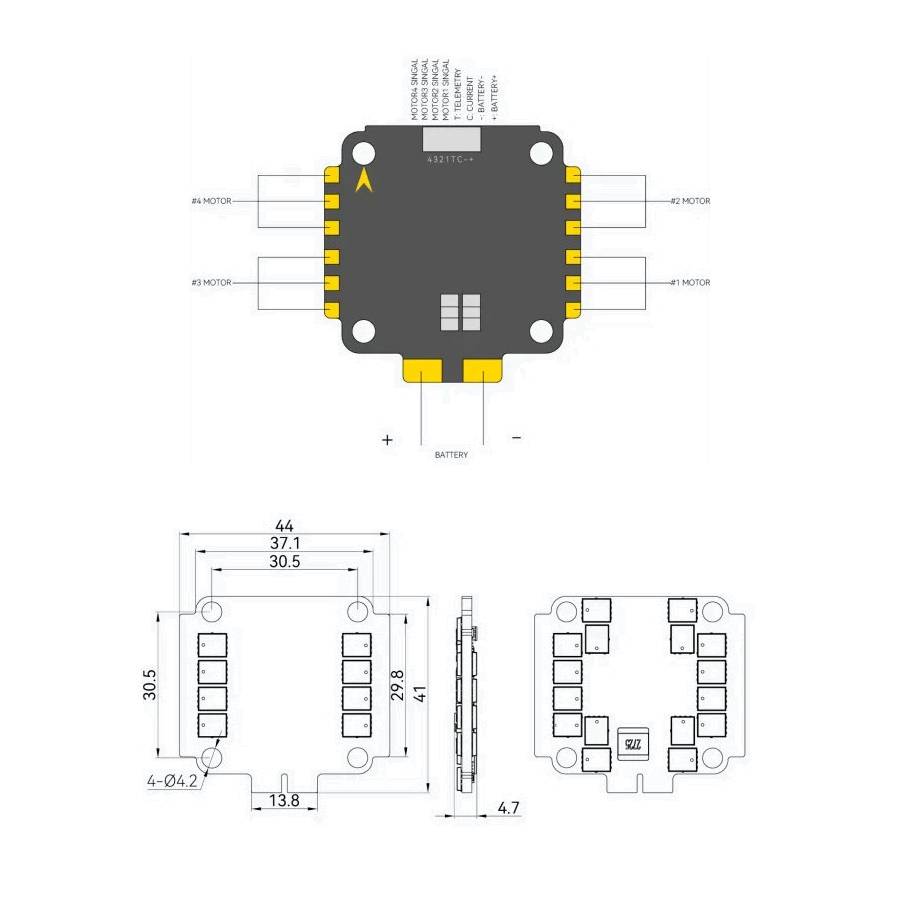

- Mounting footprint: 30.5×30.5mm
- Firmware type: AM32 (32-bit ESC firmware)
- Dimensions: ~44.4×41×6mm
- Weight: ~12.3g
- Compatible EK format: 4-in-1 multirotor ESC module
Included:
- 1x T-Motor Velox V70A SE 8S AM32 4in1 ESC
- Accessories
