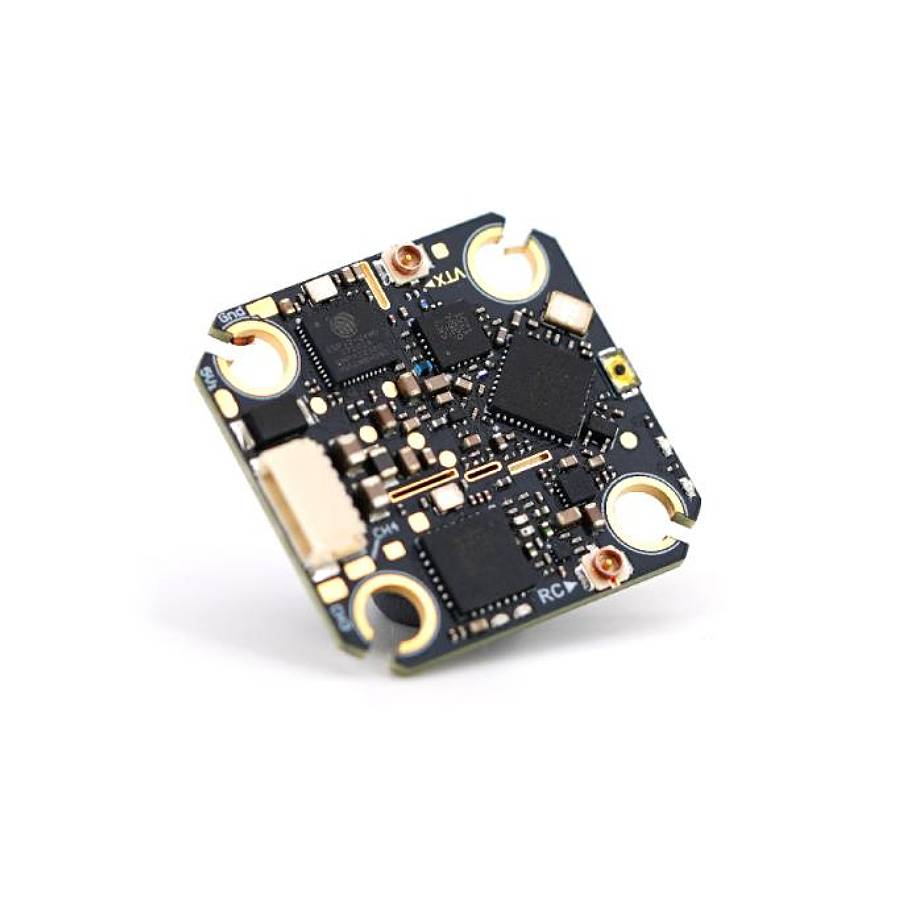

Overview:
The TBS Crossfire Sixty9 is a compact all-in-one radio receiver and analogue video transmitter board designed for FPV drones that require both long-range control and high-power video feed from a single integrated module. Combining Team BlackSheep’s Crossfire-class RC receiver technology with an adjustable 5.8GHz video transmitter capable of up to ~1W output, it simplifies wiring and saves weight in tight builds without sacrificing performance. The dual-purpose design outputs CRSF telemetry, PWM or serial channels to the flight controller while simultaneously delivering a strong analogue video link, making it suitable for 3″–5″ drones, freestyle rigs and endurance aircraft where robust control and clean video are essential.
With a low-noise dedicated power supply and race-friendly features, the Sixty9 provides pilots with flexibility and reliability in demanding flying environments. Its small 20×20mm footprint and included mounting options help it integrate into modern frames with minimal fuss.
This integrated receiver + VTX solution is ideal for pilots who want to cut weight and wiring complexity while retaining the scalability and performance of dedicated Crossfire control with a capable high-power analogue video feed.
Features:
- Integrated Crossfire RC receiver and video transmitter in one compact board.
- High-power 5.8GHz analogue video transmitter with adjustable output up to ~1W.
- Dedicated low-noise power supply supports both receiver and VTX without interference.
- 20×20mm mounting compatible with common stack layouts.
- Plug-and-play connection and accessible solder pads simplify installation.
- Outputs CRSF telemetry and control signals directly to the flight controller.
- Included mounting options and RF shields support flexible mechanical integration.
- Regulated 5V supply with a wide input range supports up to 6S LiPo.
Specification:
- Weight: ~4.1g (board only).
- Size: ~24×24mm.
- Input voltage: 6–25V (2S–6S LiPo).
- RC receiver protocol: Crossfire (CRSF) V3-ready.
- Antenna ports: 1× video transmitter, 1× RC receiver.
- Requires firmware: Crossfire firmware v4.62 or newer.
- Control outputs: 2× CRSF + PWM (expandable to 6× PWM via pads).
- Video transmitter output: Analogue 5.8 GHz adjustable up to ~1W.
- Mounting: 20×20mm stack holes; adapters included for 30×30.

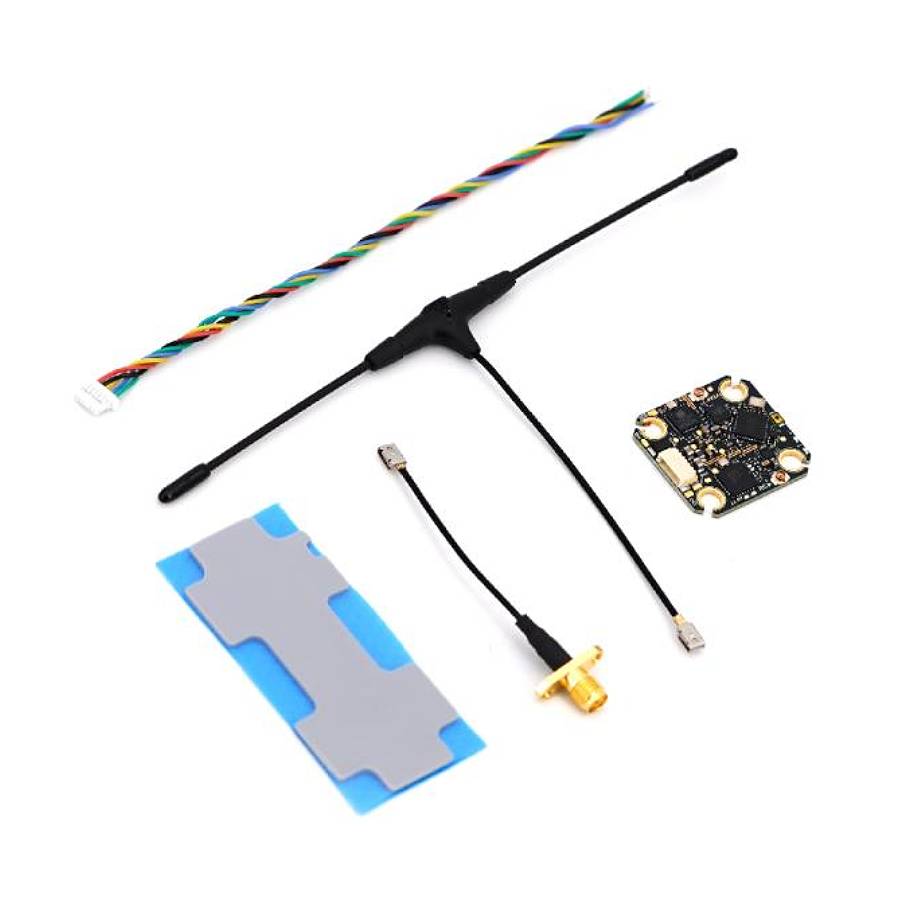

Included:
- 1x TBS Crossfire Sixty9
- 1x Locking TBS Crossfire Immortal-T antenna
- 1x Locking u.FL to SMA mount (for VTx)
- 1x JST-SH x 9 connector
- 4x M3 rubber dampers
