Overview:

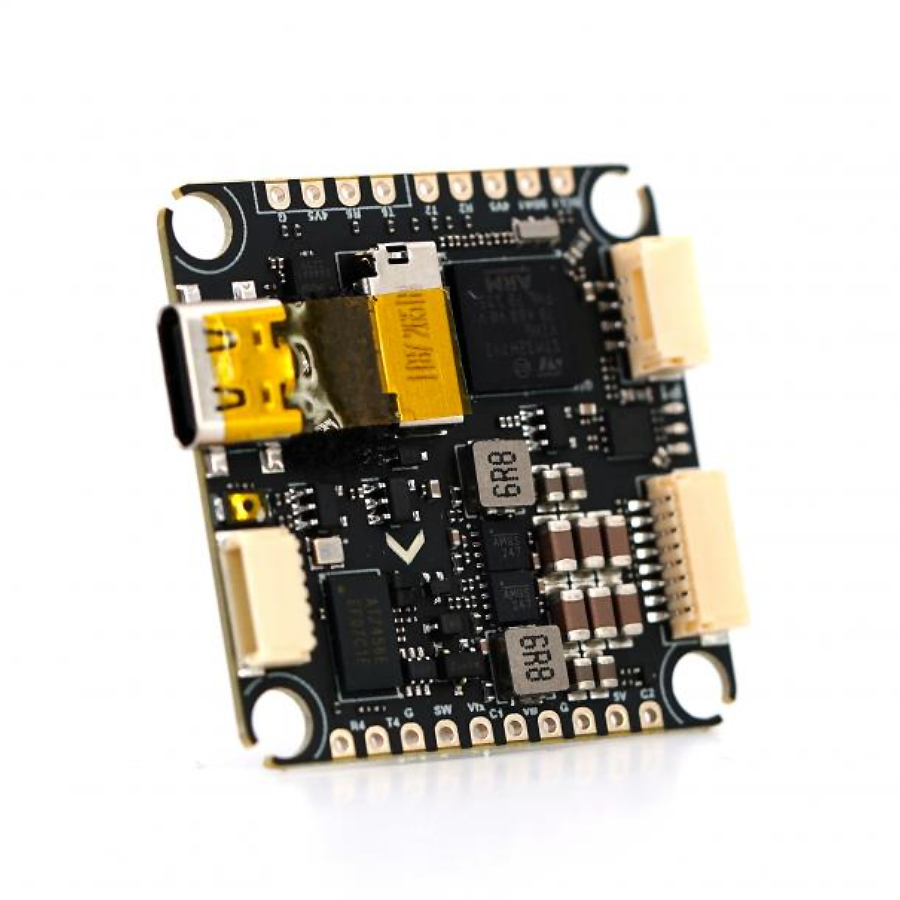

The TBS Lucid H7 FC is a high-performance flight controller designed for advanced FPV freestyle, racing and long-range drone builds that require extensive peripheral support and modern processing power. Built around the STM32H743 processor running at 480MHz, the Lucid H7 delivers fast loop times, strong computational performance and broad firmware compatibility while maintaining a compact 30.5x30.5mm mounting footprint suited to modern FPV frames. Developed by Team BlackSheep for experienced builders and enthusiasts, the platform is engineered to support demanding configurations including HD video systems, GPS navigation, CAN peripherals and advanced telemetry setups.
At the centre of the board is a dual ICM42688 gyro configuration combined with an Infineon DPS310 barometer, providing stable sensor performance and improved flight data accuracy. Seven UARTs, dual I2C buses, CAN support, and multiple ADC inputs allow integration with a wide range of accessories, including GPS modules, airspeed sensors, HD video systems and advanced telemetry hardware. The integrated MicroSD blackbox slot also enables detailed flight logging for tuning and diagnostics without external storage hardware.
The Lucid H7 is designed to support both analogue and digital FPV systems. Dual switchable analogue camera inputs are built directly into the board, while DJI FPV OSD compatibility is supported through spare UART ports for modern HD systems, including DJI O3 and O4-based installations. Additional features such as filtered power outputs, signal inversion-ready UARTs, and USB-C connectivity further simplify integration into complex builds.
With support for Betaflight, INAV and ArduPilot firmware ecosystems, the TBS Lucid H7 FC offers exceptional flexibility across freestyle, cinematic, racing and autonomous applications. Its combination of processing power, broad connectivity and compact lightweight design makes it suitable for pilots wanting a modern flagship-class flight controller without excessive complexity.
Features:
- High-performance H7 flight controller for FPV freestyle, racing and long-range builds
- STM32H743 processor running at 480MHz for fast computation and low latency
- Dual ICM42688 gyros for improved sensor performance and flight stability
- Integrated Infineon DPS310 barometer for altitude-sensitive applications
- Compatible with Betaflight, INAV and ArduPilot firmware ecosystems
- Dual switchable analogue camera inputs integrated onboard
- DJI FPV OSD compatibility for digital HD systems
- Seven UARTs with signal inversion support for extensive peripheral integration
- CAN bus and dual I2C buses for advanced accessory support
- Integrated MicroSD blackbox storage for tuning and diagnostics
- USB Type-C connectivity for simplified setup and firmware updates
- Compact lightweight design suitable for modern FPV frames
- Multiple filtered power outputs for accessories and video systems
- Suitable for analogue and HD FPV platforms
Specification:
- Model: TBS Lucid H7 FC
- MCU: STM32H743VIH6 480MHz
- Memory: 1MB RAM / 2MB Flash
- Gyro: Dual ICM42688
- Barometer: Infineon DPS310
- OSD Chip: AT7456E
- Input Voltage: 9-36V (3-8S LiPo)
- BEC Outputs: 5V 2A continuous (3A max), 9V 2A continuous (3A max)
- PWM Outputs: 13
- UARTs: 7 (UART1/2/3/4/6/7/8)
- I2C Buses: 2
- CAN Bus: 1
- ADC Inputs: 6
- Blackbox Storage: MicroSD card slot (SDIO)
- USB Interface: USB Type-C
- Mounting Pattern: 30.5x30.5mm (M3)
- Board Dimensions: 32x32mm

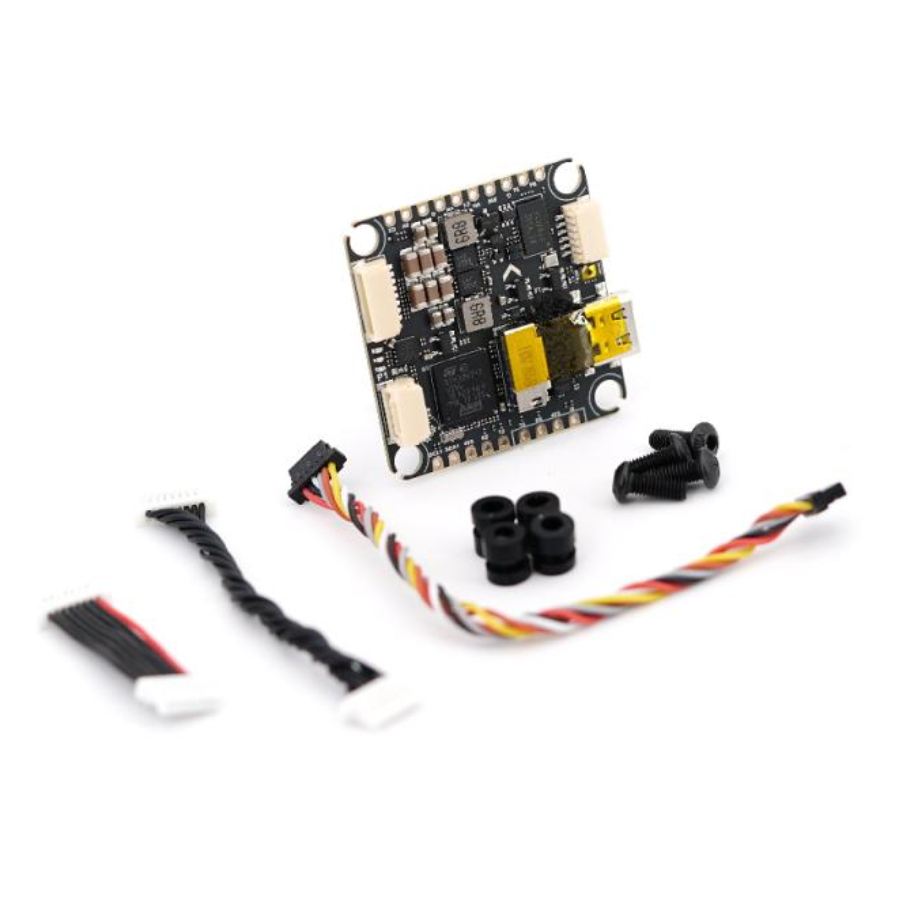

Included:
- 1x TBS Lucid H7 FC
- Accessories
