Overview:
Designed specifically for fixed-wing and VTOL aircraft, the TBS Lucid H7 Wing FC is a high-performance flight controller built to deliver advanced functionality, broad peripheral support and reliable operation for demanding long-range and autonomous aircraft builds. Powered by a fast STM32H743 processor running at 480MHz, the Lucid H7 Wing is engineered to handle complex flight tasks while maintaining compatibility with major firmware ecosystems, including ArduPilot. Its extensive connectivity, dual gyro system and integrated power management make it particularly well-suited to modern FPV wings, endurance platforms and hybrid VTOL aircraft.

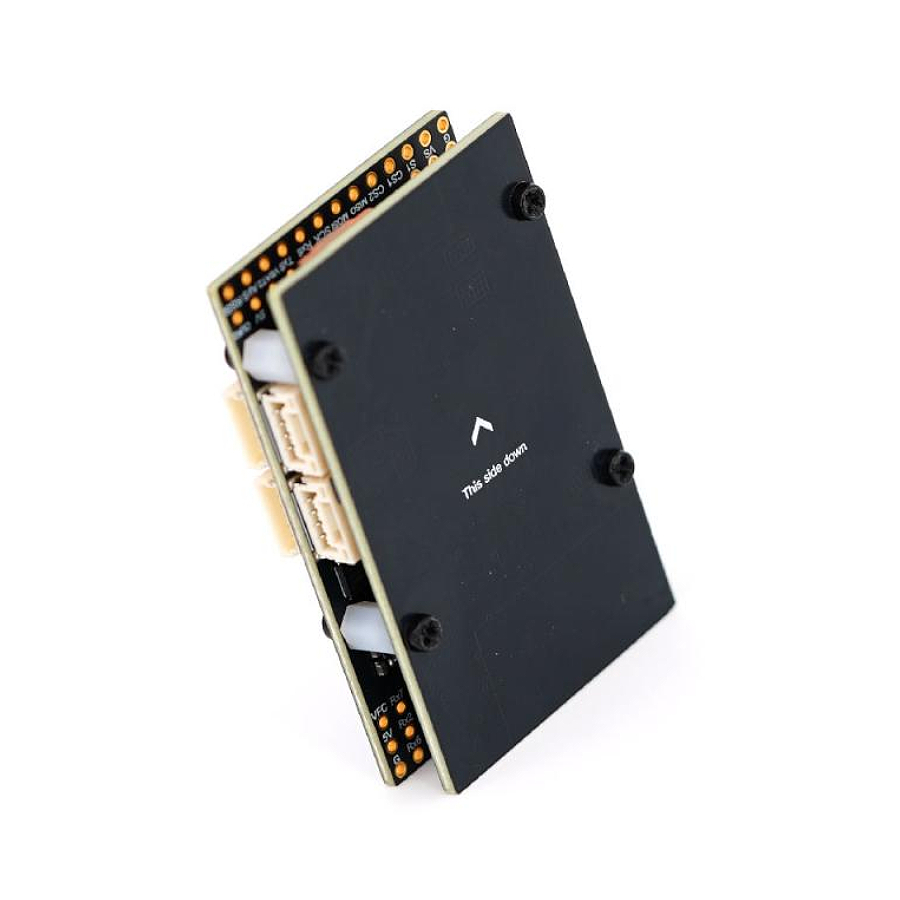

Unlike many traditional wing controllers, the Lucid H7 Wing integrates both the flight controller and power distribution board into a compact sandwiched layout, simplifying installation while reducing wiring complexity. The board supports a wide 3-12S input range and includes multiple selectable BEC outputs, allowing direct support for servos, FPV systems and peripherals without requiring additional regulators. Dedicated analogue and digital FPV support is also built in, including switchable dual camera inputs, AT7456E OSD functionality and a dedicated connector for DJI-compatible digital systems.
The hardware platform includes dual ICM42688 gyros for improved flight stability and redundancy, alongside a DPS310 barometer for altitude-sensitive flight modes. Seven UARTs, dual I2C buses, CAN support, and multiple ADC inputs provide extensive expansion capability for GPS modules, airspeed sensors, telemetry systems, gimbals and other advanced aircraft peripherals. A built-in MicroSD blackbox slot further enhances tuning and diagnostics for advanced pilots and developers.
Designed for experienced builders wanting flexibility without excessive complexity, the TBS Lucid H7 Wing FC combines modern processing power, extensive connectivity and fixed-wing specific functionality in a compact and highly capable platform.
Features:
- STM32H743 processor delivering fast flight computation and peripheral handling
- Dual ICM42688 gyros for improved stability and redundancy
- Integrated power distribution board with wide 3-12S input support
- Selectable BEC outputs for servos, FPV systems and onboard electronics
- Dedicated support for both analogue and digital FPV systems
- Dual switchable analogue camera inputs with integrated OSD support
- DJI-compatible digital FPV connector with OSD communication support
- Extensive connectivity, including UART, CAN and I2C expansion capability

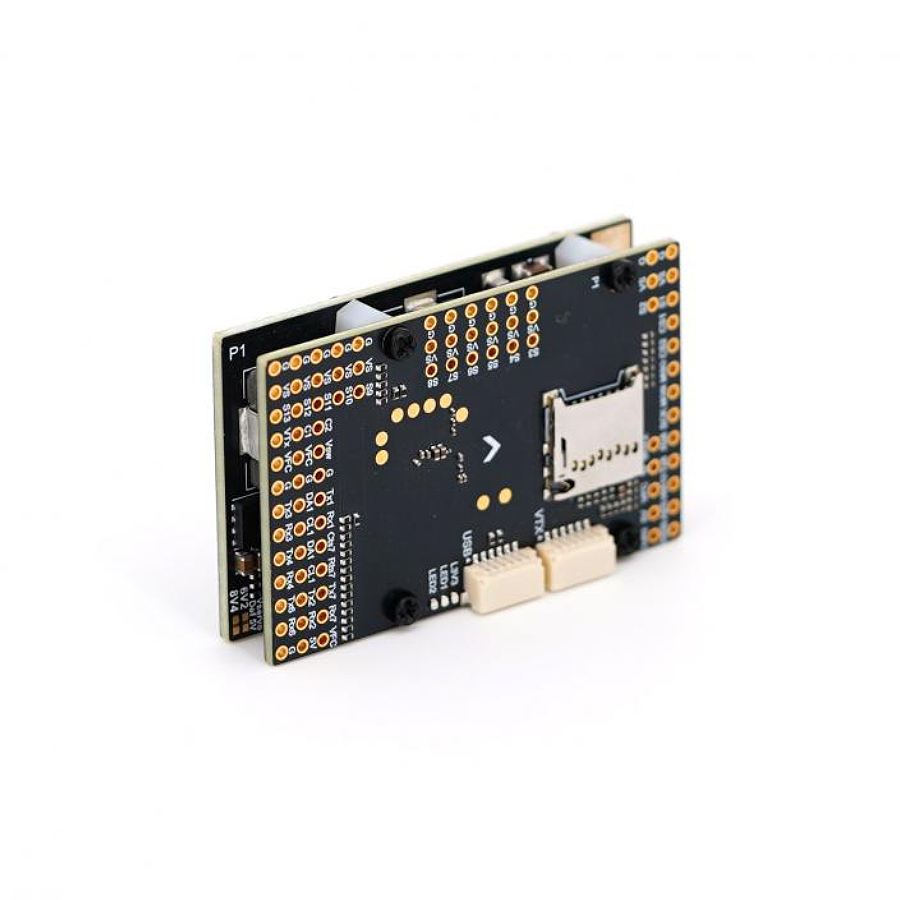

- Built-in MicroSD blackbox slot for flight logging and diagnostics
- Suitable for fixed-wing aircraft, VTOL platforms and long-range FPV builds
- Compatible with ArduPilot
Specification:
- Model: TBS Lucid H7 Wing Flight Controller
- MCU: STM32H743VIH6, 480MHz, 2MB Flash
- Input Voltage: 8-50.4V (3-12S LiPo)
- Gyro: Dual ICM42688
- Barometer: DPS310
- PWM Outputs: 13 channels (including LED output)
- UARTs: 7
- I2C Ports: 2
- CAN Bus: 1
- ADC Inputs: 6
- Blackbox Storage: MicroSD card slot
- OSD Chip: AT7456E
- Analogue FPV Support: Dual camera inputs with switchable selection
- Digital FPV Support: DJI-compatible connector with SBUS and OSD communication
- FC BEC Output: 5V 3A continuous
- Main BEC Output: 5V/6V/8.4V selectable, 8A continuous/10A peak
- FPV BEC Output: 9V/12V selectable, 5A
- Current Sensor Rating: 165A continuous/240A peak
- Dimensions: 54x36x13mm

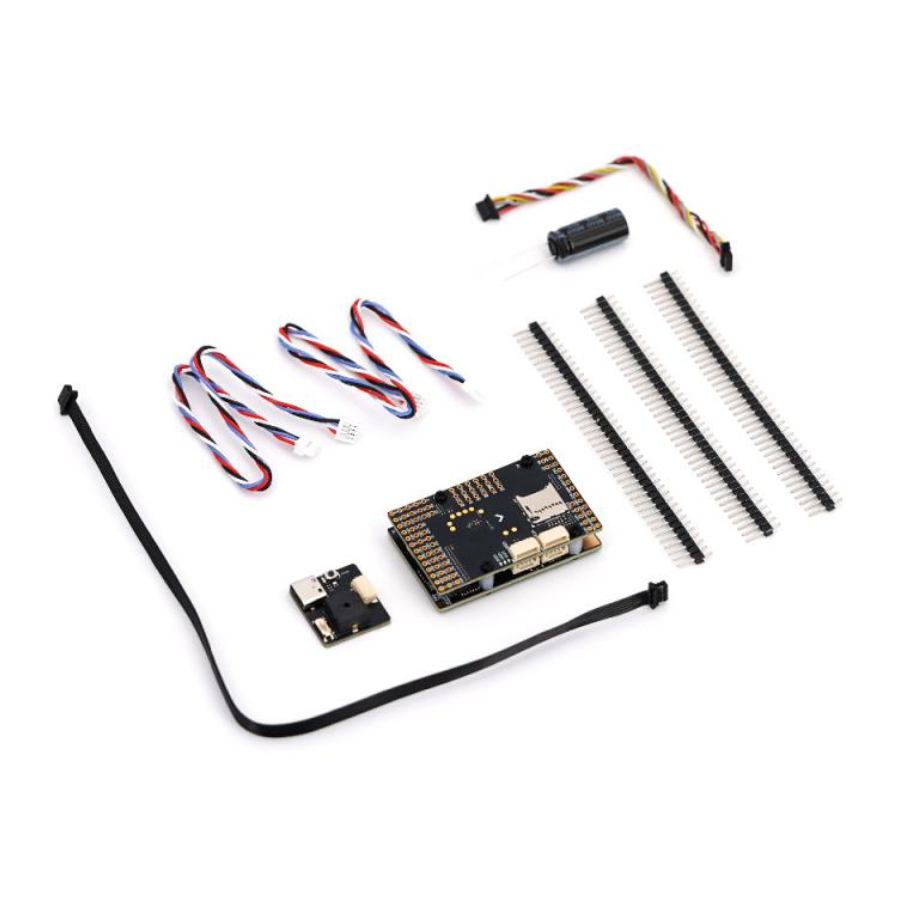

Included:
- 1x TBS Lucid H7 Wing FC
- Accessories
