Overview:
Built for extreme current handling and high-power aircraft applications, the TBS Lucid PDB 500A is a heavy-duty power distribution board engineered to support demanding FPV, X-Class and industrial drone builds. Designed around oversized copper layers and robust power circuitry, the Lucid 500A is capable of handling exceptionally high continuous current loads while maintaining clean and stable power delivery to ESCs and onboard electronics. Its compact layout and integrated filtering make it particularly suitable for high-performance multirotor platforms where reliability and electrical efficiency are critical.
Unlike conventional power distribution boards aimed at standard freestyle quads, the Lucid PDB 500A is purpose-built for large-scale systems running high-voltage battery setups and powerful motors. The board supports up to 14S LiPo input and incorporates heavy copper construction to minimise voltage sag and heat build-up under sustained load. This makes it well-suited to long-range platforms, heavy-lift drones and high-current propulsion systems where traditional PDBs may become a limitation.
Integrated low-noise voltage regulation provides stable power output for flight controllers, FPV systems and peripherals, while built-in LC filtering helps reduce electrical interference generated by powerful ESC and motor combinations. Multiple regulated outputs are included for accessories and video systems, simplifying wiring and reducing the need for additional regulators or filter boards. The compact mounting footprint also allows the board to integrate cleanly into modern large-format aircraft frames.
Designed for builders requiring dependable high-current power management, the TBS Lucid PDB 500A combines industrial-grade current capability with practical integration features for advanced FPV and UAV applications.
Features:
- Heavy-duty high-current power distribution board for large multirotor platforms
- Designed for FPV, X-Class, heavy-lift and industrial UAV applications
- Supports high-voltage battery systems up to 14S LiPo
- Oversized heavy copper construction for reduced resistance and heat generation
- Integrated LC filtering for cleaner power delivery and reduced electrical noise
- Stable regulated voltage outputs for flight controllers and FPV systems
- Compact layout for simplified integration into modern airframes
- Multiple power outputs for ESCs and onboard accessories
- Optimised for high-current ESC and motor combinations
- Suitable for demanding continuous-load applications
Specification:

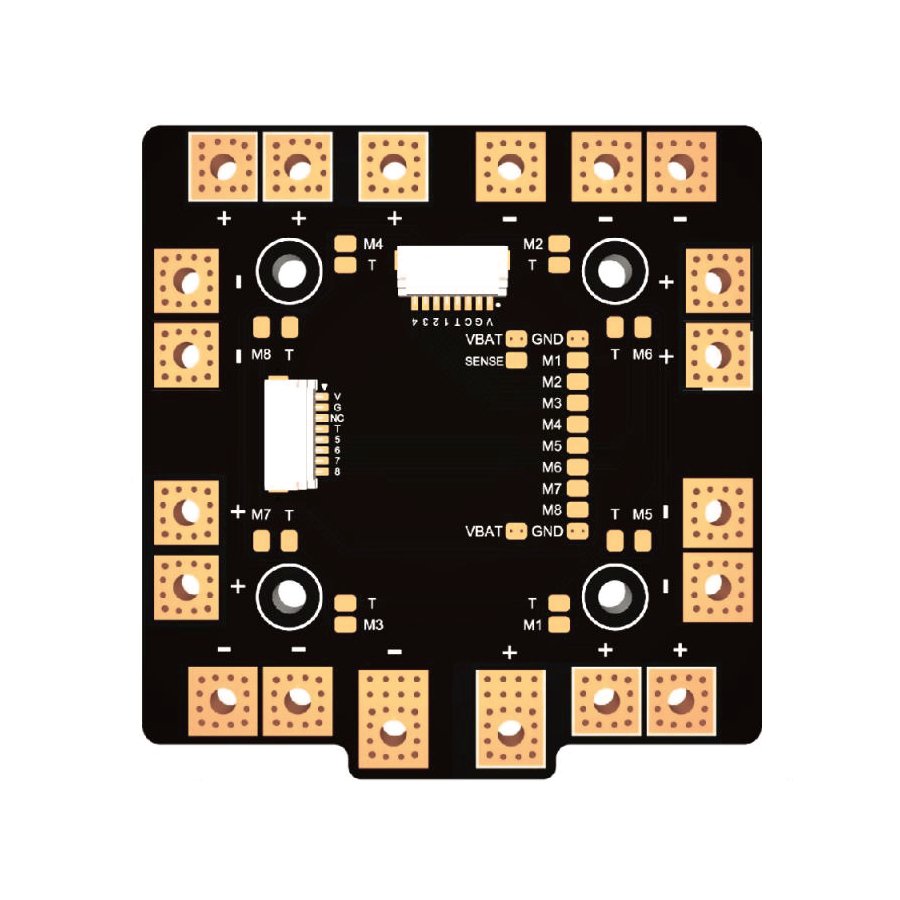

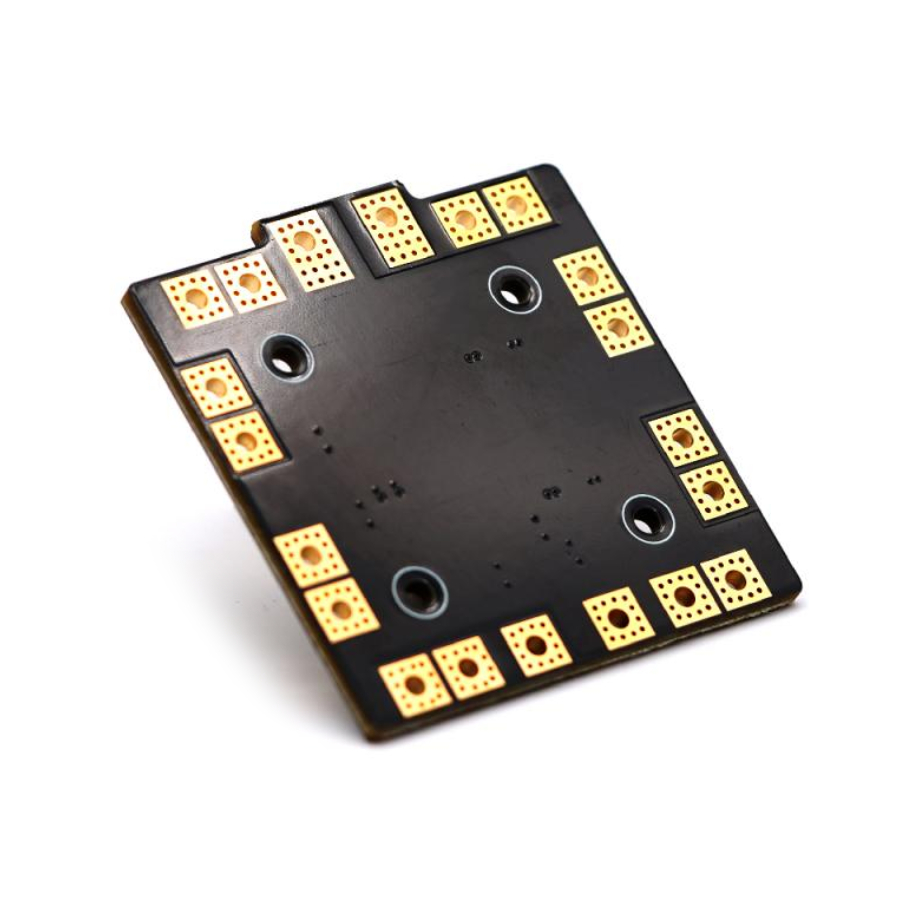

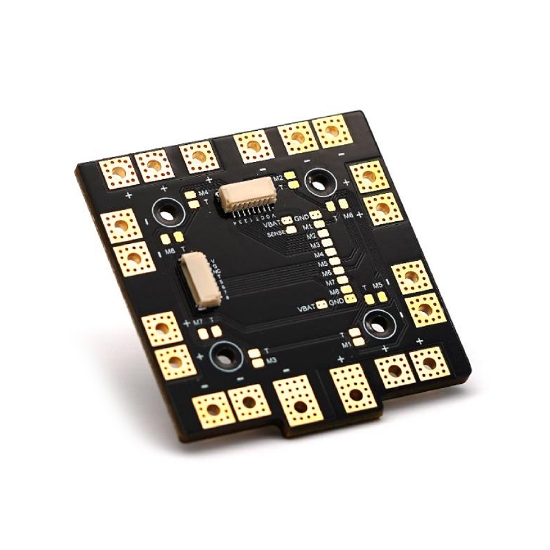

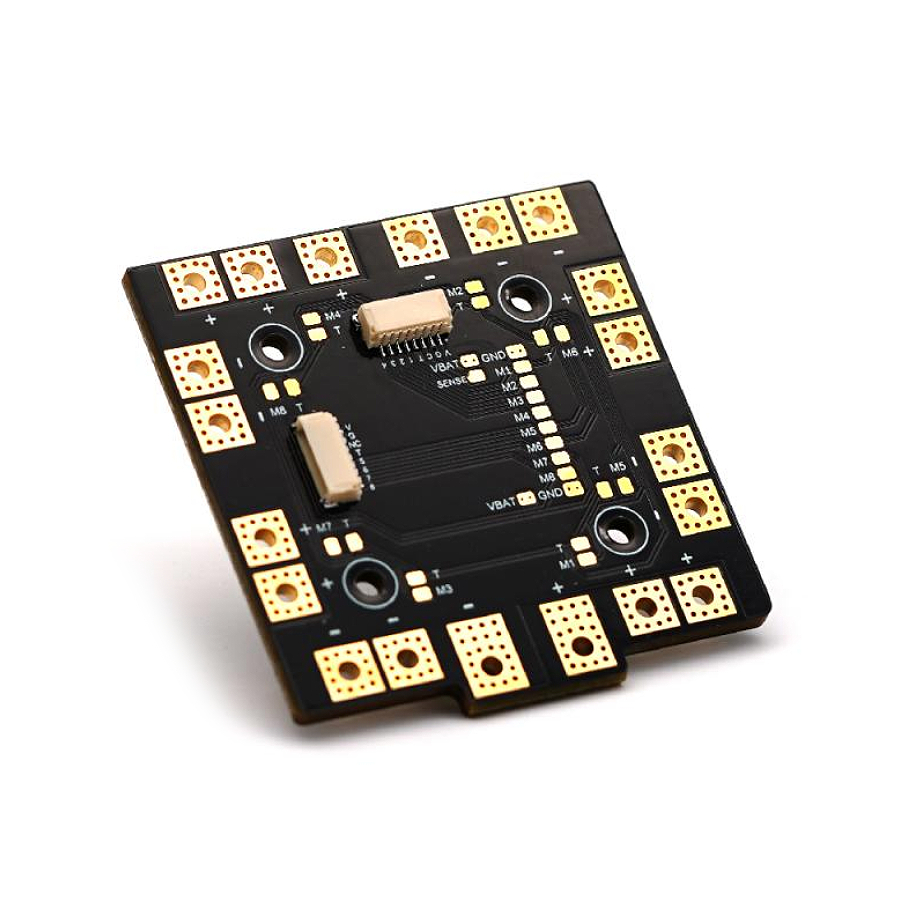

- Model: TBS Lucid PDB 500A
- Input Voltage: 6-14S LiPo
- Continuous Current Rating: 500A
- Peak Current Rating: 1000A burst
- FC BEC Output: 5V 3A
- Auxiliary BEC Output: 12V 3A
- Integrated Filtering: LC power filtering
- PCB Copper Weight: Heavy copper high-current design
- Mounting Pattern: 30.5x30.5mm
- Dimensions: 50x50mm
Included:
- 1x TBS Lucid PDB 500A
- Accessories
