Overview:
The TBS M10 GPS Glonass module is a high-performance positioning system designed to deliver fast, precise and reliable satellite data for FPV aircraft and drones. Equipped with the advanced u-blox M10 chipset, it supports multiple satellite constellations including GPS, GLONASS, Galileo and BeiDou, offering exceptional accuracy and signal stability even in challenging environments. This new-generation receiver delivers faster satellite lock times and improved sensitivity, ensuring consistent performance for both long-range and close-proximity flight operations.
Compact, lightweight and built for reliability, the TBS M10 GPS Glonass features a robust design that integrates seamlessly with flight controllers used in fixed-wing, quads and long-range FPV builds. Its low power consumption and advanced filtering make it highly efficient, while its precision-matched ceramic antenna ensures strong reception and low latency positioning. The module connects easily via a standard UART interface, making installation straightforward for both new and experienced builders.
Features:
- Utilises the latest u-blox M10 GNSS chipset supporting GPS, GLONASS, Galileo and BeiDou
- Fast satellite lock and improved sensitivity for quicker positioning
- Compact and lightweight design ideal for FPV drones and aircraft
- Low power consumption for extended flight time efficiency
- Durable housing providing reliable performance in varied flight conditions
- Compatible with common flight controllers through UART interface
Specification:

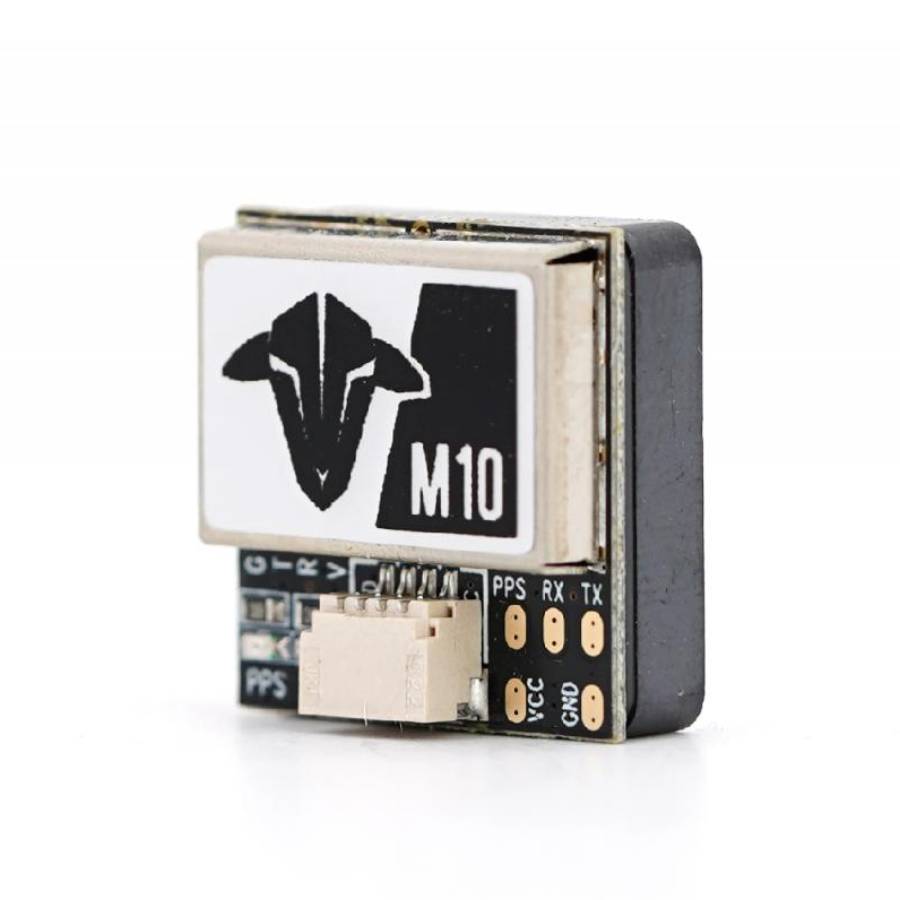

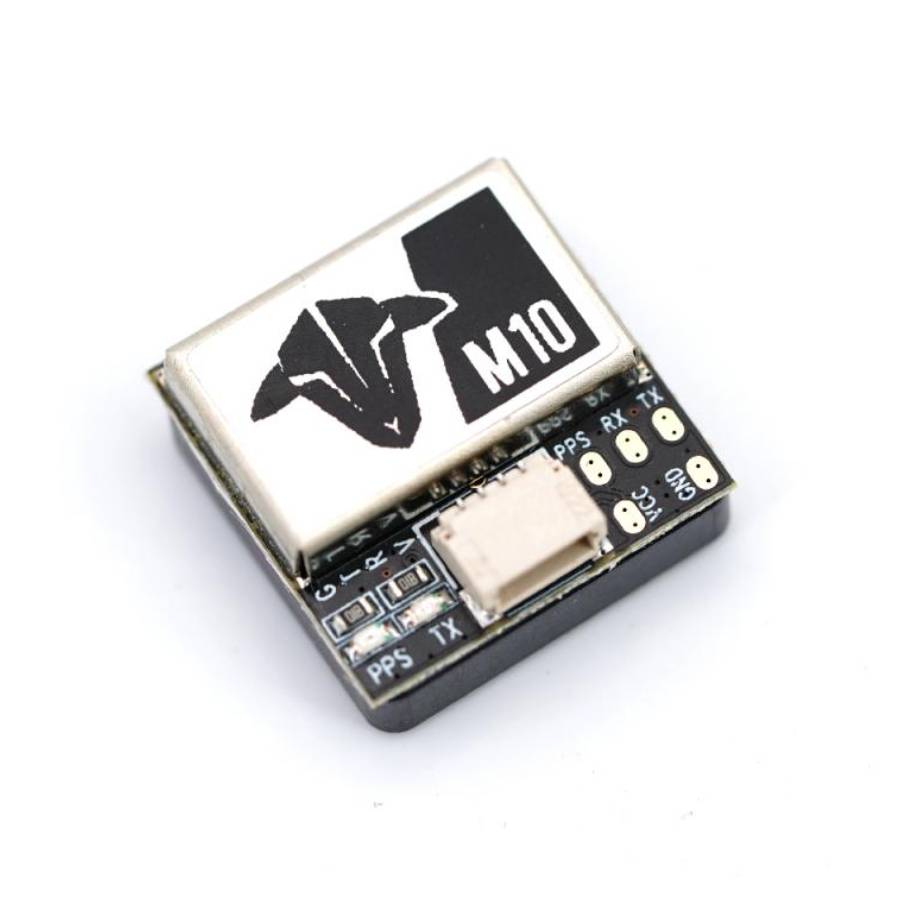

- Model: TBS M10 GPS Glonass module
- Chipset: ublox UBX-M10050
- Memory: Flash memory for saving configuration
- Frequency: L1, 1575.42MHz; L2,1561.10MHZ; L3,1602.00MHZ
- Baud Rate: 4800bps-921600bps, default 115200bps
- Sensitivity: (Tracking: -166dBm), (Capture: -160dBm), (Cold Start - 148dBm)
- Cold start: Average 26 seconds
- Warm start: Average 24 seconds
- Hot start: Average 1 second
- Accuracy: (HorizontalPosition:Autonomous<2m average), (SBAS < 2.0m average), (Timepulse signal: RMS 30 ns)
- Maximum height: 50000m
- Maximum speed: 500m/s
- Maximum acceleration: ≦4G
- Refresh Rate: 0.25Hz-18Hz, default 1Hz
- Size: 18x18x8.1mm
- Weight: 8.5g
- Input Voltage: 5V

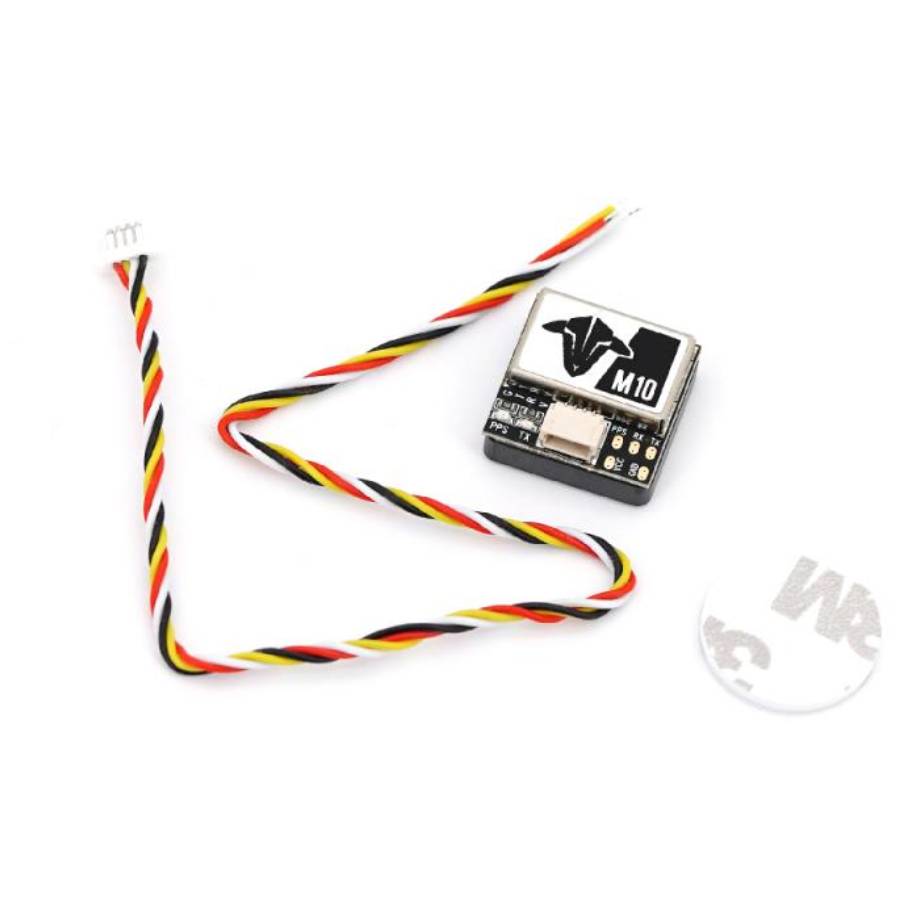

Included:
- 1x TBS M10 GPS Glonass module
- Accessories
