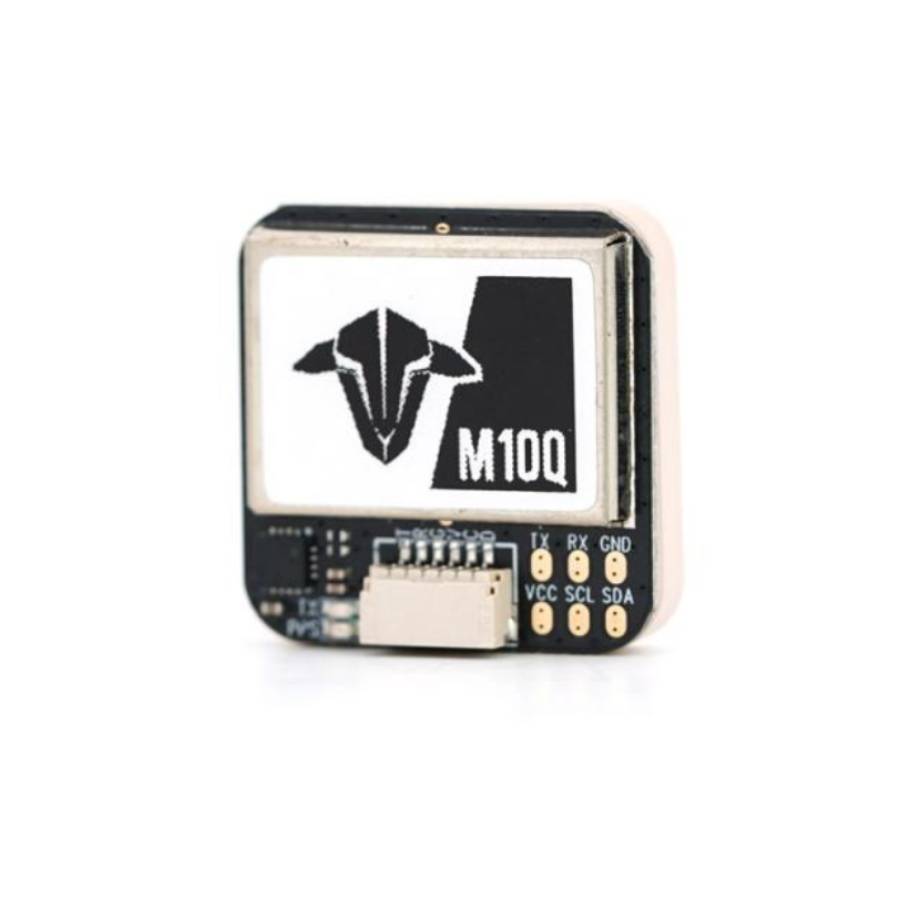

Overview:
The TBS M10Q GPS Glonass is a high-performance navigation module developed by Team BlackSheep, built around the advanced u-blox M10Q GNSS chipset. Designed for pilots who demand rapid satellite acquisition, outstanding positional accuracy and solid reliability, it delivers precise data even in challenging environments. Supporting multiple satellite constellations including GPS, GLONASS, Galileo and BeiDou, the M10Q ensures exceptional coverage and minimal signal dropouts during flight.
Unlike the standard M10, the M10Q integrates a QMC5883L compass, providing real-time heading information directly to your flight controller making it ideal for both fixed-wing, long-range quad builds. Its high-sensitivity ceramic patch antenna and low-noise amplifier (LNA) deliver excellent reception performance while keeping the design compact and lightweight.
Housed in a durable protective shell, the TBS M10Q GPS is engineered for dependable use in both racing and long-range applications. With straightforward UART connectivity and full compatibility with INAV, Betaflight and Ardupilot, installation is simple and reliable.
Features:
- Powered by the u-blox M10Q GNSS chipset for high precision and fast satellite lock
- Supports GPS, GLONASS, Galileo and BeiDou constellations for increased reliability
- Integrated QMC5883L compass for accurate heading and orientation data
- Compact and lightweight design with a durable housing

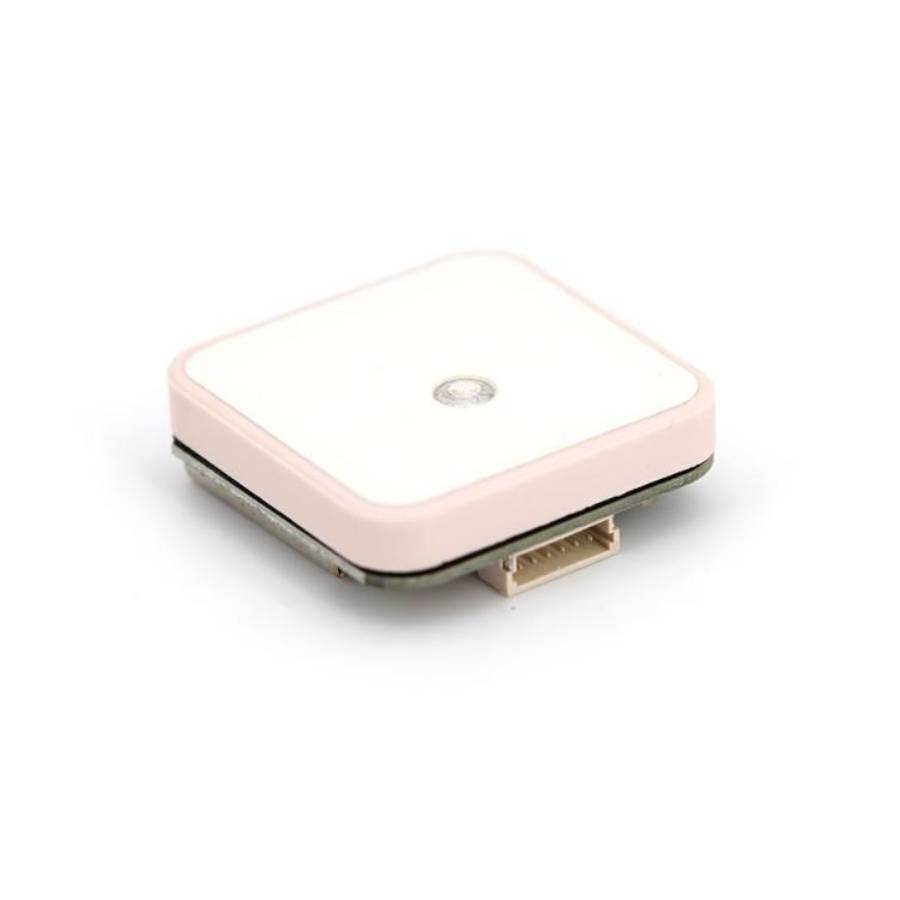

- High-performance ceramic patch antenna with built-in LNA for strong signal reception
- Simple UART interface compatible with INAV, Betaflight and Ardupilot flight controllers
- Excellent performance in low-signal or partially obstructed conditions
Specification:
- Chipset: ublox UBX-M10050
- Configuration: Flash memory for saving config.
- Frequency: L1, 1575.42MHz ; L2,1561.10MHZ；L3,1602.00MHZ
- Baud Rate: 800bps-921600bps, default 115200bps
- Sensitivity: (Tracking: -166dBm), (Capture: -160dBm), (Cold Start - 148dBm)
- Cold start: Average 26 seconds
- Warm start: Average 24 seconds
- Hot start: Average 1 second
- Accuracy: (Horizontal Position: Autonomous<2m average), (SBAS < 2.0m average), (Timepulse signal: RMS 30ns)
- Maximum height: 50000m
- Maximum speed: 500m/s
- Maximum acceleration: ≦4G
- Refresh Rate: 0.25Hz-18Hz, default 1Hz
- Size: 25x25x7.7mm
- Weight: 13.5g
- Input Voltage: 5V
- Magnetometer: QMC5883

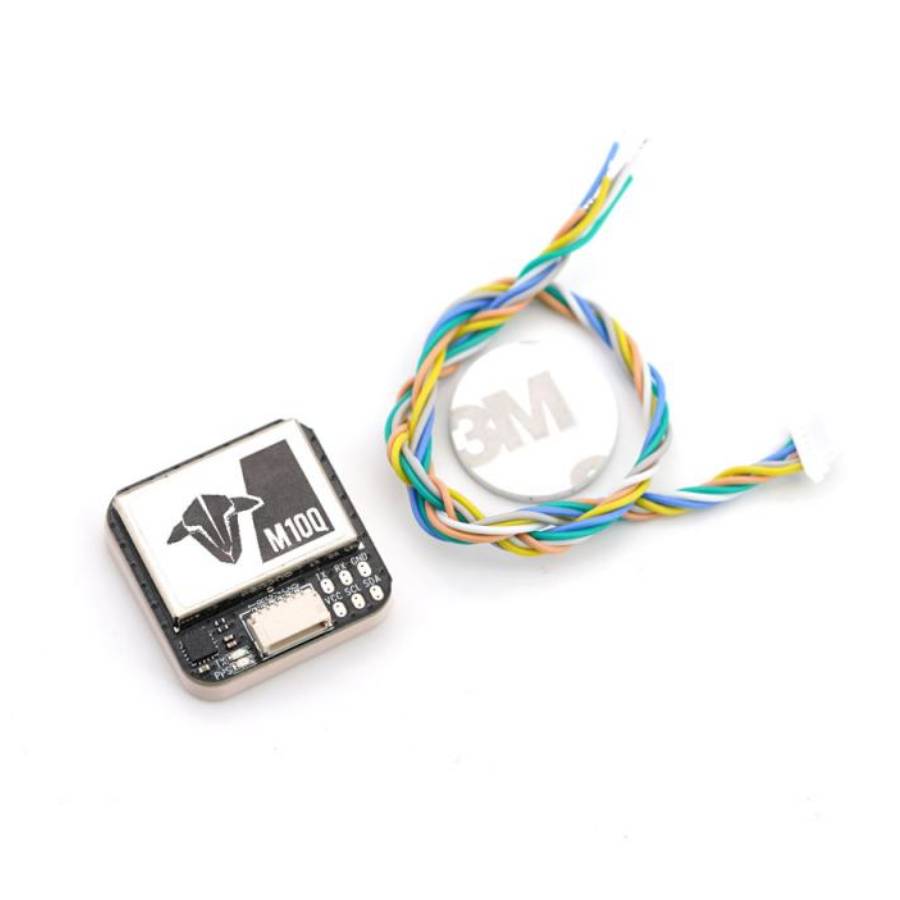

Included:
- 1x TBS M10Q GPS Glonass
- Accessories
