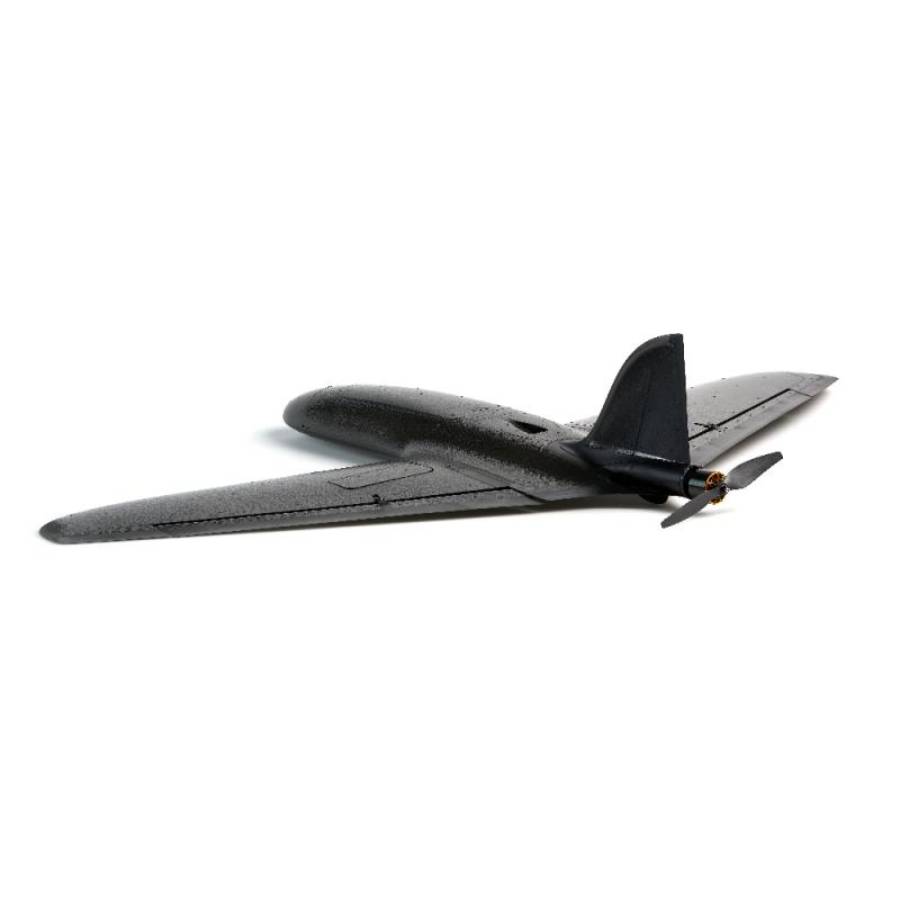

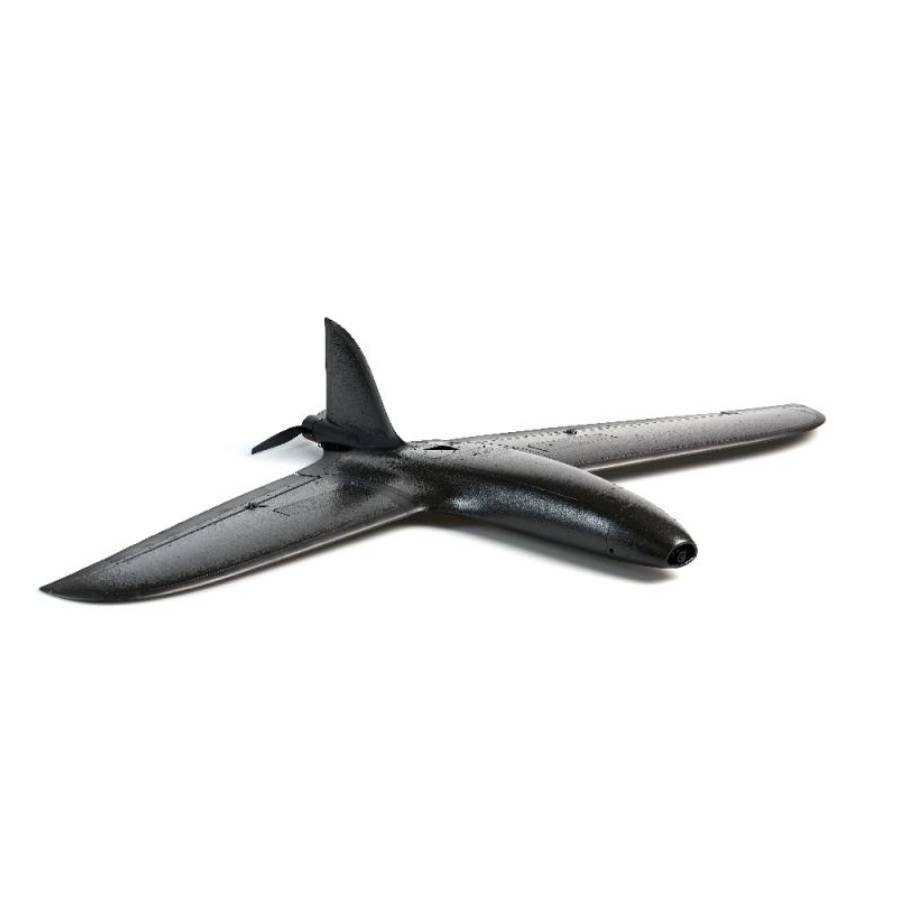

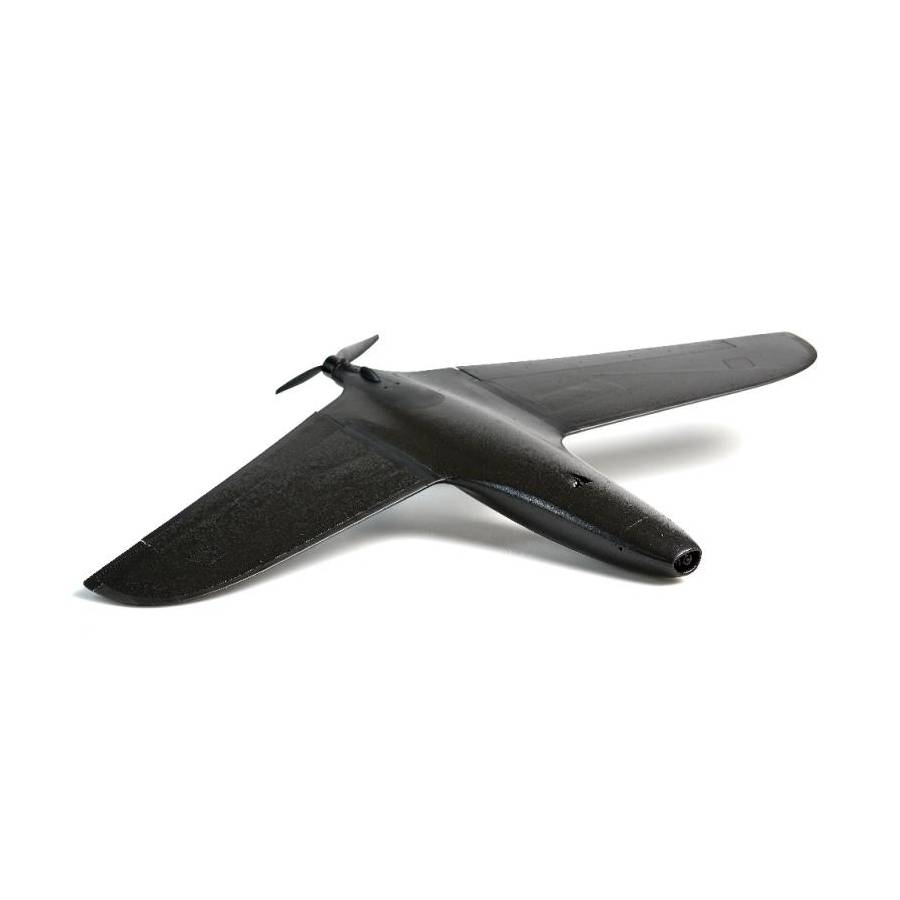

TBS Mojito FPV Flying Wing Kit

Overview:
The design of the TBS Mojito focused relentlessly on minimising drag; the wing reaches speeds upwards of 200km/h (125mph), while cruising at 90-120km/h (60-75mph) with minimal power consumption. This efficiency allows longer flight times for greater distances covered and dart-like tracking through the skies. It conveniently dismantles into 3 pieces using push-to-release buttons at the end of every flight session.

The wing is built for analogue or digital video VTX. 3D print files for front noses/camera mounts for a wide array of cameras, FPV systems and customisations are available from the TBS website.

Its design is derived from dynamic soaring gliders- all control surfaces and provisions for electronics are built internally to minimise drag. The leading and trailing edges are plastic injection moulded to allow more precise channelling of airflow. The plane is made from the highest density foam to give the wing the thinnest possible wing, allowing the plane to cut through the sky effortlessly. Optional airbrake servos can be installed for pinpoint accuracy landings.

TBS spared no expense to minimise building tolerances, using only the highest quality materials and manufacturing techniques. The kit version comes 90% assembled out of the box. The plastic leading edge covers for the wings and vertical stabiliser are not glued to give you the ability to mount LED strips. This is the only building step required to finish the wing itself. TBS have put together a set of electronics components that you may choose to use – or make your own choices. This is the 'kit' version of the Mojito which requires additional electronics etc to complete the aircraft. This kit only includes the airframe and two servos.

Features:
- High speed and extremely efficient performance envelope
- Ultra-dense EPP material with plastic and carbon fibre reinforcements
- Optional airbrake servos installable to brake and slow down for landings
- Pre-cut camera, servo, battery, R/C receiver and receiver antenna slots

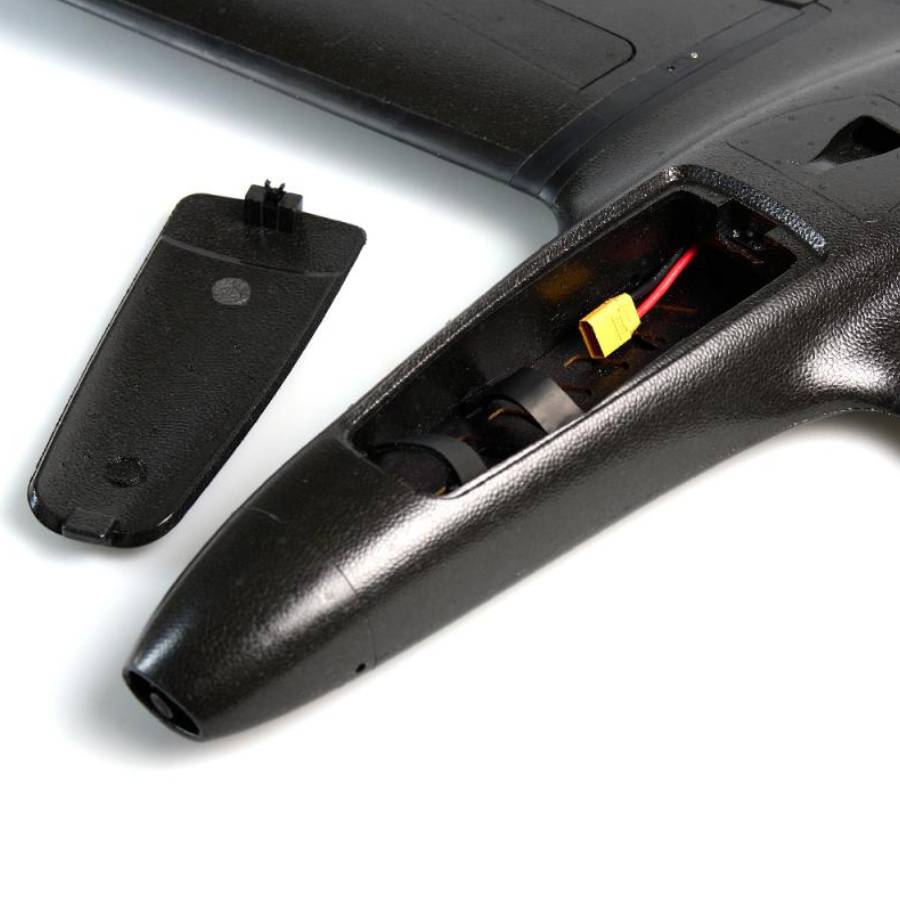

- 2x push-to-open equipment bays for R/C and FPV electronics
- Both wings are easily removable using push-to-open buttons.
- Fully internal mechanical linkages

Specification:
- Model: TBS Mojito FPV Flying Wing Kit
- Wingspan: 130cm
- Weight: 1800g AUW or more
- Distance achievable: 60 miles/100km
- Battery: (6S-8S) Max dimensions: 70x50x230mm, 5000mAh 8S1P Li-ion recommended

Included:
- 1x TBS Mojito FPV Flying Wing Kit
- Accessories
