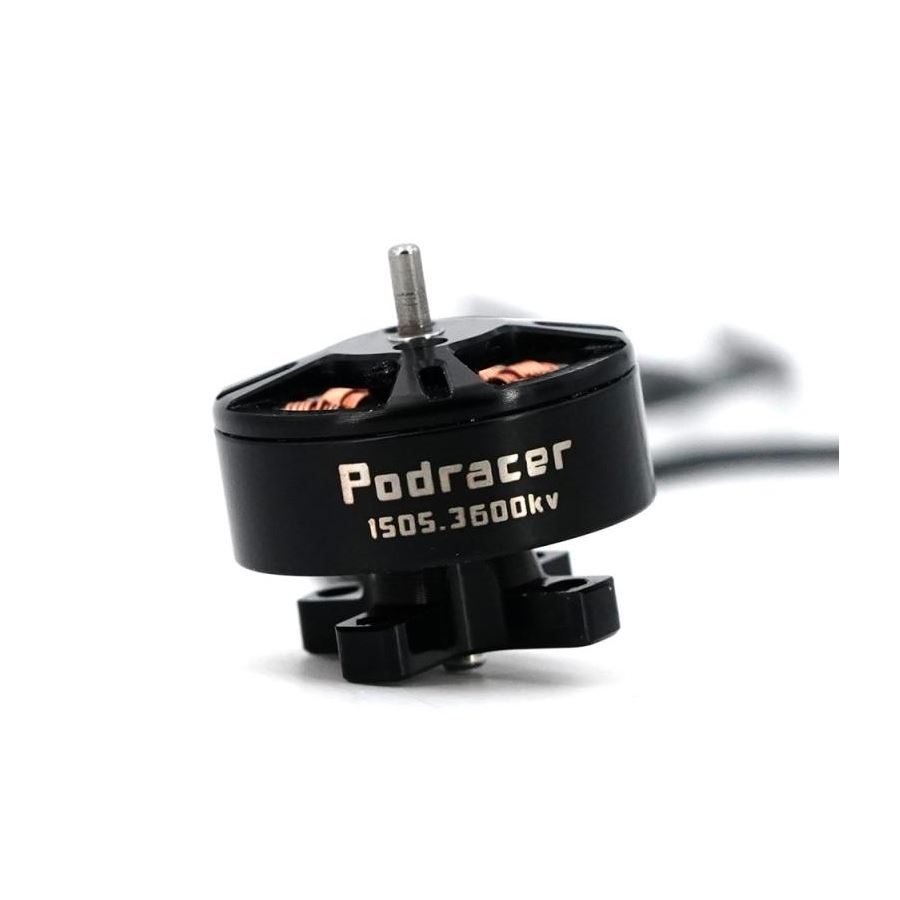

TBS Podracer 1505 3600KV Motor

TBS Podracer Motor for the TBS Podracer frame.
Availability: In stock
£14.90

TBS Podracer Motor is a 1505 stator sized motor, an ideal match for the Podracer builds on 4S with Gemfan 4023 Hurricane props.


Technical Specifications
- Stator Size (Diameter): ~15mm
- Kv: 3600
- Magnets: N52SH Curved
- Windings: 15 turn DLRK
- Shaft Length (mm): φ1.5-4mm
- Main Shaft Diameter (mm): 2mm
- Prop Shade Diameter (mm): 1.5mm
- Shaft material: steel
- Bearing: 4*2*2.5
- Weight (With Wires)(g): 11g
- Cells (Lipo): 2-4S
- Max Current (A): 12A
- Max Burst Current (A): 15A
- Internal Resistance (Rm): 0.20Ω
- Wire Spec (AWG): AWG 24#
- Base Mounting Pattern: 12x12mm
- Base Mounting Thread: M2 Thread
- Motor Overall Dimensions: φ19mmx14mm

Includes
- 1x TBS PodRacer 1505 3600KV Motor
