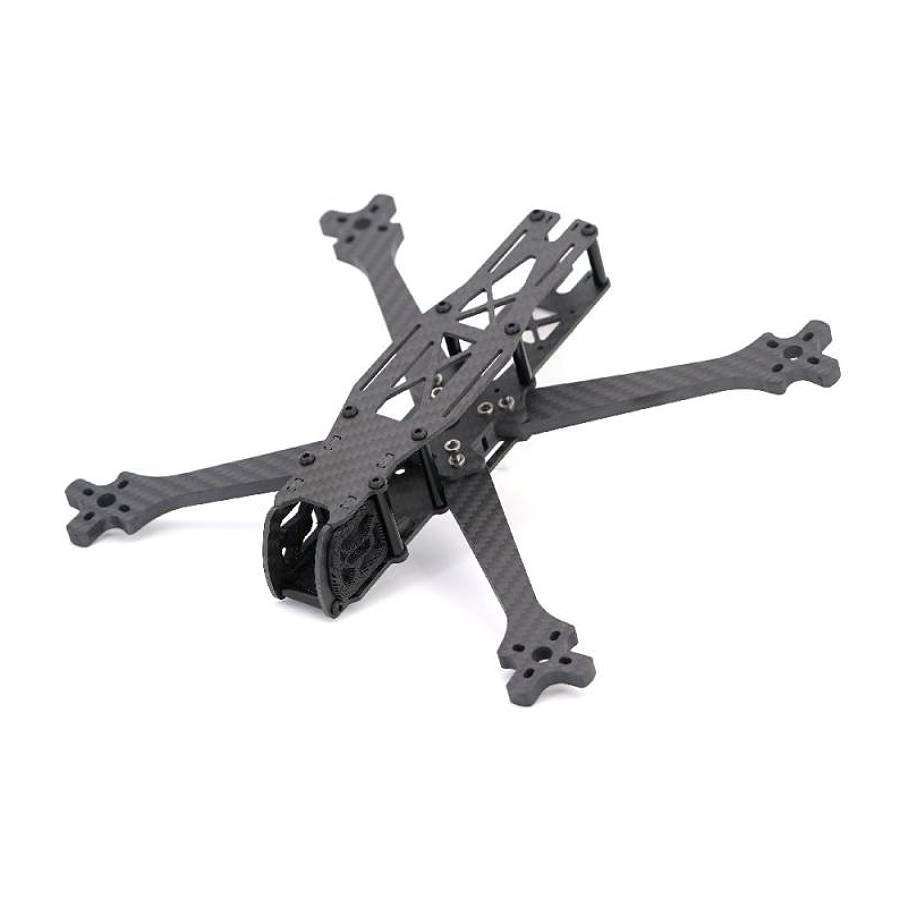

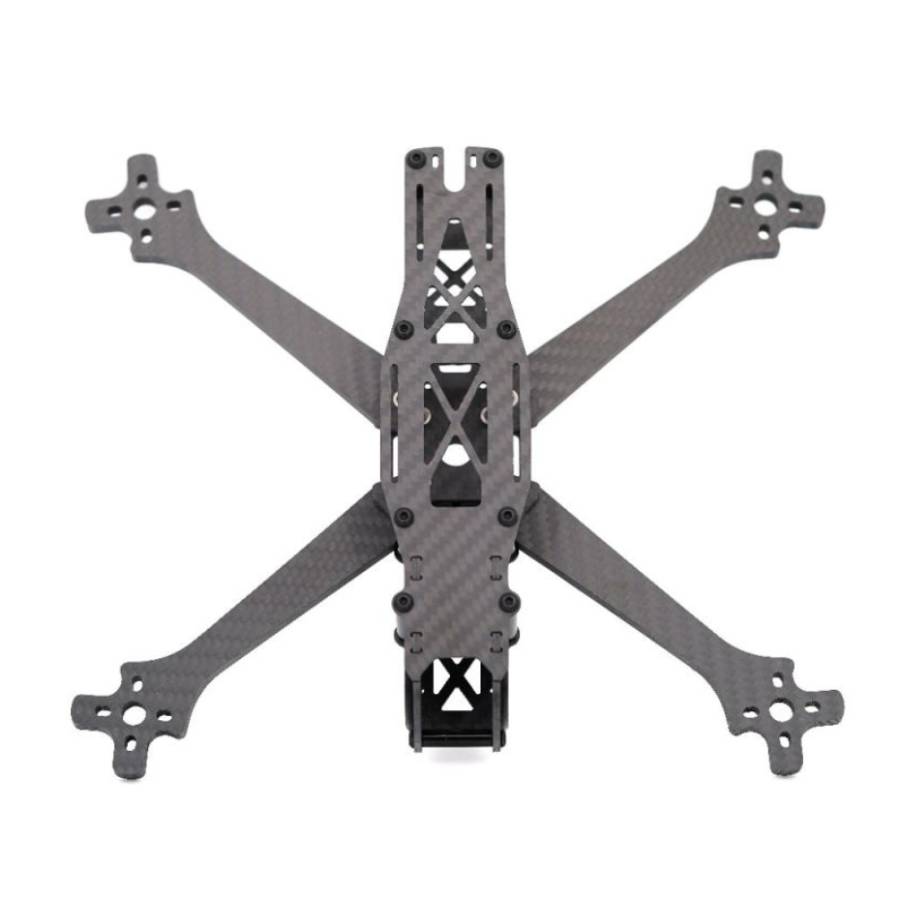

TBS Source One V6 5" Frame

Overview:
The TBS Source One V6 5-inch frame is a freestyle FPV drone frame designed for versatile builds ranging from casual flying to high-energy freestyle and acrobatic flights. Developed as part of a collaborative project by Team BlackSheep to give the FPV community access to a solid frame platform, the Source One V6 combines a wide-stance X geometry with reinforced arm thickness and classic FPV stack compatibility.

The Source One V6 is suited to pilots building everyday freestyle quads, casual freestyle rigs, or even cinematic setups with standard 5-inch components, offering a strong, adaptable, and trusted platform that accommodates a wide range of FPV parts.

Features:
- Designed as an open-source community project to provide broad access to a durable and adaptable FPV frame.
- Wide-stance X configuration enhances stability and control during freestyle and acrobatic manoeuvres.
- Reinforced 6mm thick arms provide strong crash resistance for demanding flying styles.
- Lightweight yet robust construction keeps frame mass low without sacrificing structural integrity.
- Compatible with standard FPV component layouts including common camera and VTX sizes.
- Includes all necessary hardware and standoffs for straightforward assembly.

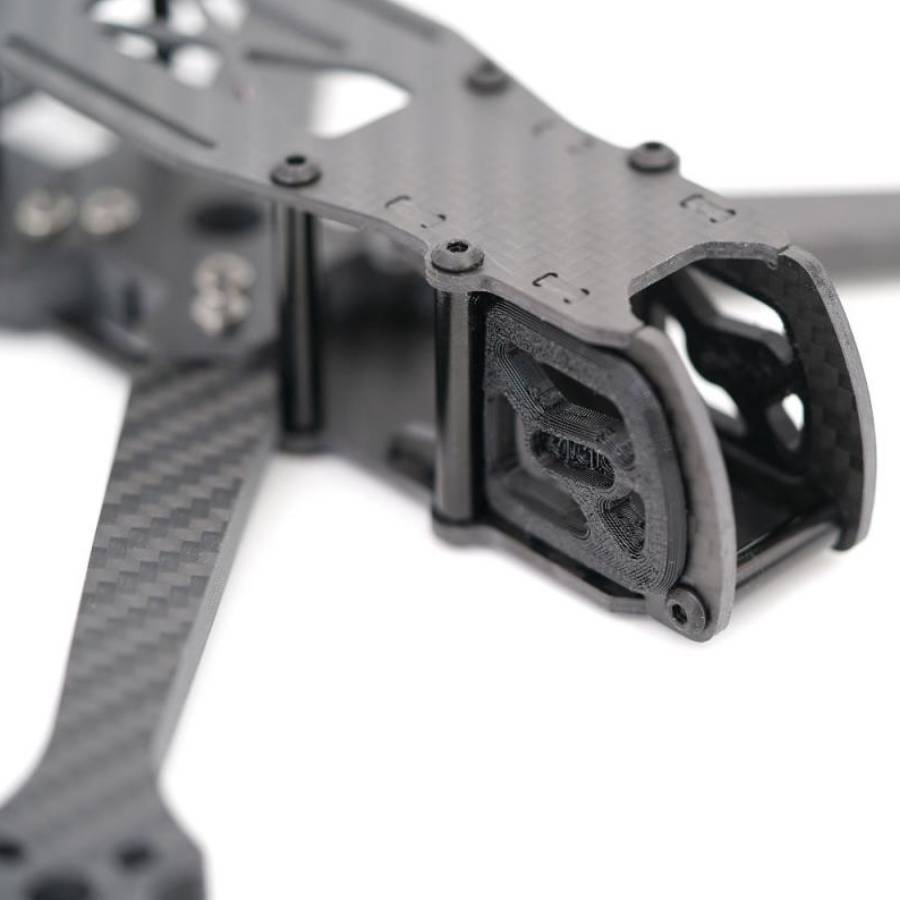

- TPU 3D-printed camera mount supplied to support front camera installation.

Specification:
- Wheelbase: 240mm (5 inch frame class)
- Frame geometry: Wide-stance X configuration suitable for freestyle and acrobatic flight.
- Top plate thickness: 2mm
- Middle plate thickness: 2mm
- Bottom plate thickness: 2.5mm
- Arm spacer: 6mm
- Camera plate thickness: 2mm
- Standoff height: 30/22mm
- Stack mounting: 30.5×30.5mm & 20×20mm
- Arm thickness: 6mm carbon (for 5 inch size)
- Frame weight: 136.5g

Included:
- TBS Source One V6 5" Frame Kit
- TPU 3D-printed Camera Mount
- Screw & Standoff Pack
