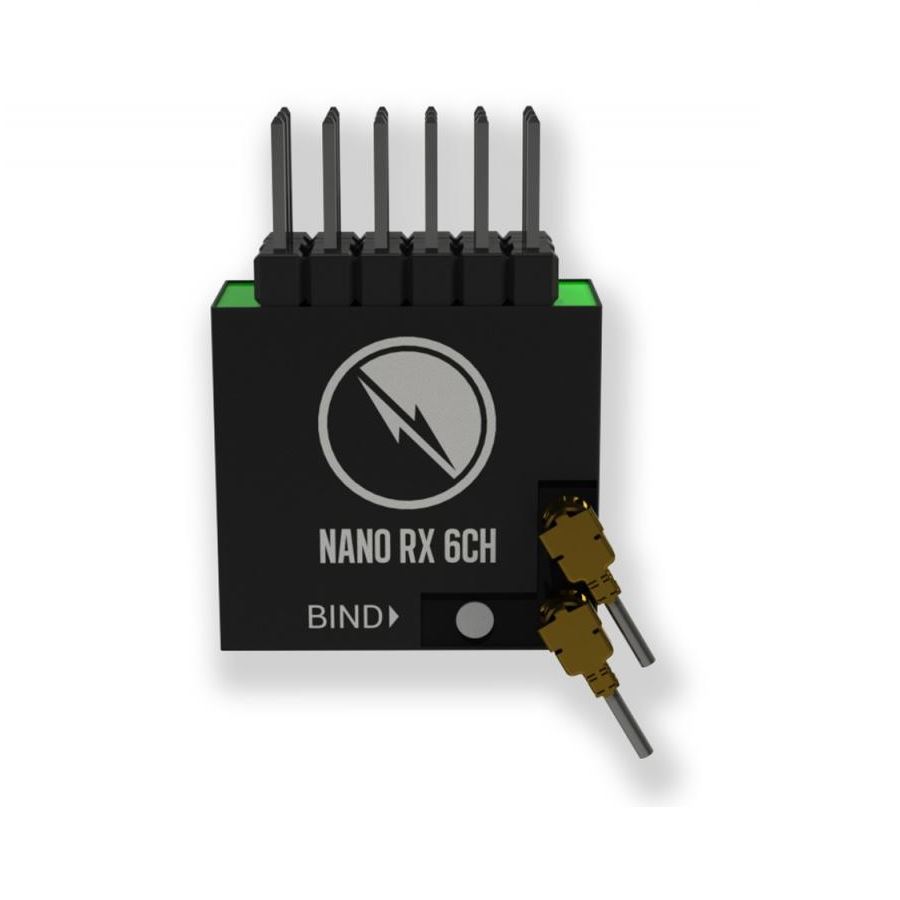

TBS Tracer 6CH PWM Nano RX

The TBS Tracer 6CH Nano RX features 6 PWM outputs for direct connections to servos etc.
Availability: In stock
£28.90 inc VAT
Ship to
Shipping Method
Estimated Delivery
No shipping options


The TBS Tracer 6CH PWM Nano RX features 3ms end to end latency and runs on the 2.4GHz band. This model allows 6xPWM outputs e.g servos to be directly connected. The Tracer 6CH nano also features diversity antennas and comes with 2x Immortal T antennas in the pack.

- 250Hz: Fastest available radio and telemetry link!

- Next generation 2.4GHz technology meets robust Crossfire radio engine
- 3ms end to end latency
- Nano-sized receiver with antenna diversity
- 15mi+/25km+ range
- For drones, planes, helicopters, cars and boats


- Antenna ports: 2x u.FL / IPEX (diversity)
- Package contents: 1x TBS Tracer 6Ch Nano RX, 2x Immortal-T, silicone cables
- Protocols: 6x PWM or 2x CRSF, SBUS, PPM, SmartAudio 2.0 / 2.1 (VTx Control)
- Weight: 3.7g (receiver only)
- Size: 26mm x 19mm

Included :

1x TBS Tracer Nano Receiver
