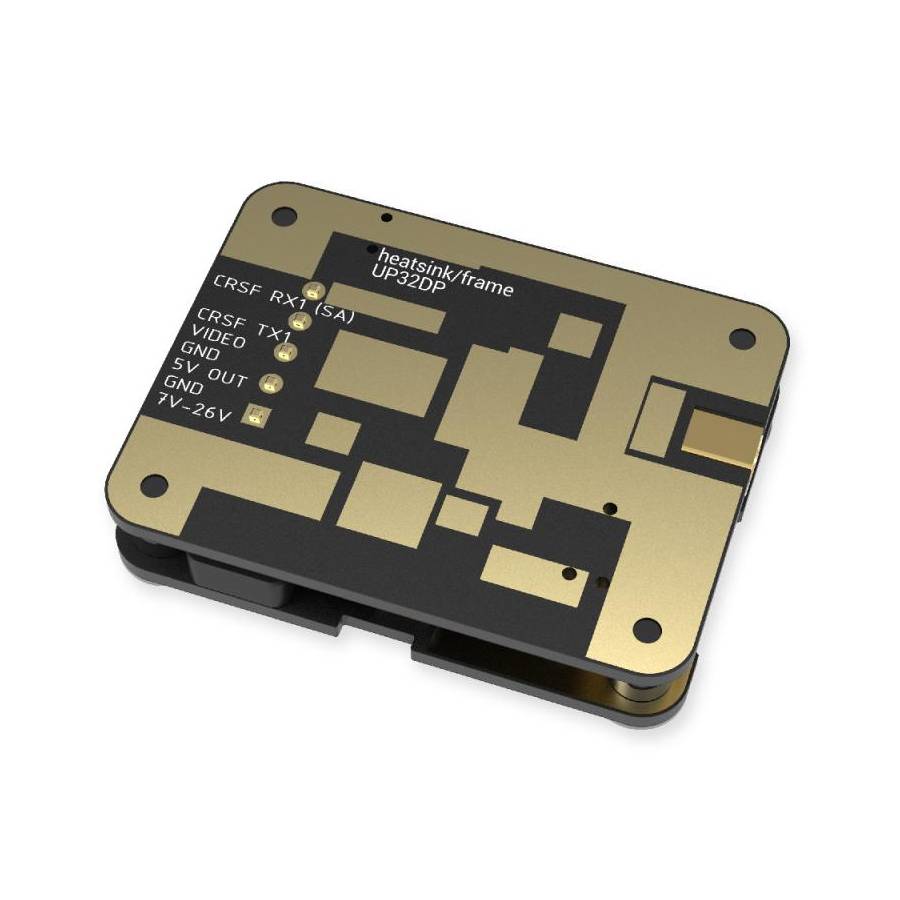

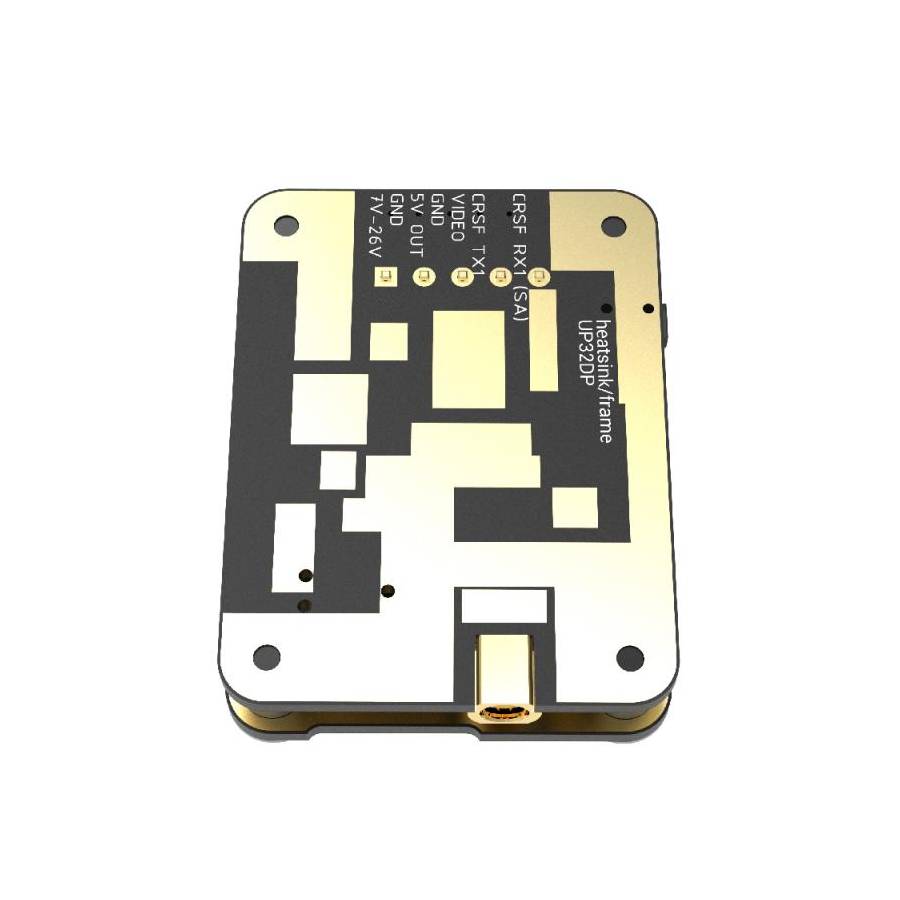

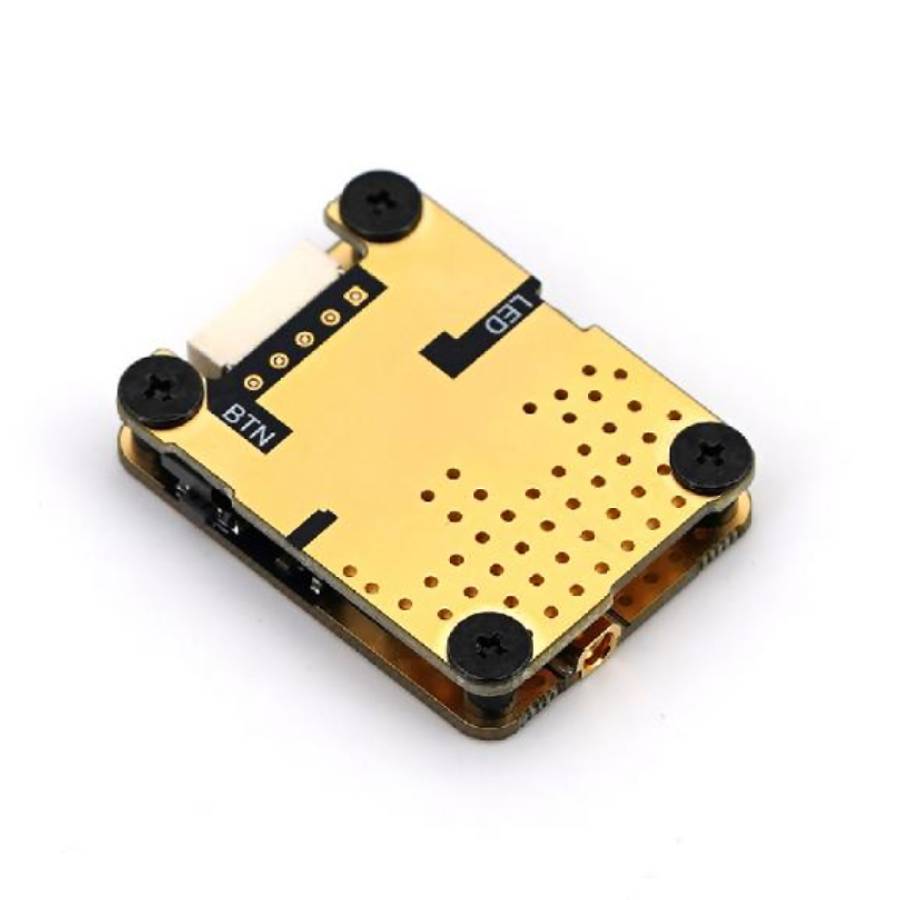

TBS Unify Pro32 DP 5.8GHz VTX

Overview:
The TBS Unify Pro32 DP (MMCX) is a high-power analogue FPV video transmitter engineered for pilots who need long-range, clean video performance from 5.8GHz systems without adding unnecessary weight to their drone. It stands out as one of the lightest 3W-capable transmitters available, designed for 3″ racing quads to larger freestyle and long-range builds. The DP version combines broad power output flexibility with a robust MMCX antenna connector, double-stage noise filtering and optimised heat dissipation.

OSD configuration and radio control integration via SmartAudio 2.1 make it easy to adjust channels and output level in flight, while features such as “one button” setup and LUA scripting support provide flexible control and compatibility with modern flight stacks.

This product is ideal for pilots looking for a capable VTX with a boosted range and stronger signal reliability for a diverse range of FPV flights.

Features:
- High-power 5.8GHz analogue video transmitter suitable for long-range and performance-oriented FPV flying.
- MMCX antenna connector offers secure attachment with the option to use a wide range of compatible FPV antennas.
- OSD configuration via TBS SmartAudio 2.1, enabling channel and power changes through Betaflight, Crossfire or ArduPilot.
- Simple one-button setup for quick frequency and power selection without needing a ground station or touchscreen.
- LUA scripting support for Crossfire users provides advanced control and telemetry integration.
- Double-stage noise filtering (>63 dB SNR) reduces RF noise for cleaner transmission quality.
- Designed to operate from 2S to 6S (6V–25V) without additional heatsinks thanks to optimized heat dissipation.
- Lightweight design minimises impact on drone performance.

Specification:
- Operating voltage: 6–25V (compatible with 2S–6S LiPo)
- Video input impedance: 75Ω
- Signal-to-noise ratio: >63dBm for clean video output
- Weight: 8.7g
- Dimensions: 37×28×10mm
- Antenna connector: MMCX
- Video format support: NTSC/PAL selectable
- Output power: 10dBm(10mW), 14dBm(25mW), 20dBm(100mW), 23dBm(200mW), 26dBm(400mW), 27dBm(500mW), 30dBm(999mW)

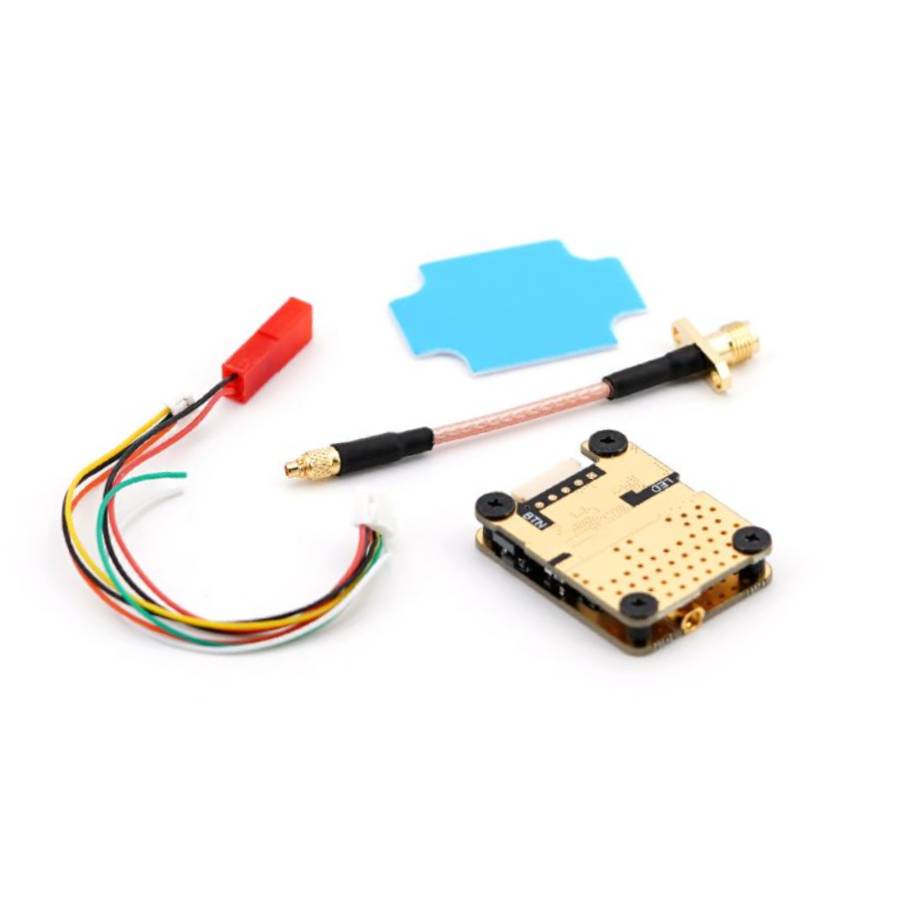

Included:
- TBS Unify Pro32 DP(MMCX)
- Connector cable
- MMCX-to-SMA pigtail
- Adhesive pad
