Overview:

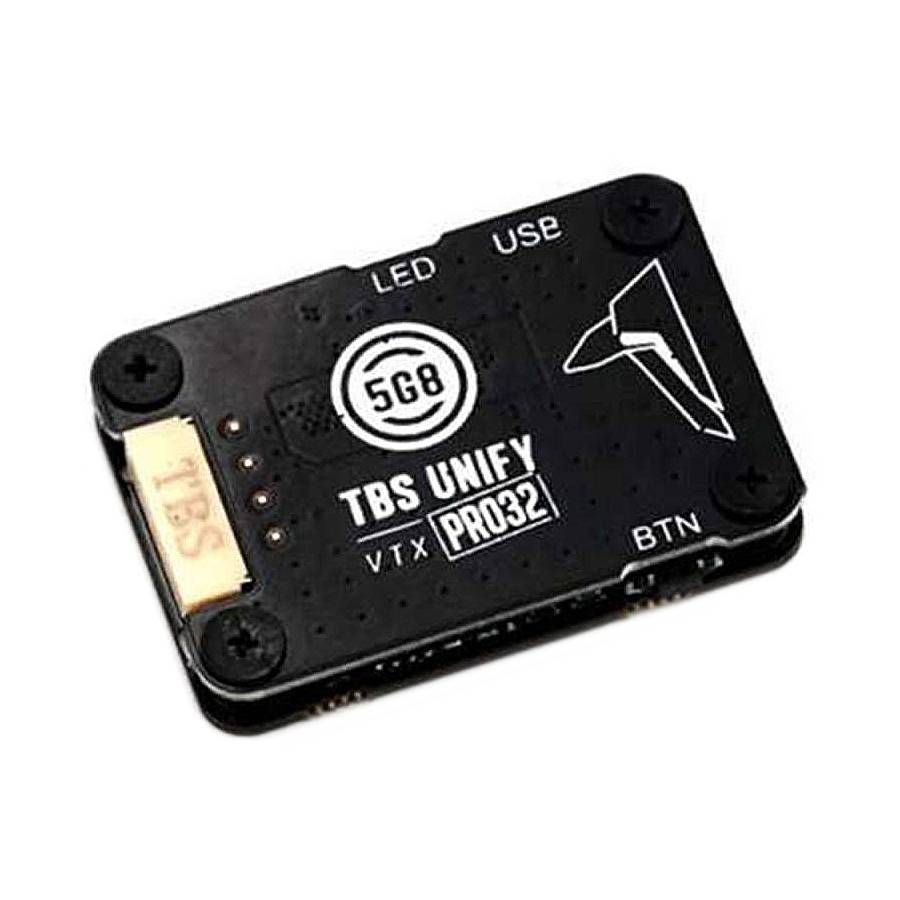

The TBS Unify Pro32 HV (MMCX) analogue FPV video transmitter is a robust, high-output VTX built for pilots who need dependable signal quality and race-ready functionality in 5.8GHz systems. Engineered with a double-deck design for effective cooling and reliability, it supports power outputs from low range up to 1W (1000 mW+), making it suitable for larger freestyle drones, long-range flights and competitive environments.
Its MMCX connector offers secure and upgradeable antenna connection, while features such as PitMode and CleanSwitch improve usability on the ground and in team-flying scenarios. This transmitter delivers clean, interference-friendly video performance with flexible control options via on-screen display, flight controller integration or radio control protocols, giving pilots versatile ways to manage channel, band and power settings.
Zero interference while in Pit Mode has now been achieved. Anyone who has had to repair a quad, mid-race, will know the frustration of being unable to power up and test without interfering with other pilots. Pit Mode solves this by reducing the VTX output power to an ultra-low level (well below single-digit milliwatts), allowing you to power up your quad and still see a usable video feed. With a range of less than one metre, you can safely check and test your system before placing the quad on the start grid. Using SmartAudio or CRSF, the VTX can even be powered on directly from your transmitter.
SmartAudio provides full UART control of your video transmitter, allowing key parameters such as output power, band, channel, and frequency to be adjusted remotely. Control can be achieved via a smart device (with a TBS Crossfire system and an external Bluetooth or Wi-Fi module), directly from your radio (TBS Crossfire with a TBS Tango or OpenTX-compatible transmitter), or through the on-screen display using systems such as Betaflight OSD or TBS CORE PRO.
Features:
- High-power 5.8GHz analogue video transmitter with flexible output levels.

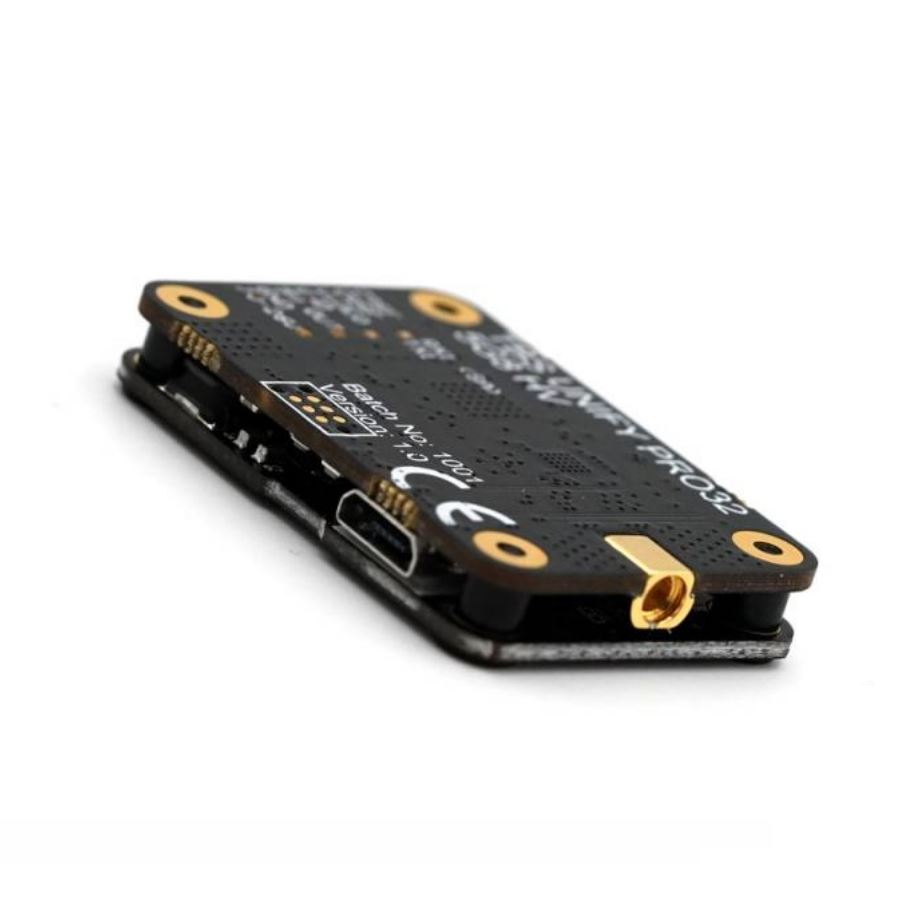

- MMCX antenna connector allows easy replacement or upgrade to preferred antennas.
- CleanSwitch technology reduces interference while powering up or changing channels.
- PitMode lets you power on the VTX at very low output for on-bench setup during races.
- Multiple channel and band change methods via OSD, flight controller or radio control.
- Robust RF amplifier design supports powering on without an antenna safely.
- Built-in microphone captures audio on the 6.5MHz sideband.
- Double-deck board layout improves heat dissipation and durability.
Specification:
- Operating voltage: 6V–25V (2S–6S LiPo compatible)
- Output power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 30dBm+ (1000mW+)
- Antenna connector: MMCX
- Video format: NTSC/PAL selectable
- Video input impedance: 75Ω
- Weight: ~8.7g
- Dimensions: ~37×25×5.8mm

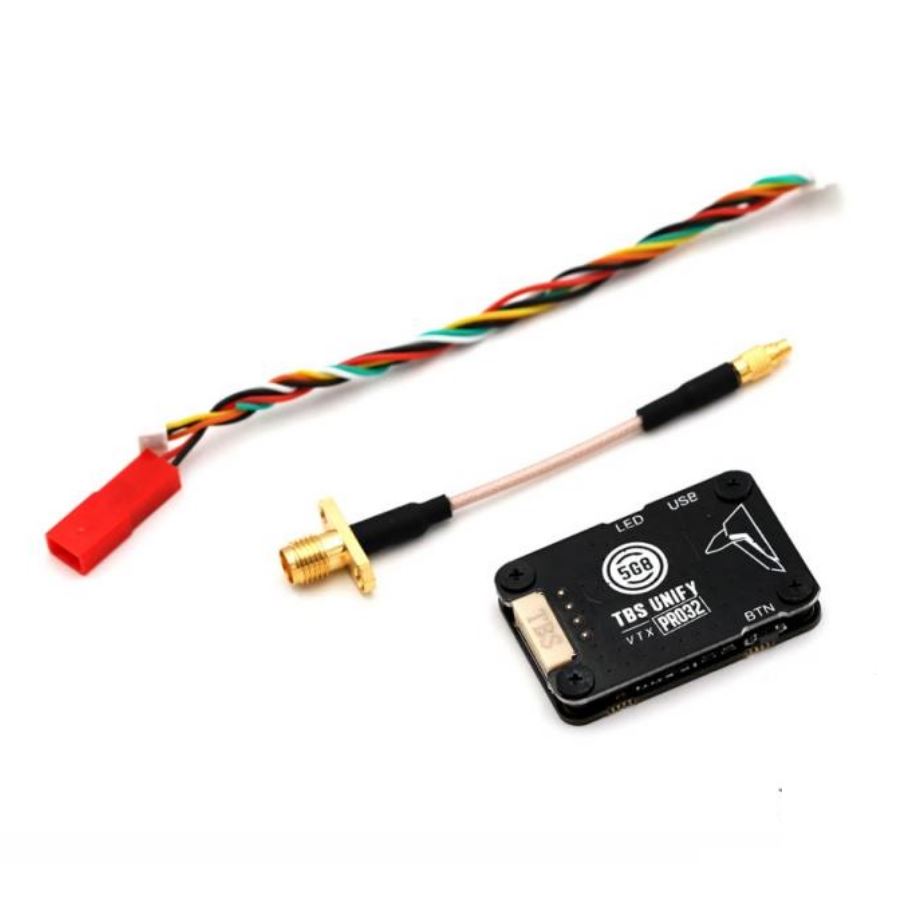

Included:
- 1x TBS UNIFY PRO32 5G8 HV (MMCX) Video transmitter
- 1x Silicone cable (ends pre-tinned)
- 1x MMCX to SMA pigtail
- Accessories
LEGAL NOTICE:
We strongly advise you to make yourself aware of any laws in your own country related to the maximum radio transmission power on this 5.8Ghz module, as usage of this transmitter may not be legal. You may need to use an attenuator to lower the transmission power of your module to comply with these laws.
