Overview:

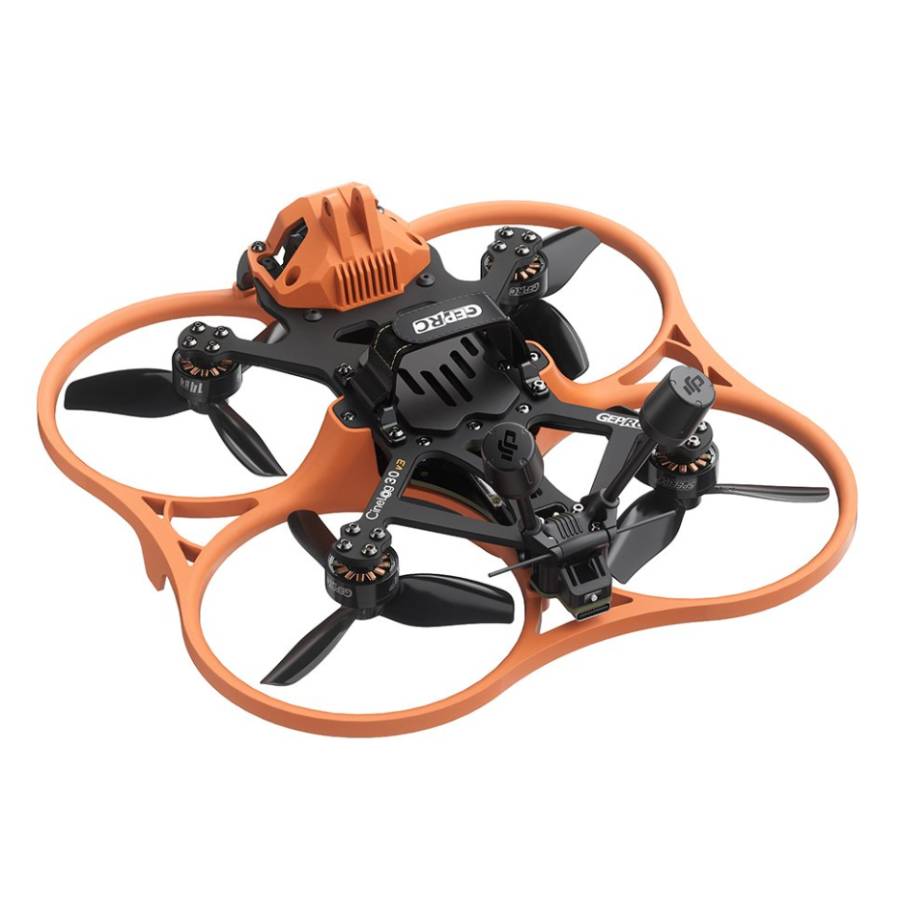

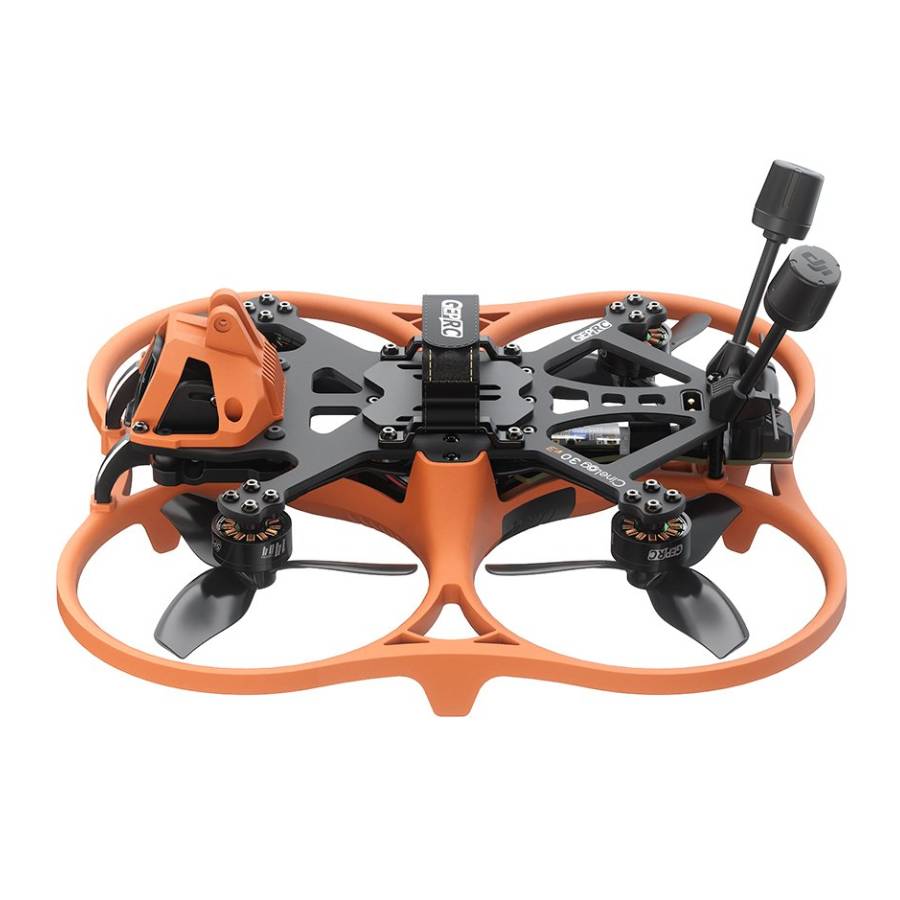

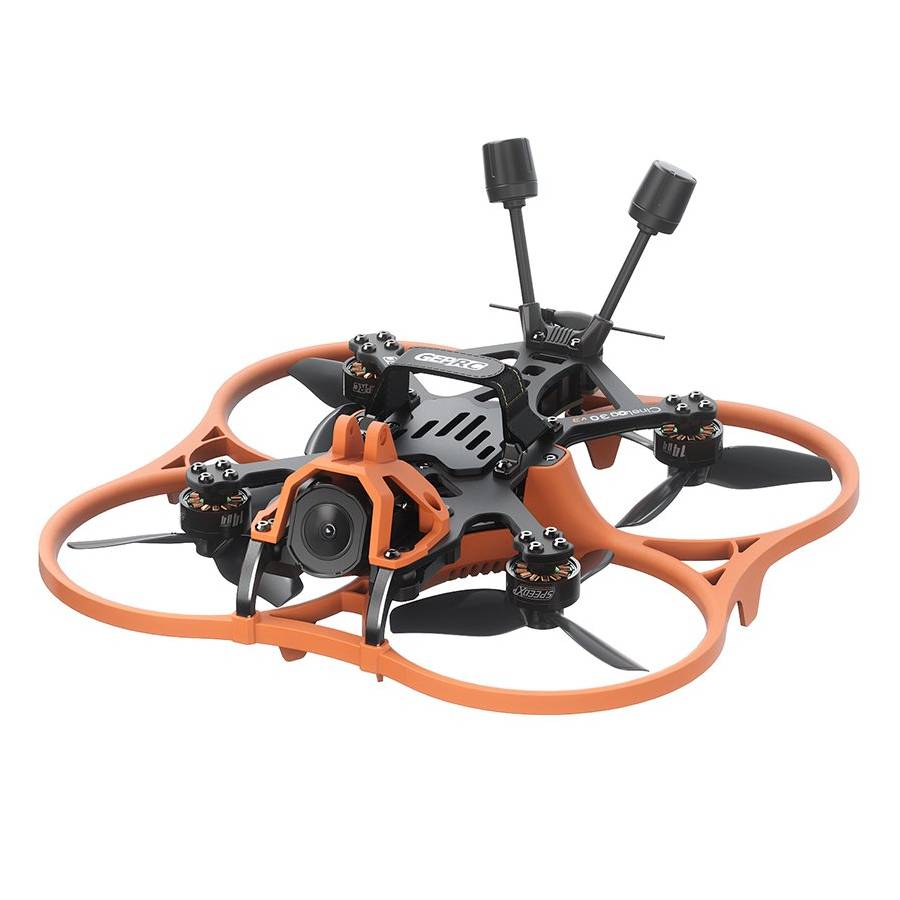

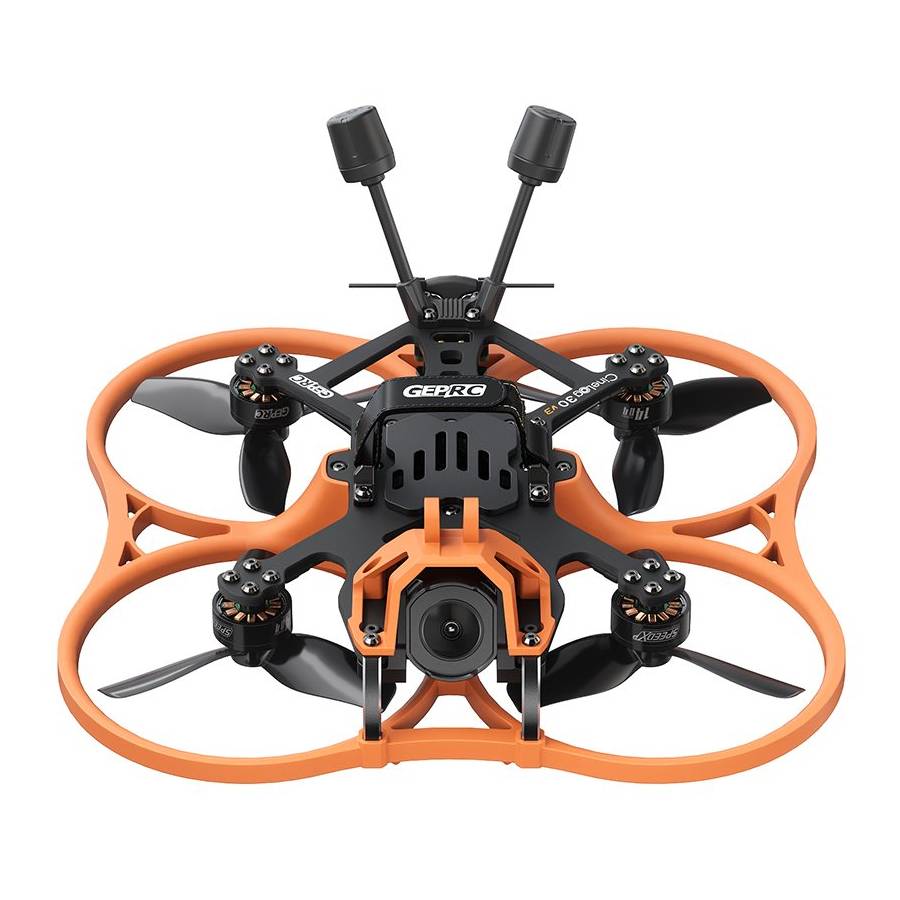

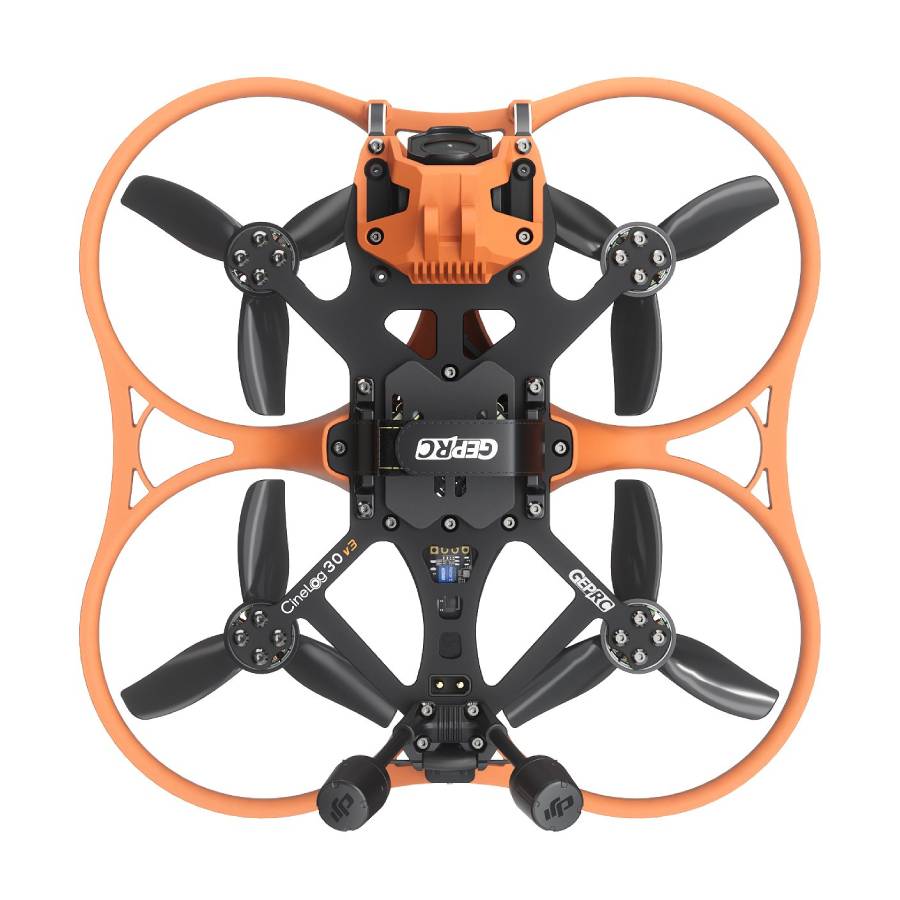

The Cinelog30 V3 is a 3-inch quad designed to accommodate the DJI O4 Air Unit PRO VTX (fitted on selected models). Its frame is reinforced with aluminium for added strength, while the electronics bay features a wrap-around design to provide superior protection for internal components. Dustproof plugs safeguard the data ports; a canopy is fitted to shield a camera from impacts. A rear-mounted PDB ensures clean wiring and an efficient layout.
Manufacturers suggest the Cinelog30 V3 delivers up to 8 minutes and 10 seconds of flight time with an LiHV 720mAh 4S battery. When combined with an O4 Air Unit PRO (included on selected models), it can produce smooth, cinematic-quality footage.
Features:
- Designed to fit the latest DJI O4 Air Unit PRO (included on selected models).
- Refined frame with wrap-around design for enhanced protection of electronic components
- Aluminium-reinforced front and protective frame for added strength

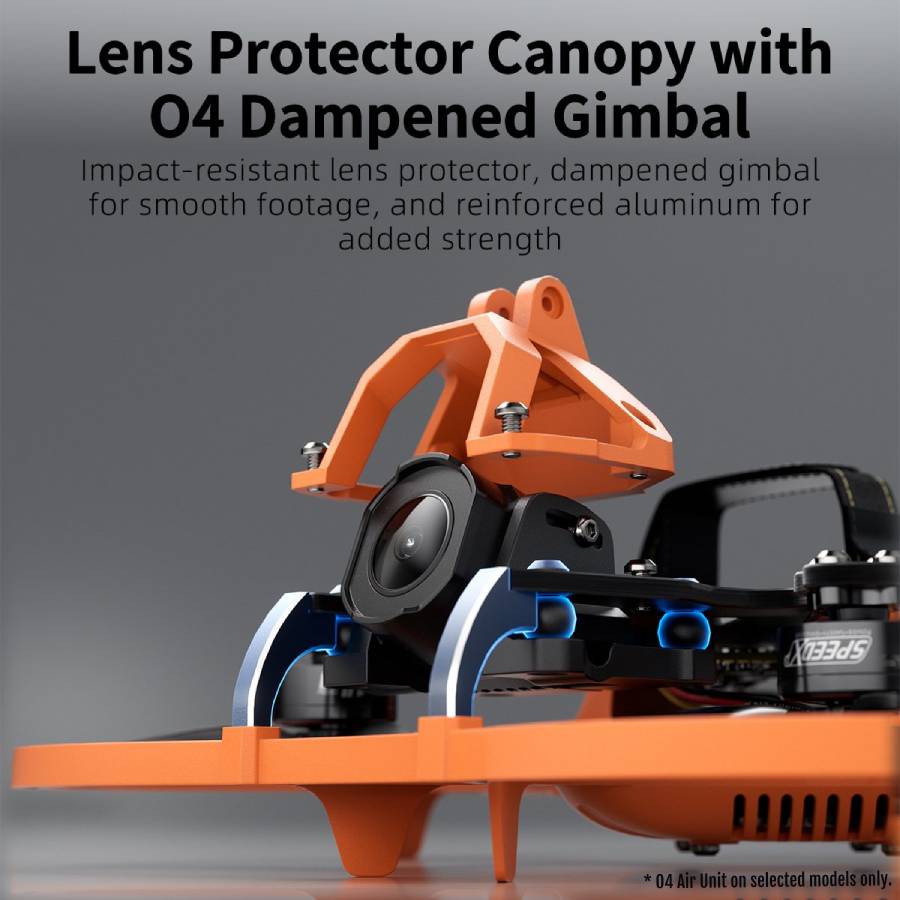

- Sleek front cover to shield an O4 Air Unit PRO lens from impact
- Dustproof plugs on data ports to prevent debris ingress during take-off and landing
- Custom PDB integrating receiver, buzzer, LED BEC, TVS and anti-spark features
- Cinelog-series underslung gimbal mount for stable, smooth footage with an O4 Air Unit PRO
- Precision-tuned PID settings by the GEPRC team for ultra-smooth, responsive flight control
Specification:
- Model: GEPRC Cinelog30 V3
- Frame: GEP-CL30 V3
- Size Classification: 3" Drone
- Carbon Fiber Plate Thickness: 2.5mm
- Wheelbase: 128mm
- Flight System: TAKER F722 45A 32Bit AIO
- MCU: STM32F722RET6
- Gyro: ICM 42688-P
- FC Firmware: GEPRC_F722_AIO
- Flash: 16MB
- ESC: 32Bit 45A
- Motor: SPEEDX2 1404 3850KV
- Prop: HQprop DT76mmx3 V2
- Battery Connector: XT30
- Frame Weight: ~148g
Available versions (see below for purchase options):
- GEPRC Cinelog30 V3 O4 Pro ELRS 2.4G (GP107571

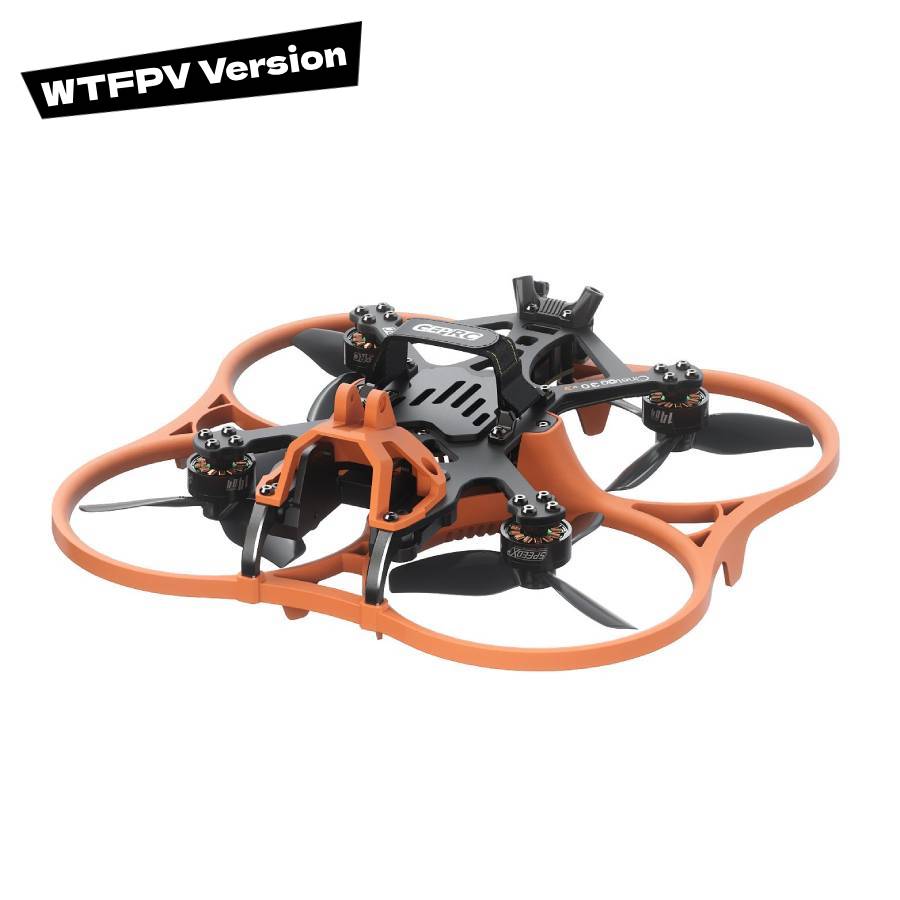

- GEPRC Cinelog30 V3 WTFPV ELRS 2.4G (GP107574)
- GEPRC Cinelog30 V3 WTFPV PNP (GP107573)
Included:
- 1x GEPRC Cinelog30 V3 WTFPV PNP Drone
