ToolkitRC M14DAC 6-14S Charger

Overview:

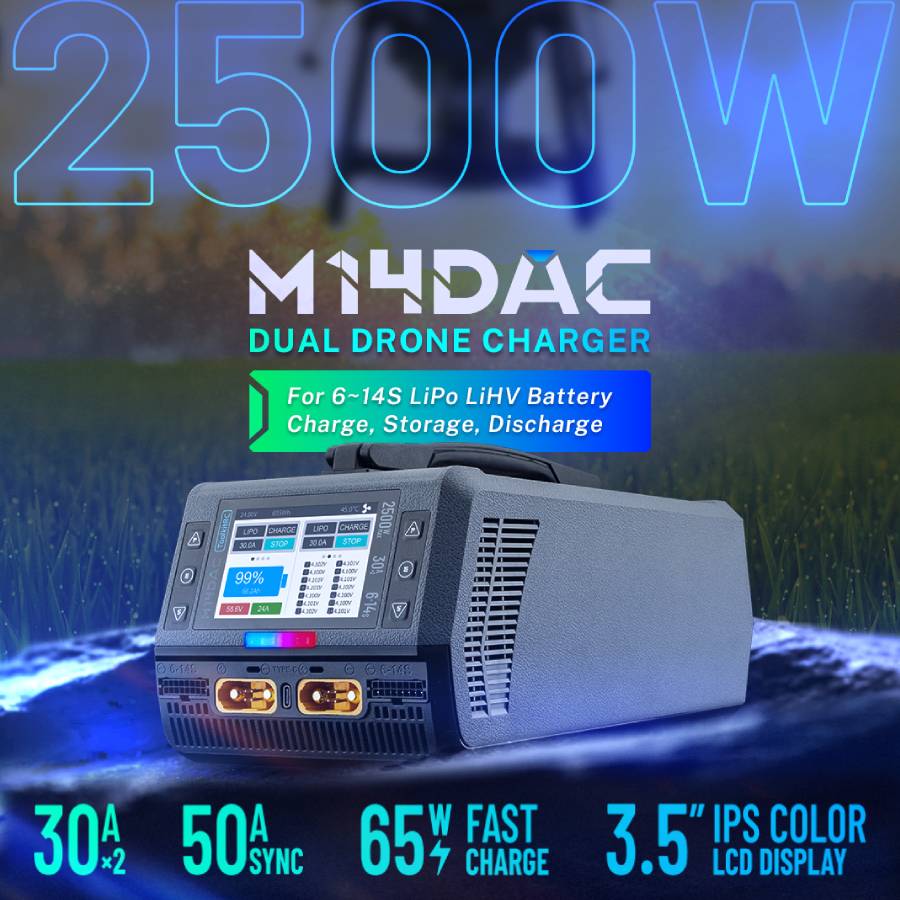

Designed for high-capacity battery workflows and demanding charging environments, the ToolkitRC M14DAC 2500W Dual Charger delivers exceptional output power, intelligent control and wide voltage compatibility in a robust desktop format. Built around a dual-channel architecture with smart power distribution, it is capable of charging two high-voltage packs simultaneously or combining outputs in synchronous mode for ultra-high power charging. Supporting 6S through to 14S LiPo and LiHV batteries, the M14DAC is particularly well suited to large FPV drones, industrial UAVs and other high-energy applications where speed and precision matter.

A clear 3.5" IPS display provides a modern, intuitive interface with real-time monitoring, while the integrated AC power supply removes the need for an external PSU. Practical features such as a built-in handle, dynamic status lighting and USB-C fast charging output further enhance usability both on the bench and in the field. Combined with comprehensive safety protections and support for DroneCAN smart battery communication via AS150U connectors, the M14DAC offers a highly capable and flexible charging solution for advanced users.

Features:

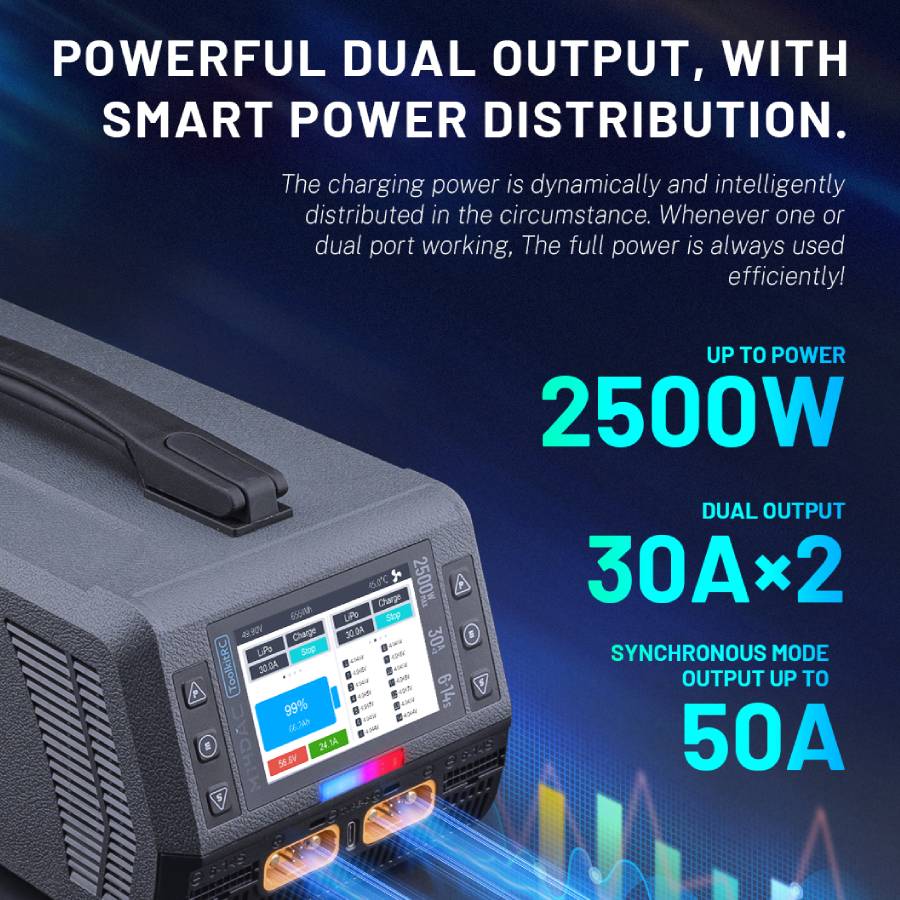

- Dual-channel charger with intelligent power distribution and synchronous high-power mode
- Supports 6–14S LiPo and LiHV battery packs

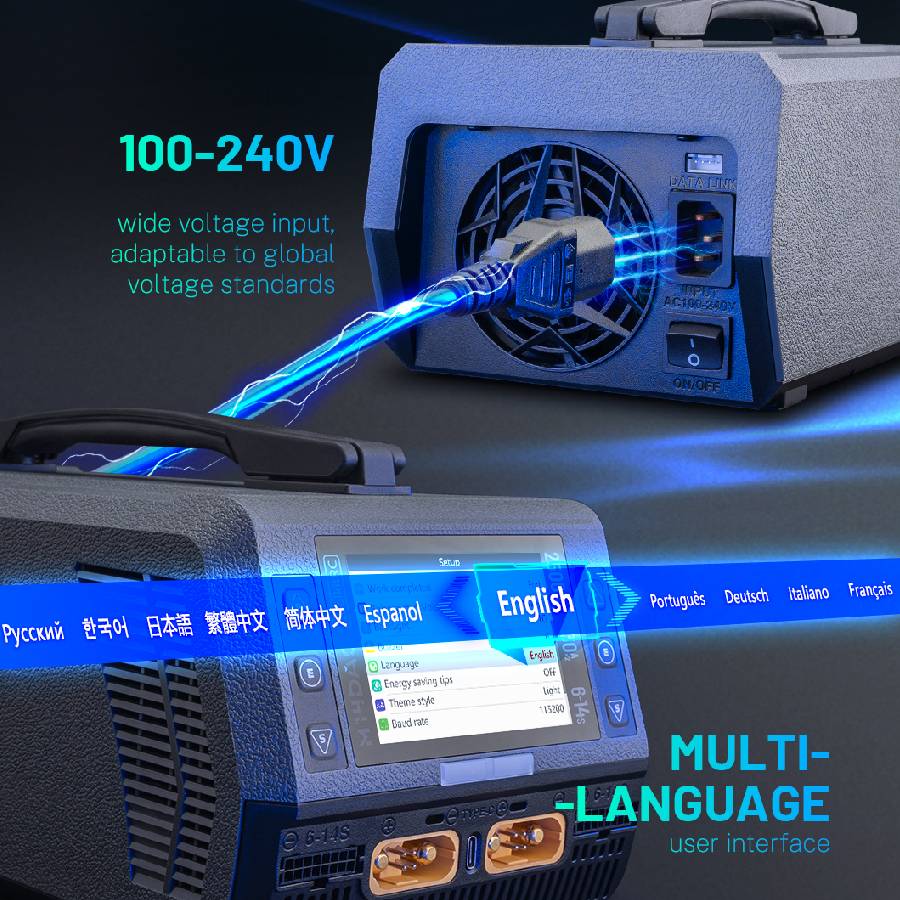

- Integrated AC power supply with wide 100–240V input compatibility

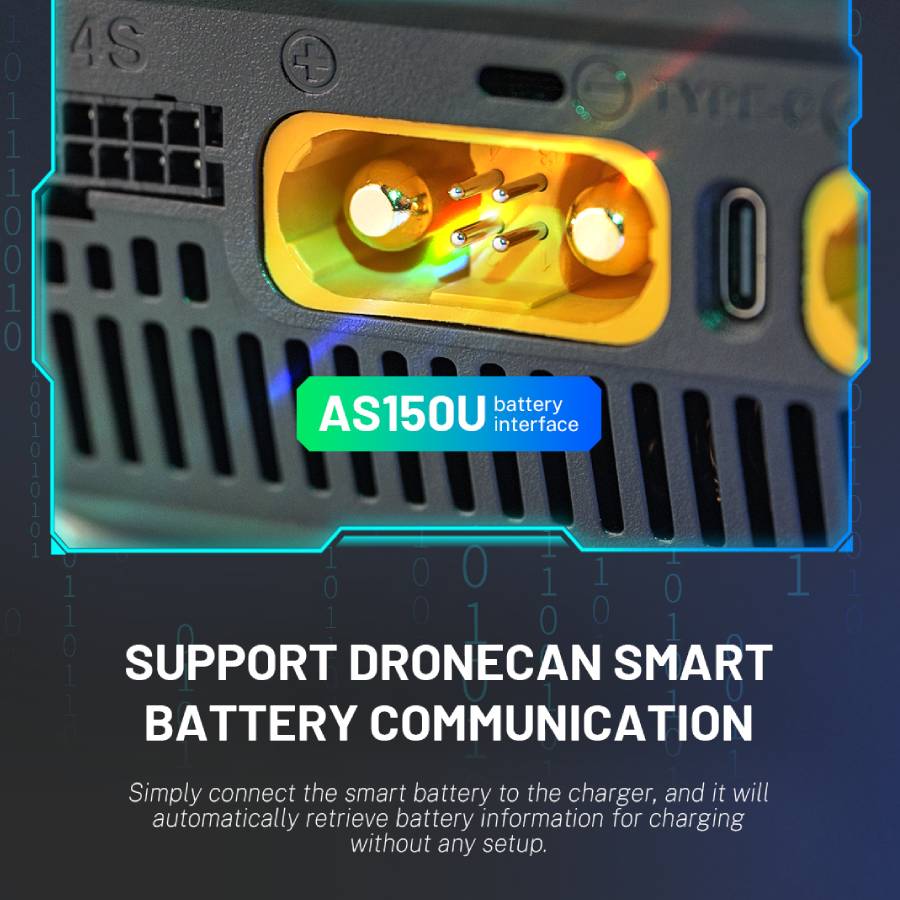

- AS150U output ports with support for DroneCAN smart battery communication

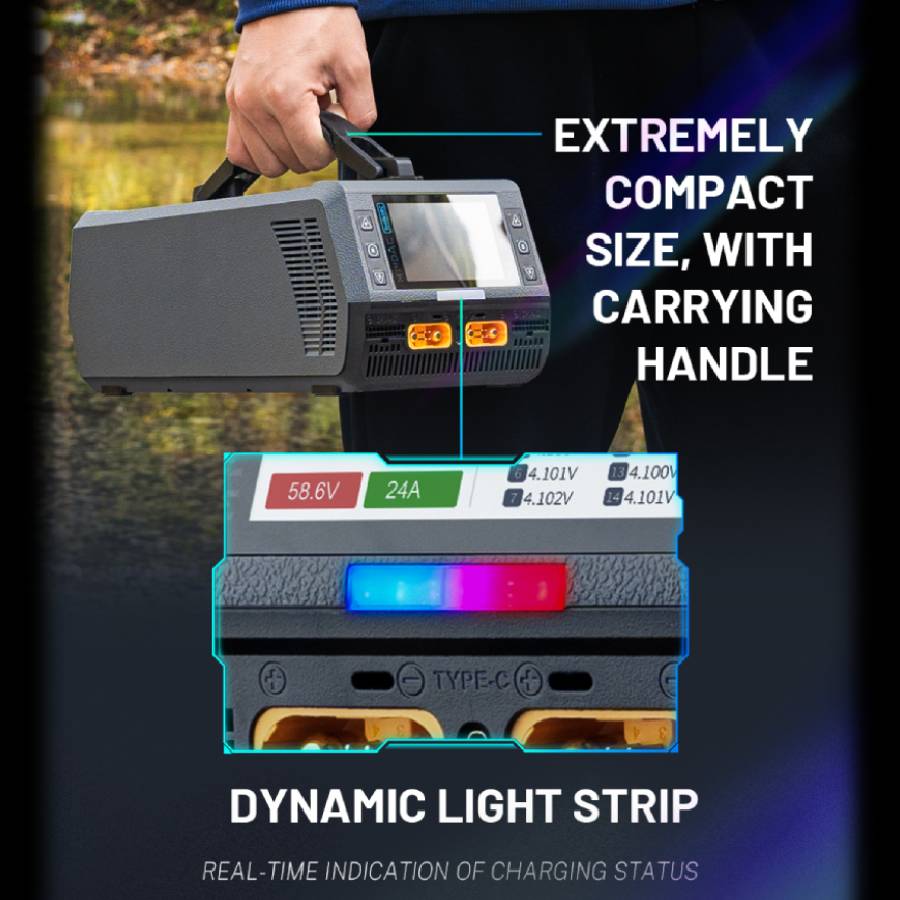

- Dynamic LED light strip indicating charging status in real time
- Built-in carrying handle for improved portability

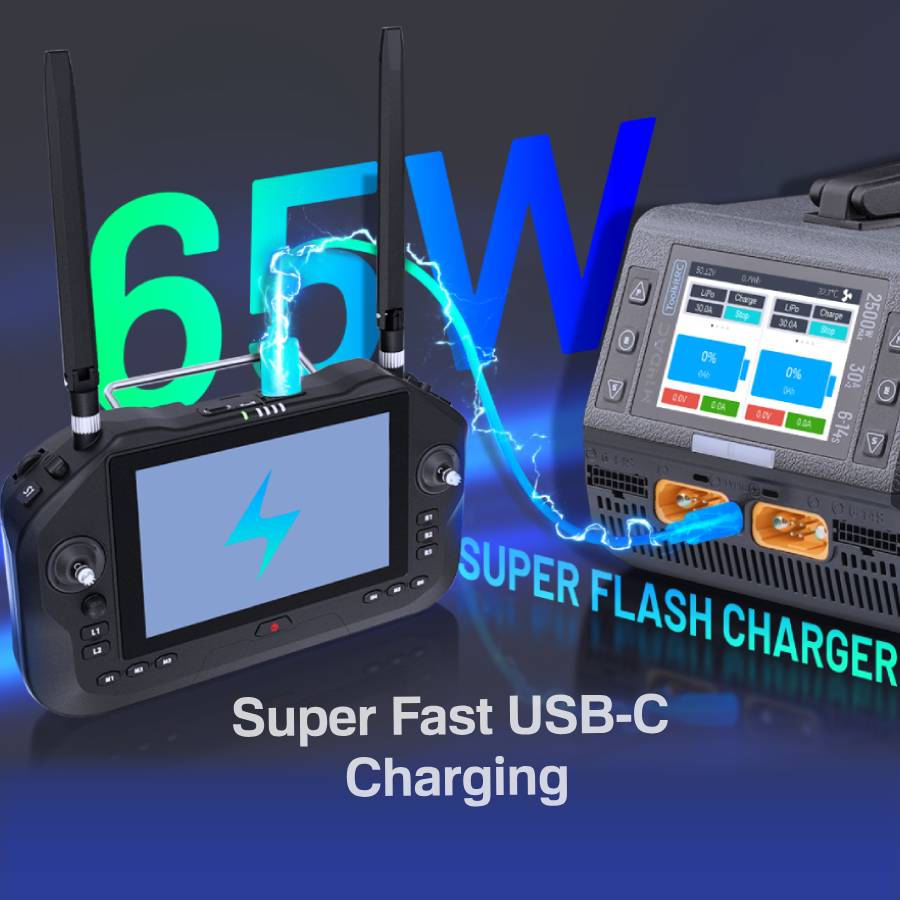

- USB-C output supporting up to 65W fast charging
- Multi-language interface for broader usability

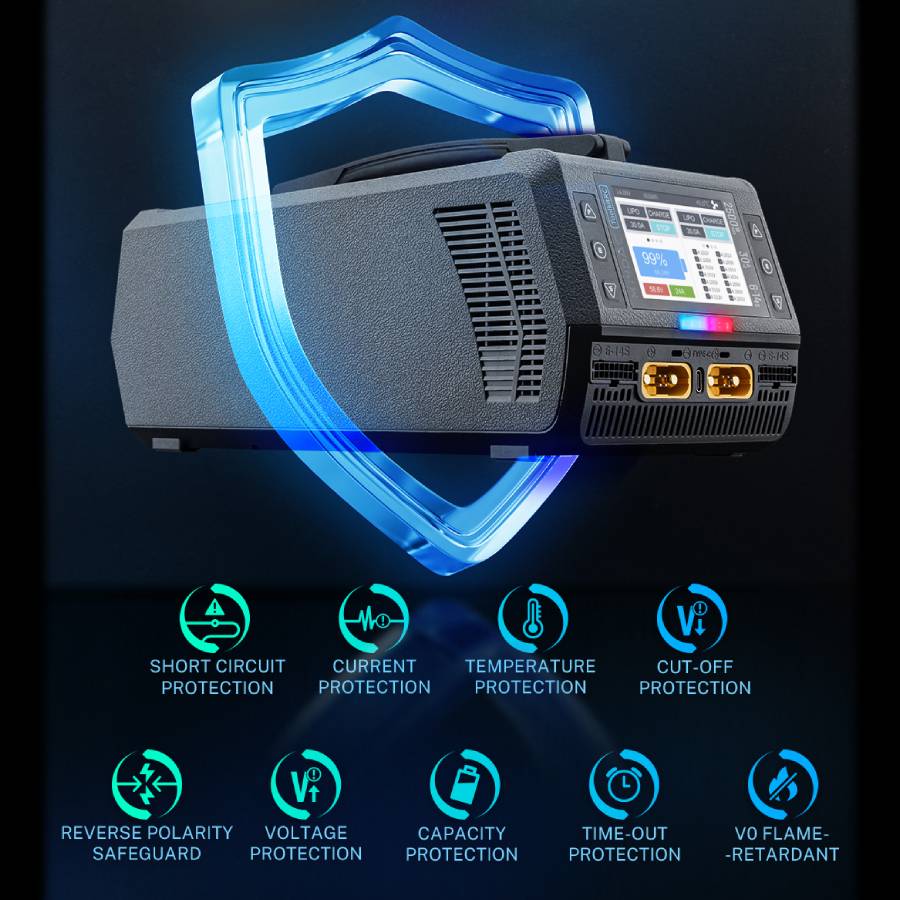

- Comprehensive protection systems including over-voltage, reverse polarity, - short circuit and thermal safeguards

Specification:
- Model: ToolkitRC M14DAC
- Channel Count: 2
- Input Voltage: AC100–240V
- Max Input Power: 2600W (220–240V) / 1300W (100–120V)
- Charge Current: 1–30A×2 (dual mode) / up to 50A (sync mode)
- Charge Power: 1250W×2 (dual, 220V) / 2500W (sync, 220V)
- Discharge Power: 60W×2
- Balance Current: Up to 2000mA
- Supported Battery Types: LiPo, LiHV
- Supported Cell Count: 6–14S
- Display: 3.5" IPS LCD, 480×320 resolution
- Output Connectors: 2x AS150U, 1x USB-C
- USB-C Output: Up to 65W (20V max)
- Internal Resistance Measurement Range: 1mΩ–9.9Ω

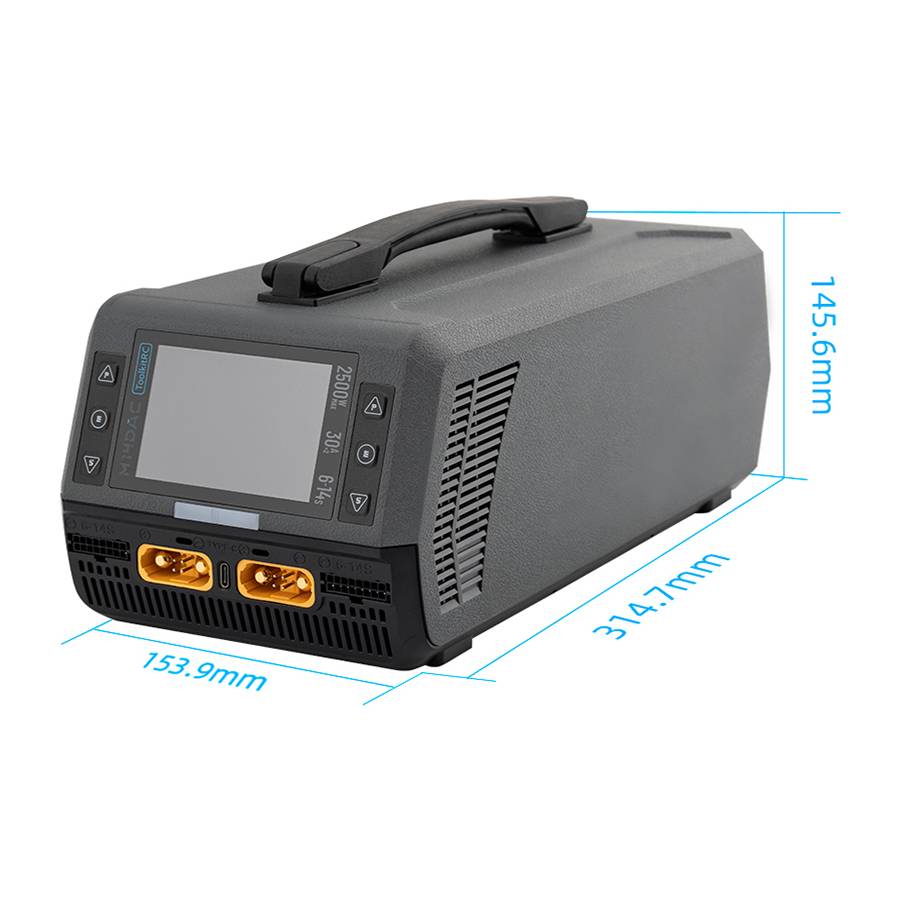

- Dimensions: 314.7×153.9×145.6mm
- Weight: 3100g

Included:
- M14DAC Charger
- UK Mains Plug
- Accessories
