Overview:

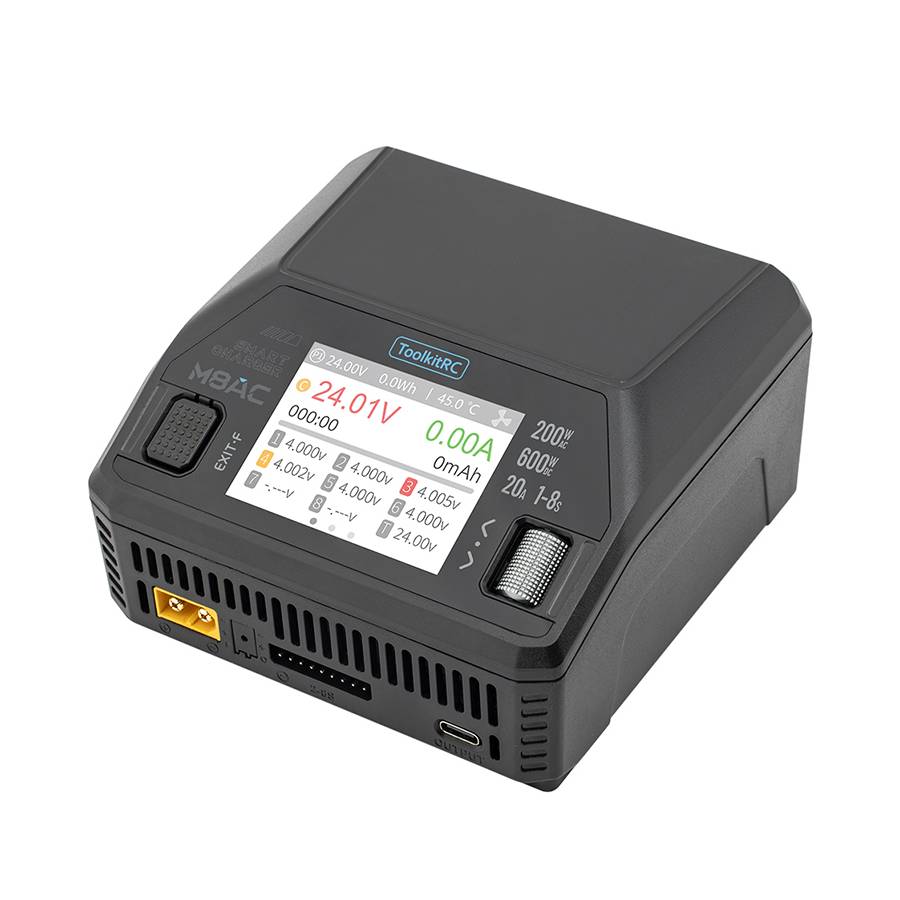

The ToolkitRC M8AC is a compact yet highly capable charger designed for battery charging, balancing, discharging and much more. Offering dual input modes (AC or DC), it supports up to 8‑cell LiPo batteries and delivers up to 600 W of charging power using an external DC source, making it ideal for both bench and field use. The integrated 65 W USB‑C output supports modern devices, while the 2.4″ IPS colour display and comprehensive auxiliary testing tools make this a worthy addition for anyone with RC kit.
Features:
- Dual‑input convenience - AC wall outlet:(100–240 V) or DC supply (7–35 V)
- External DC input enables up to 600 W charging at 20 A for higher-speed workflows
- High-speed balancing capability at 1 A per channel with balance accuracy under 0.005 V
- Functional USB‑C power delivery provides up to 65 W output- perfect for charging smartphones, cameras or tools
- Finger-smooth scroll wheel navigation paired with a 2.4″ IPS LCD (320×240 pixels) ensures intuitive operation in varied lighting conditions

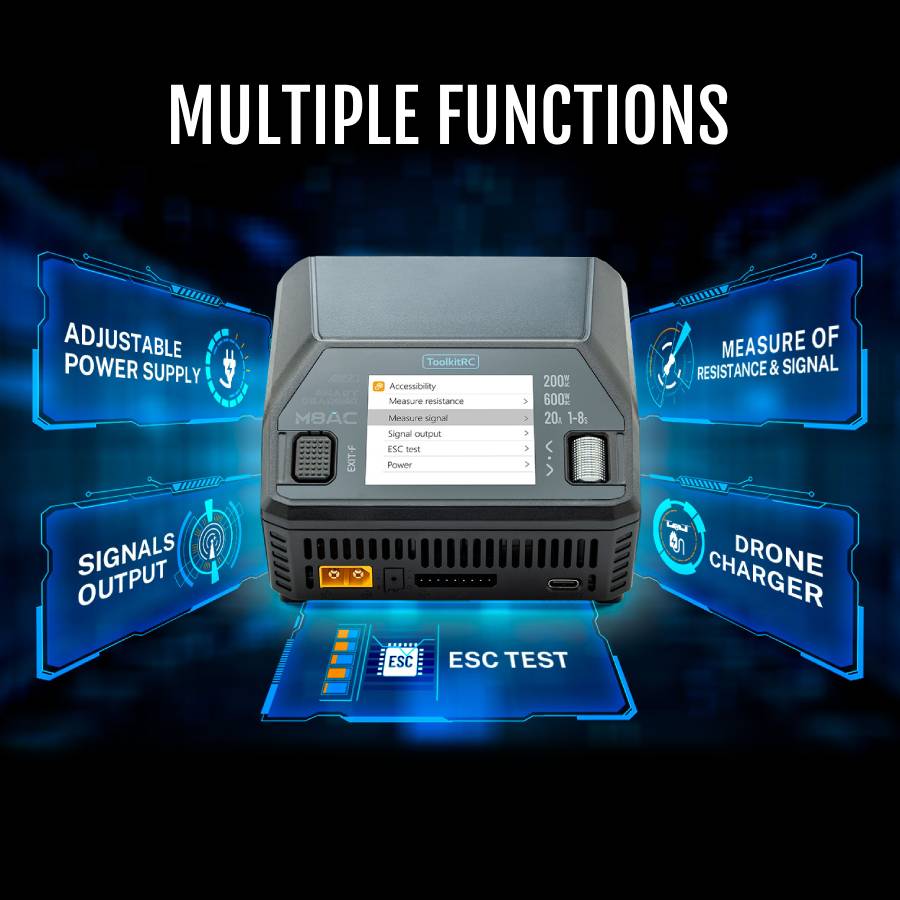

- Auxiliary functions: digital voltmeter, internal resistance checker, PWM/PPM/SBUS signal tester, adjustable benchtop power supply (1–35 V CC/CV, up to 20 A), and ESC/motor tester
- Discharge modes include standard internal dissipation (20 W) and powerful recycle mode (600 W)

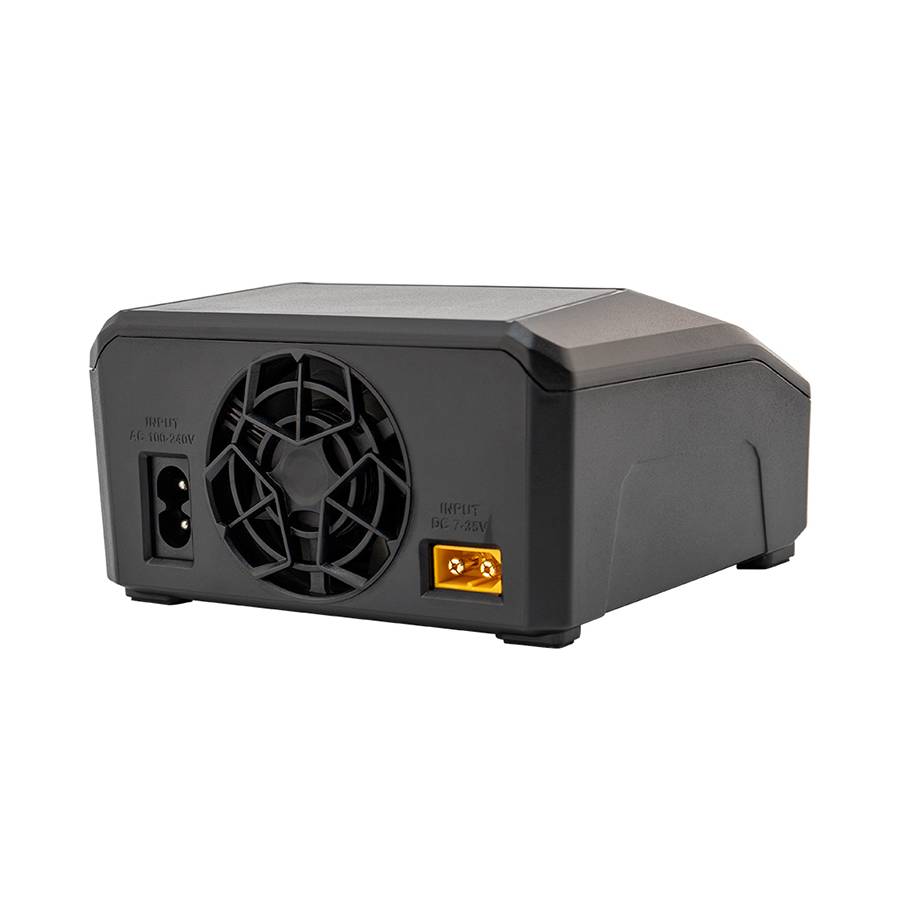

- Excellent thermal handling via a temperature-controlled fan which automatically kicks-in when input power exceeds 100 W or internal heat rises above 40 °C
- Support for multiple battery chemistries and cell counts, including LiPo, LiHV, LiFe, Li-ion, LTO (1–8 S), NiMH (1–20 S) and lead‑acid (1–12 S) with smart cycle mode
Specification:
- Model: ToolkitRC M8AC Charger
- AC Input: 100–240 V AC, max 2.5 A (≈200 W)
- DC Input: 7–35 V DC, max 25 A (allows up to 600 W charging)
- Charging Support: 0.1 A to 20 A (max 600 W) for LiPo/LiHV/LiFe/Li-ion/LTO (1–8 S); NiMH (1–20 S); PB lead‑acid (1–12 S)
- Balance Current: 1 A per channel (max), balance accuracy <0.005 V
- Discharge Output: Recycle mode: 0.1–20 A @ up to 600 W. Internal (heat dissipation) mode: 0.1–3 A @ 20 W
- USB‑C Port: Up to 20 V, 65 W USB PD output for powering peripherals
- Adjustable Power Supply: CV/CC mode, 1–35 V and 0.5–20 A output for bench use
- Signal Tester: PWM, PPM, SBUS signal measurement and output; supports up to 16 channels
- Display: 2.4″ IPS LCD, resolution 320 × 240 px
- Physical Dimensions: 108 × 113 × 62 mm
- Weight: Approximately 500 g
Included:
- 1x ToolkitRC M8AC Charger
- Accessories
