Overview:

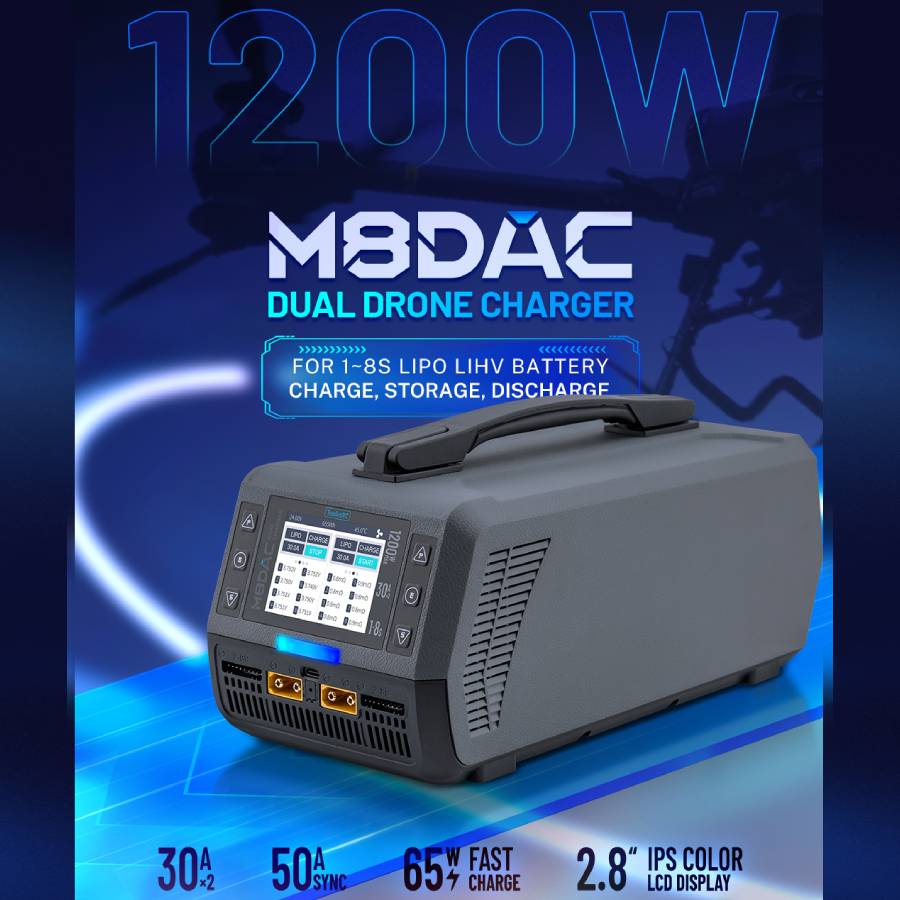

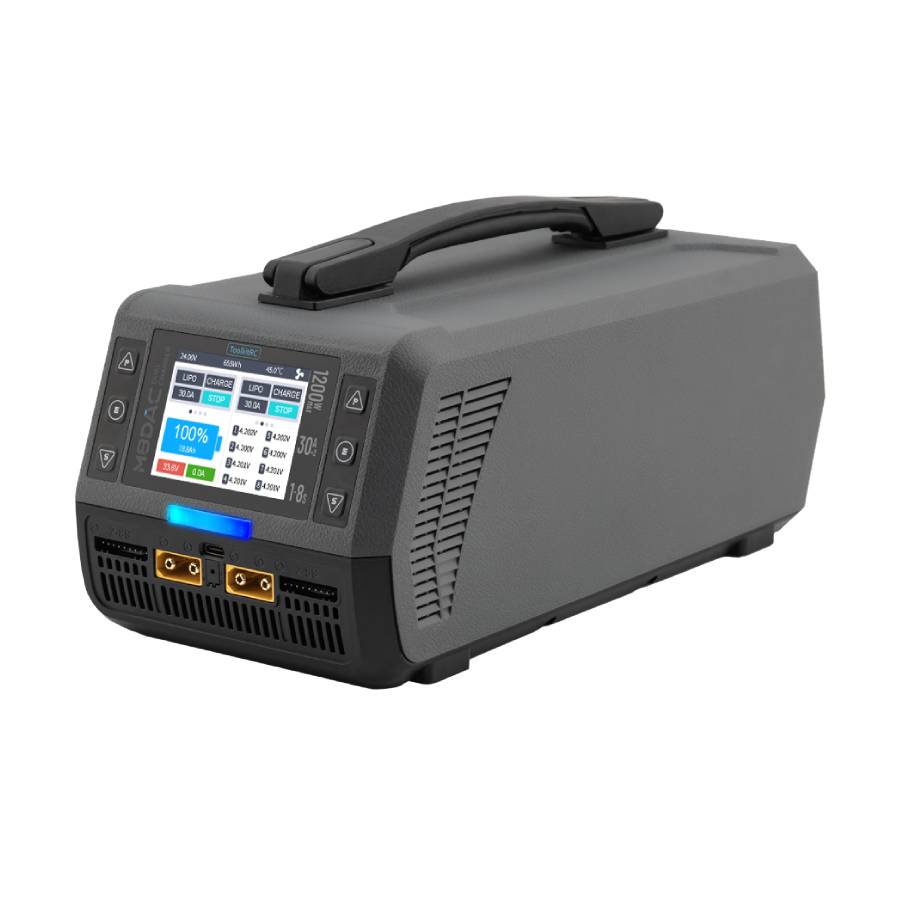

The ToolkitRC M8DAC is a high-power, dual-channel AC balance charger designed for serious RC pilots who need fast, controlled charging of large LiPo and LiHV battery packs. With a built-in AC power supply and intelligent power distribution, it delivers substantial charging capability from a single, self-contained unit, making it well suited to workshop benches.
Its two independent output channels can operate separately or be combined in synchronous mode for higher total output, while the clear colour IPS display and intuitive interface make it easy to manage charging, discharging and storage tasks safely and efficiently. This charger is aimed squarely at experienced users running high-capacity packs who want maximum throughput without the complexity of external power supplies.
This charger is a solid choice for pilots operating large multirotors, long-range aircraft or multiple high-capacity packs who need dependable AC charging power, accurate balancing and flexible dual-channel operation in one robust unit.
Features:
- Dual independent charging channels with optional synchronous high-power mode.

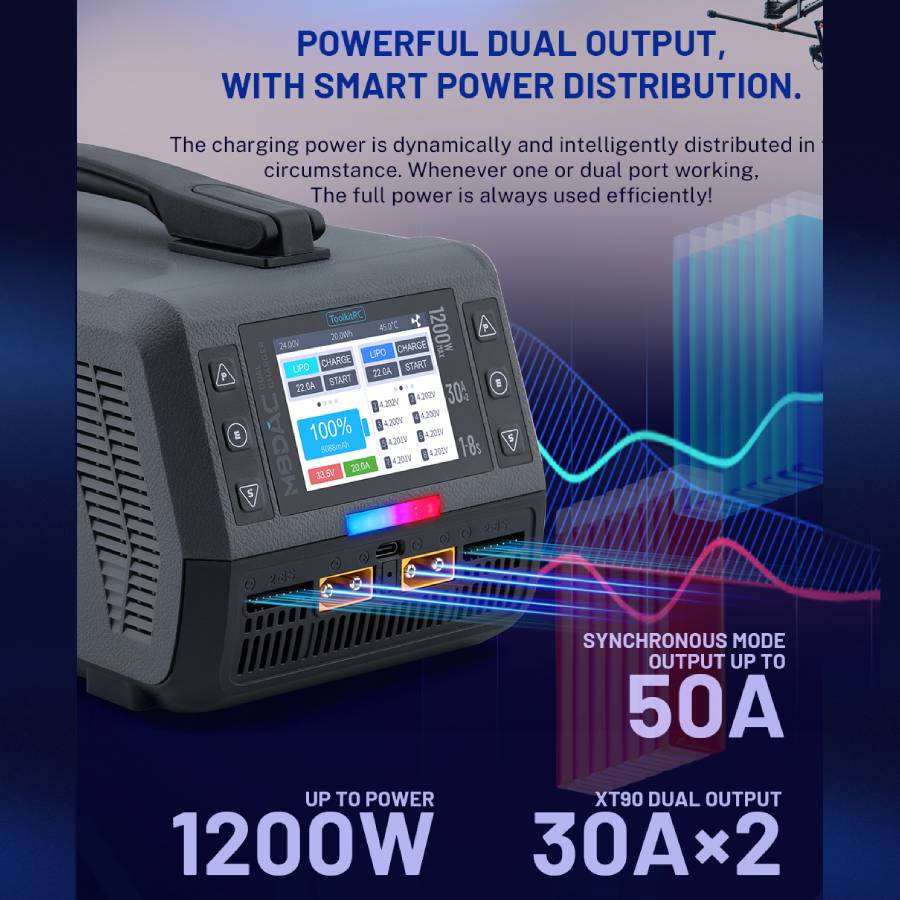

- Intelligent power allocation automatically balances output across channels.
- Built-in AC power supply for direct mains operation without external PSU.

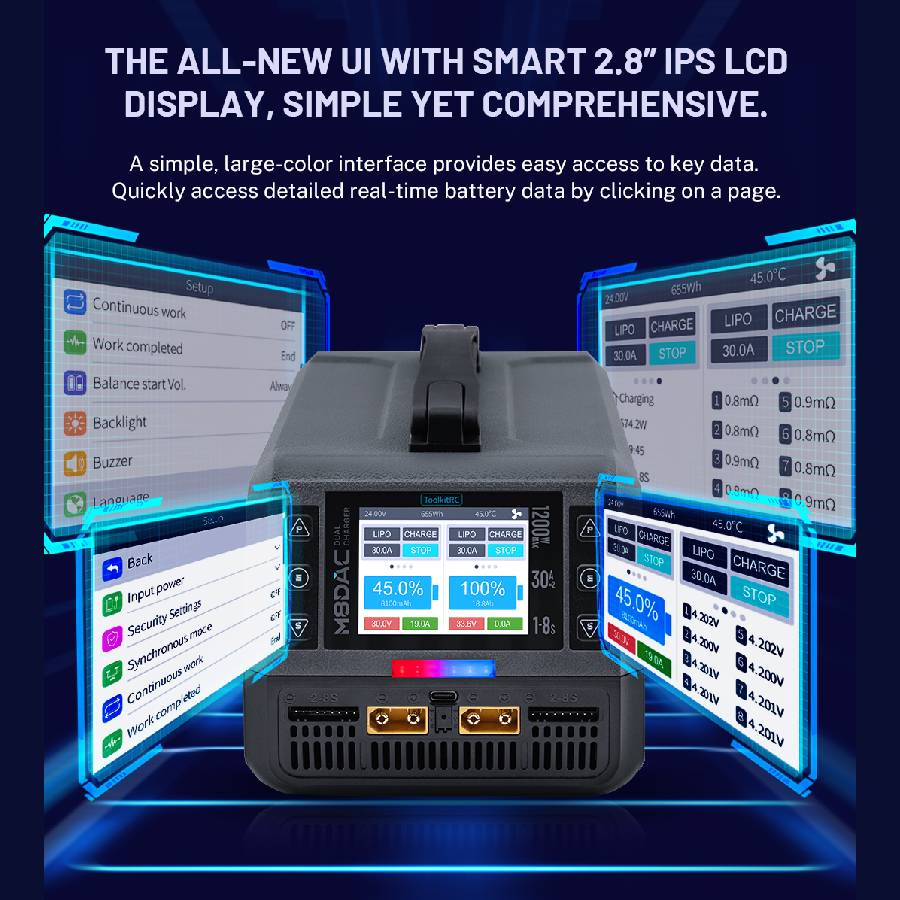

- High-resolution colour IPS display with clear real-time charging data.
- Integrated balance, discharge and storage charge functions.
- USB-C PD output for powering compatible devices from the charger.
- Active cooling with temperature-controlled fan management.

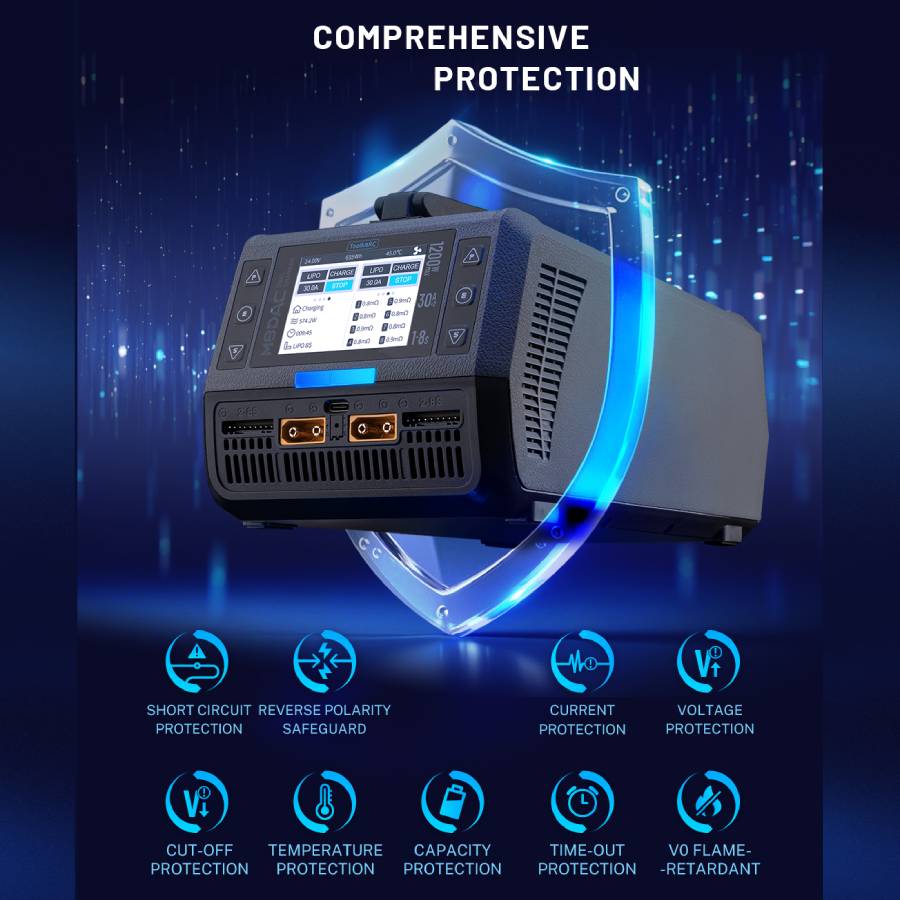

- Comprehensive safety protections including over-current, over-voltage and thermal protection.
Specification:
- Product size: 280×138×142mm
- Product weight: 2350g
- LCD: IPS 2.8" LCD 320×240px

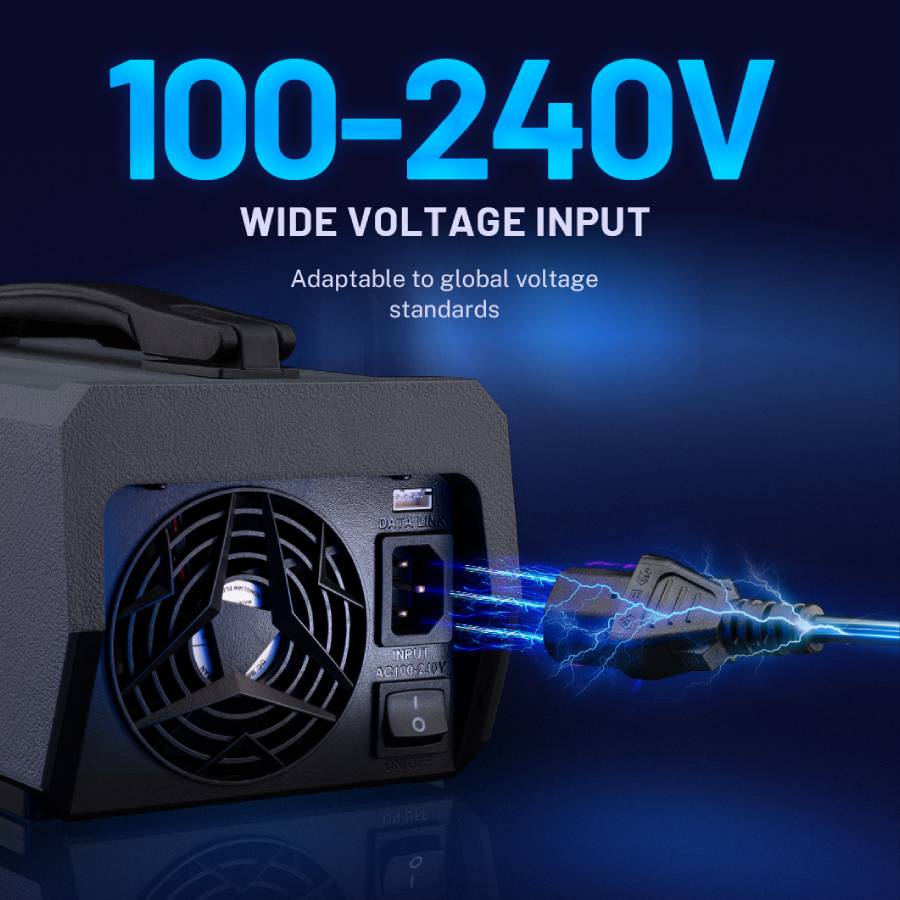

- Input voltage: AC 100–240V (MAX 1300W)
- Battery chemistry support: LiPo/LiHV @1–8S
- Charging power: 1.0–30.0A @ 600W ×2 (ASYNC), 1.0–50.0A @ 1200W (SYNC)
- Discharging power: 1.0–5.0A @ 50W ×2 (ASYNC), 1.0–10.0A @ 100W (SYNC)
- Balance current: 2000mA @ 4.2V
- Type-C output: 5–20V @65W (PD/QC/PPS/AFC/SCP)
- Internal resistance: 1mΩ–9.9Ω @1-8S
- Output connectors: 2× XT90 male ports, 1× Type-C

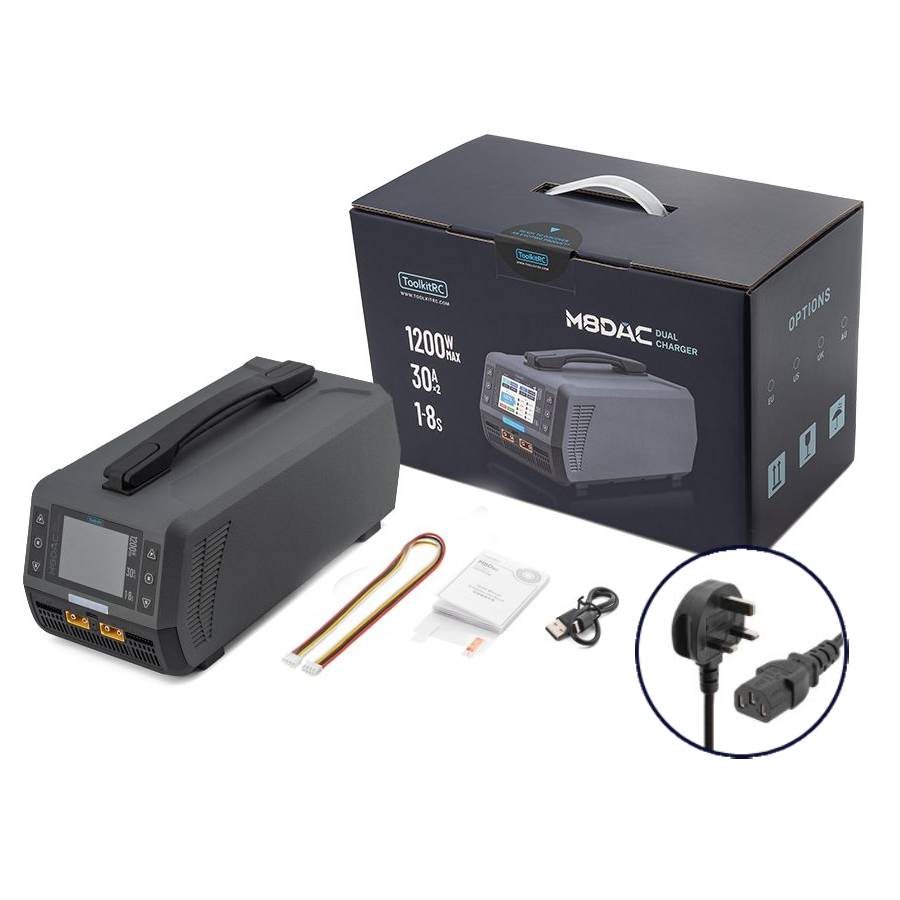

Included:
- 1x Toolkit M8DAC Charger
- UK Mains cabled plug
- Accessories
