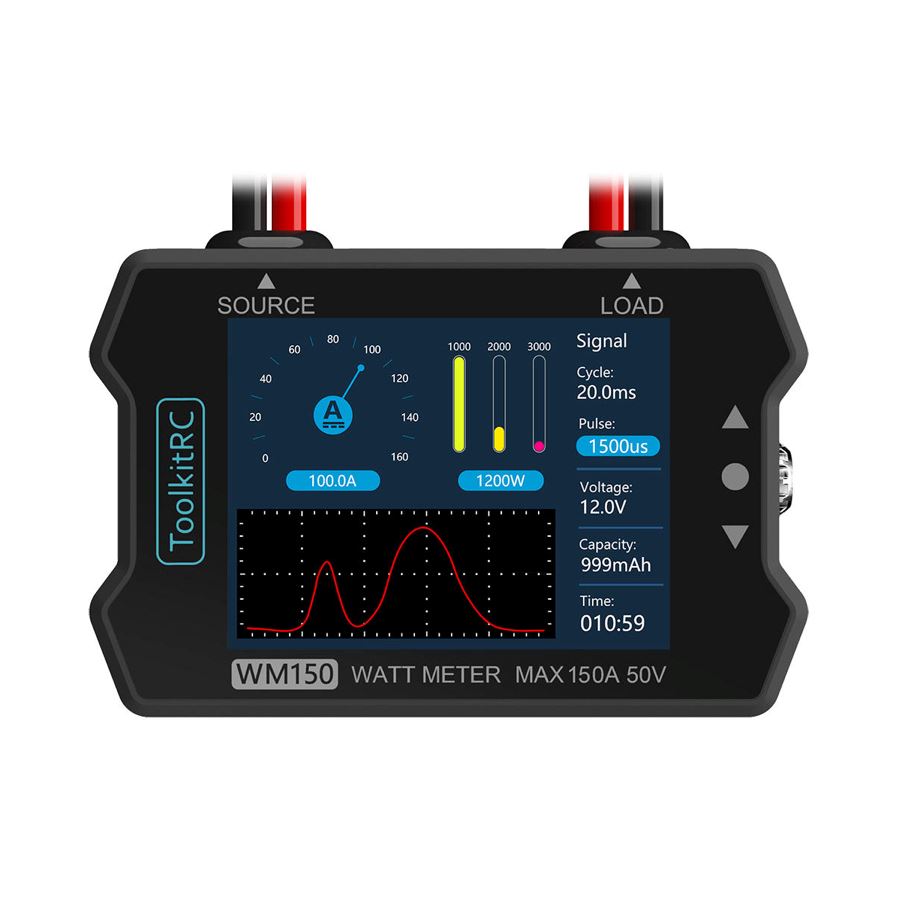

ToolkitRC WM150 Watt Meter

Overview:

The ToolkitRC WM150 Watt meter allows testing of motors and other DC devices. The most common usage is to control a brushless ESC and measure the resulting power usage of motors and prop combinations. Up to 150W can be measured via the unit. The voltage and current data are graphed and can be visible on the built-in colour screen. The unit is fitted with bare-ended wires so you can affix your own connectors to suit your application (XT60 connectors shown in the gallery image are not included).

Features:

- Output PWM signal with an accuracy of 1 microsecond.
- Low voltage alarm. When the voltage is lower than 6V, and USB power is not supplied, it will alarm.
- Real-time detection of voltage, current, and power - displayed graphically
- Firmware upgradeable

Specifications:

- Input voltage: 1-50V @ MAX150A
- Input USB: 5.0V@1A Firmware upgrade@USB3.0
- Signal port: 1000us-2000us @50Hz
- LCD display: TFT 2.4 inch 320x240 resolution
- Dimensions: 80mm*54mm*23mm
- Weight: 120g

Included:

- ToolkitRC WM150 Watt Meter
