TrueRC Core 5.8 160mm (SMA)
TrueRC Core 5.8GHz 160mm Antennas with an SMA Connector, available in LHCP or RHCP and three different colours.
Overview:
The TrueRC Core 5.8 range is the most advanced antenna line-up ever produced by TrueRC. They've managed to achieve further miniaturisation than ever before, yet managed to push performance a notch higher still.
Features:
- Durable polycarbonate, injection-moulded, ultrasonically welded housing
- Smooth radiation pattern with even gain in all directions
- Excellent axial ratio and efficiency
- Flexible coax cable to deflect impacts
- Knurled SMA connector for easy tightening
Specification:
- Model: TrueRC Core 5.8 160mm
- Gain: 1.9dBic
- Length: 160mm
- Connector: SMA
- Cross-Polar Rejection: -10 to -20dB
- Bandwidth: 5.5GHz-6.1GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.9 dia. x 13.1mm height

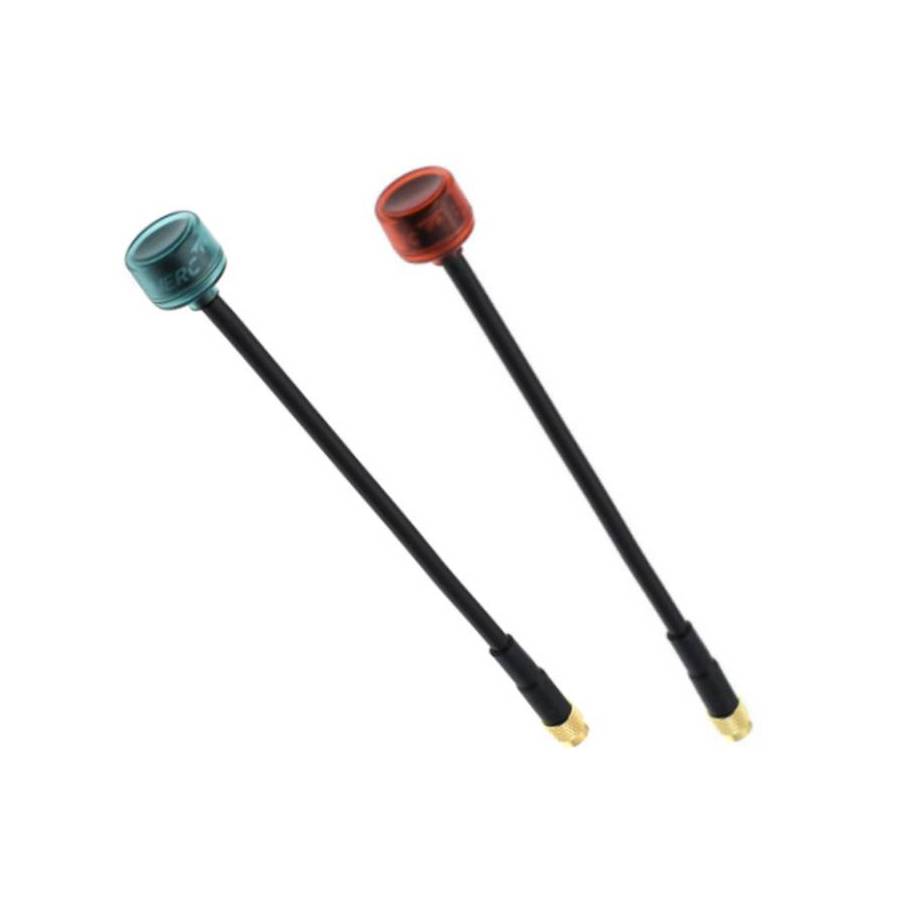

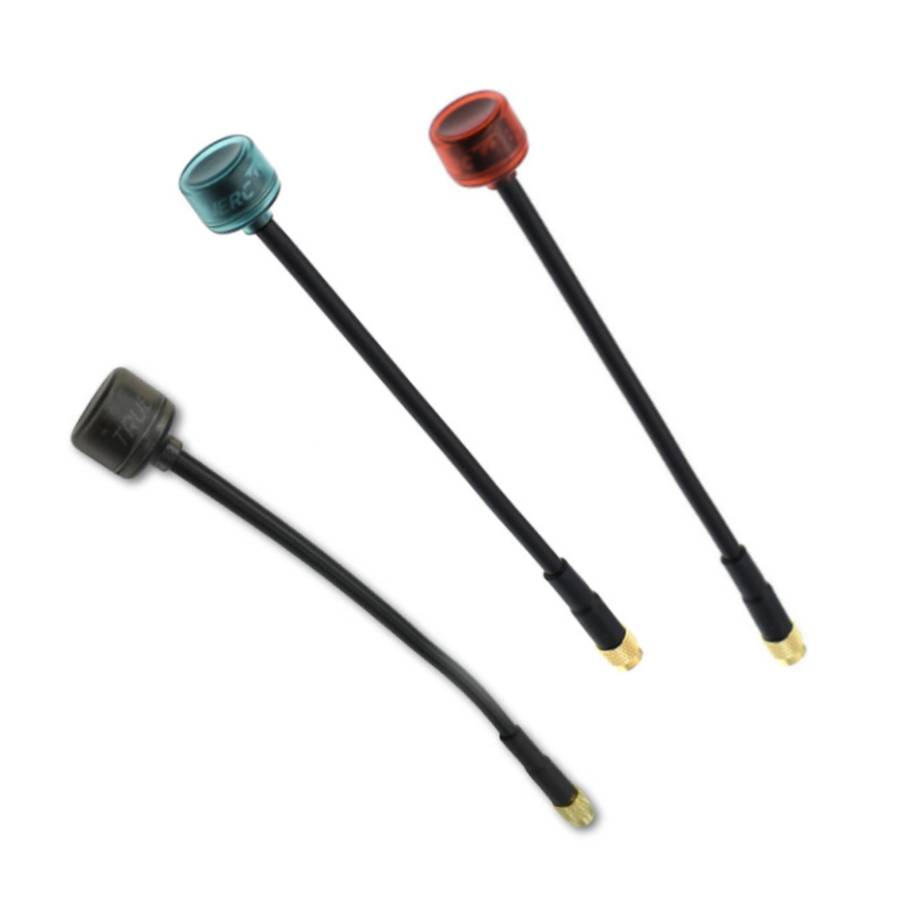

Available versions (see below for purchase options):

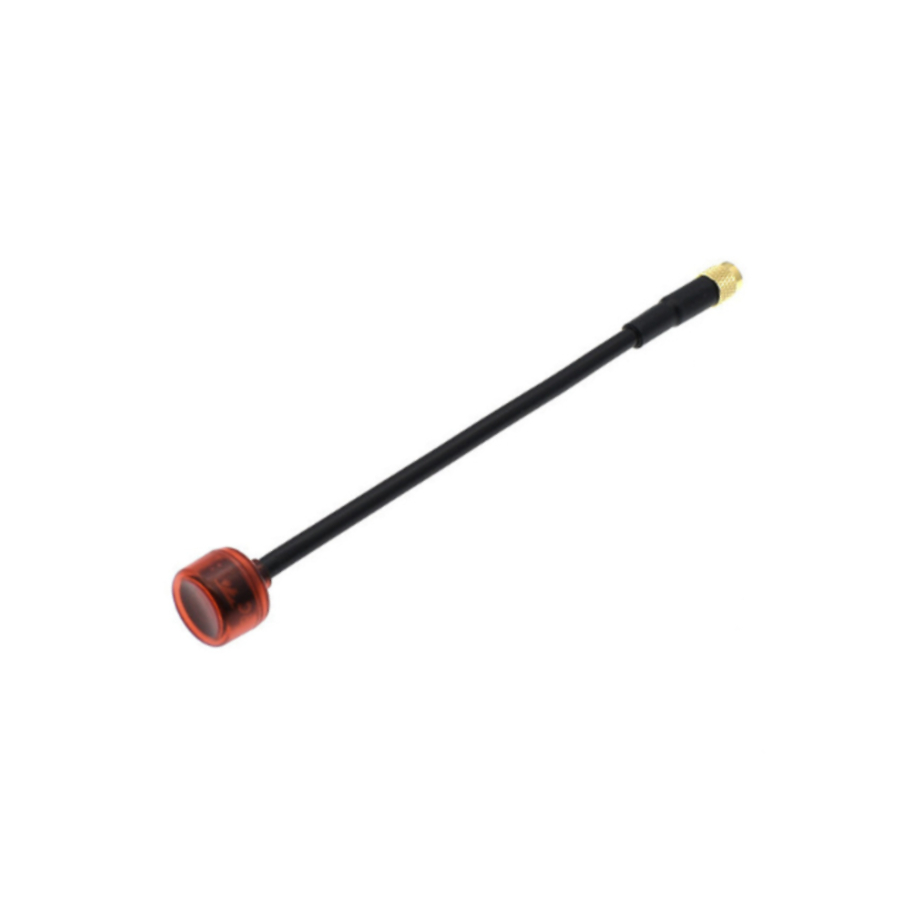

- 1x TrueRC Core 5.8 160mm (SMA)(RHCP) with Red head

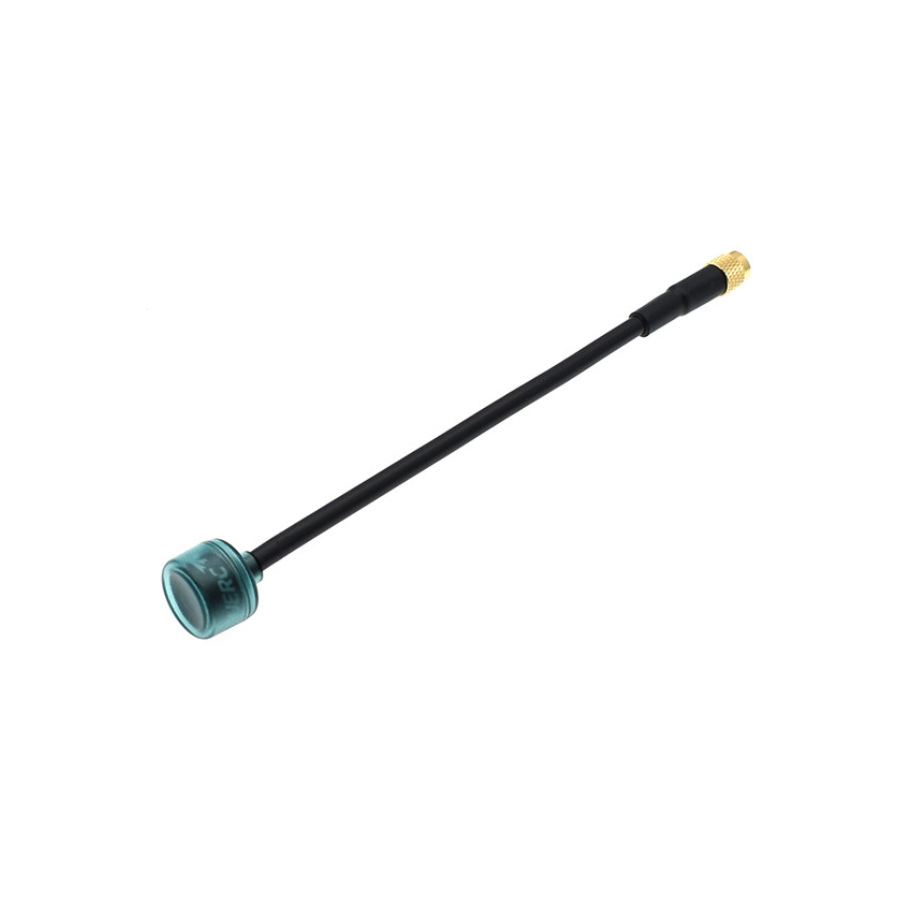

- 1x TrueRC Core 5.8 160mm (SMA)(LHCP) with Blue head

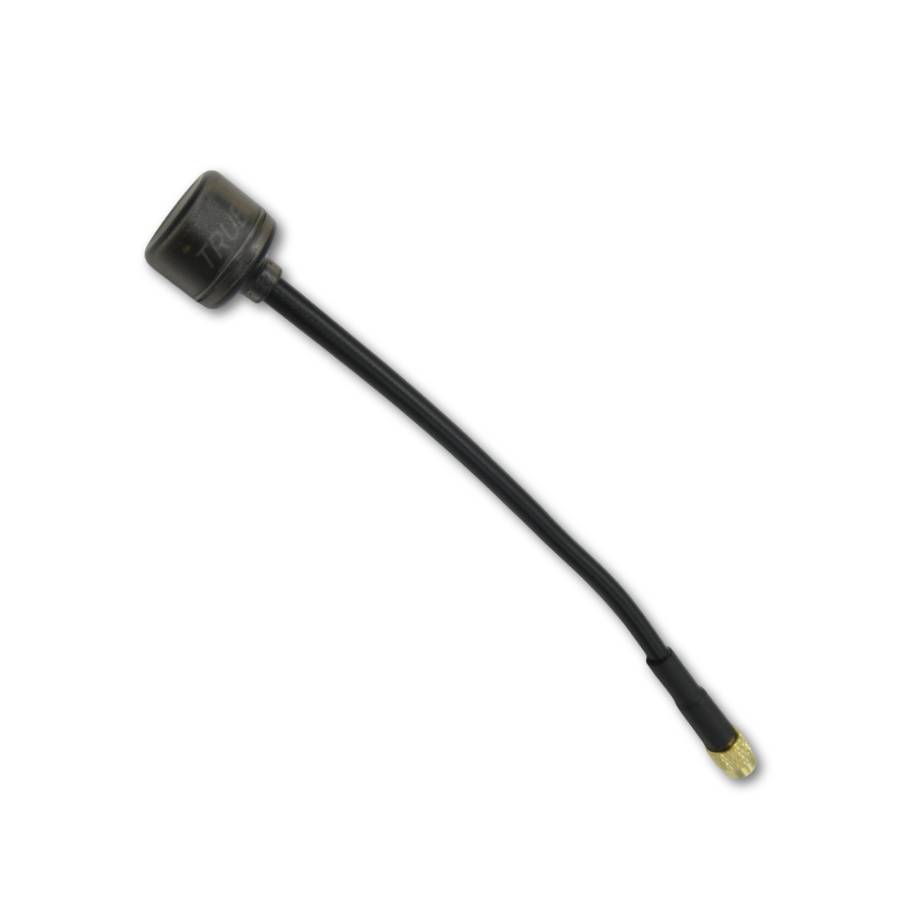

- 1x TrueRC Core 5.8 160mm (SMA)(RHCP) with Grey head
Included:
- 1x TrueRC Core 5.8 160mm
