TrueRC Core 5.8GHz 125mm Antenna (RP-SMA)
TrueRC Core 5.8GHz 125mm Antenna is available in both LHCP & RHCP fitted with an RP-SMA connector.
Overview:
The TrueRC Core 5.8Ghz antennas have a high radiation efficiency of 98% and a low SWR of less than 1.2:1. They have a bandwidth of 5.1GHz-6.0GHz and a gain of 1.6dBic. This is the 125mm long version which is available as both LHCP and RHCP.
Specifications:
- Gain: 1.9dBic
- Cross-Polar Rejection: -10 to -20dB, (3.2%)
- Bandwidth: 5.5GHz-6.1GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.9mm dia.x13mm height
- Length: 125mm
- Connector: RP-SMA

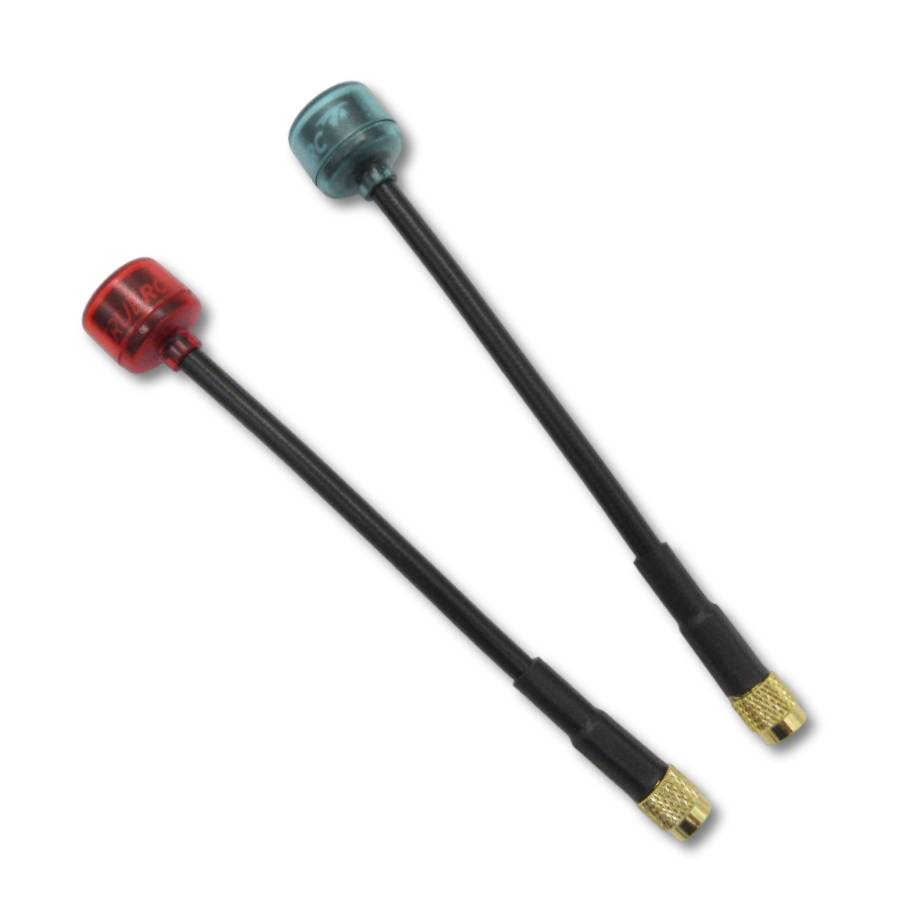

Available versions (see below for purchase options):

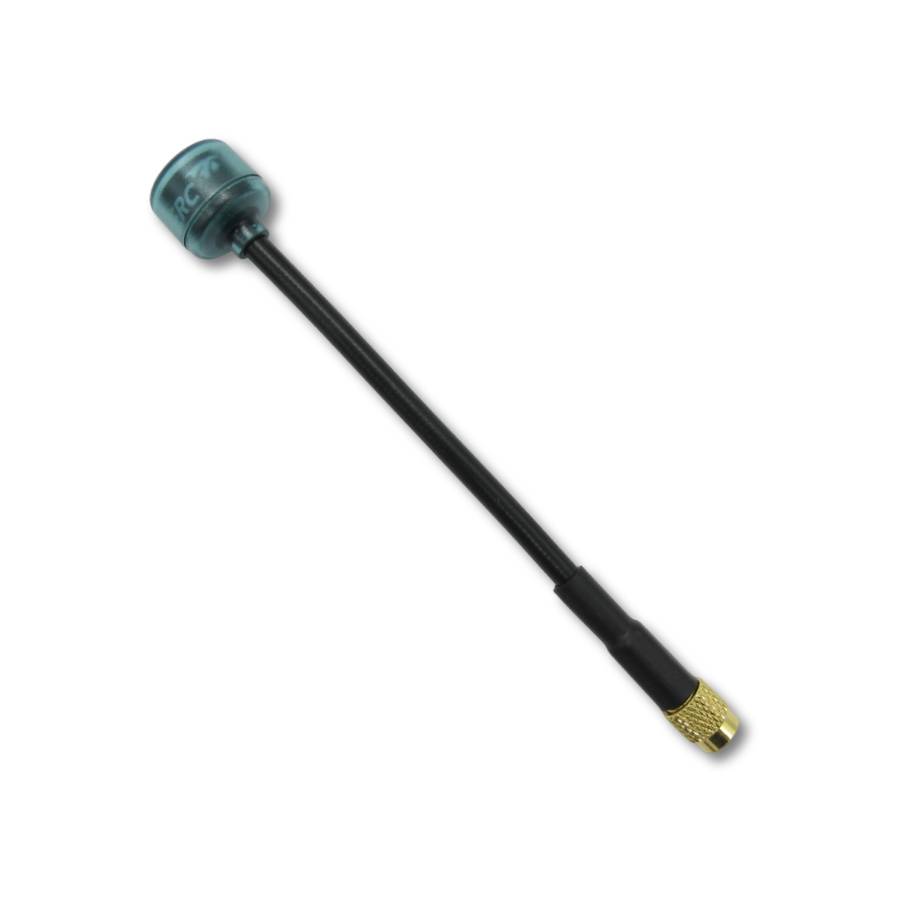

- TrueRC Core 5.8GHz 125mm Antenna in Teal (RP-SMA) (LHCP)

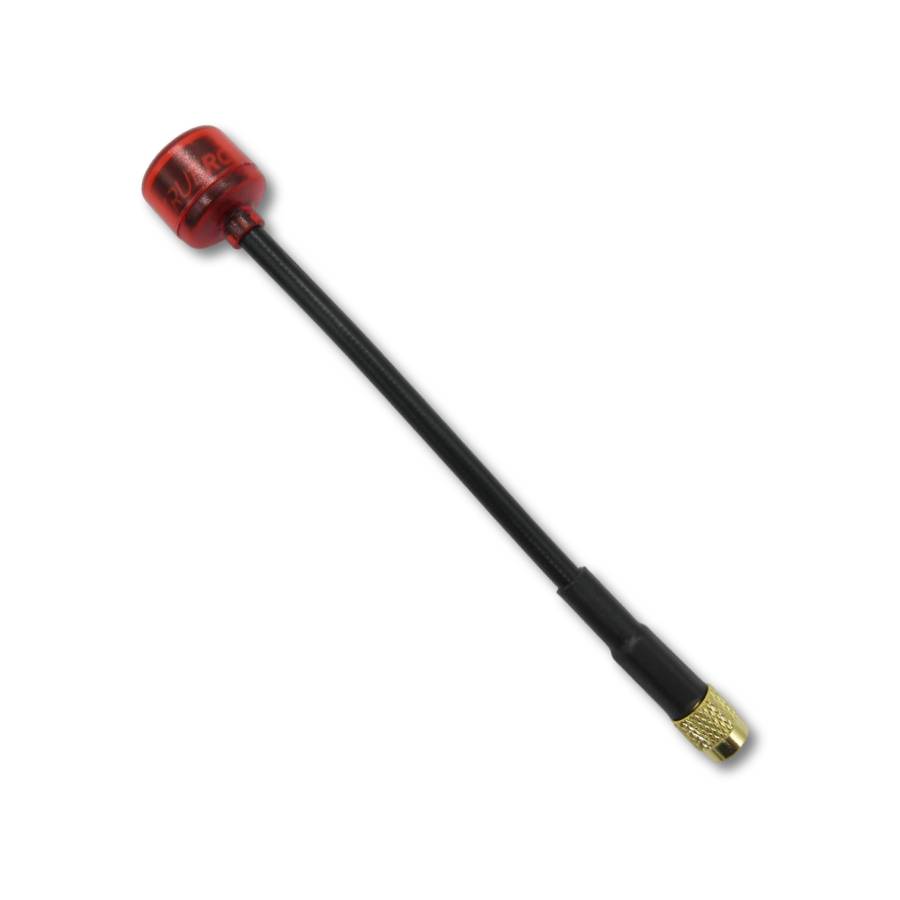

- TrueRC Core 5.8GHz 125mm Antenna in Red (RP-SMA) (RHCP)
Included:
- 1x TrueRC Core 5.8GHz 125mm Antenna(RP-SMA)
