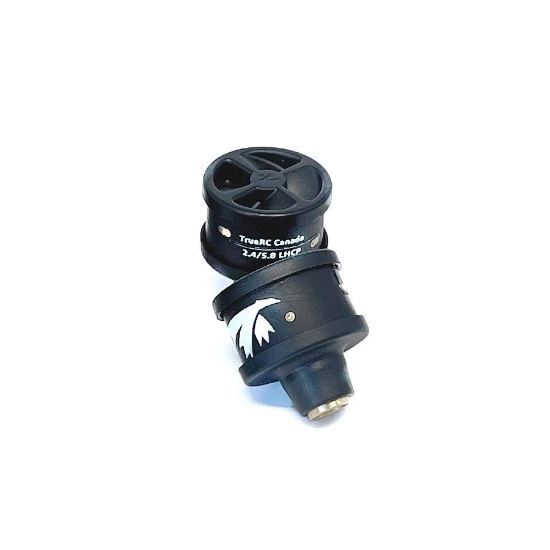

TrueRC Duality Stubby for DJI (2 Pack) (LHCP)

TrueRC Duality Stubby Antennas for DJI are 2.4GHz and 5.8GHz - pack of 2 antennas
Manufacturer: TrueRC
Availability: Out of stock
£38.20 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview:

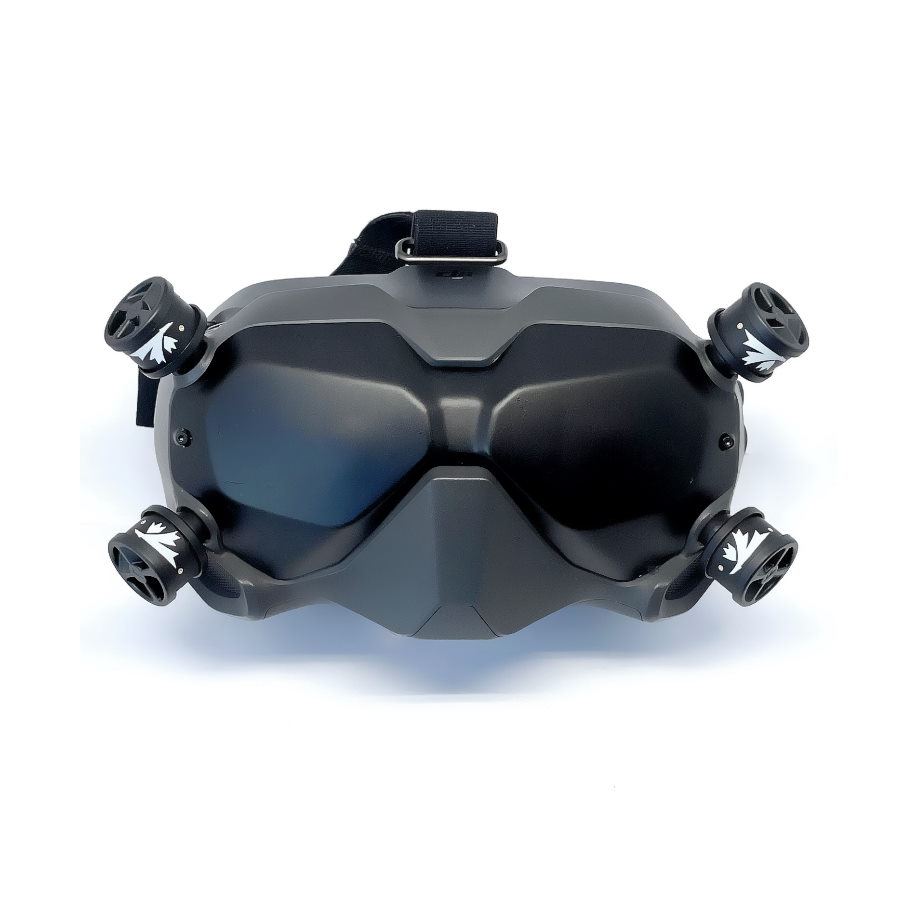

The TrueRC Duality is a dual band CP omni covering both 2.4 and 5.8GHz bands in a single compact stubby package. Drop-in fit on the DJI FPV goggles V2*, letting you leaving them on at all times, thanks to a much lower profile than the stock linear antennas. Each unit is hand tuned on a professional analyzer so you get the most of your digital HD system. This is for a pack of 2 antennas.

Specifications:

- Gain: 1.7dBic @2.4GHz, 2.8dBic @5.8GHz
- Polarization: LHCP
- Cross-Polar Rejection: -15 to -30dB, (2.2%)
- Bandwidth: 2.39GHz-2.52GHz & 5.6GHz-6.1GHz
- Radiation Efficiency: 99%
- SWR: <=1.5:1
- Weight: 5.25g
- Dimensions: 23.3mm dia. X 22.0mm height
- Connector: RP-SMA

Package Contents:
- TrueRC Duality 2.4GHz / 5.8GHz stubby for DJI (LHCP) (2-Pack)
