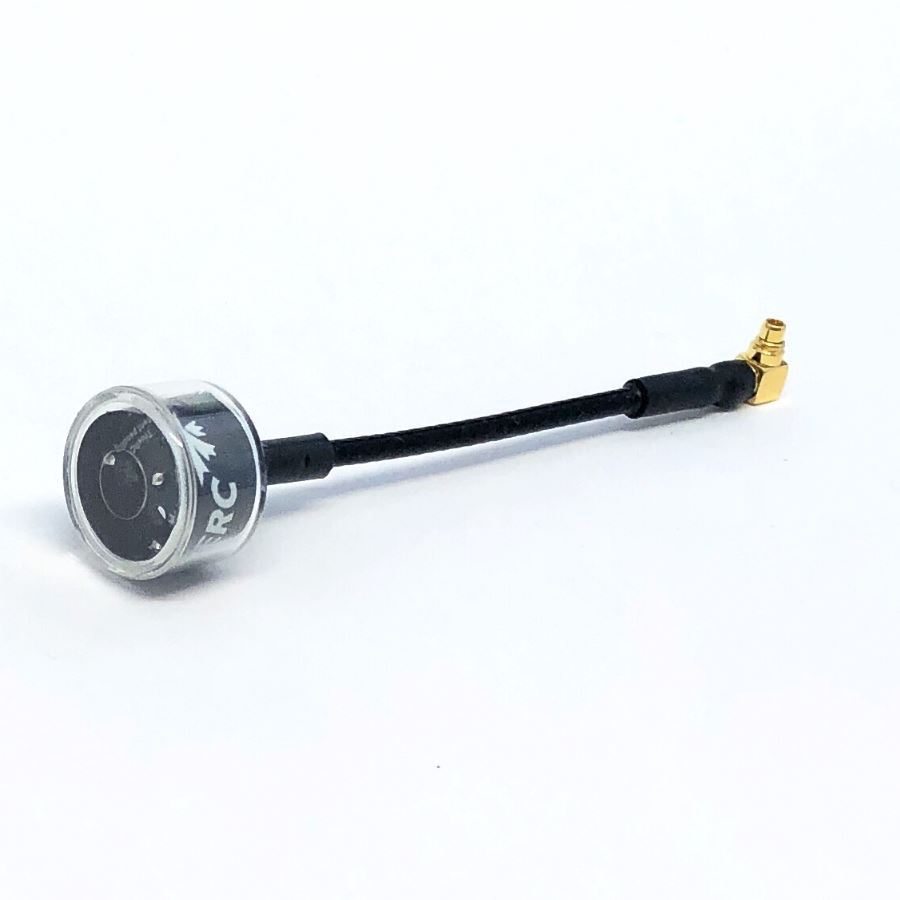

TrueRC OCP 5.8GHz Antenna (MMCX 90) (LHCP)
The TrueRC OCP 5.8 is our new everyday omni directional antenna. Available with MMCX connector ideal for use with the DJI Air unit or VTXs. This version is the LHCP one.
Overview:
The TrueRC OCP 5.8 is our new everyday omni directional antenna. Proven design, great signal, durable and look amazing. These antennas are the regular 72mm cable versions and have MMCX antennas. This version is the LHCP one so is ideal for use with DJI / Caddx Air units.
Features:
- Durable poly-carbonate, Injection Molded, ultra-sonically welded Housing
- Clear indication of polarization direction
- Excellent axial ratio and efficiency
- Heavy-duty coax cable that can be bent to shape
- Regular cable legnth, 90 deg MMCX connector.
Specifications:
- Gain: 1.6dBic
- Cross-Polar Rejection: -10 to -20dB, (3.2%)
- Bandwidth: 5.6GHz-6.0GHz
- Radiation Efficiency: 98%
- SWR: <=1.2:1
- Dimensions(head): 16.5mm dia. x 10.7mm height.
- Length:72mm
- Cable: Heavy-duty semi-rigid RG402 coax.
- Connector: 90deg. MMCX.
Package Contents:
- 1x TrueRC OCP 5.8GHz Antenna (MMCX 90) (LHCP)
