VIFLY WhoopStor 1S LiPo Battery Charger (PH2 / BT2.0)

The VIFLY WhoopStor is a 1S LiPo/LiHV battery charger that can charge 6 batteries at once.
Availability: Out of stock
£22.95 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Overview:

The VIFLY WhoopStor is a 1S LiPo/LiHV battery charger that can charge upto 6 batteries at once and can be powered from DC, USB Type-C (PD3.0, QC2.0,BC1.2) or direct from an 2-5S XT60 battery. The charger is compatible with both PH2.0 and BT2.0 batteries.

** This is the V2 version with the white BT2 connectors - some of our images are of the black V1, but the functionality remains the same **

Storage Charger and Discharger with OLED Display
VIFLY WhoopStor is the first 1S whoop battery charger with storage. Besides charging the battery to
full voltage, it can start the charger or discharger automatically to get your battery into storage voltage.

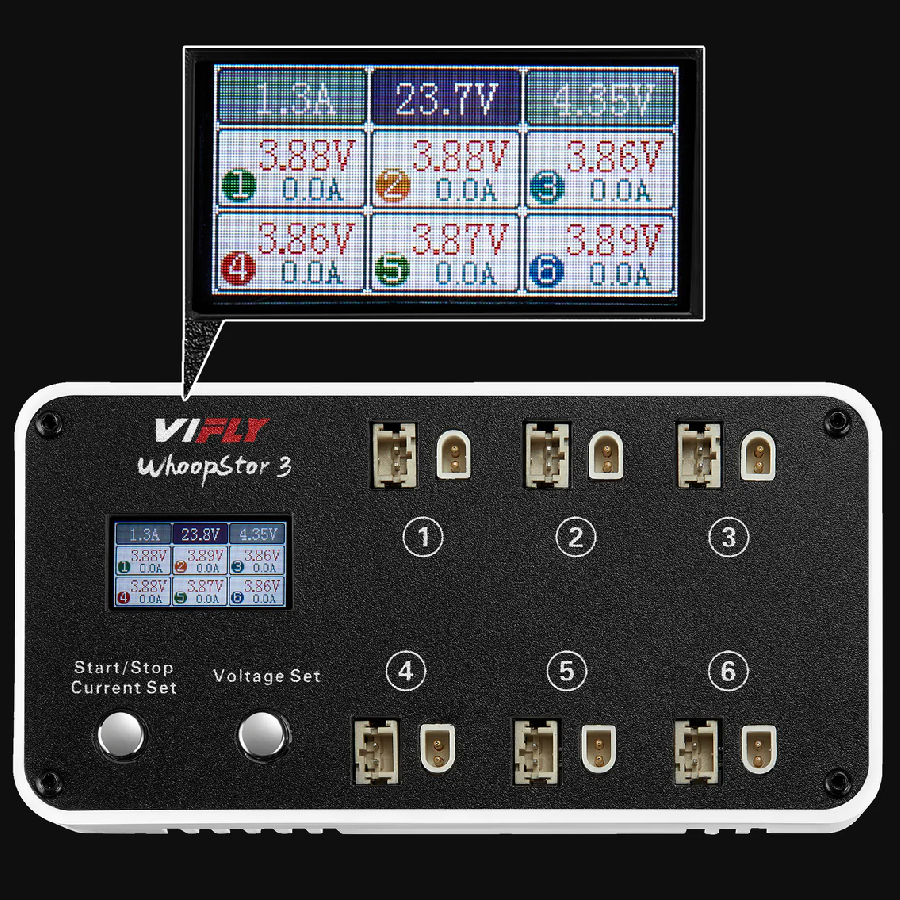

The charging status is displayed clearly on the OLED screen like the battery voltage, charge current, etc.

6 Individual Ports, PH2.0 and BT2.0 Compatible
VIFLY WhoopStor can charge 6 batteries at the same time. These are 6 individual charging channels, not charging parallel, but rather individually, you don’t have to worry about making sure the batteries are all the same voltage and same size. It is compatible with both PH 2.0 and BT 2.0 connectors and you can mix charge BT2.0 and PH2.0 battery at the same time.

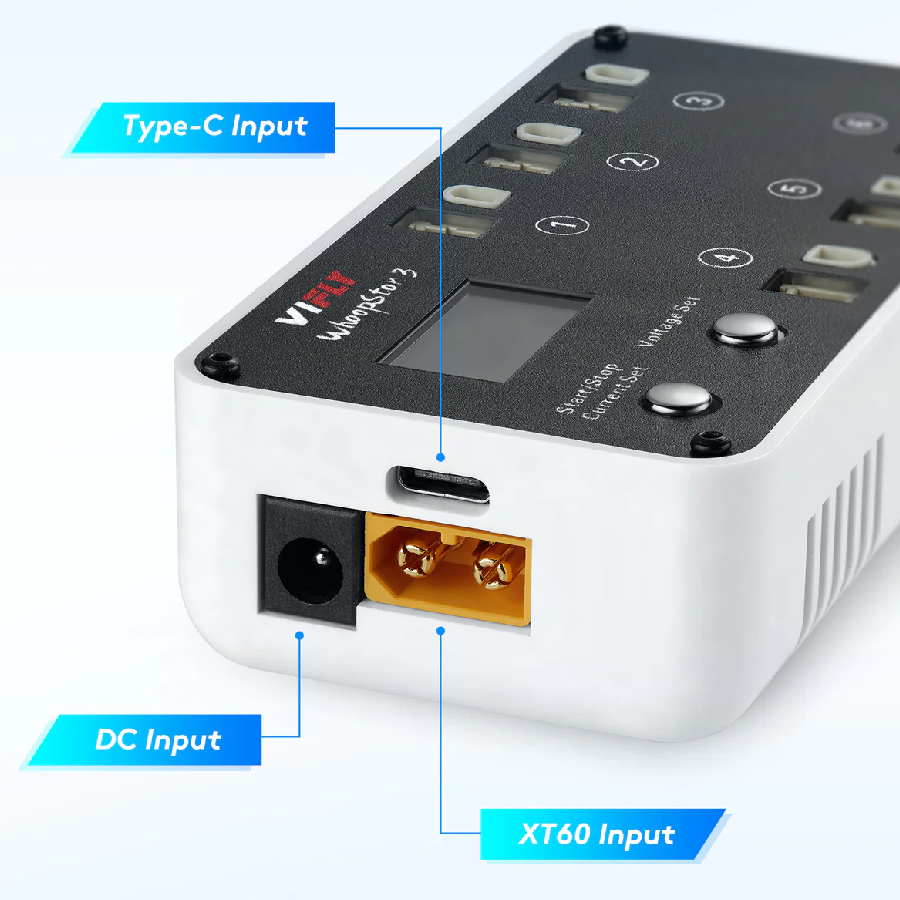

Type-C, XT60 and DC Input
VIFLY WhoopStor supports Type-C, XT60 and DC power input. Type-C used PD and QC
protocol that supports fast charge at 9V and 12V, but it not supports regular 5V USB charge.

Regular and HV Battery Supported
VIFLY WhoopStor 1S charger supports both regular battery at 4.2V and high voltage battery at 4.35V. You can switch it easily with the button.

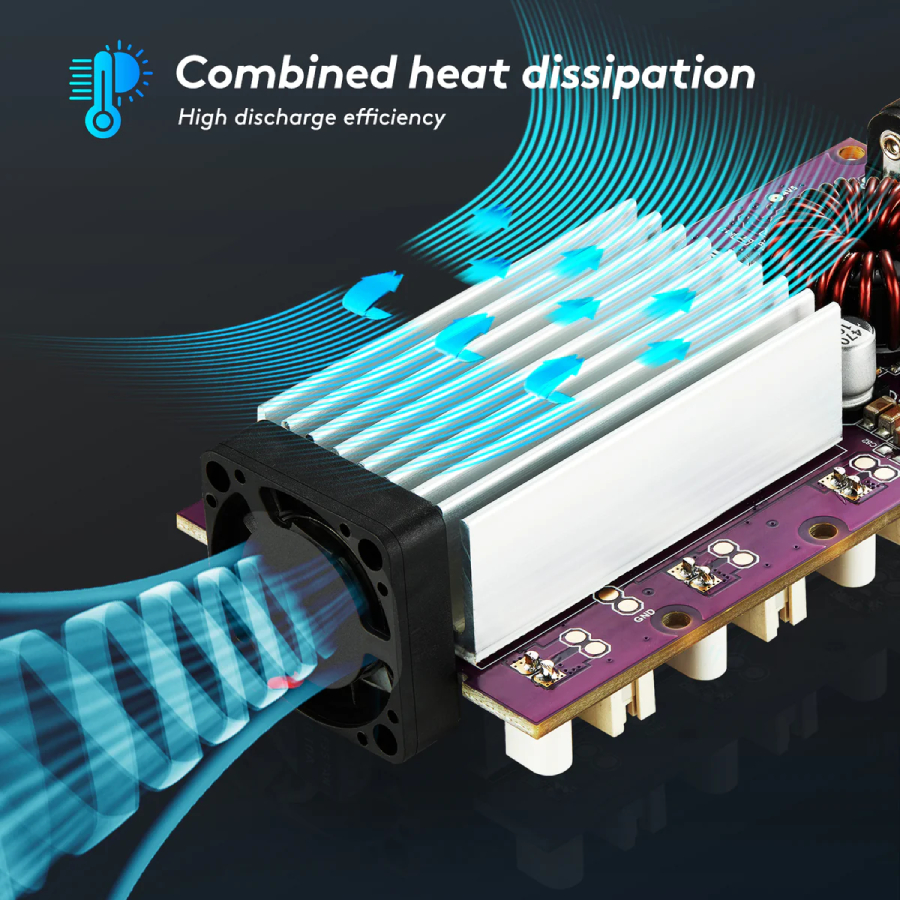

Heat Sink to Cool the Unit
The big heat sink below the PCB board would effectively dissipate the heat to
prevent the unit from overheating when charging or discharging.

Specifications:

- Dimensions: 101*49*22mm
- Input connector: XT60, DC(5.5*2.1mm)
- USB-C(PD3.0, QC2.0, BC1.2)
- Input voltage range: 7V-21V (XT60 2S-5S Battery, DC)
- 9V / 12V (USB-C)
- Max input power: 30W
- Max charging current: 0.9A/port
- Support battery connector: PH2.0 & BT2.0
- Battery type: LiHV 4.35V (±0.05V) / LiPO 4.2V(±0.05V)
- Storage voltage: 3.85V(±0.05V)
- Max discharge power: 1W/port

Includes:

1x VIFLY WhoopStor Charger

Battery Safety: Please take LiPo battery safety seriously, please see our safety sheet.
