Overview:
The Caddx Walksnail Ascent VRX Pro is a standalone digital FPV video receiver designed to bring high-definition Ascent video to compatible FPV goggles, monitors, televisions and displays. It's ideal for pilots who want to view or record their flight feed without relying on a dedicated headset, as well as ground stations, training setups and sharing live footage with friends.

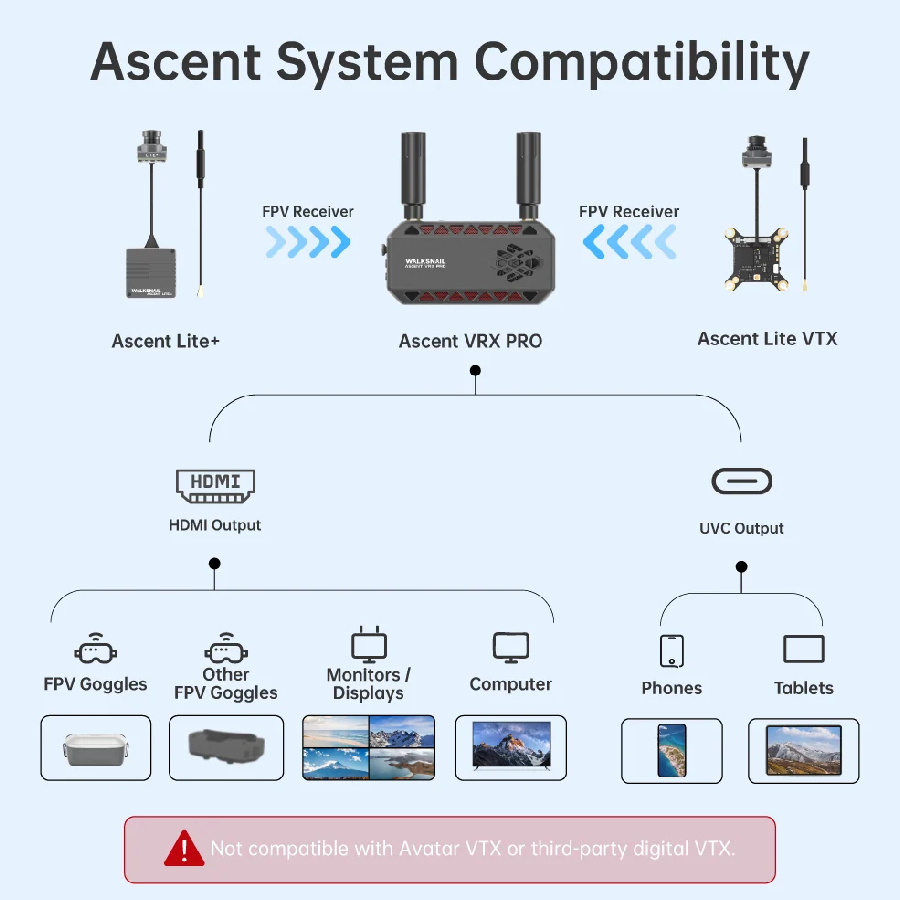

Supporting video output at up to 1080p @120fps, the VRX Pro delivers smooth, detailed imagery for fast-moving FPV footage. Its dual-antenna reception system is designed to provide reliable signal coverage, while selectable bandwidth settings help balance image quality and link performance for different flying environments. HDMI provides a direct connection to displays and goggles with a built-in HDMI-in, while the USB-C UVC output allows the video feed to be viewed on compatible computers, tablets and smartphones.
An onboard DVR records footage directly to a microSD card (not supplied), including on-screen menu activity, while supported configurations also provide live audio. A built-in cooling fan helps manage heat during extended use. Its broad 2–6S power input range and compact design make the VRX Pro a versatile receiver for multiple uses.
Features:
- High-definition digital reception: Receives live video from compatible Walksnail Ascent transmitters
- HDMI and UVC output: Connects to HDMI-equipped goggles and monitors, with UVC support for compatible computers and mobile devices.
- Onboard DVR: Records flight footage directly to a microSD card (not supplied), with support for recording on-screen menu operations.
- Dual-antenna reception: Two circularly polarised antennas help maintain a stable video link.

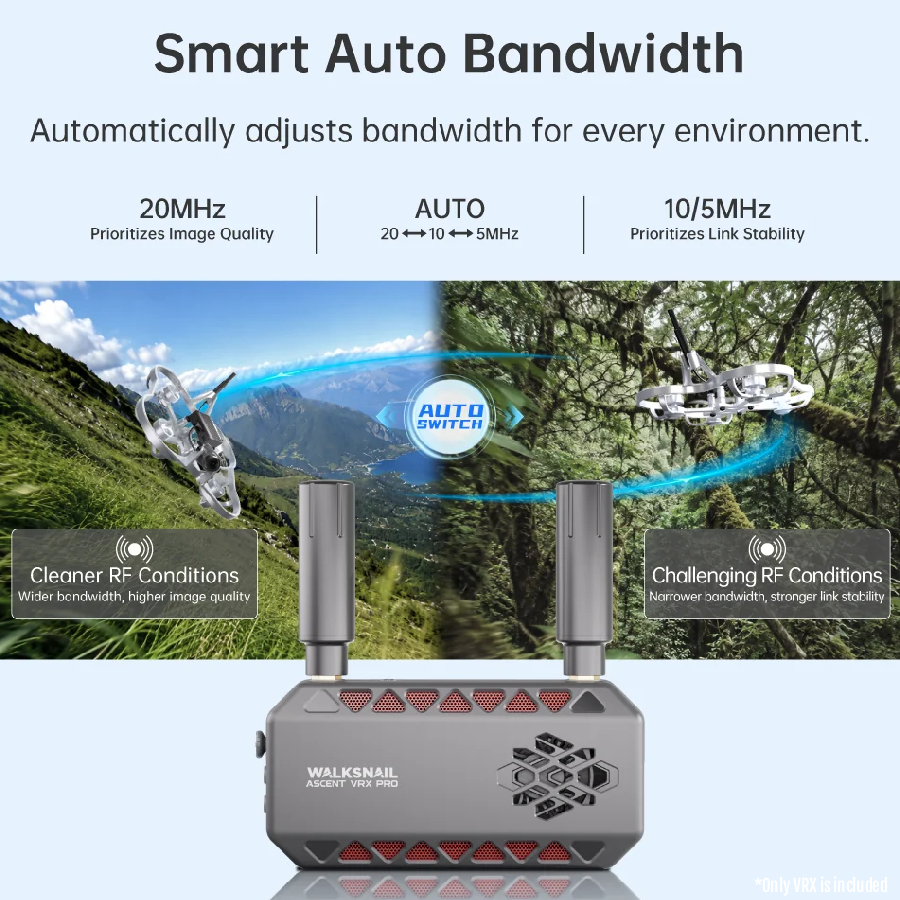

- Selectable bandwidth: Offers manual and automatic bandwidth options to suit different RF conditions.

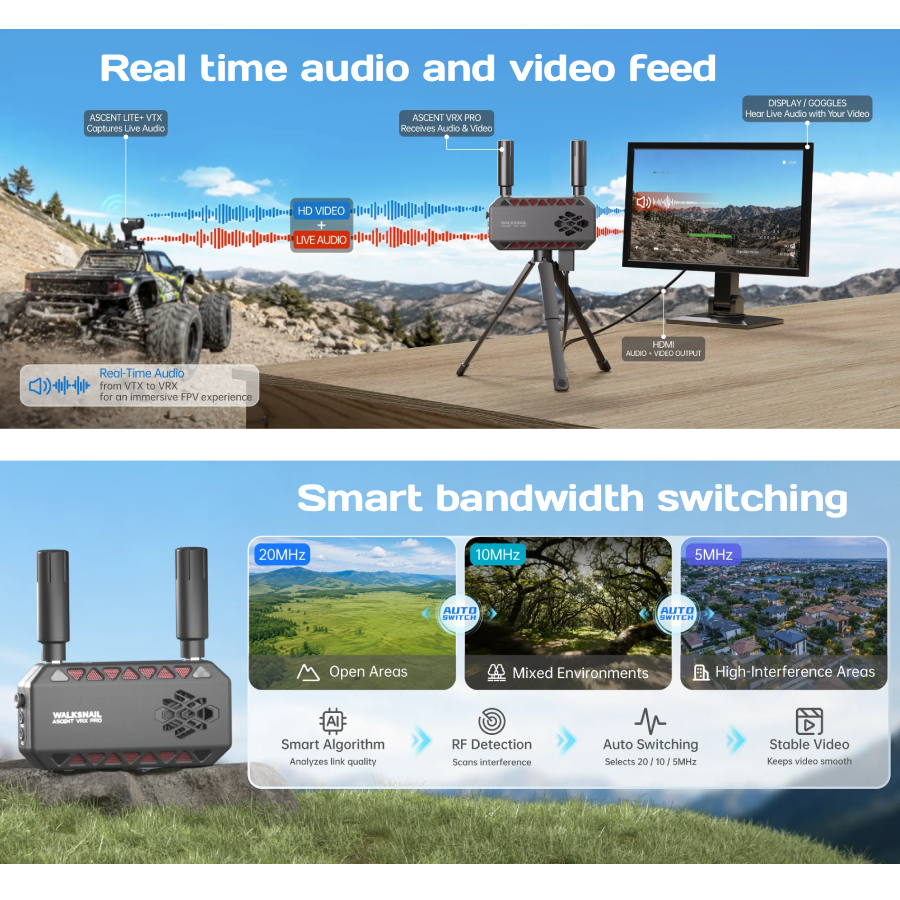

- Live audio support: With compatible Ascent Lite+ hardware, audio can be heard through a compatible HDMI display.

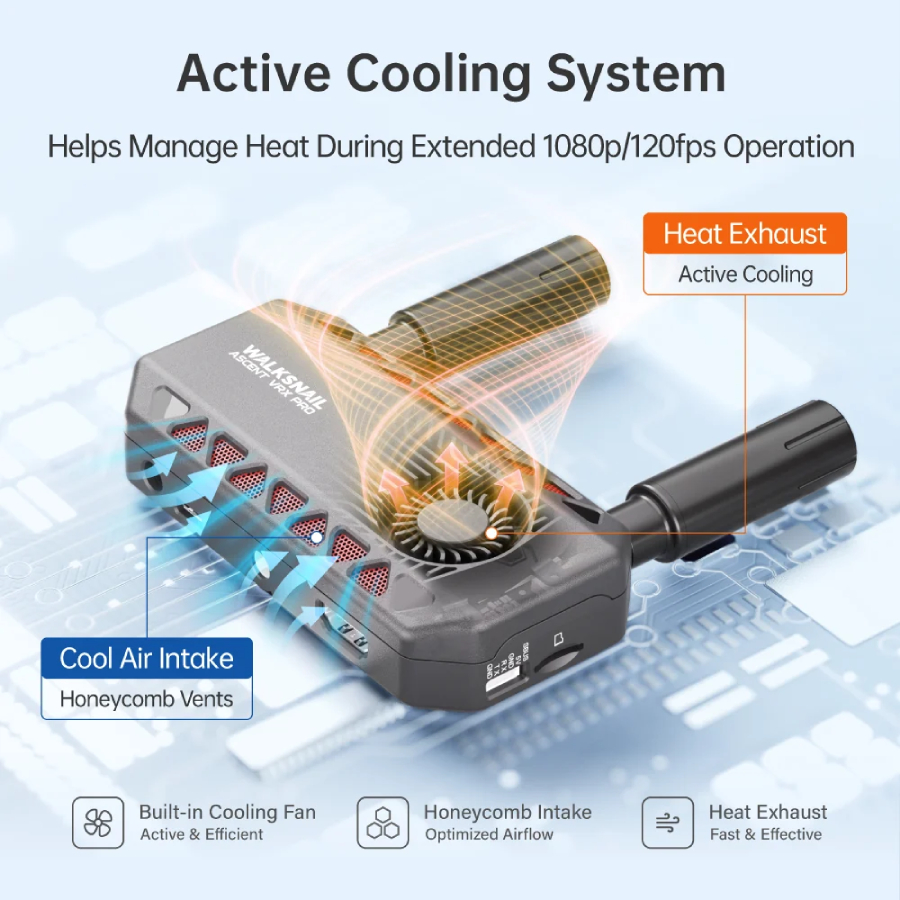

- Active cooling: An integrated fan helps regulate operating temperature during longer sessions.
- Compact construction and the supplied mounting tape make it convenient to integrate into a ground station or other viewing setup.
Specification:

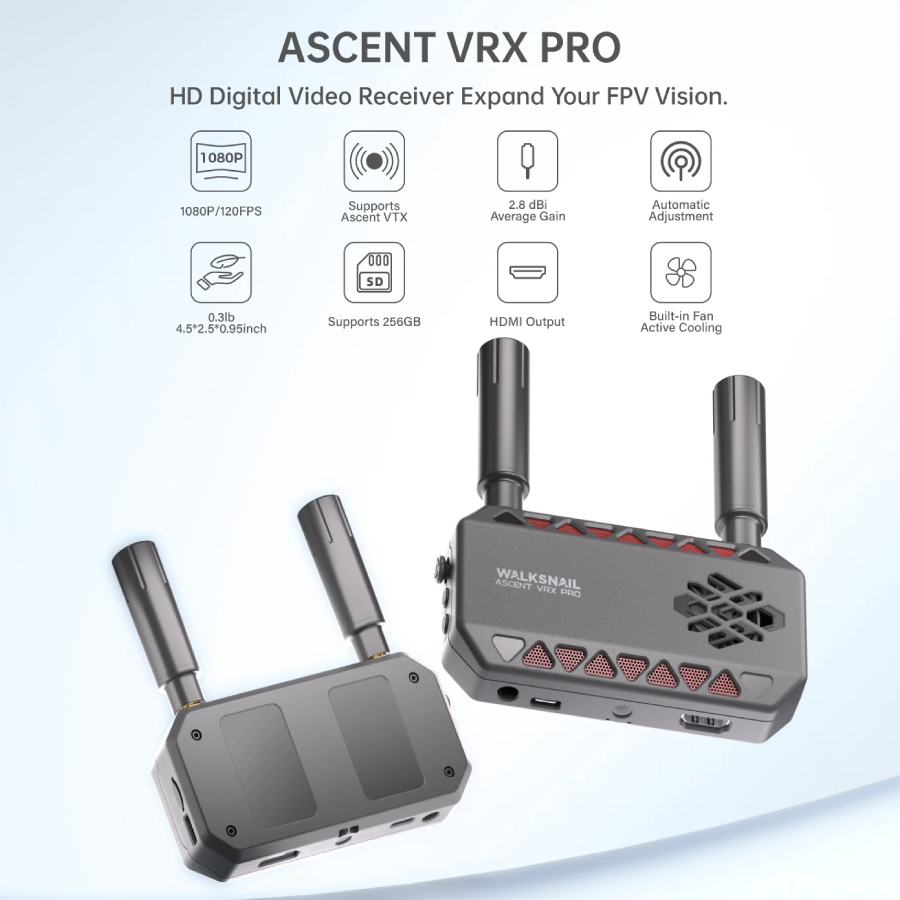

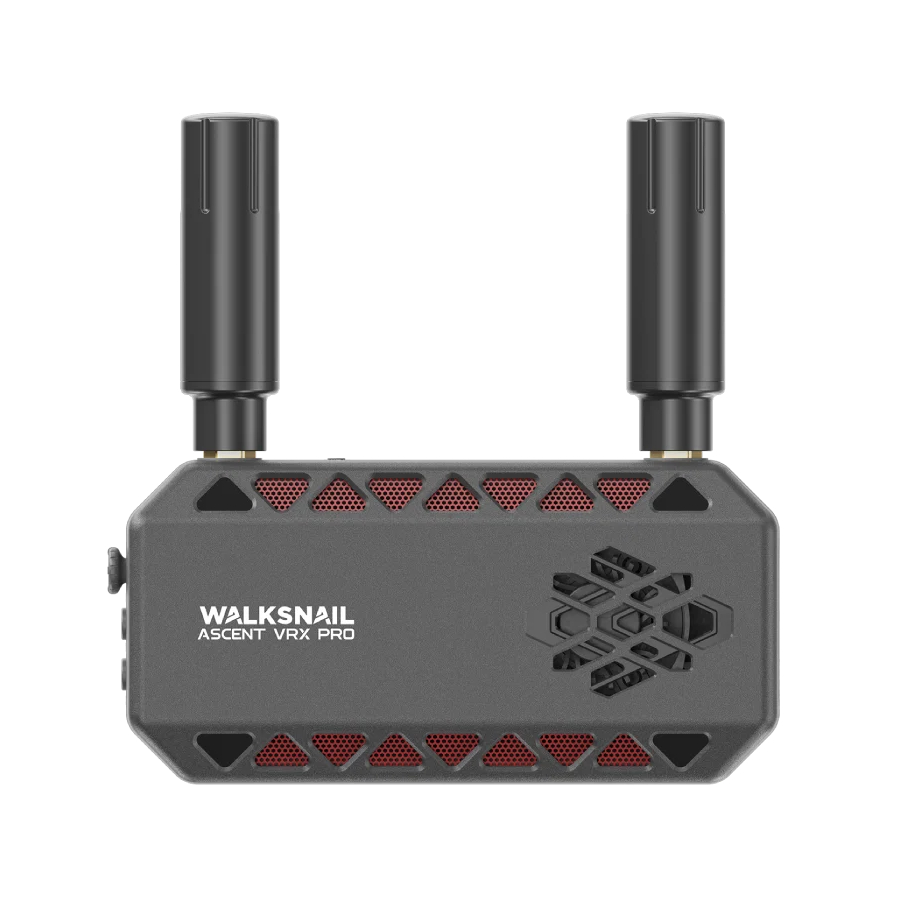

- Model: Caddx Walksnail Ascent VRX Pro
- Model number: WN02-FP028
- Video system: Ascent HD
- Operating frequency: 5.725–5.829GHz
- HDMI output modes: 1080p at 50/60/100/120fps; 720p at 50/60/100/120fps
- Bandwidth settings: 5MHz / 10MHz / 20MHz / Auto
- Power input: 7.4–25.2V DC (2–6S LiPo)
- Power connector: DC 5.5 × 2.1mm
- Other interfaces: HDMI, USB-C, microSD card slot and SH1.0 6-pin connector
- MicroSD: Supports up to 256GB card (not supplied)
- Recording format: MP4 (H.264)
- Recording file system: exFAT
- Antenna type: Red Bird Pro
- Antenna polarisation: LHCP
- Antenna gain: 2.8dBi average
- Antenna connectors: 2 × RP-SMA
- Dimensions: 114.5 × 64 × 24mm, excluding antennas
- Weight: 140g, excluding antennas
Included:
- 1x Caddx FPV Walksnail Ascent VRX Pro
- Accessories
