Overview:

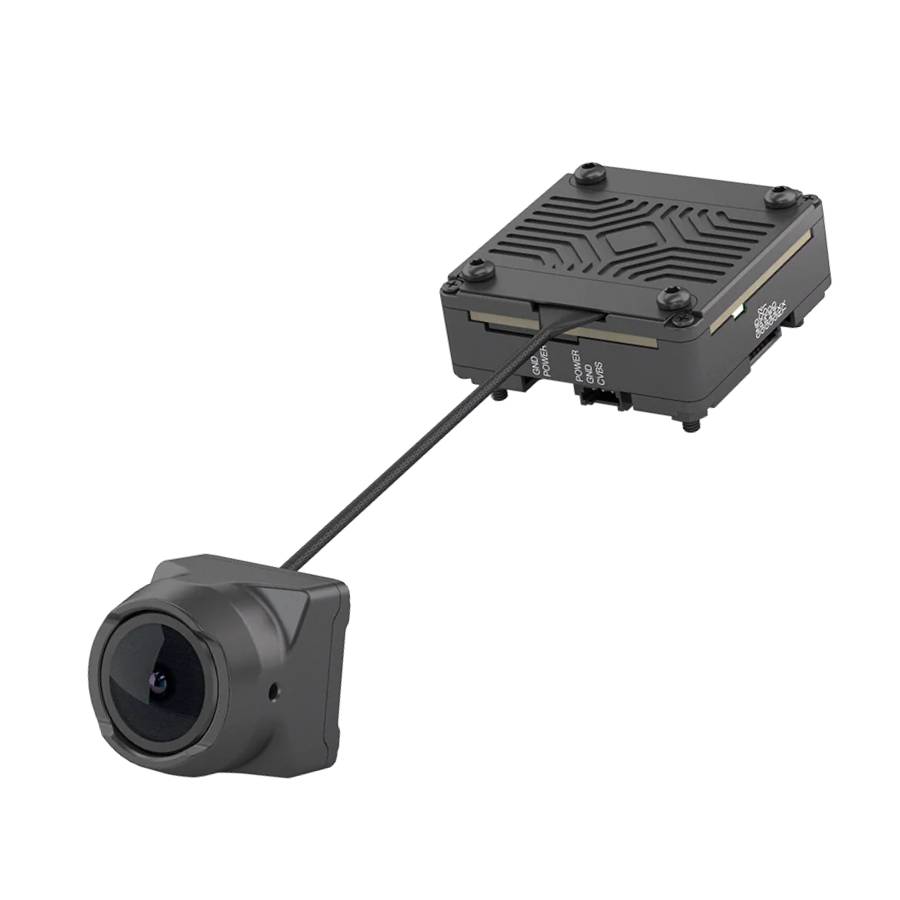

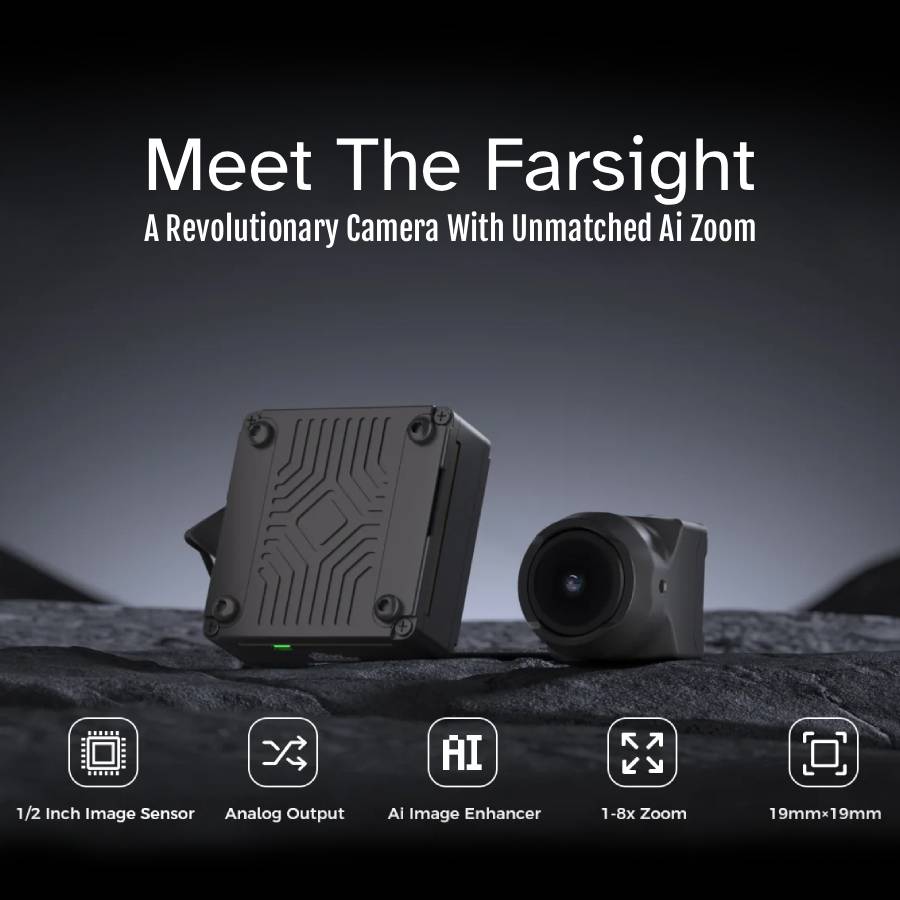

The CaddxFPV Farsight is a pioneering analogue FPV camera system engineered for precise, long-range observation and immersive flying. At the heart of its performance is a large 0.5 inch sensor with exceptional low-light capability (down to 0.01 Lux), delivering a clear 4:3 image with 1500 TVL resolution.
Its standout feature is an 8X hybrid zoom, combining optical, digital, and AI enhancements controlled via PWM from your flight controller for smooth, real-time adjustments. Compact and lightweight, the Farsight pairs effortlessly with analogue systems, offering pilot-friendly zoom control, minimal power draw, and flexibility across complex environments.
Features:
- Smooth 1–8X hybrid zoom (optical + digital + AI) for effortless close-ins on distant subjects.
- Low-latency zoom control directly from the flight controller via PWM or IO switches.

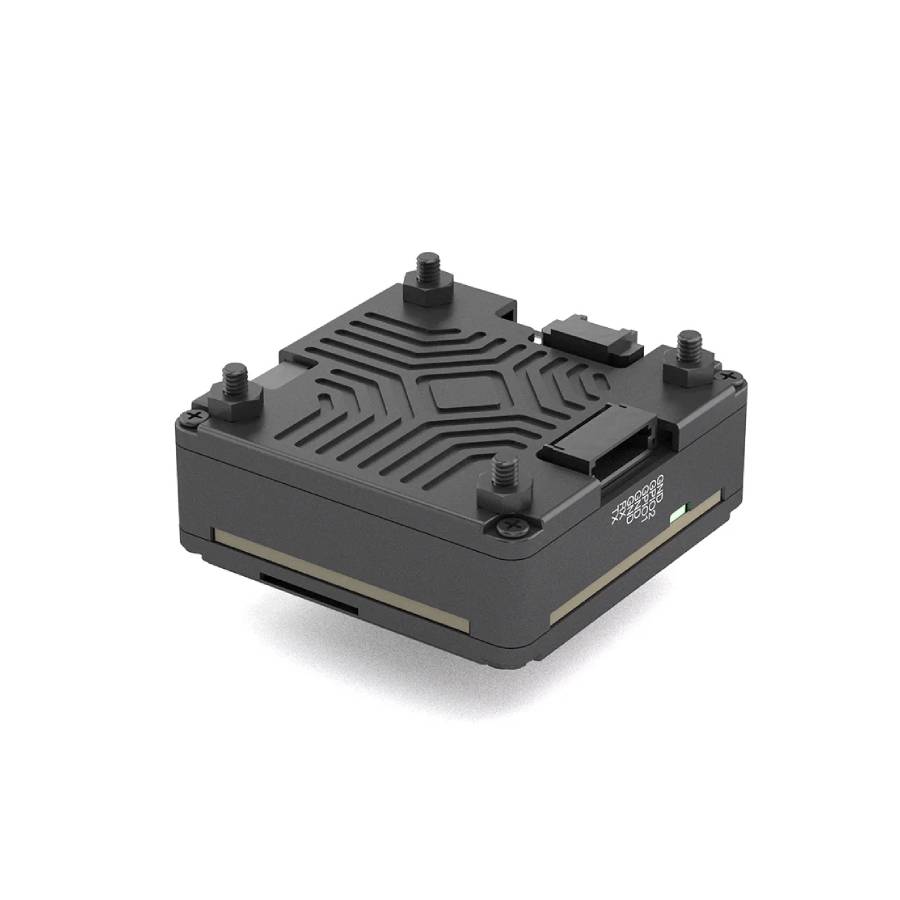

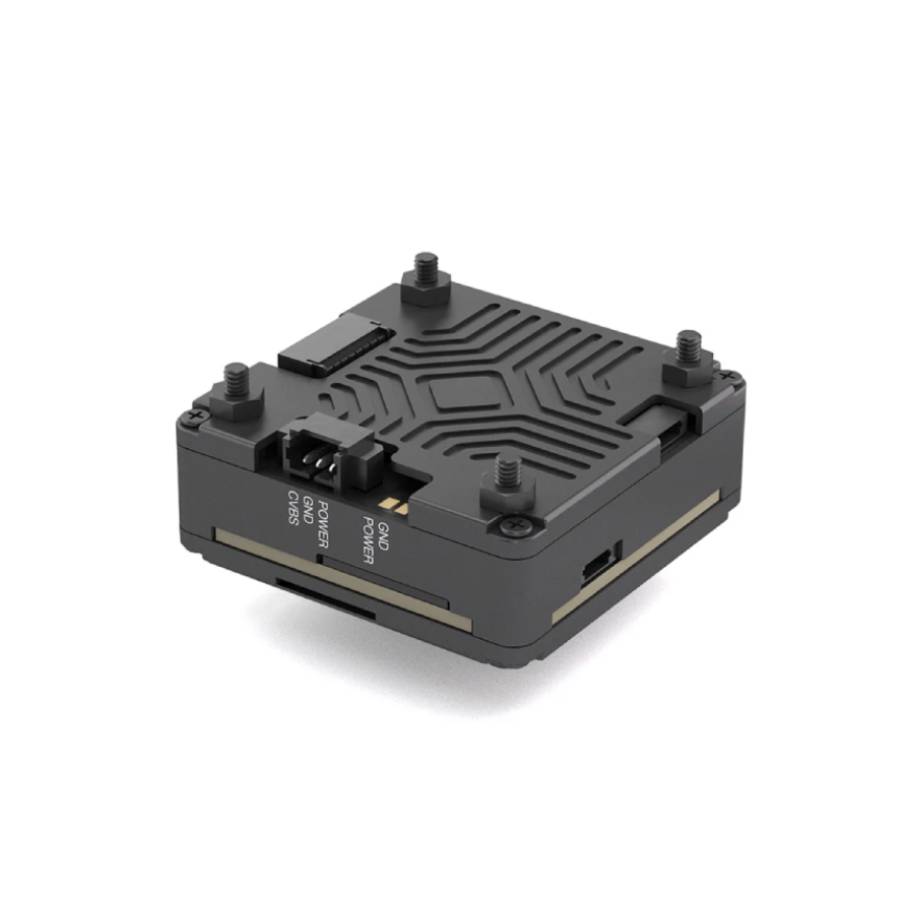

- Enhanced image clarity via an external “AI Box” that maintains sharp, real-time image processing.
- Supports analogue CVBS output, compatible with existing FPV transmitters and displays.
- Extremely compact form factor making it ideal for compact drone builds.
Specification:
- Image Sensor: 0.5 inch, ultra-sensitive to 0.01 Lux
- Resolution & Aspect Ratio: 1500 TVL, 4:3 format
- Focal Length & Field of View: 2.2mm lens; 122.5° horizontal, 92.2° vertical, 155° diagonal
- Video Interface: Composite analogue CVBS
- Power Supply: Operates on 9–24V DC with consumption under 2W
- Operating Temperature: –20°C to +60°C
- Dimensions: Camera module 19×19×19.5mm, AI module 33.5×33.5×12.35mm
Included:
- 1x CaddxFPV Farsight Analogue Camera
- Accessories
