Overview:

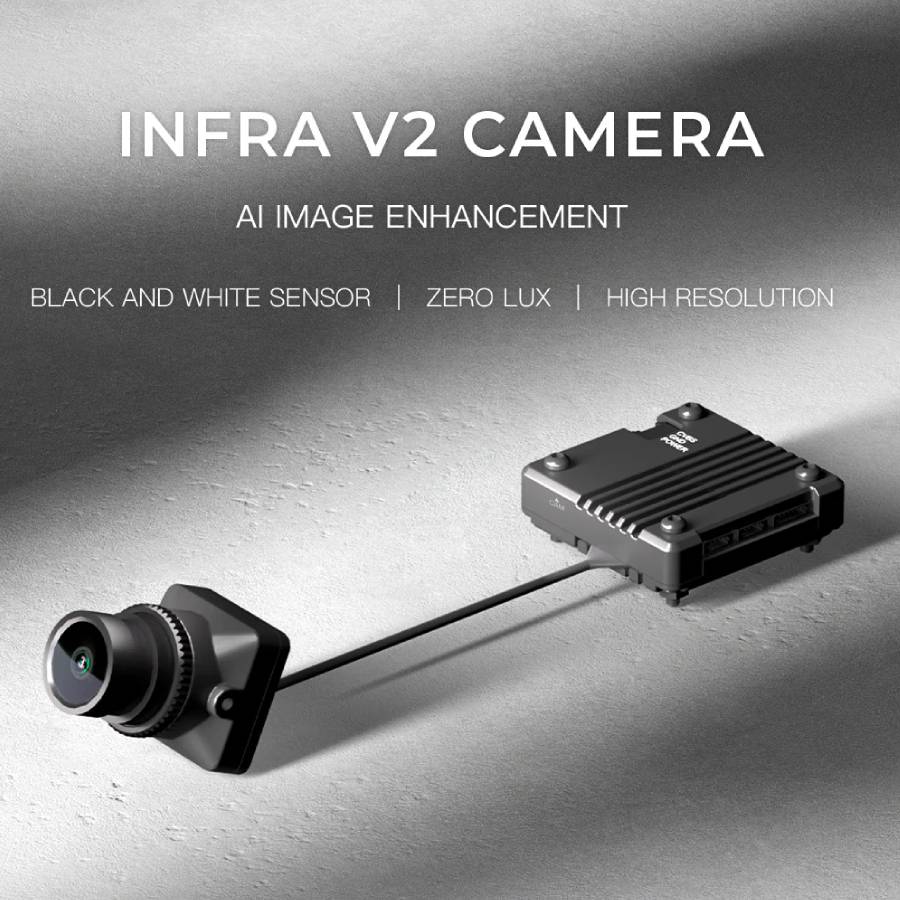

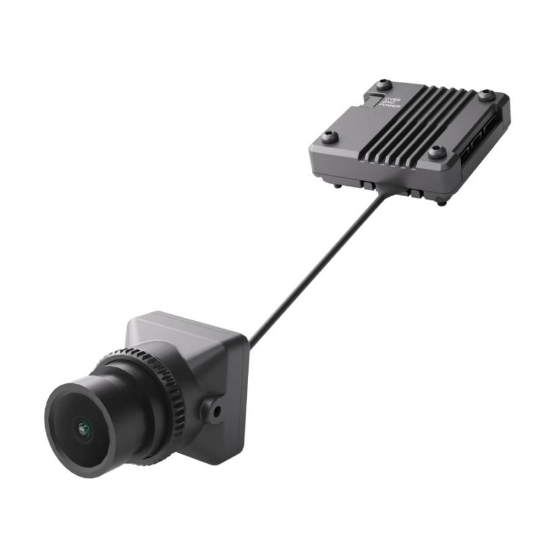

The CaddxFPV Infra V2 Camera is a high-performance analogue night-vision camera tailored for FPV pilots who require exceptional visibility in low-light or nocturnal environments. Equipped with a black-and-white 1/1.8-inch sensor and enhanced AI image processing, it delivers over 30 percent improved clarity compared to its predecessor. Wide dynamic range and a fast F1.0 lens ensure balanced detail even in backlit scenes, while the compact metal housing with a 131.6° field of view ensures durability and integration into compact builds.
Features:

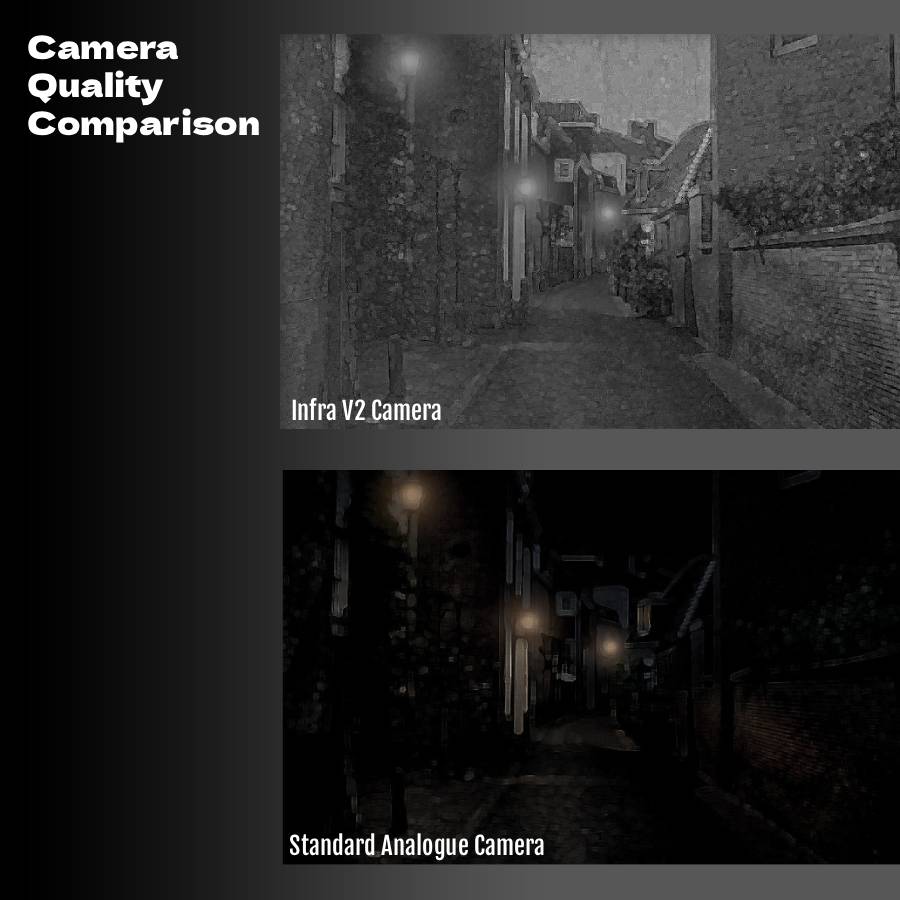

- AI-enhanced night vision using the Infra V2 algorithm that improves low-light image clarity by more than 30 percent
- Suppression of overexposure and underexposure in high-contrast scenes via multi-frame AI processing
- Support for wide dynamic range to capture detail in both dark and bright areas
- Ultra-wide 131.6° field of view for immersive situational awareness
- Compact, metal design that is thinner and lighter than the previous model
- Native 4:3 output providing full-screen, uncropped image clarity
Specification:
- Model: Caddx Infra V2
- Image sensor: 1/1.8 inch with 8 µm pixel pitch
- Horizontal resolution: 1500 TVL
- Lens: 2.8mm, F1.0
- Field of view (diagonal): 131.6°
- Aspect ratio: 4:3
- Video output: CVBS PAL, 50fps
- Power input: 9-24V DC
- Typical power consumption: less than 1.2W
- Operating temperature range: –20°C to +60°C

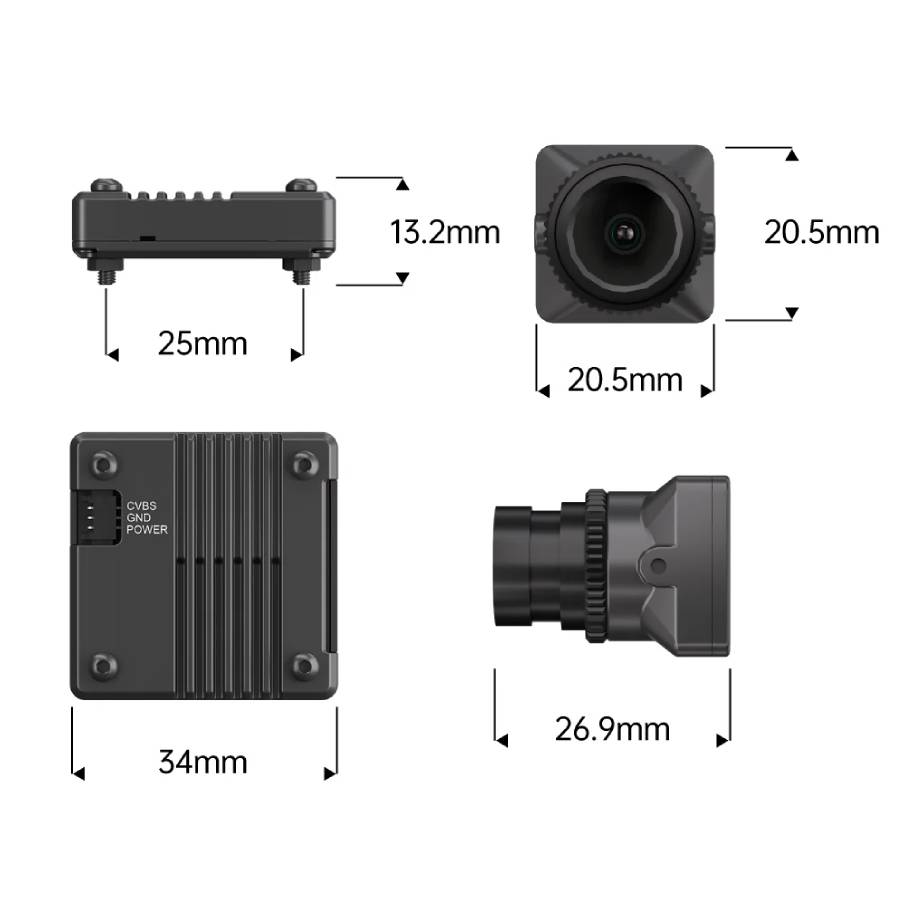

- Camera dimensions: 20.5×20.5×26.9mm

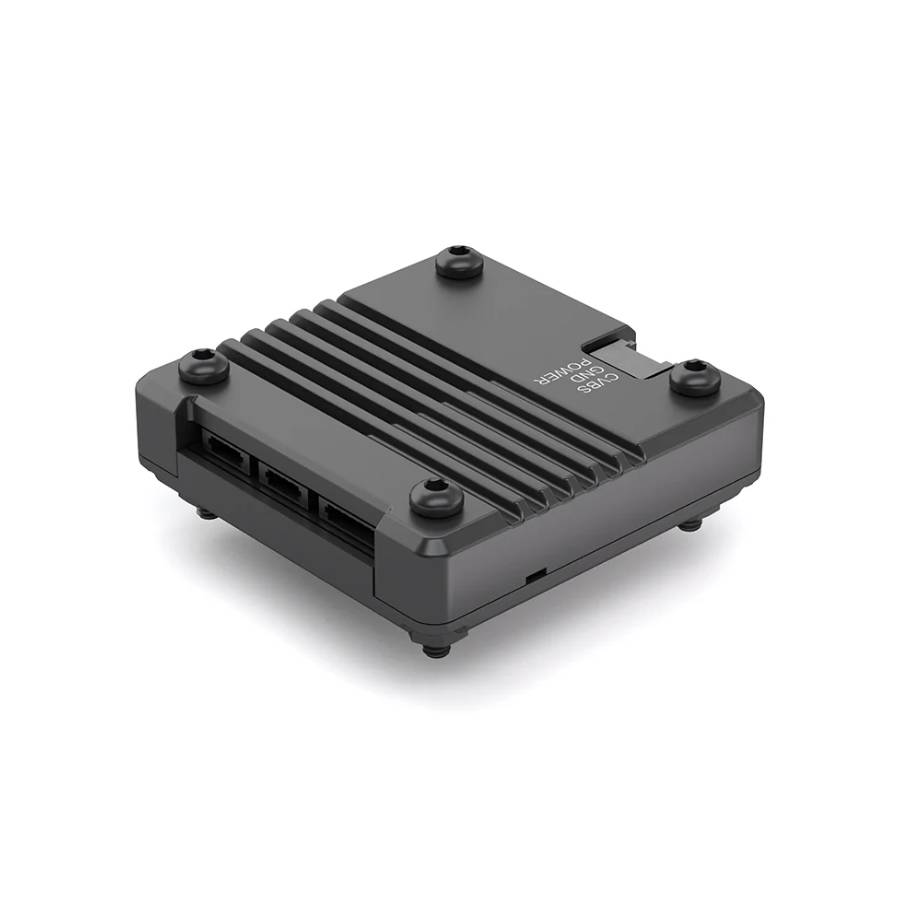

- AI module dimensions: 34×34×13.2mm
Included:
- 1x CaddxFPV Infra V2 Camera
- Accessories
