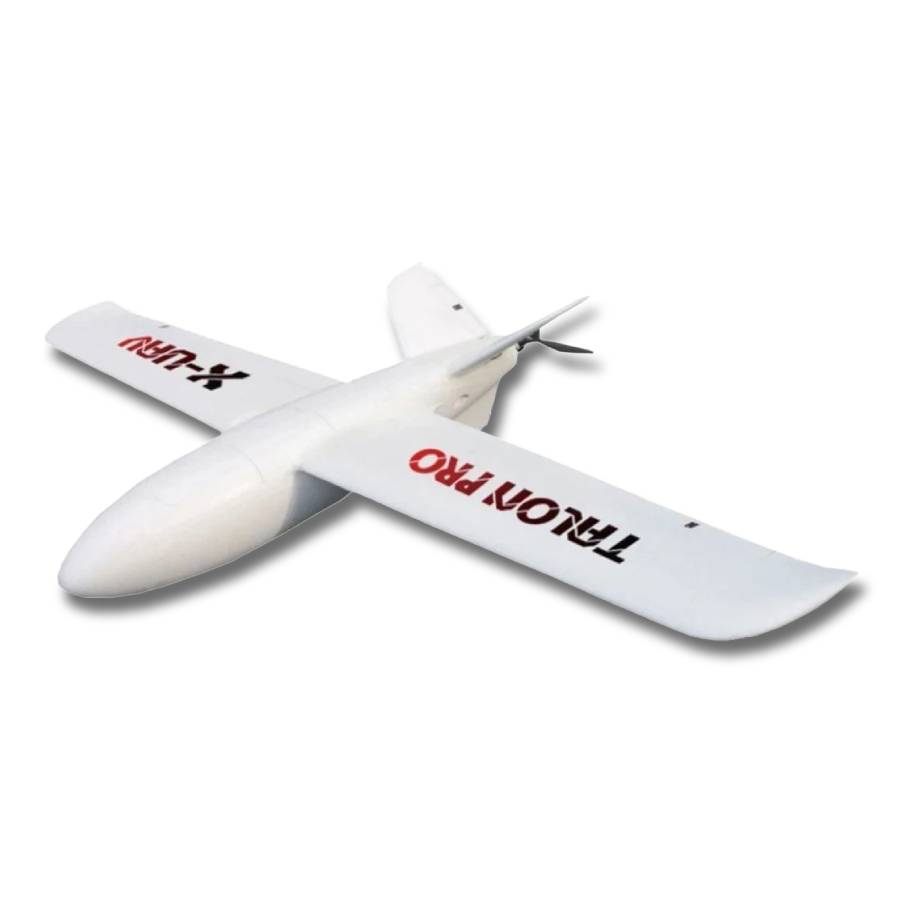

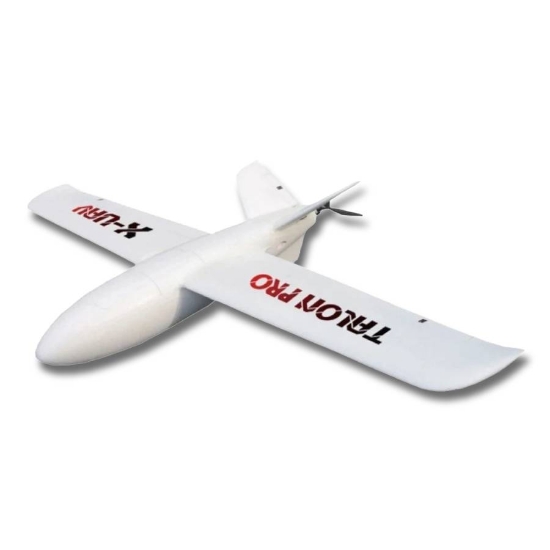

X-UAV Talon Pro Plane

Overview:
The X-UAV Talon Pro is a large-format fixed-wing airframe designed for long-range RC flight, aerial survey, FPV, and custom builds that require significant payload capacity and extended endurance. With its 1350mm wingspan and V-tail configuration, it delivers efficient cruising performance and stable handling across a broad range of flight conditions. Its spacious internal bays support large batteries, avionics and cameras - making it well suited to advanced hobbyists, FPV explorers and aerial mapping applications. The design strikes a balance between aerodynamic optimisation and a structurally reinforced EPO foam build, allowing for demanding missions without compromising agility.

The Talon Pro’s combination of aerodynamic efficiency, large payload volume and flexible electronics mounting space makes it an excellent choice for pilots aiming to build a capable long-range or FPV platform that balances stability with versatility.

Features:
- Assembly: Kit requires full assembly of the airframe and installation of electronics.

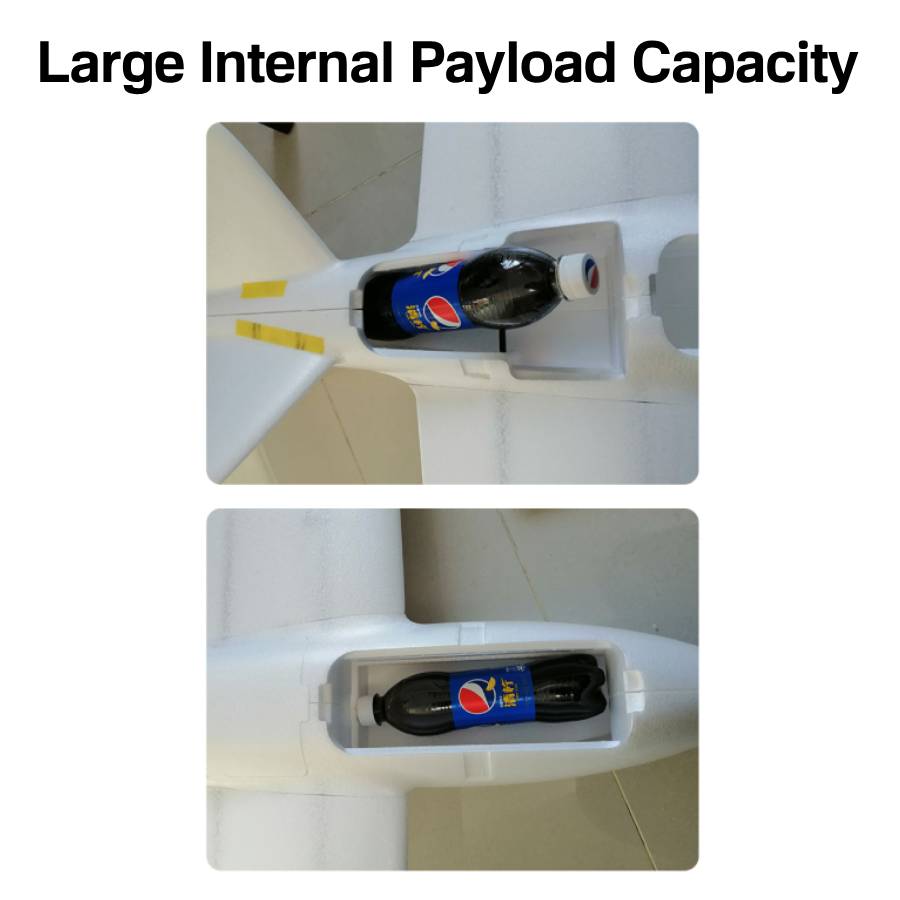

- Large internal fuselage volume accommodates batteries, autopilots, FPV gear and payloads.
- Efficient V-tail aerodynamics reduce drag and support both low-speed stability and higher-speed cruise.
- Lightweight EPO foam construction with reinforced mounting points for durability and impact resistance.
- Designed for extended flight endurance, capable of multiple hours aloft with an appropriate power system.
- Spacious and accessible battery, camera and autopilot bays support a variety of electronics configurations.
- Belly landing skid simplifies take-offs and landings without the need for conventional landing gear.
- Hand-launch friendly design for quick deployment without specialised equipment.

Specification:
- Wingspan: 1350mm
- Fuselage length: 828mm
- Airframe material: EPO foam
- Kit weight (airframe only): ~400g
- Recommended take-off weight: 3-4kg
- Payload capacity: 0.5-1kg
- Typical flying time: 1.5-3 hours (dependent on power system chosen)
- Maximum service altitude: ~5000m
- Battery bay internal dimensions: 240×90×100mm
- Camera bay internal dimensions: 90×105×72mm
- Autopilot bay internal dimensions: 110×75×80mm
- Landing method: belly landing
- Take-off method: hand throw

Recommended motor setup (not included):
- 2814 KV900 motor, 40A ESC, 11×7 prop, 4S LiPo
- 2820 KV570 motor, 60A ESC, 13×7 prop, 6S LiPo
- 3120 KV585 motor, 60A ESC, 13×7 prop, 6S LiPo

Included:
- 1x X-UAV Talon PRO
- Accessories
