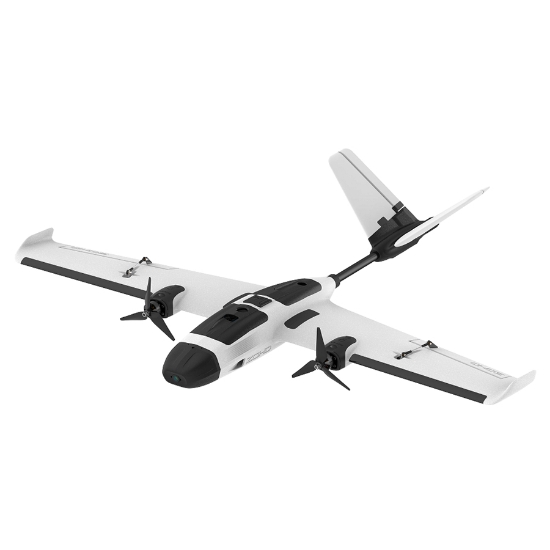

ZOHD Altus 980mm Wingspan Twin Motor FPV Plane

ZOHD Altus 980mm Wingspan Twin Motor FPV Plane. Available in PNP and KIT versions.
Manufacturer: ZOHD

Overview

Unleash the power of innovation with the ZOHD Altus, a cutting-edge FPV plane designed for enthusiasts seeking unmatched performance and versatility. Crafted with precision and engineered for excellence, the Altus combines state-of-the-art technology with practical design, offering an unparalleled aerial experience.


Features:

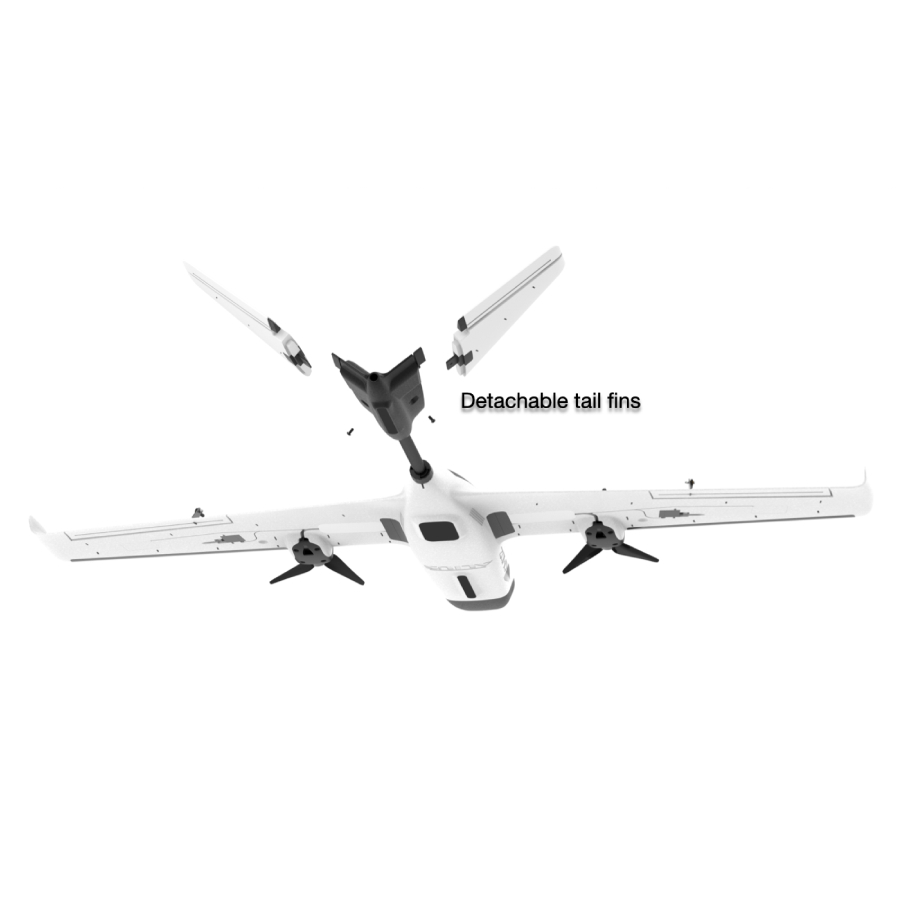

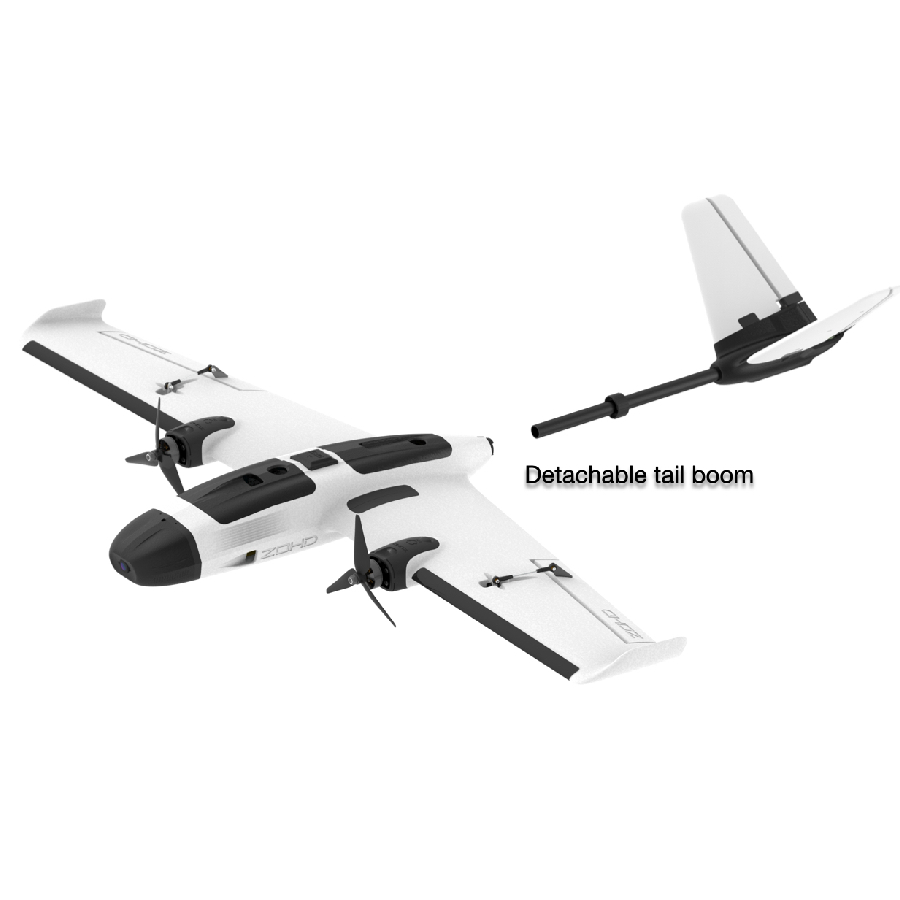

- Most reliable twin-motor FPV plane with detachable main wing and tail wing, glue-free assembly, portable for outdoor flying.
- 9-pin connector with auxiliary for extra FPV gear in each wing.

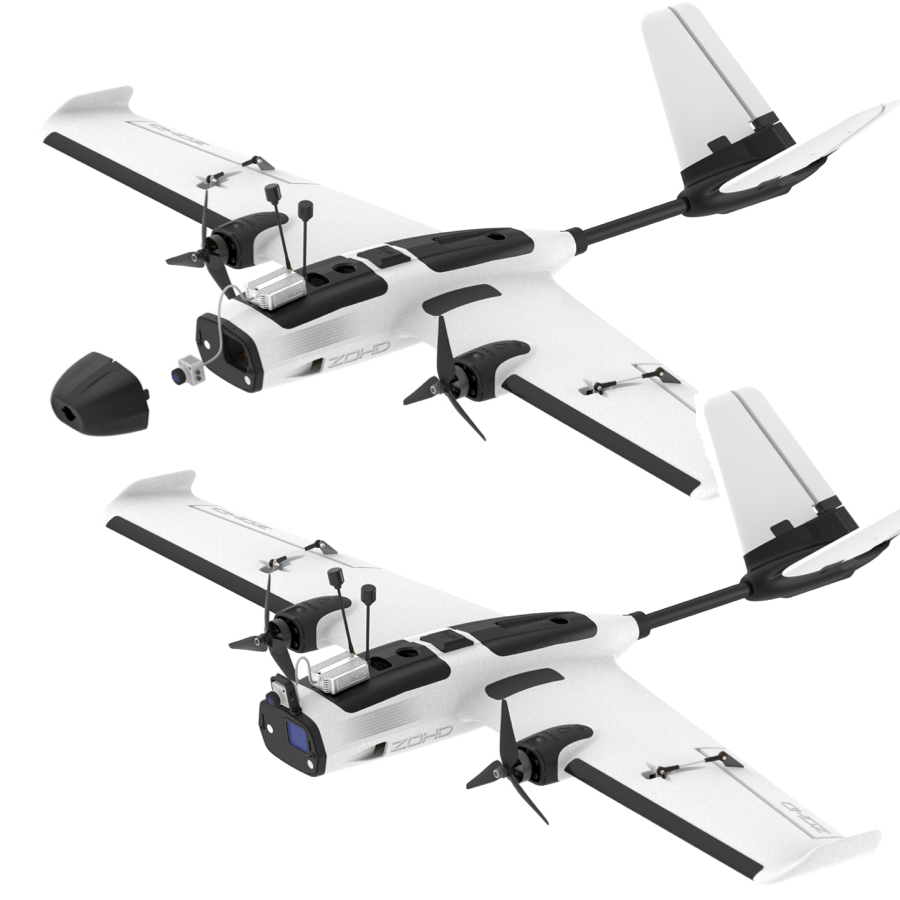

- Nose camera bay compatible with all HD Action cameras (GoPro, DJI, RunCam, etc.) in the market.
- Specially designed different foam fit for different HD cameras.
- Aerodynamically designed FPV gear pocket in both wings, reducing disturbance between FPV gears.
- Highly efficient NACA air cooling system to ensure the FPV gear works in perfect condition.
- Molded by tough EPP material, built-in CF spar for enhancement, super stable flying capability, and crash resistance.
- Built-in CF rod in the control surface will give precision and sharp action to your inputs.
- High-accuracy ball link control system brings agile and quick response in control.
- Special-designed “servo arm built-in” structure will protect your servo arm from impact.

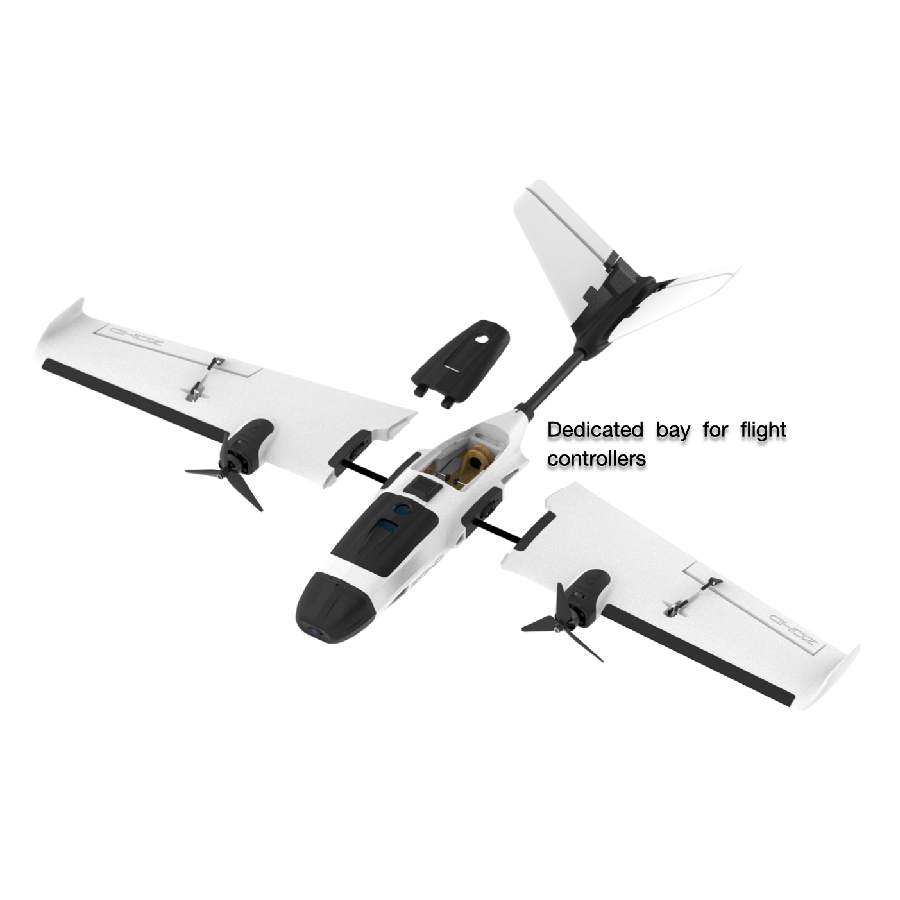

- Large battery bay for extended flight time and more room for various Flight Controllers.
- Decent rear bay for ESC, isolating interference from other FPV equipment.
- Bottom protection for fuselage during hard landing or scratching.
- Reserved VTOL capability for an upgrade.

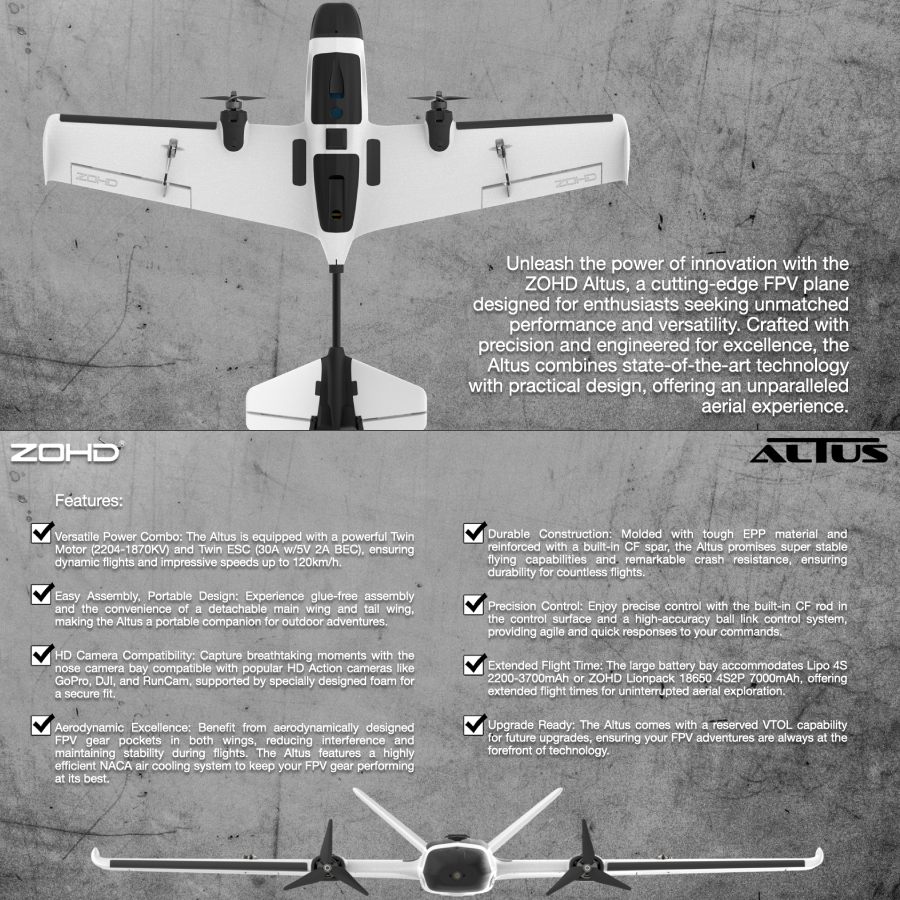

High-Performance Specifications:
- Versatile Power Combo: The Altus is equipped with a powerful Twin Motor (2204-1870KV) and Twin ESC (30A w/5V 2A BEC), ensuring dynamic flights and impressive speeds up to 120km/h.

- Easy Assembly, Portable Design: Experience glue-free assembly and the convenience of a detachable main wing and tail wing, making the Altus a portable companion for outdoor adventures.
- HD Camera Compatibility: Capture breathtaking moments with the nose camera bay compatible with popular HD Action cameras like GoPro, DJI, and RunCam, supported by specially designed foam for a secure fit.
- Aerodynamic Excellence: Benefit from aerodynamically designed FPV gear pockets in both wings, reducing interference and maintaining stability during flights. The Altus features a highly efficient NACA air cooling system to keep your FPV gear performing at its best.
- Durable Construction: Molded with tough EPP material and reinforced with a built-in CF spar, the Altus promises super stable flying capabilities and remarkable crash resistance, ensuring durability for countless flights.
- Precision Control: Enjoy precise control with the built-in CF rod in the control surface and a high-accuracy ball link control system, providing agile and quick responses to your commands.
- Extended Flight Time: The large battery bay accommodates Lipo 4S 2200-3700mAh or ZOHD - - Lionpack 18650 4S2P 7000mAh, offering extended flight times for uninterrupted aerial exploration.
- Upgrade Ready: The Altus comes with a reserved VTOL capability for future upgrades, ensuring your FPV adventures are always at the forefront of technology.

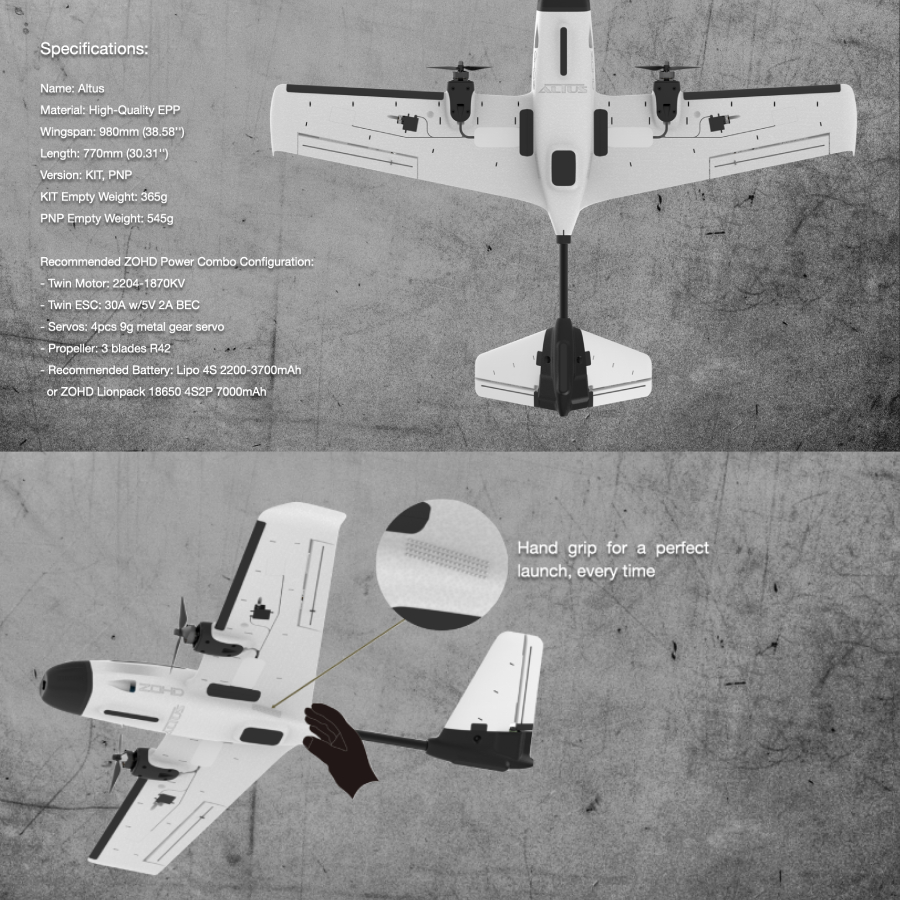

Specifications:
- Brand Name: ZOHD
- Item Name: Altus
- Material: High-Quality EPP
- Wingspan: 980mm (38.58'')
- Length: 770mm (30.31'')
- Version: KIT, PNP
- KIT Empty Weight: 365g
- PNP Empty Weight: 545g

Recommended ZOHD Power Combo Configuration: (Included in PNP Version)
- Twin Motor: 2204-1870KV
- Twin ESC: 30A w/5V 2A BEC
- Servos: 4pcs 9g metal gear servo
- Propeller: 3 blades R42

Recommended Flying Capability:
- Min. recommended speed: 30km/h
- Max. Speed (with ZOHD power combo): 120km/h
- Cruise speed (with ZOHD power combo): 70km/h @ 5A approx.
- Max recommended takeoff weight (with ZOHD power combo): 1200 grams approx.
- Recommended max. Throws: 12mm

Recommended Battery: Lipo 4S 2200-3700mAh or ZOHD Lionpack 18650 4S2P 7000mAh

Available Versions (See below for purchase options):
- KIT Version (Foam model only)
- PNP Version (Foam model, Motors, Props, ESCs, Servos)

Includes:

1x ZOHD Altus 980mm Wingspan Twin Motor FPV Plane (See available versions below)

** Warranty Exclusion: Warranty on these models is D.O.A. only as the model is trivial to break and does not include any faults that develop during usage, crashes or otherwise. Once you receive the model please carefully test the model on the ground to ensure everything functions BEFORE your first flight as warranty will not be provided beyond that point. **

Picture of ZOHD Altus 980mm Wingspan Twin Motor FPV Plane (PNP)
ZOHD Altus 980mm Wingspan Twin Motor FPV Plane (PNP)
ZOHD Altus 980mm Wingspan Twin Motor FPV Plane. PNP Version.
Availability: In stock
£123.60 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Picture of ZOHD Altus 980mm Wingspan Twin Motor FPV Plane (KIT)
ZOHD Altus 980mm Wingspan Twin Motor FPV Plane (KIT)
ZOHD Altus 980mm Wingspan Twin Motor FPV Plane. KIT Version.
Availability: In stock
£85.80 inc VAT
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
