Overview:

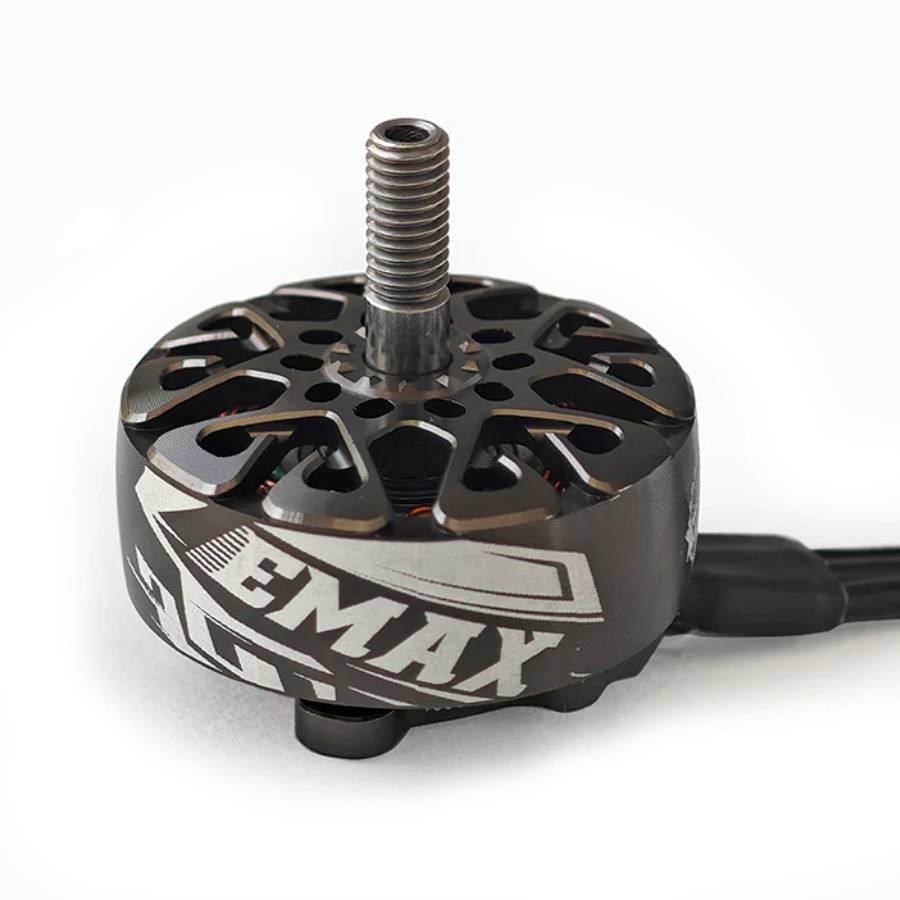

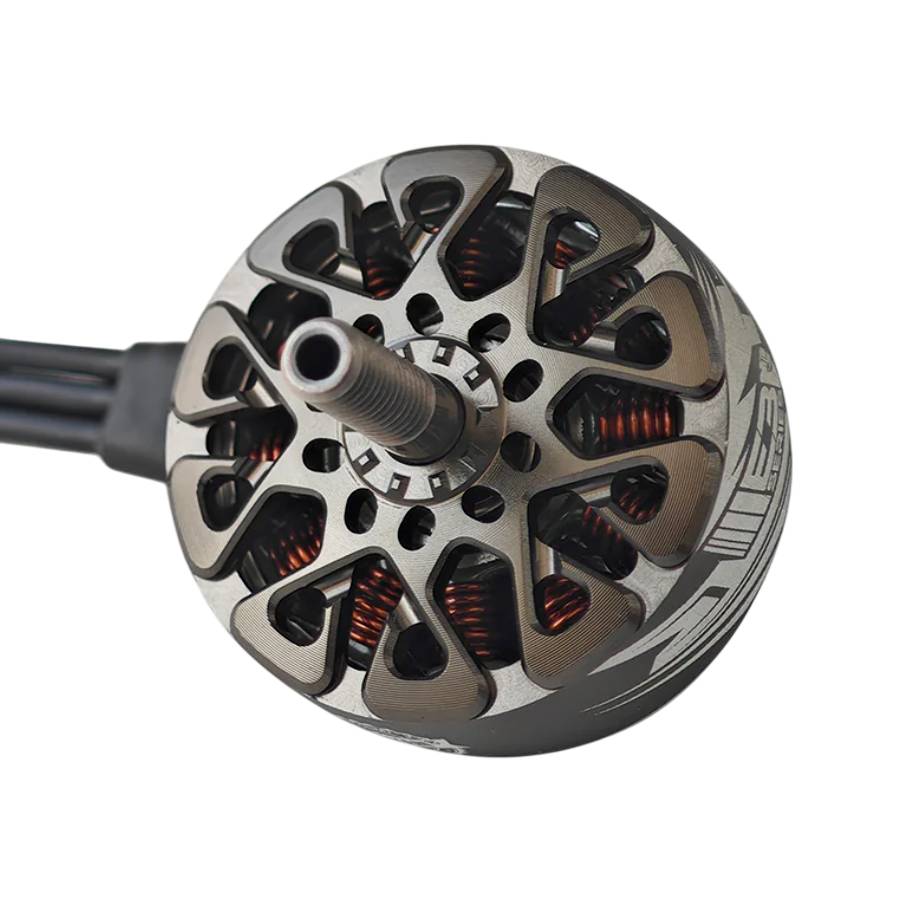

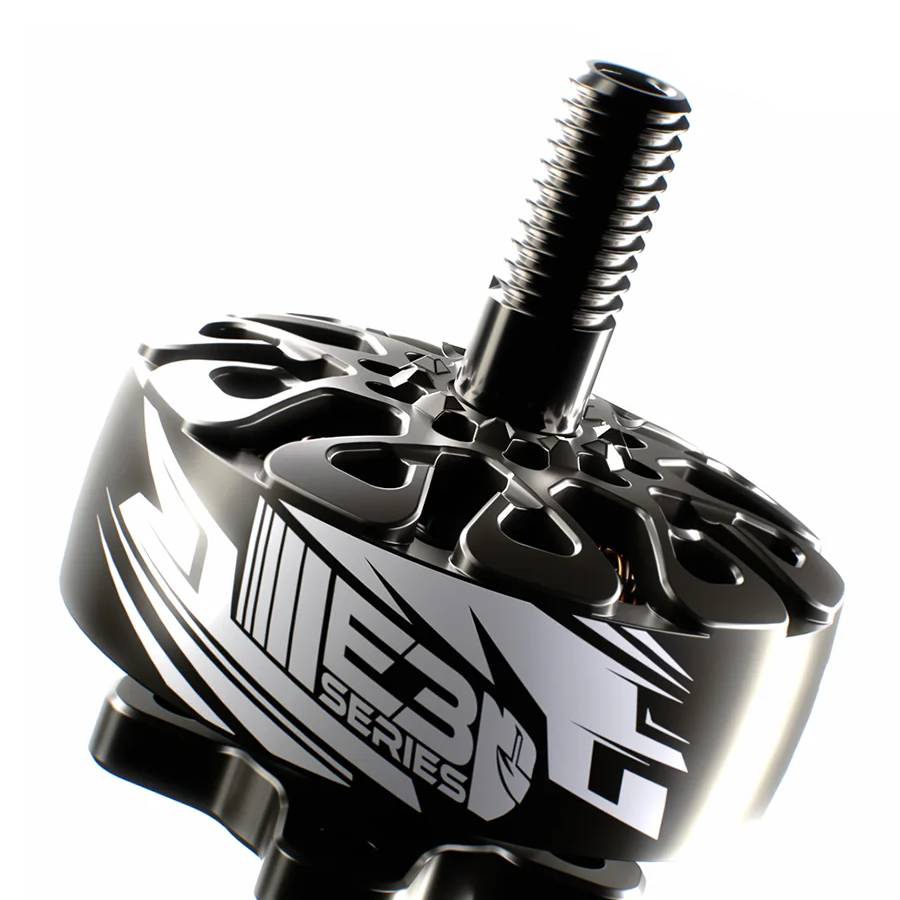

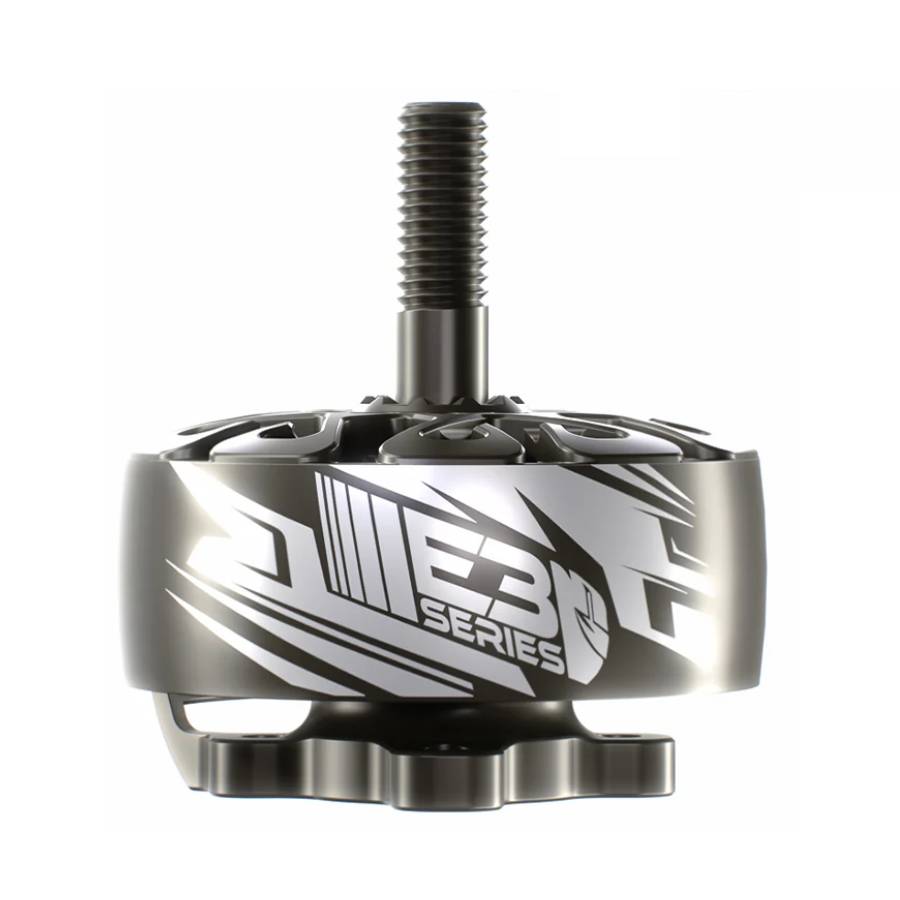

The Emax ECO III range of motors offer a blend of performance and durability for pilots building both freestyle and racing drones. Featuring an updated architecture with a reinforced motor bell and premium N52SH magnets, it delivers stronger torque and RPM response with a polished aesthetic, engineered from aircraft-grade 7075 aluminium. The inclusion of high-quality EZO ball bearings and precision engineering makes it a reliable choice for both beginners and advanced pilots seeking consistent flight performance without overspending.
Features:
- Reinforced and rounded motor bell enhances durability in demanding flights
- Polished finish gives a modern look while saving weight
- Winding configuration: 12N14P winding for balanced torque and smooth output
- High-grade N52SH arc magnets improve torque and throttle response
- Smooth operation provided by EZO 9 mm steel bearings
- Multi-strand 20 AWG silicone stator wiring ensures efficient power delivery
Specifications:
Emax ECO III Series 2207 1900KV Motor:
- Shaft Diameter: 4 mm hardened steel; 5 mm outer diameter
- Motor Dimensions: 28.6 mm diameter × 32.8 mm length
- Mounting Pattern: 19×19 mm with M3 fixings
- Weight (no cable): approx. 31.6 g
- Wire: 120 mm 20 AWG silicone leads
- Recommended Prop: 5″–5.5″ tri-blade
- Battery suitability: 6S Lipo
Emax ECO III Series 2306 1700KV Motor:
- Shaft Diameter: 2 mm steel
- Mounting Pattern: 16 x 16 mm with M3 screw holes
- Wire: 120 mm 20 AWG silicone
- Weight: Approx. 30 g
- Recommended Props: 5″–6″ tri blade
- Applications: Freestyle/Racing
- Battery suitability: 6S Lipo
Emax ECOIII 2306 2400KV Motor:
- Shaft diameter: 5 mm hardened steel
- Mounting pattern: 16×16 mm with M3 screw fixings
- Weight (without wire): Approx. 30.2 g
- Wire length/gauge: 120 mm of 20 AWG silicone wire
- Recommended prop size: 5″‑6″ tri‑blade style
- Battery compatibility: Suitable for 3S to 6S LiPo
Emax ECO III 2807 1700KV Motor:
- Mounting pattern: 19×19 mm with M3 screws
- Shaft: 5 mm diameter hardened steel for durability under load
- Wiring: 18 AWG silicone, 200 mm length for easy routing
- Weight: Approximately 49.6 g (without silicone leads)
- Propeller compatibility: Designed for 6″-7″ tri-blade props
- Recommended battery: 4S LiPo for balanced performance and efficiency
Emax ECO III 2807 1500KV Motor:
- Mounting pattern: 19×19 mm with M3 fixing holes
- Shaft: Hardened steel, 5 mm diameter designed for high‑stress use
- Idle current (10 V): ≈ 1.8 A
- Internal resistance: ≈ 50 mΩ
- Max power (6 S): ≈ 1590 W, peak current ~63 A
- Weight: ~49.6 g (without silicone wire)
- Wire leads: 200 mm 18 AWG silicone for flexible installation
- Propeller size: Recommended for 6″–7″ tri‑blade
- Recommended battery: Suitable for 3S to 6S LiPo
Emax ECO III 2808 1300KV Motor:
- Idle Current (10 V): 1.5 A
- Internal Resistance: 56 mΩ
- Maximum Power (6S): 1,410 W
- Peak Current (6S): 56 A
- Motor Dimensions: Diameter 34.8 × length 37 mm
- Mounting Pattern: 19 × 19 mm with M3 fixings
- Shaft: 5 mm hardened steel designed for high load resistance
- Weight (excluding silicone leads): Approx. 53.6 g
- Lead Wire: 250 mm length, 18 AWG silicone cable
- Propeller Compatibility: Optimised for 6″–7″ tri‑blade props
- Battery Compatibility: Suitable for 3S to 6S LiPo
Emax ECO III 2808 1500KV Motor:
- Motor Dimensions: Diameter ~34.8 mm × length ~37 mm
- Internal Resistance: ~47 mΩ
- Idle Current (10 V): ~1.8 A
- Peak Current (6 S): ~65 A
- Max Power (6 S): ~1 640 W
- Weight (without wire): ~53.8 g
- Shaft Construction: 5 mm hardened steel for improved durability
- Mounting Pattern: 19×19 mm with M3 screw holes
- Lead Wires: 18 AWG silicone, 250 mm length
- Prop Compatibility: Suited for 6″-7″ tri‑blade prop
- Battery Compatibility: Suitable for 3S to 6S LiPo
Included:
- 1x Emax ECO III Motor
- Accessories
