Overview:

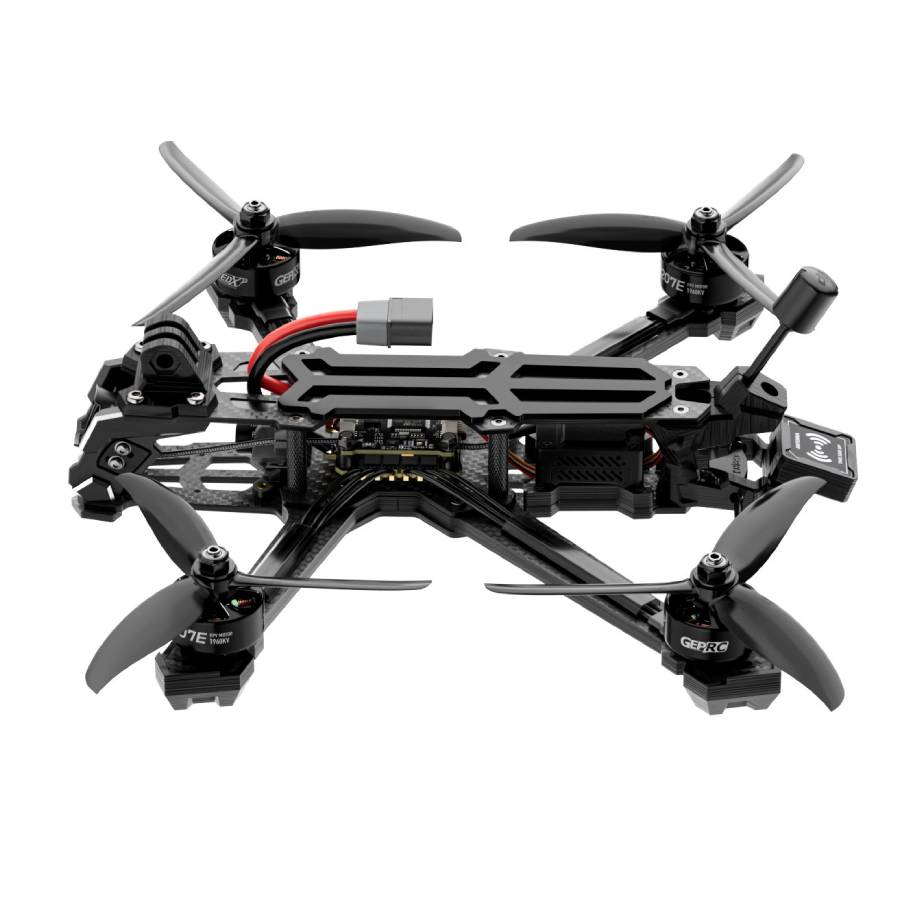

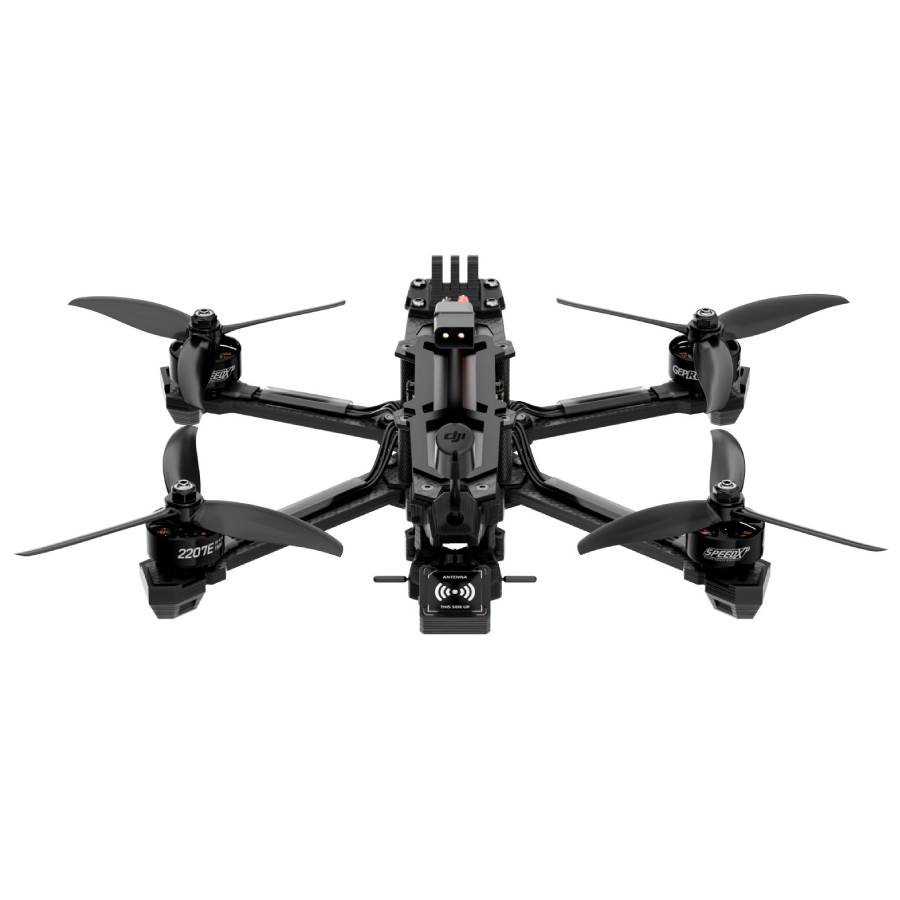

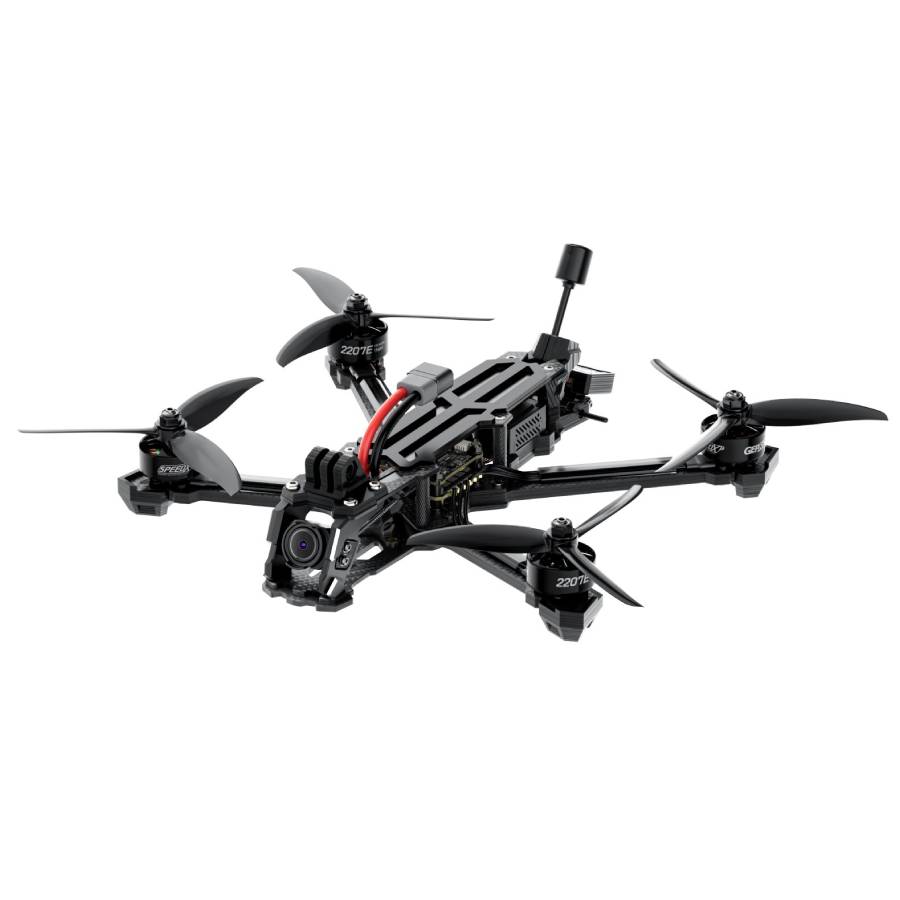

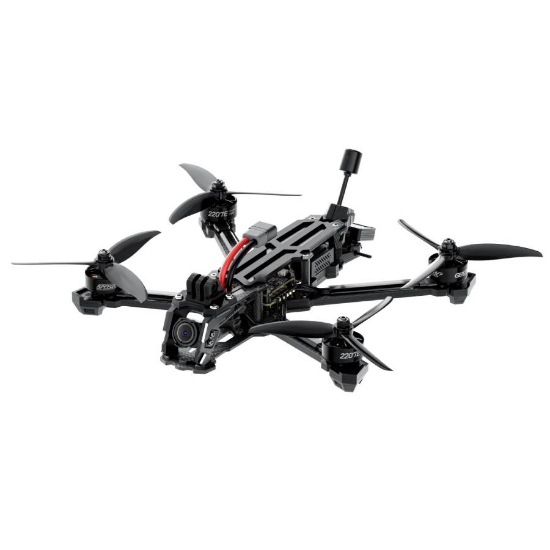

The GEPRC Vapor‑D5 Analogue is a robust and agile 5-inch freestyle FPV drone built for pilots seeking high performance, resilience, and cinematic potential. Constructed on a dead‑cat layout with a sturdy 5 mm carbon‑fibre frame, it delivers exceptional handling and rigidity. Its advanced electronics, including a GEP‑F722‑HD V2 flight controller and 60 A BLHeli_S ESC, paired with GEPRC SpeedX2 motors and analogue FPV setup, ensure sharp responsiveness and reliable video transmission.
Features:
- Reinforced 5 mm carbon‑fibre arms offer exceptional durability without compromising flight responsiveness.
- Dead‑cat frame layout keeps propellers out of camera view, ideal for cinematic footage.
- CNC‑machined aluminium camera mount with vibration‑damping protects equipment and sharpens visuals.
- Integrated 60 A BLHeli_S ESC ensures consistent power delivery, capable of handling aggressive flight.
- GEO‑SpeedX2 2207E 1960 KV motors deliver a perfect blend of thrust and smooth throttle control.
- Equipped with Caddx H1 camera and 1.6 W GEPRC MATEN analogue VTX for crisp video performance.
- Rear USB port on the flight controller enables easy tuning and firmware updates.
Specification:
- Model: GEPRC Vapor‑D5 Analogue
- Wheelbase: 238 mm
- Arm thickness: 5 mm
- Frame plate thickness: Top/middle 2 mm, bottom 2.5 mm
- Flight controller: GEP‑F722‑HD V2 (STM32F722 + ICM42688‑P gyro + barometer)
- ESC: Taker 60 A BLHeli_S 4‑in‑1
- Motors: SpeedX2 2207E 1960 KV
- Propellers: Gemfan 5136
- FPV camera: Caddx H1 analogue camera
- Video transmitter: GEPRC MATEN 1.6 W analogue VTX with Momoda2 antenna
- Power connector: XT60
- Recommended battery: 6 S LiPo (1300–1500 mAh)
- Approx. flight time: 13–17 minutes per charge
Available versions (See below for purchase options):
- GEPRC Vapor‑D5 Analogue GPS PNP
- GEPRC Vapor‑D5 Analogue GPS ELRS
Included:
- 1x GEPRC Vapor‑D5 Analogue GPS
- Accessories
