Overview:
The Radiomaster TX15 Max is driven by the high-performance STM32 H7 chip; it’s the powerhouse behind Radiomaster's fastest radio ever. Enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.
The TX15 MAX features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you're flying daily or operating in challenging RF environments, the TX15 MAX is built to perform. A smart balance battery circuit maximises flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.
Enjoy sharp visuals on the 3.5 inch IPS touchscreen with 262k colour resolution and 600 nits brightness, even in sunlight. The TX15 MAX boasts AG02 CNC aluminium gimbals in anodised red, black or gold, upgraded aluminium buttons; a scroll wheel; and a carbon-fibre-look case for a premium feel. Integrated RGB LED lights around the gimbals allow customisable LUA-controlled lighting. It includes advanced cooling, a USB-C charging port, SIM connectivity, firmware updates, and fast memory access for top-tier performance. Additional switches have been included so you can swap out the shoulder buttons with either a momentary or two-position latching switch - perfect if you prefer a traditional switch over a button.
Features:
- Fast Performance: The STM32 H7 chip powers our fastest radio ever.
- Touchscreen Display: 3.5 inch, 480 x 320 IPS touchscreen with vivid colours and sharp detail.
- Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
- Built-in ELRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
- Smart Balance Battery Circuit: Maximises battery efficiency and longevity for more flight time.
- Powerful, Cooling System: Low-noise, high-output fans and an aluminium heat sink keep your radio cool even on the hottest days.

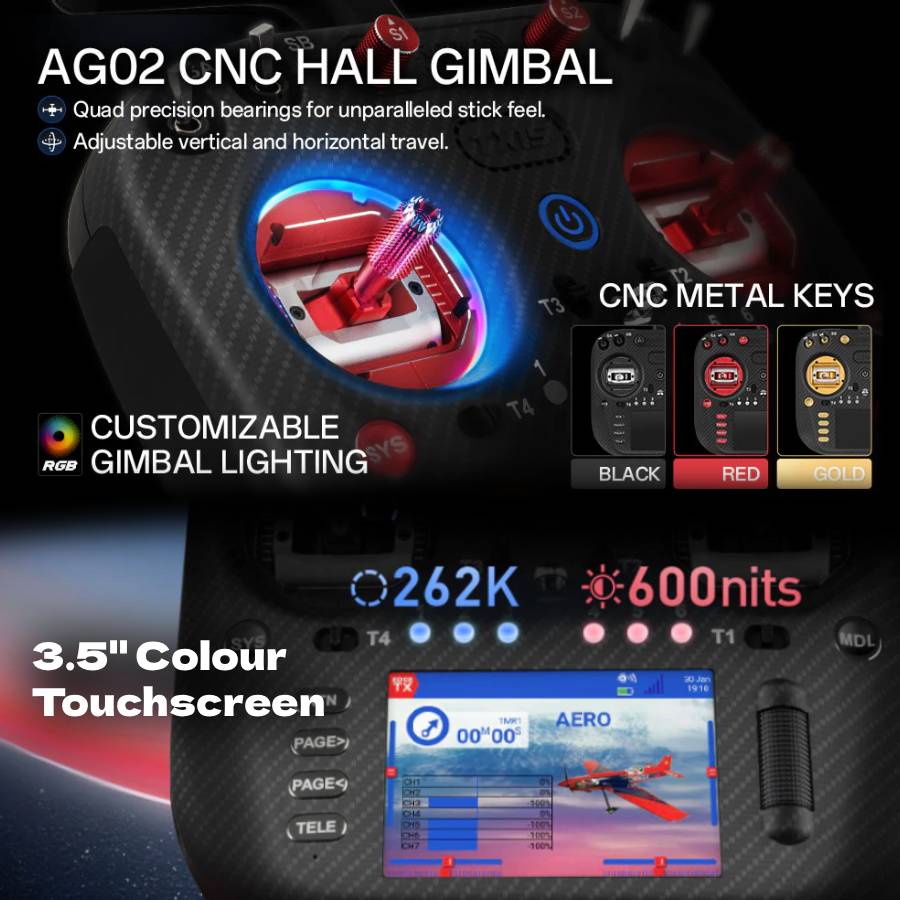

- AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
- Customisable RGB Gimbal Light Ring: Integrated RGB LED lights around the gimbals allow customisable LUA-controlled lighting.
- Foldable Antenna: Compact and easy to store without compromising signal strength.
- Built-in Microphone: For future expansion.

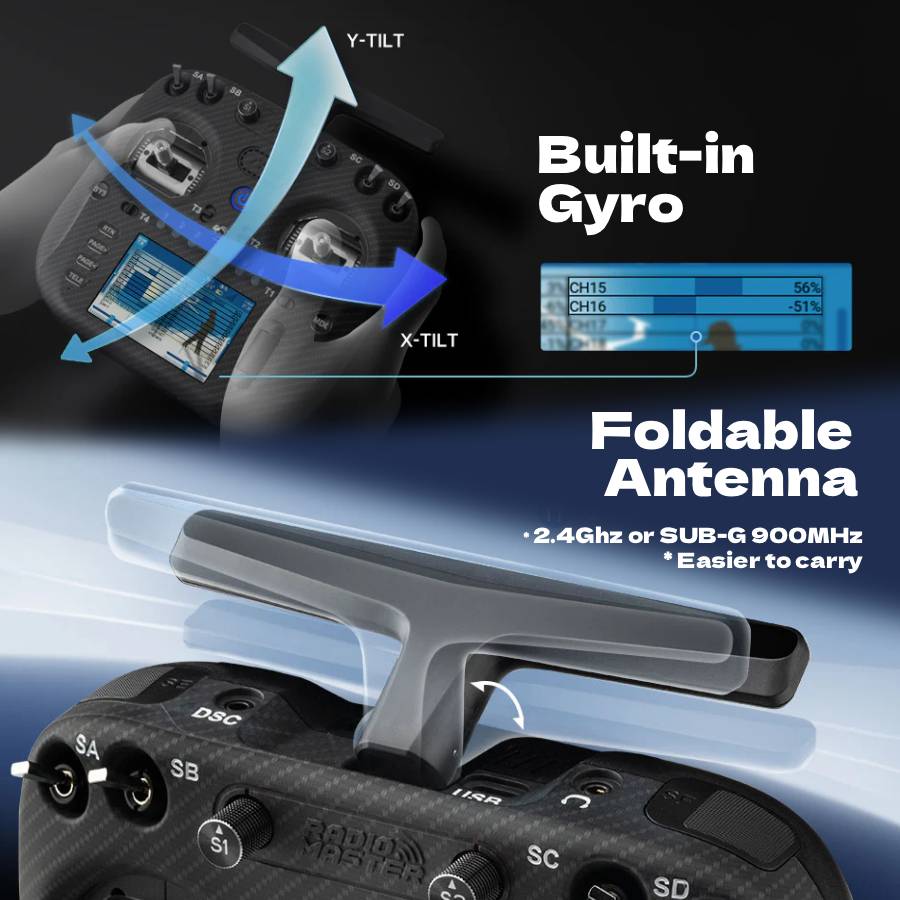

- Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
- Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
- Interchangeable Shoulder Switches: Customise your controls to match your flying style.
Specification:
- Model: TX15 Max Radio Controller
- Size: 178*168*81mm
- Weight: 672g (without battery)
- Frequency: 2.400GHz OR Sub-G 900MHz
- Internal RF: ELRS 2.4GHz / Sub-G 900MHz
- Supported Protocols: Express-LRS
- Cooling Fan: Yes
- Transmitter Module: Built-in ELRS
- Built-in Flash Size: 4GB
- Built-in Microphone: Yes (future expansion)
- Built-in Gyro: Yes (ICM-42607-C)
- MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
- Antenna Gain: 2dB (transmit power adjustable)
- Current: 875mA at max power output
- Voltage Range: 6.6 - 8.4V DC
- Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
- Module Firmware: ExpressLRS
- Channels: Max 16 channels (receiver dependent)
- Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
- Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)

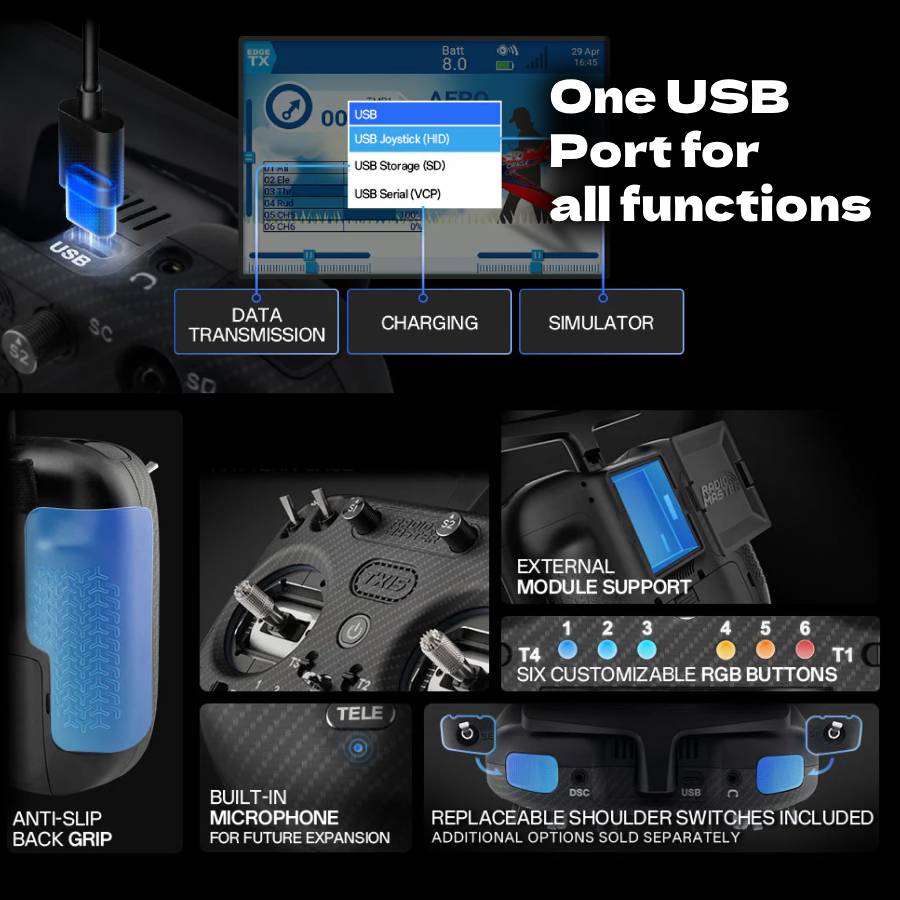

- Connectivity: USB-C
- Gimbals: AG02 CNC Hall sensor gimbals
- Gimbal Sticks: M4
- Upgrade Method: USB-C
- Module Bay: JR-compatible module bay for additional modules

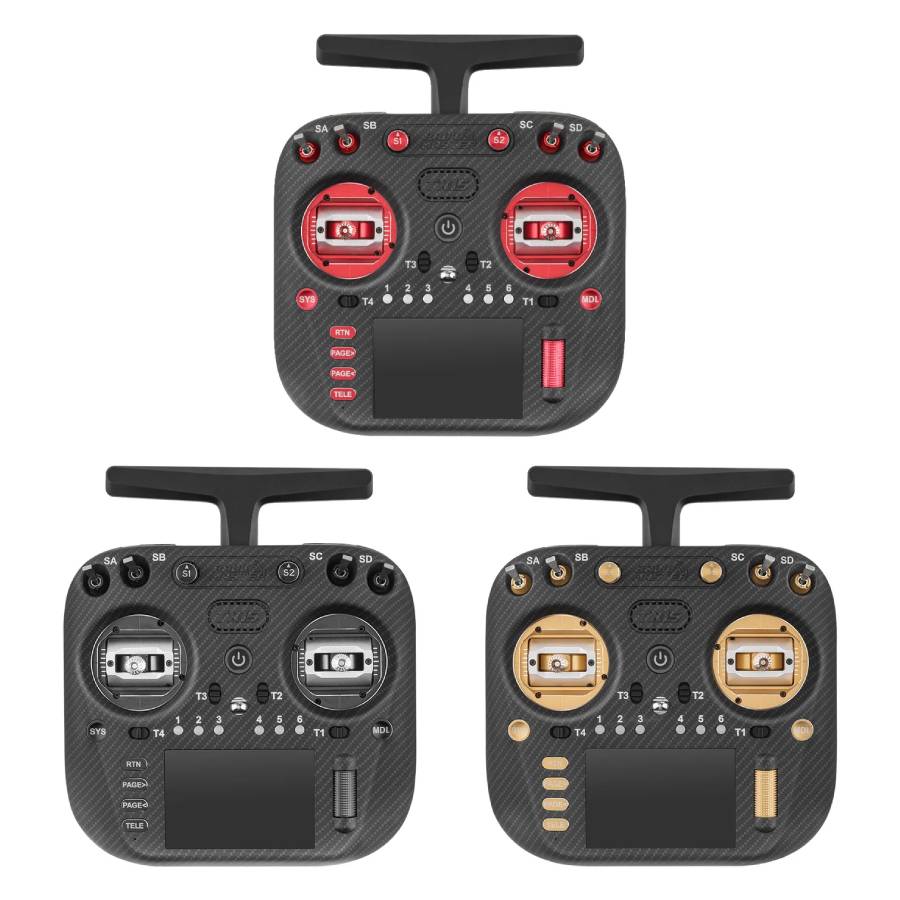

Available Versions (See below for purchase options):
- Radiomaster TX15 Max Transmitter in Black & Carbon Effect

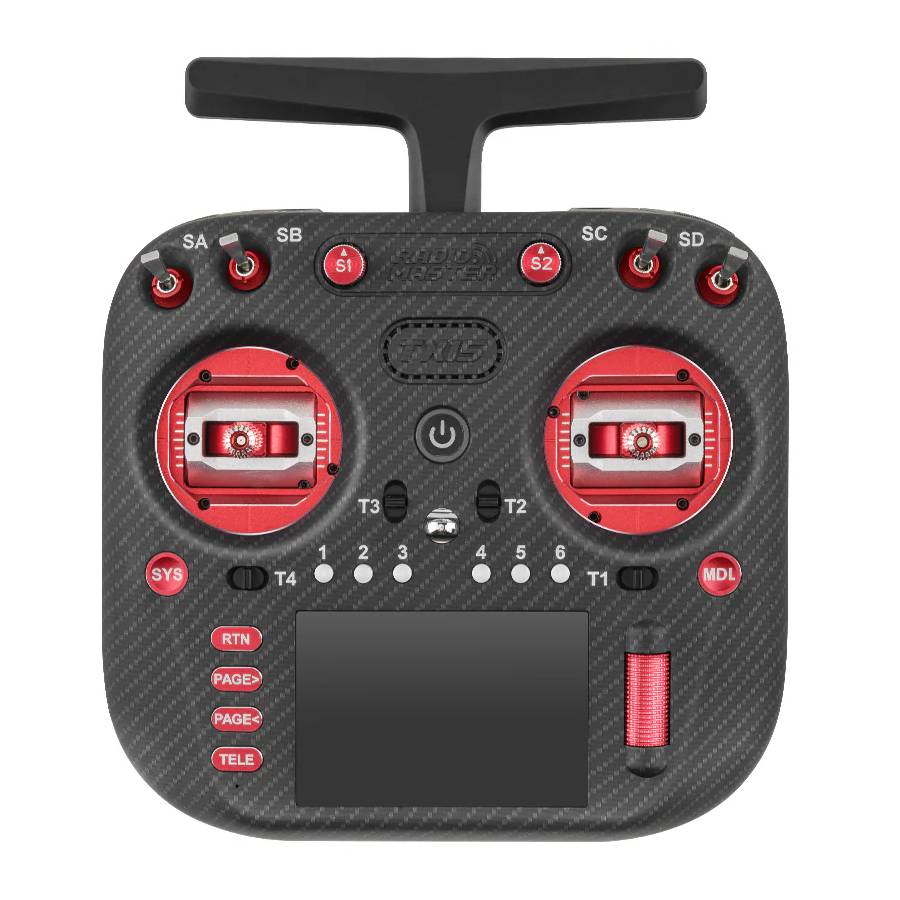

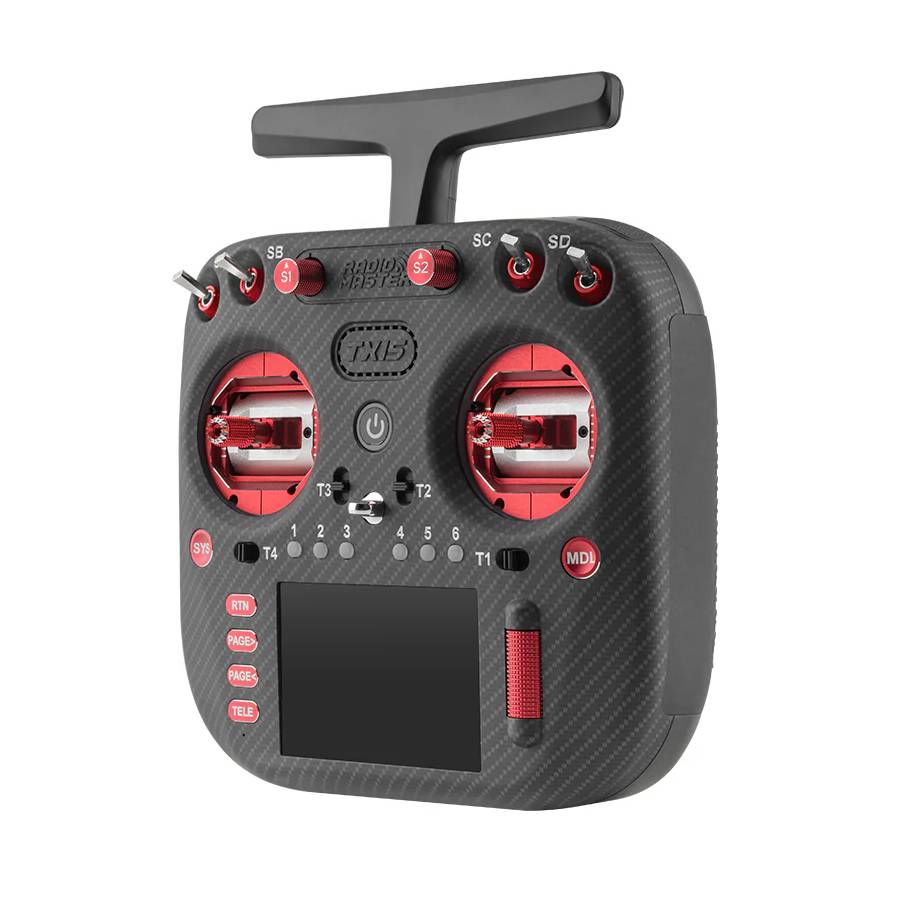

- Radiomaster TX15 Max Transmitter in Red & Carbon Effect

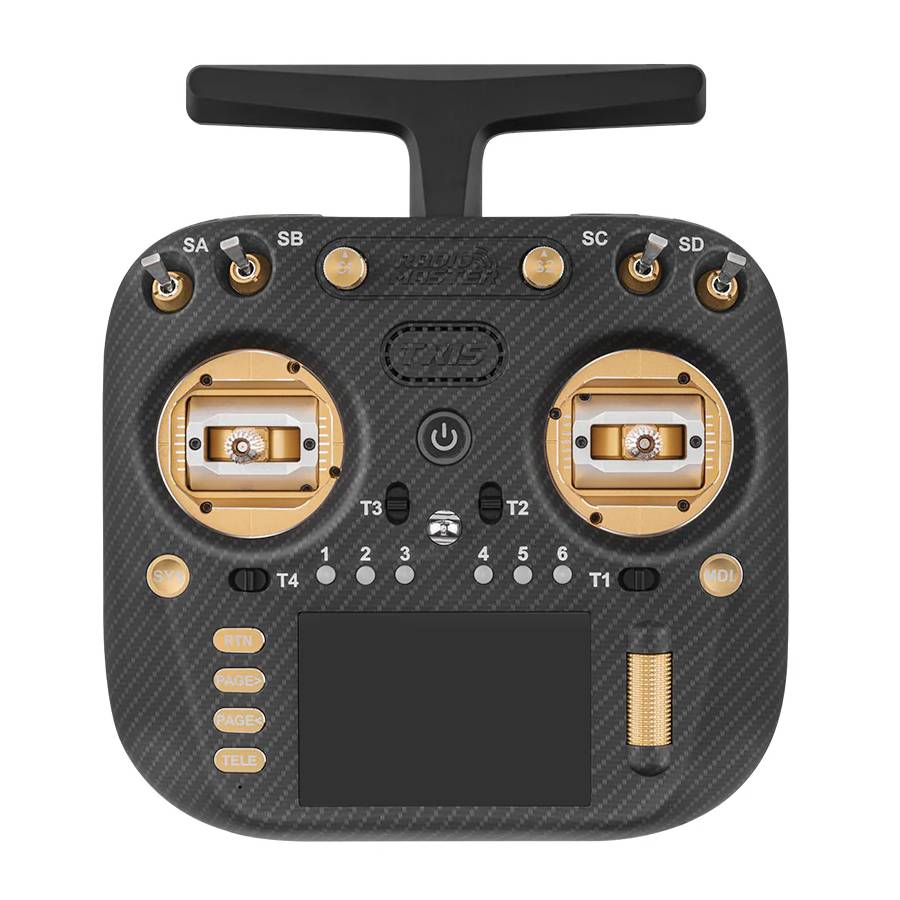

- Radiomaster TX15 Max Transmitter in Gold & Carbon Effect
Included:
- 1x Radiomaster TX15 Max Transmitter
- 1x Zip-up Storage Case
- Accessories
